Toyota COROLLA 发动机盖和前翼子板 — Figure 5302

Toyota COROLLA EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 33 PNC and OE references.

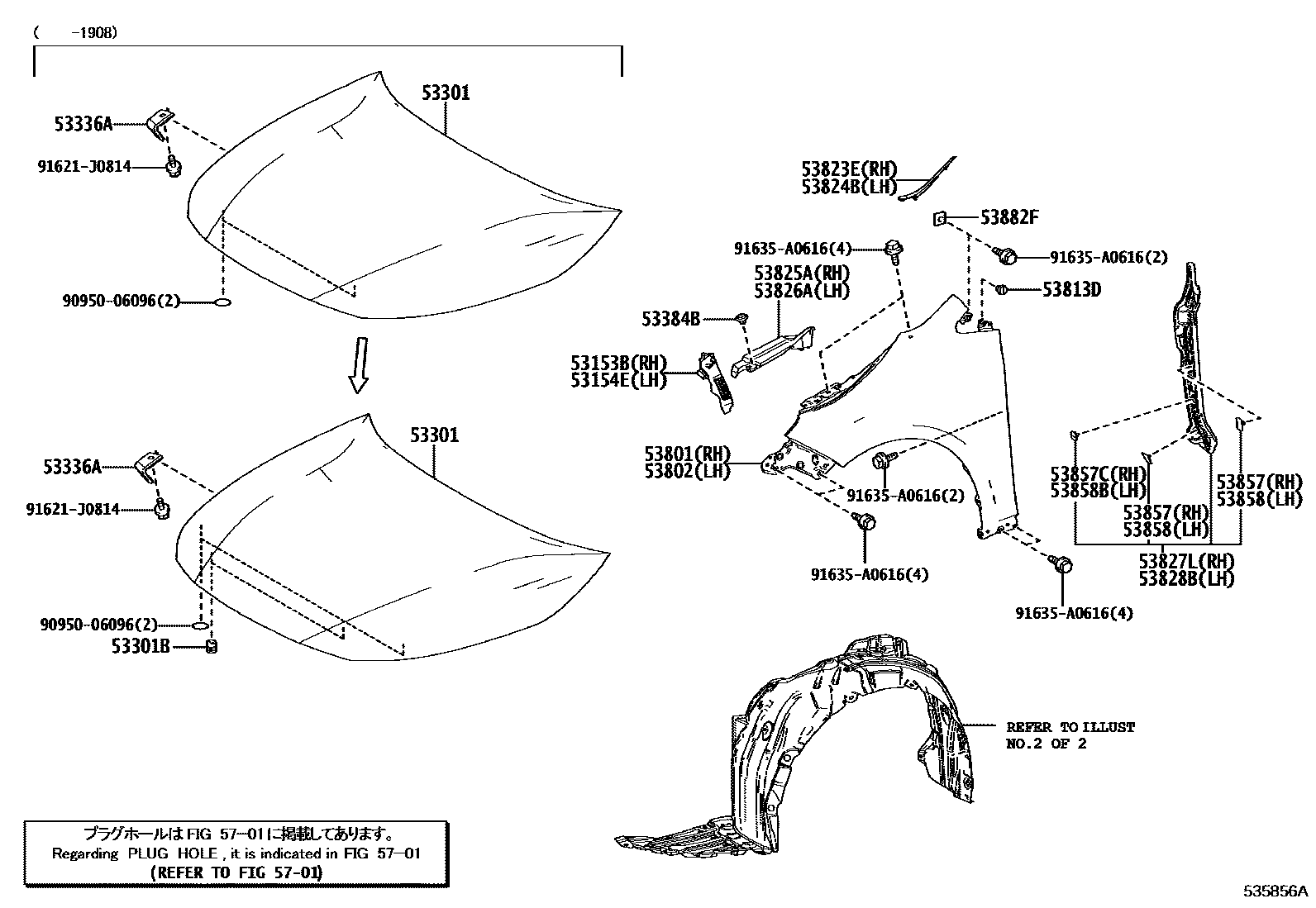

Toyota COROLLA 发动机盖和前翼子板 EPC diagram — 535856A
发动机盖和前翼子板 — 535856A (201901 – 999999)

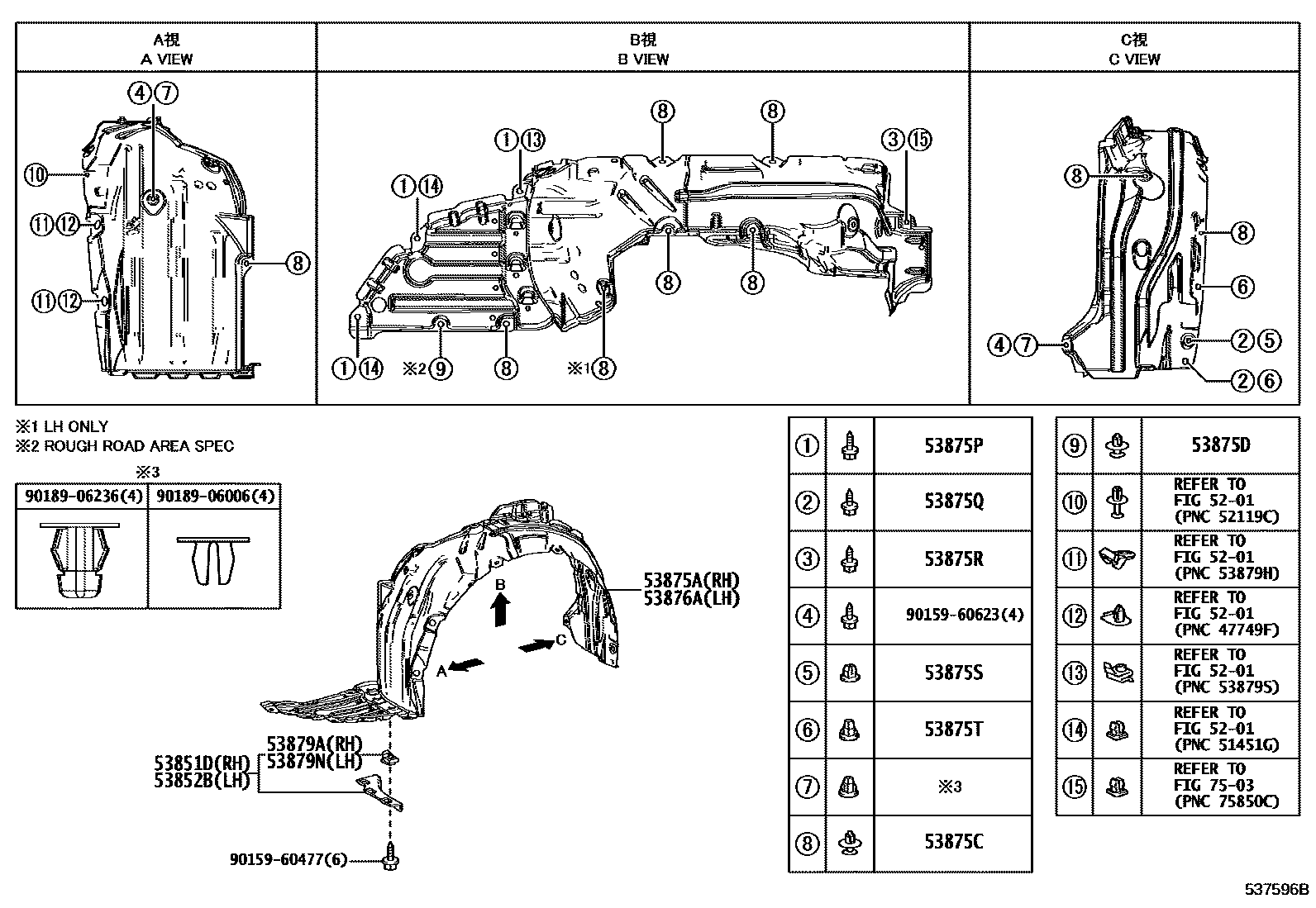

Toyota COROLLA 发动机盖和前翼子板 EPC diagram — 537596B
发动机盖和前翼子板 — 537596B (201901 – 999999)

PNC and OE references

PNCPart nameOE numbers
53153Bfront side deflector53153-12040
53154EGUIDE AERATION LATERALE AVANT NO. 253154-12030
53301Engine cover sub-assembly53301-12B50 · 53301-12B70
53301Bengine cover cushion90541-09117
53336AEngine cover strut bracket53336-12020 · 53336-12030
53384BEngine cover center cushion53384-78010
53801Right front fender sub-assembly53801-12B10
53802Left front fender sub-assembly53802-12B10
53813Dfront fender extension53813-48011
53823ENo. 2 right front side panel protector53823-12060
53824BNo. 2 left front side panel protector53824-12050
53825ARight front fender protection piece53825-12100
53826AProtection piece on left front fender53826-12080
53827LRight front fender side panel protector53827-12150
53828BLeft front fender side panel protector53828-12150
53851DRight front fender outer panel pad53851-47061
53852BLeft front fender exterior panel pad53852-47041
53857Right front fender external panel fixing piece53857-12010
53857CRETENUE, EXTENSION D'OUVERTURE DE ROUE AVANT, DR53857-47011
53858Left front fender external panel fixing piece53857-12010
53858BLeft front fender external panel fixing piece53857-47011
53875ARight front fender lining53805-12100 · 53805-12140
53875CFront fender lining clip90467-07214
53875DAGRAFE DE FIXATION DOUBLURE AILE AVANT, NO.290467-07214
53875PVIS, NO.190159-60477
53875QVIS, NO.290159-60623
53875RVIS, NO.390159-60623
53875SOEILLET, NO.190189-06006
53875TOEILLET, NO.290189-06145
53876ALeft front fender lining53806-12100 · 53806-12140
53879AFront fender lining fixing parts53879-47020
53879NLeft front fender lining fixing53879-47020
53882Ffront fender seal53882-33060
