Toyota COROLLA Rear Spring & Shock Absorber — Figure 4804

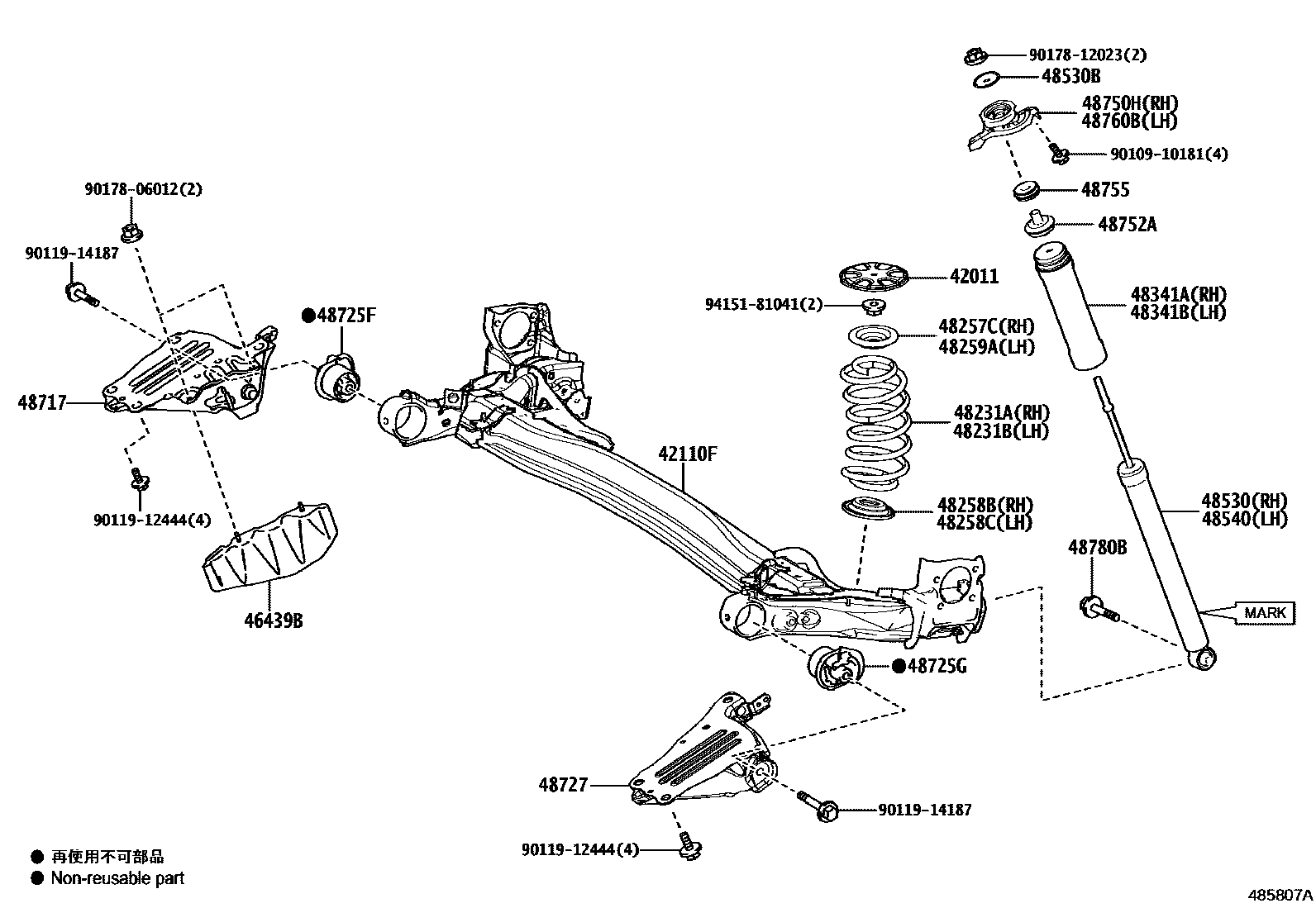

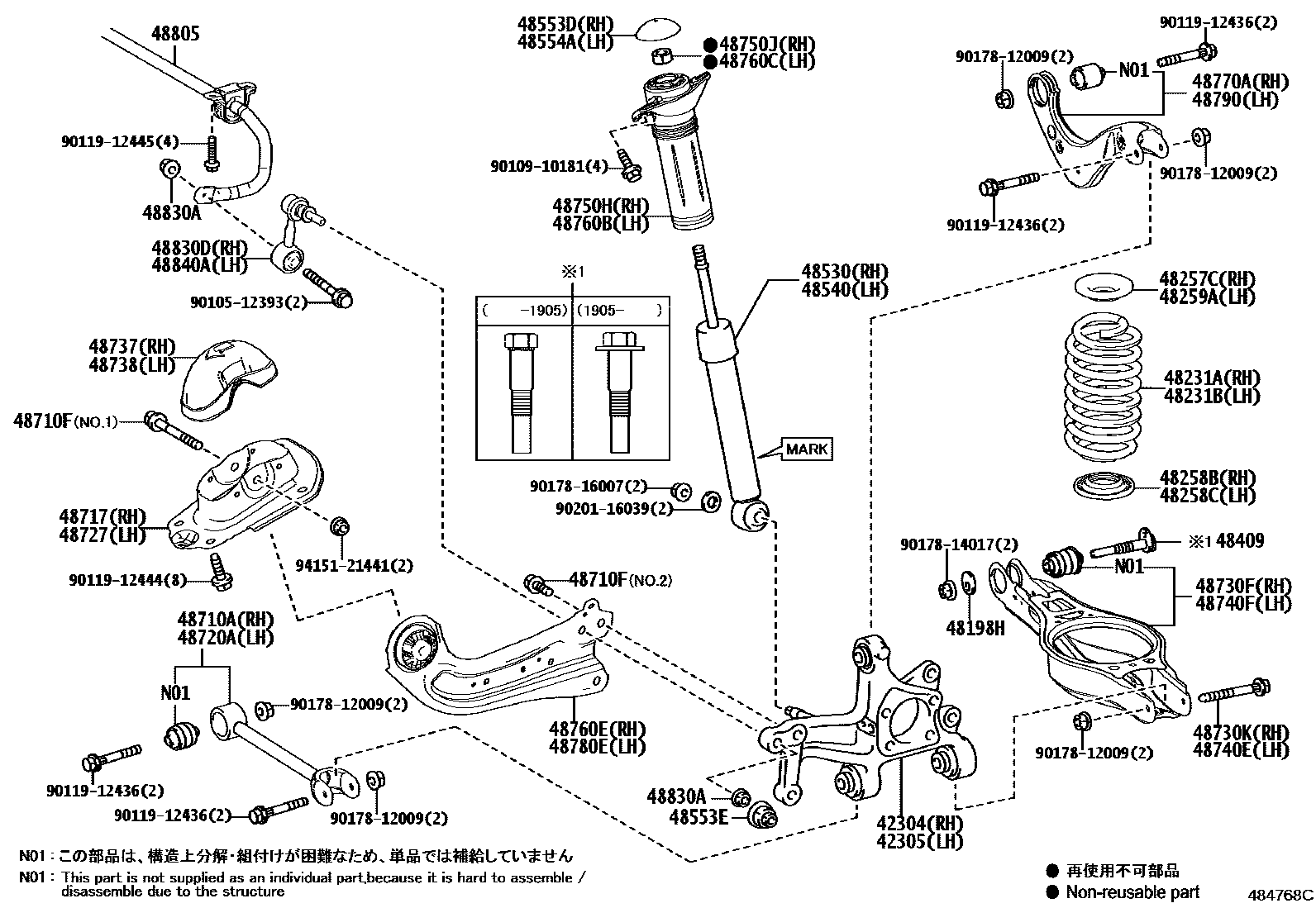

Toyota COROLLA EPC diagram 4804, Rear Spring & Shock Absorber, with 2 images and 49 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42011 | SOUS-ENS. SIEGE, RESSORT ARRIERE | 42011-16010 |
| 42110F | rear axle assembly | 42101-12200 |
| 42304 | Rear axle right bracket sub-assembly | 42304-47050 |
| 42305 | Rear axle left bracket sub-assembly | 42305-47050 |
| 46439B | ISOLANT THERMIQUE DE CABLE DE FREIN DE STATIONNEMENT | 46439-16040 |
| 48198H | No. 2 camber angle adjustment cam | 48198-47010 |
| 48231A | Right rear coil spring | 48231-12E40 · 48231-12E50 · 48231-12E60 · 48231-12K60 · 48231-12K70 · 48231-12K80 · 48231-12L20 |
| 48231B | Left rear coil spring | 48231-12E40 · 48231-12E50 · 48231-12E60 · 48231-12K60 · 48231-12K70 · 48231-12K80 · 48231-12L20 |
| 48257C | Right rear coil spring upper vibration isolation pad | 48257-47020 |
| 48258B | Right rear coil spring lower vibration isolation pad | 48258-16030 · 48258-47010 |
| 48258C | Left rear coil spring lower vibration isolation pad | 48258-16030 · 48258-47010 |
| 48259A | Left rear coil spring upper vibration isolation pad | 48257-47020 |
| 48341A | No. 1 right rear spring buffer block | 48341-16110 |
| 48341B | No. 1 left rear spring buffer block | 48341-16110 |
| 48409 | Rear suspension toe adjustment cam sub-assembly | 48409-47011 |
| 48530 | Right rear shock absorber assembly | 48530-12P50 · 48530-80881 · 48530-80882 · 48530-80883 · 48530-80A04 · 48530-80A94 · 48530-80A95 · 48530-80A96 · 48530-80B21 · 48530-80B22 |
| 48530B | Rear shock absorber No. 1 cushion washer | 90948-03021 |
| 48540 | Left rear shock absorber assembly | 48530-12P50 · 48530-80881 · 48530-80882 · 48530-80883 · 48530-80A04 · 48530-80A94 · 48530-80A95 · 48530-80A96 · 48530-80B21 · 48530-80B22 |
| 48553D | Right rear shock absorber cover | 48553-47010 |
| 48553E | CAPUCHON | 48553-52030 |
| 48554A | Left rear shock absorber cover | 48553-47010 |
| 48710A | Right rear suspension No. 1 arm assembly | 48710-47010 |
| 48710F | Bolt (for rear trailing arm) | 90105-14195 · 90105-14197 |
| 48717 | Right rear suspension arm bracket | 48717-16011 · 48717-47020 |
| 48720A | Left rear suspension No. 1 arm assembly | 48710-47010 |
| 48725F | Right rear axle bracket bushing | 48725-16170 |
| 48725G | Left rear axle bracket bushing | 48725-16170 |
| 48727 | Left rear suspension arm bracket | 48727-16010 · 48727-47020 |
| 48730F | Right rear suspension No. 2 arm assembly | 48730-47010 |
| 48730K | Bolt (for right rear suspension arm No. 2) | 90119-12426 |
| 48737 | Right rear suspension arm cover | 48753-47010 |
| 48738 | Left rear suspension arm cover | 48753-47020 |
| 48740E | Bolt (for left rear suspension arm No. 2) | 90119-12426 |
| 48740F | Left rear suspension No. 2 arm assembly | 48730-47010 |
| 48750H | Right rear suspension support assembly | 48750-12050 · 48750-16130 · 48750-76010 |
| 48750J | Nut (for rear mount to right rear shock absorber) | 94130-61200 |
| 48752A | Rear suspension mount block | 48752-16020 |
| 48755 | rear suspension mount | 48755-16010 |
| 48760B | Left rear suspension support assembly | 48750-12050 · 48750-76010 · 48760-16010 |
| 48760C | Nut (for rear mount to left rear shock absorber) | 94130-61200 |
| 48760E | Right rear trailing arm assembly | 48760-47010 |
| 48770A | Right rear upper control arm assembly | 48770-47010 |
| 48780B | Bolts (for support rods) | 90119-10A10 · 91674-N1065 |
| 48780E | Left rear trailing arm assembly | 48780-47010 |
| 48790 | Left rear upper control arm assembly | 48790-47010 |
| 48805 | Rear stabilizer bar sub-assembly | 48805-12110 · 48805-12120 · 48805-12140 |
| 48830A | Nut (for rear stabilizer link) | 94151-21241 |
| 48830D | Right rear stabilizer bar link assembly | 48830-16020 · 48830-47010 |
| 48840A | Left rear stabilizer bar link assembly | 48830-16020 · 48830-47010 |
