Toyota COROLLA 后盘式制动器卡钳和防尘罩 — Figure 4707

Toyota COROLLA EPC diagram 4707, 后盘式制动器卡钳和防尘罩, with 2 images and 24 PNC and OE references.

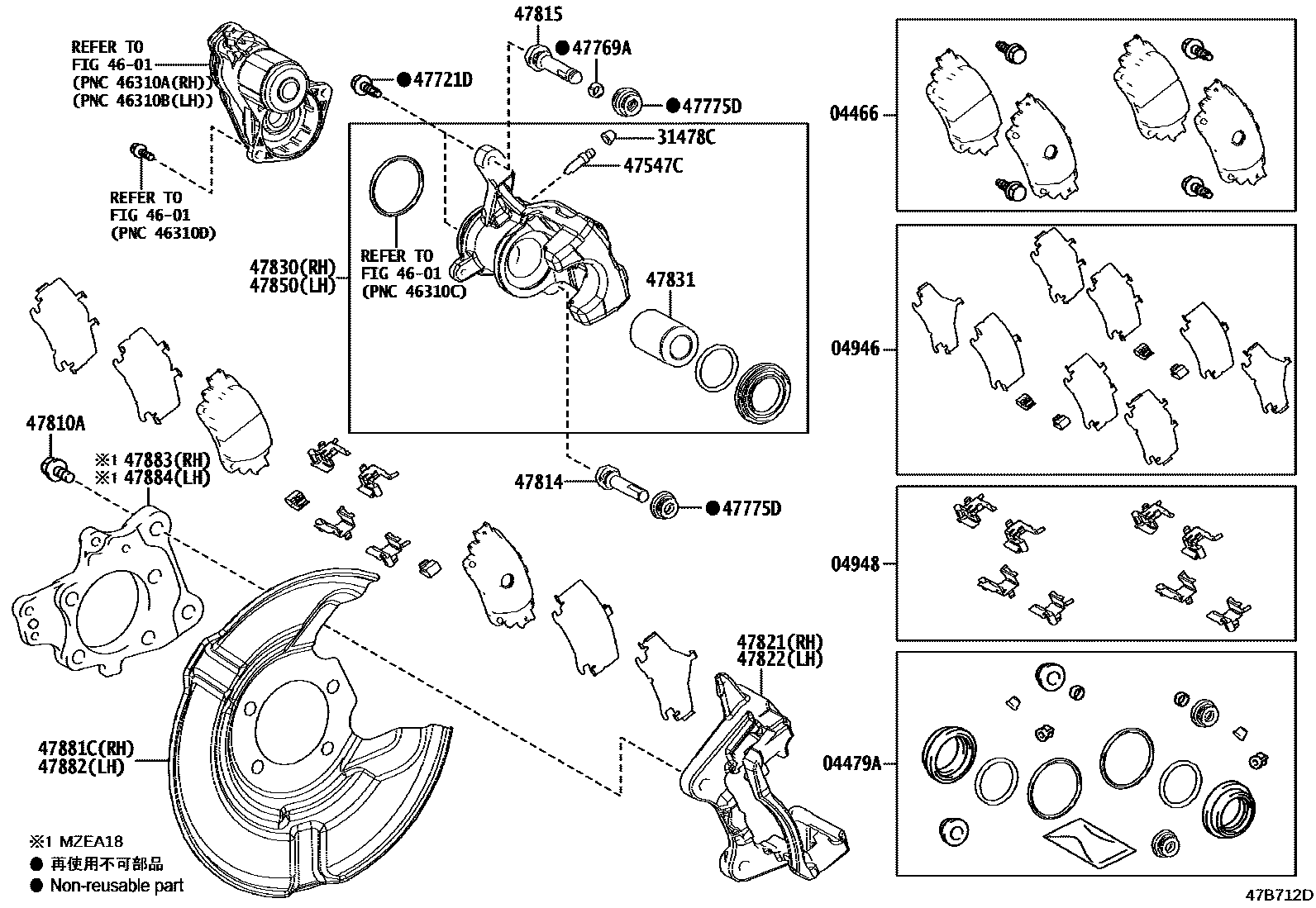

Toyota COROLLA 后盘式制动器卡钳和防尘罩 EPC diagram — 47B712D
后盘式制动器卡钳和防尘罩 — 47B712D (201901 – 999999)

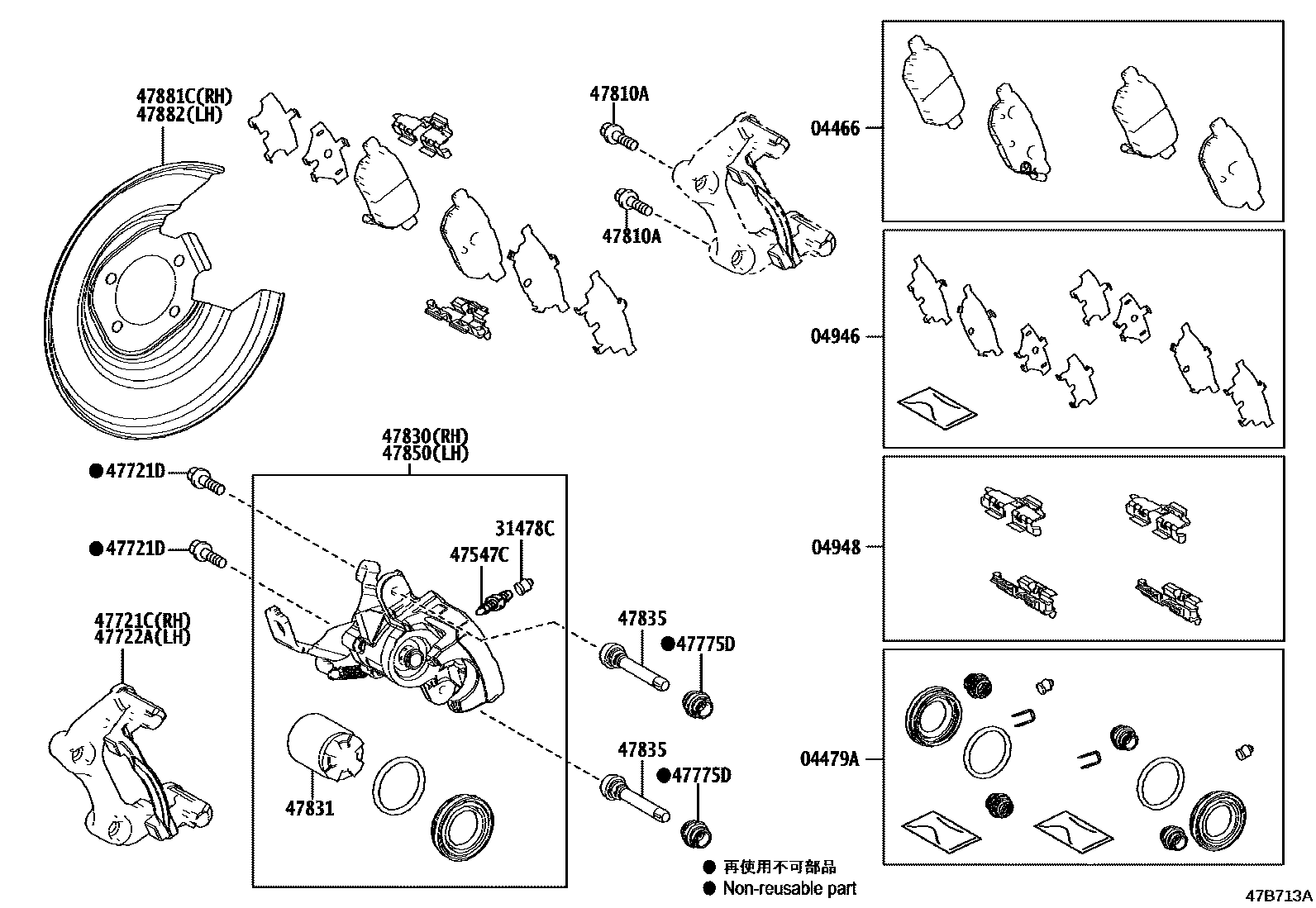

Toyota COROLLA 后盘式制动器卡钳和防尘罩 EPC diagram — 47B713A
后盘式制动器卡钳和防尘罩 — 47B713A (201901 – 999999)

PNC and OE references

PNCPart nameOE numbers
04466Rear disc brake pad assembly04466-12162 · 04466-47110
04479ARear disc brake cylinder assembly04479-10091 · 04479-12260
04946Silencer spacer assembly (for rear disc brake)04946-12130 · 04946-47070
04948Rear disc brake mounting assembly04948-12060 · 04948-12070 · 04948-12071
31478CBleed plug cap (for rear disc brake)31478-30010 · 31478-52010
47547CBleed plug (for rear disc brake)47547-20010 · 47847-52050
47721CRight rear disc brake cylinder retainer47821-47110
47721DBolt (for rear disc brake cylinder retainer)90015-AA102 · 90015-AA603
47722ALeft rear disc brake cylinder retainer47821-47110
47769ANo. 1 brake cylinder sliding sleeve (for rear disc brake)47769-50010
47775DBushing boot (for rear disc brake)47875-12150 · 47875-33270
47810AHexagonal bolt (for rear brake caliper)90105-12174 · 90105-12208
47814No. 1 brake cylinder sliding pin (for rear disc brake)47814-78010
47815No. 2 rear brake cylinder sliding pin (for rear disc brake)47815-78010
47821Right disc brake cylinder retaining bracket47821-12280
47822Left disc brake cylinder retaining bracket47822-12280
47830Right rear disc brake cylinder assembly47830-12280 · 47830-47111
47831rear disc brake piston47831-10030 · 47831-52050
47835Rear disc brake pad guide pin47835-12150
47850Left rear disc brake cylinder assembly47850-12280 · 47850-47111
47881CCACHE, POUSSIERE FREIN A DISQUE, ARRIERE MD47881-12130 · 47881-12140 · 47881-47010
47882CACHE, POUSSIERE FREIN A DISQUE, ARRIERE MG47882-12130 · 47882-12140 · 47882-47010
47883Right rear brake caliper bracket47883-12040
47884Left rear brake caliper bracket47884-12040
