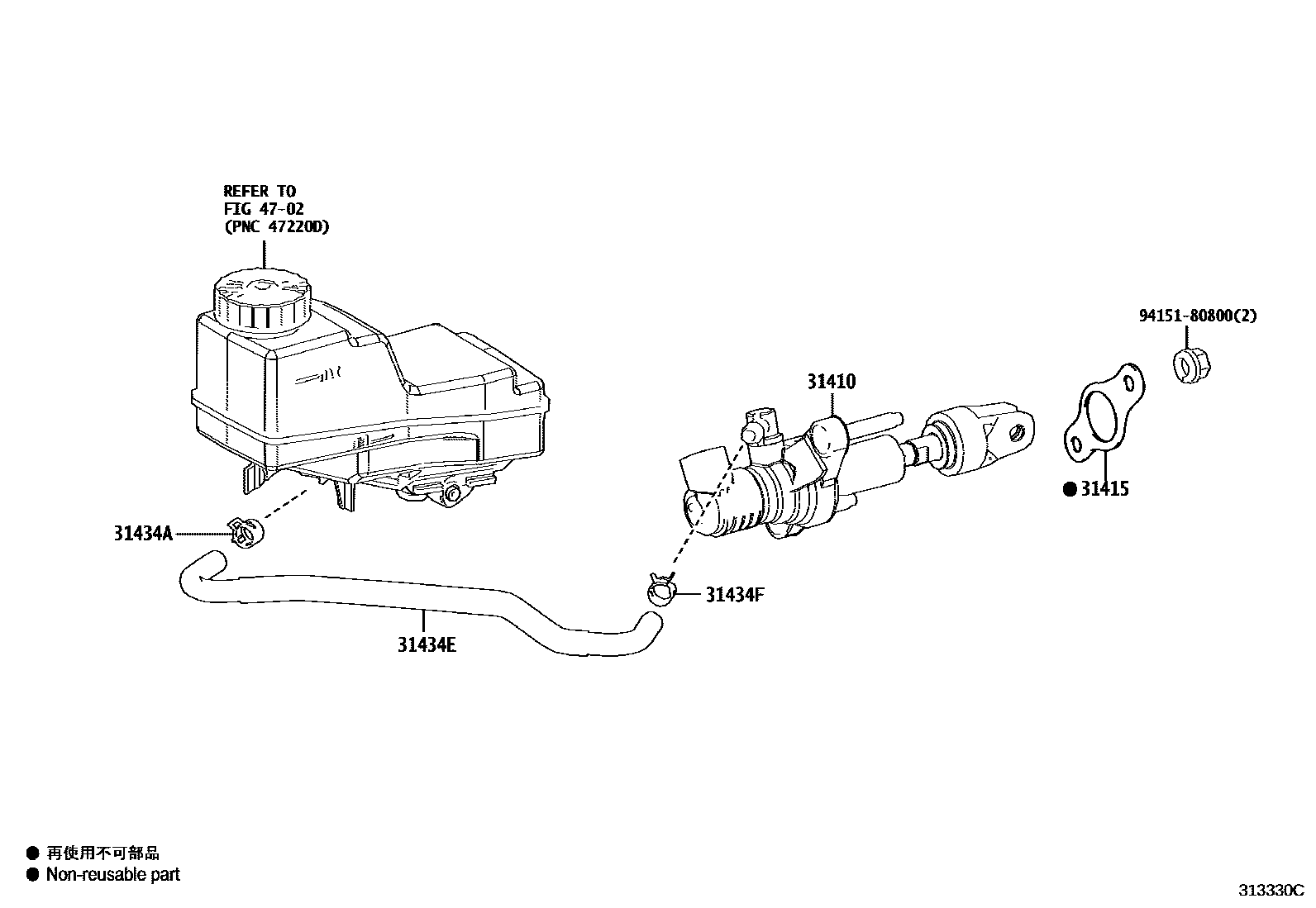

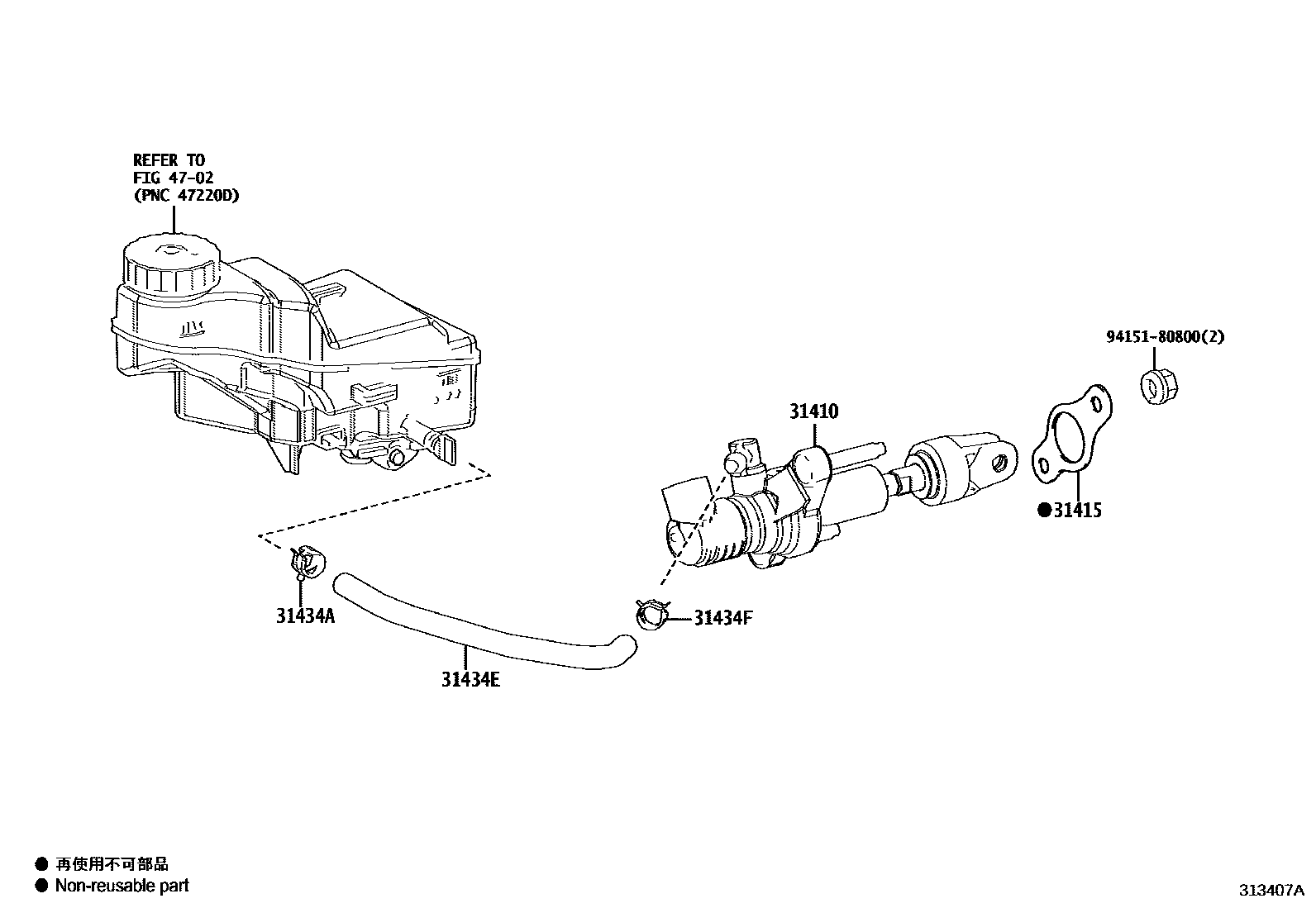

Toyota COROLLA 离合器总泵 — Figure 3103
Toyota COROLLA EPC diagram 3103, 离合器总泵, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31410 | Clutch master cylinder assembly | 31420-12070 · 31420-12090 |
| 31415 | Clutch master cylinder gasket | 31415-60020 |
| 31434A | Clamp (for clutch reservoir connecting pipe) | 96137-41501 |
| 31434E | FLEXIBLE, RESERVOIR EMBRAYAGE, NO.1 | 31434-10030 · 31434-12160 |
| 31434F | CLIP(POUR FLEXIBLE RESERVOIR EMBRAYAGE NO.1) | 96138-41501 |
