Toyota COROLLA Exhaust Pipe — Figure 1702

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 3 images and 8 PNC and OE references.

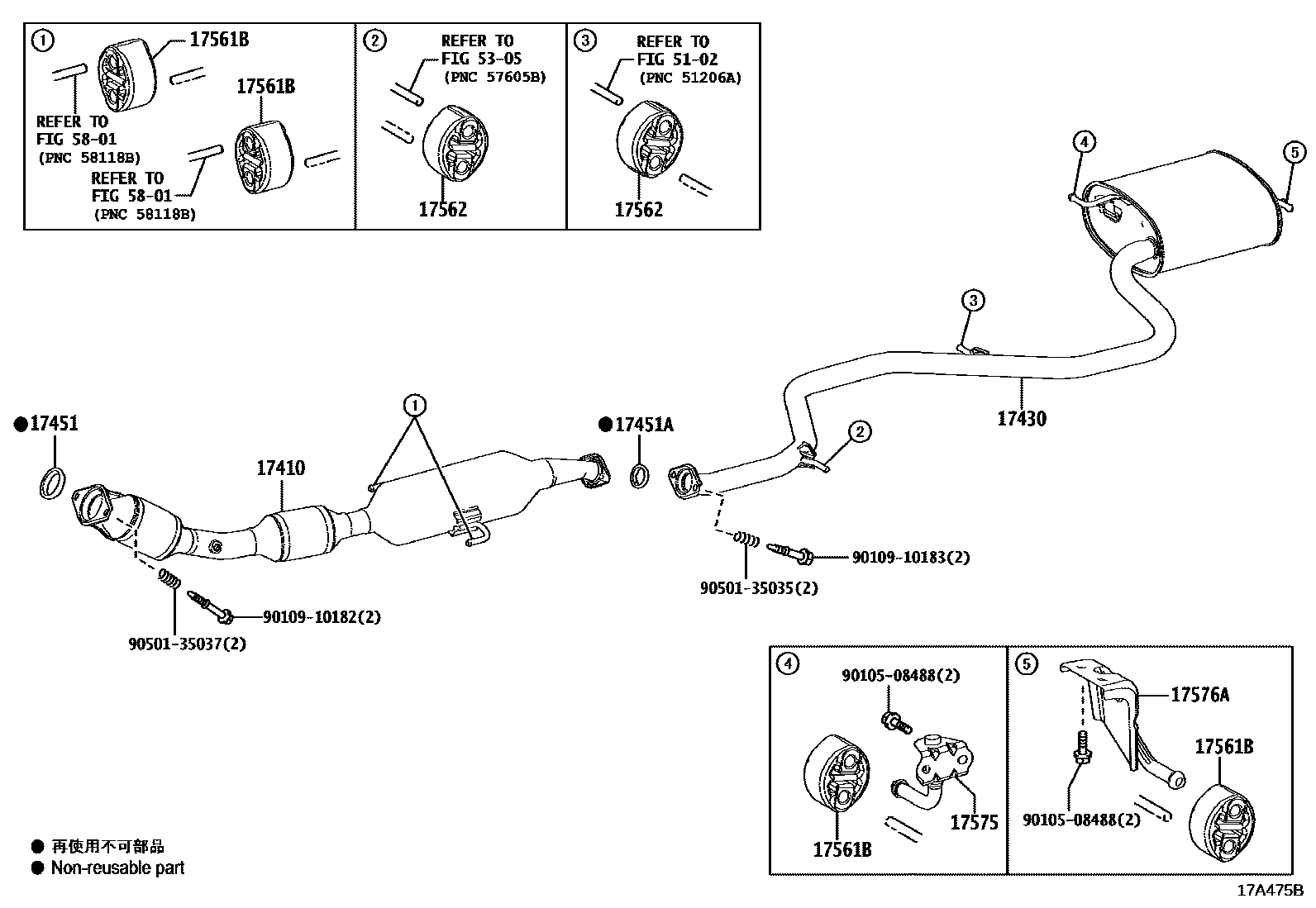

Toyota COROLLA Exhaust Pipe EPC diagram — 17A475B — Exhaust Pipe — 17A475B (201901 – 999999)

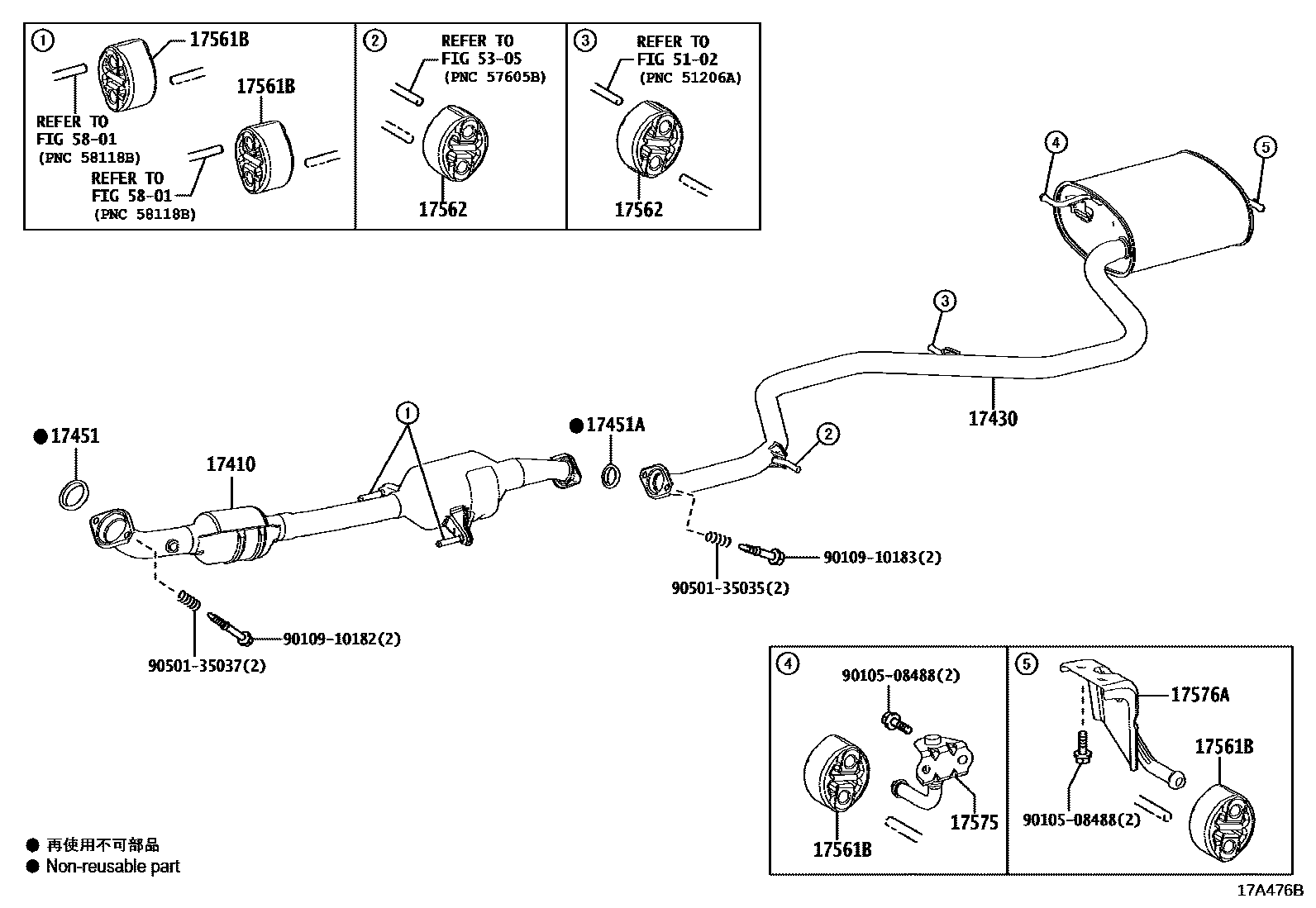

Toyota COROLLA Exhaust Pipe EPC diagram — 17A476B — Exhaust Pipe — 17A476B (201901 – 999999)

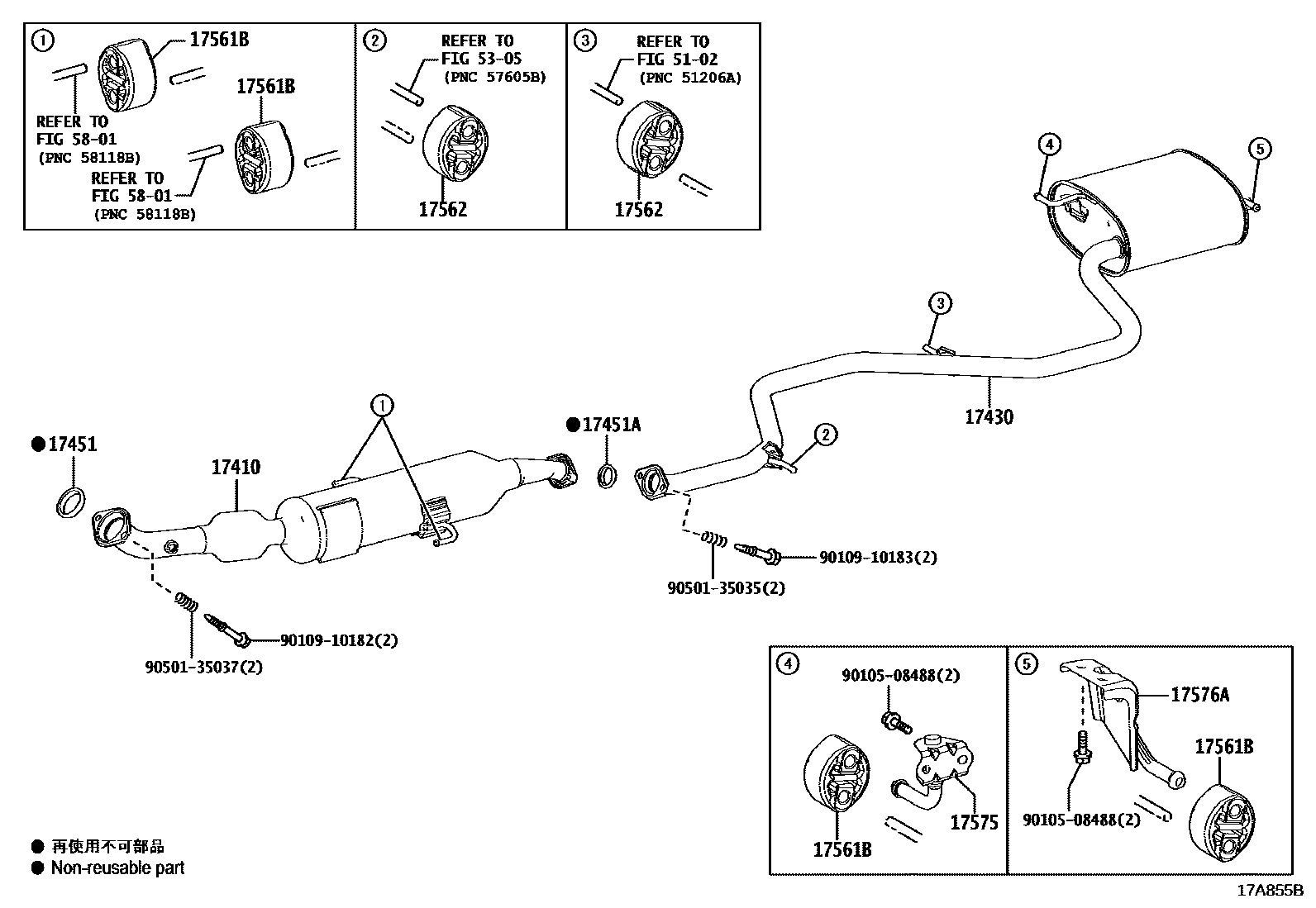

Toyota COROLLA Exhaust Pipe EPC diagram — 17A855B — Exhaust Pipe — 17A855B (201909 – 999999)

PNC and OE references

PNC	Part name	OE numbers
17410	Front exhaust pipe assembly	17410-24310 · 17410-24390 · 17410-24620 · 17410-37B10 · 17410-37B11 · 17410-37C00 · 17410-37E90 · 17410-37F70
17430	Exhaust tailpipe assembly	17430-24340 · 17430-24500 · 17430-37690 · 17430-37700
17451	Exhaust pipe gasket	17451-24010 · 17451-28040 · 17451-28041
17451A	No. 2 exhaust pipe gasket	17451-23042 · 17451-23043 · 17451-24020
17561B	No. 1 exhaust pipe lifting lug	17565-22040
17562	No. 2 exhaust pipe lifting lug	17565-28010
17575	No. 5 exhaust pipe bracket	17575-24070
17576A	No. 6 exhaust pipe bracket	17576-24070
