Toyota COROLLA Short Block Assembly — Figure 1102

Toyota COROLLA EPC diagram 1102, Short Block Assembly, with 1 images and 1 PNC and OE references.

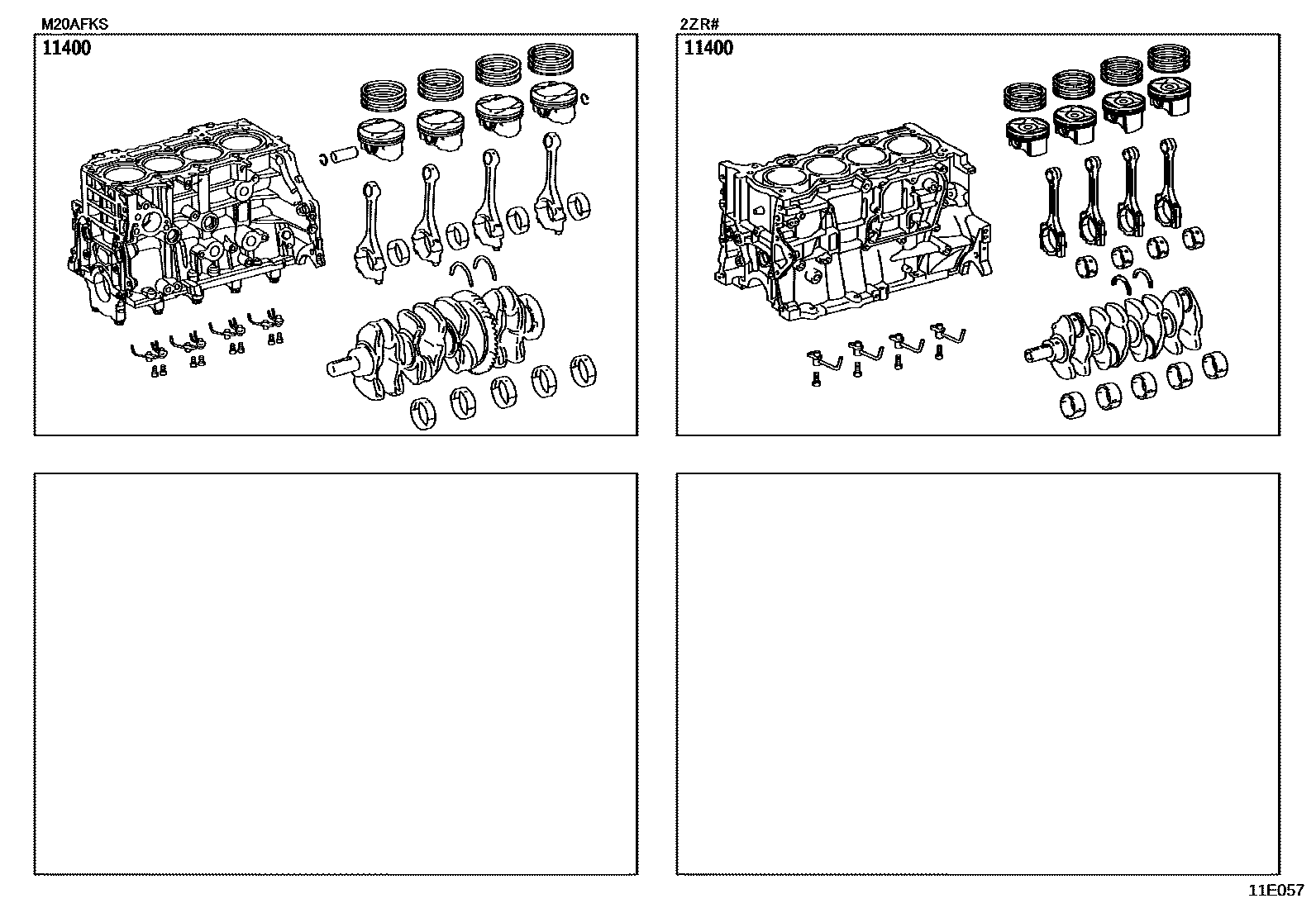

Toyota COROLLA Short Block Assembly EPC diagram — 11E057
Short Block Assembly — 11E057 (201901 – 999999)

PNC and OE references

PNCPart nameOE numbers
11400Short Block Assembly11400-24030 · 11400-24040 · 11400-37290 · 11400-37310 · 11400-37340 · 11400-37360
