Toyota COROLLA Standard Tools — Figure 0901

Toyota COROLLA EPC diagram 0901, Standard Tools, with 2 images and 6 PNC and OE references.

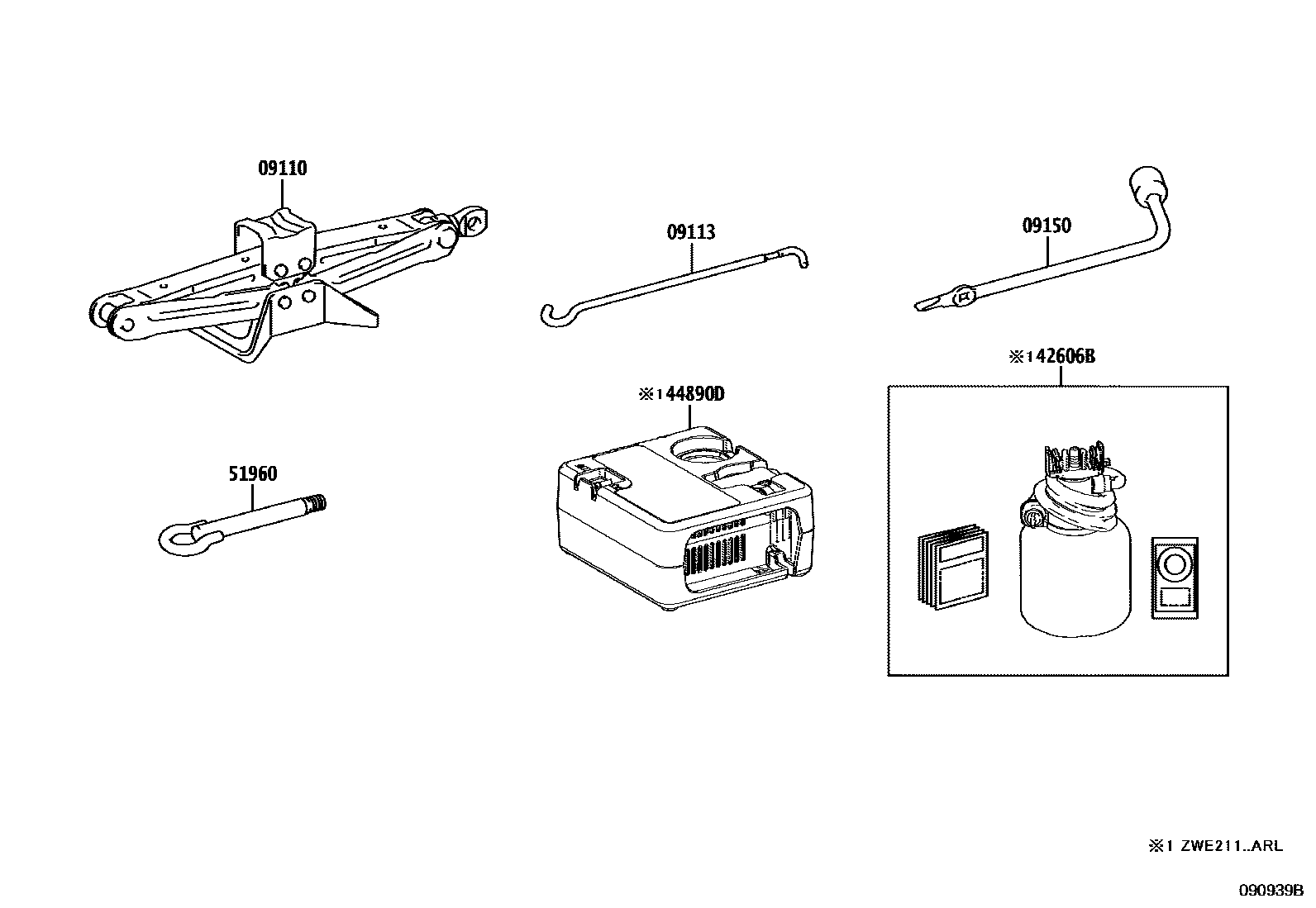

Toyota COROLLA Standard Tools EPC diagram — 090939B
Standard Tools — 090939B (201901 – 202209)

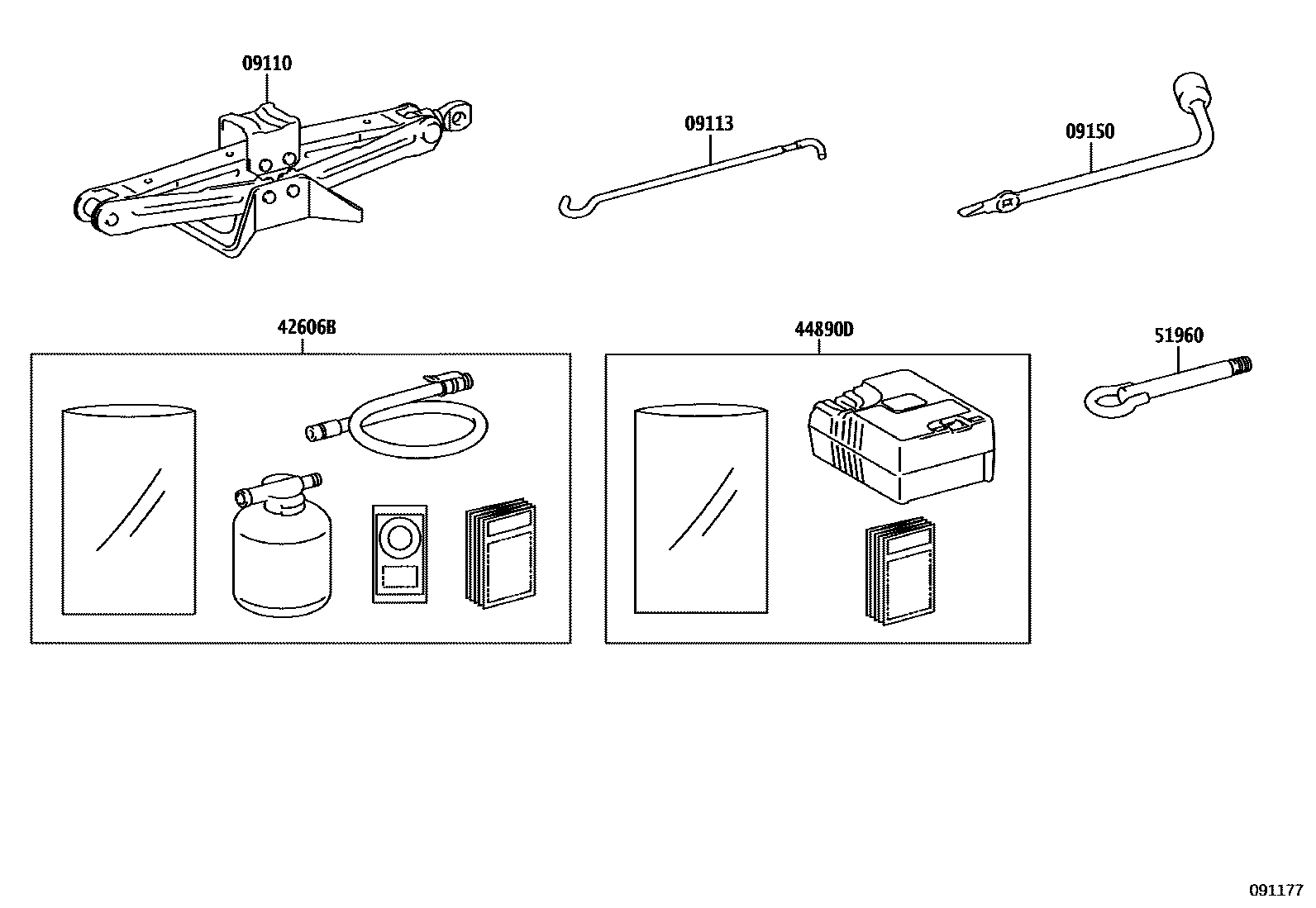

Toyota COROLLA Standard Tools EPC diagram — 091177
Standard Tools — 091177 (202209 – 999999)

PNC and OE references

PNCPart nameOE numbers
09110Jack Assembly09110-12120 · 09111-47050 · 09111-47051
09113Jack Handle09113-42030
09150Wheel Nut Wrench09150-42010
42606BTubeless tire repair components42606-42080 · 42606-47130
44890DAir Compressor Assembly44890-42050 · 44890-47070
51960Front Towing Hook Assembly51960-12110
