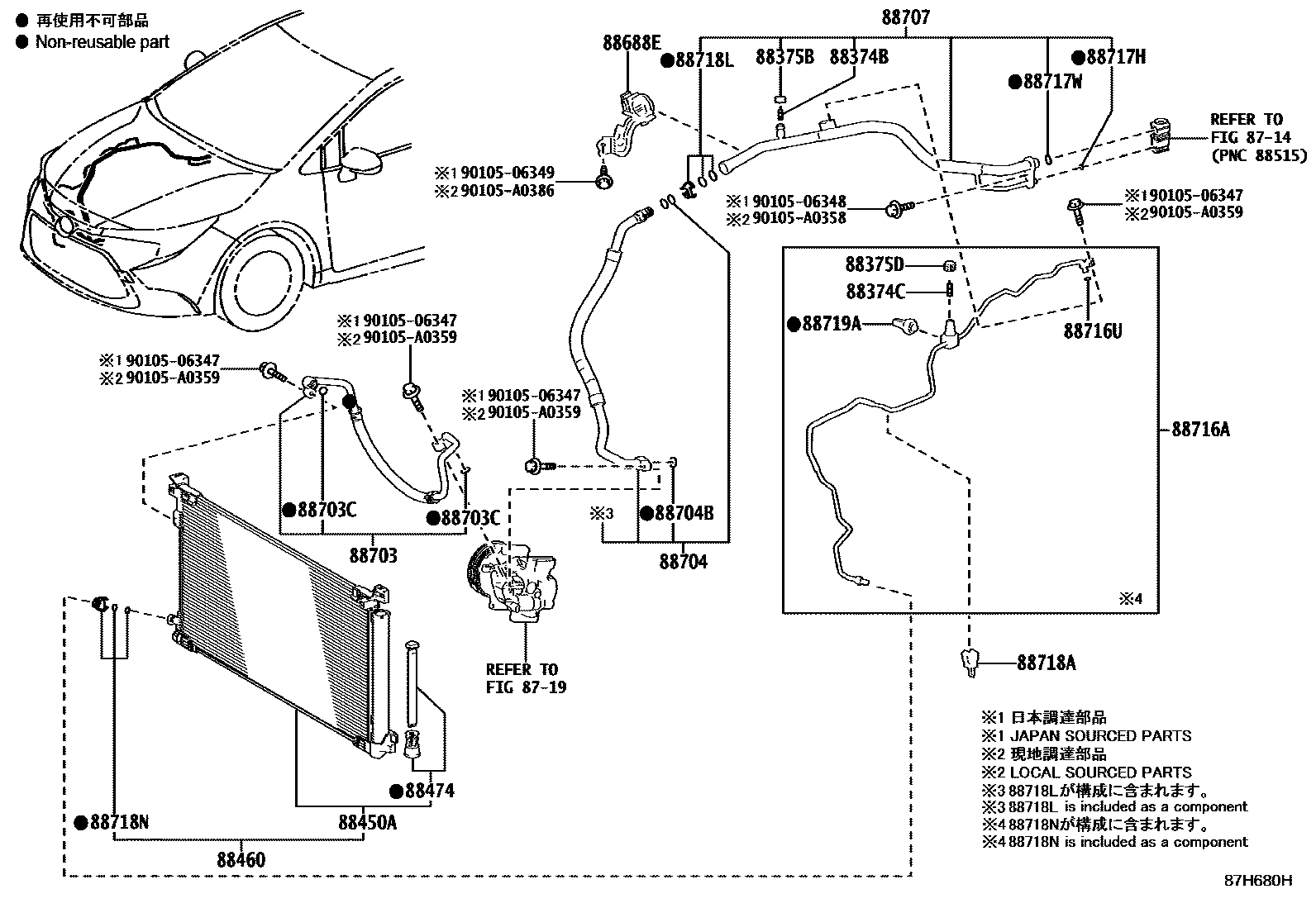

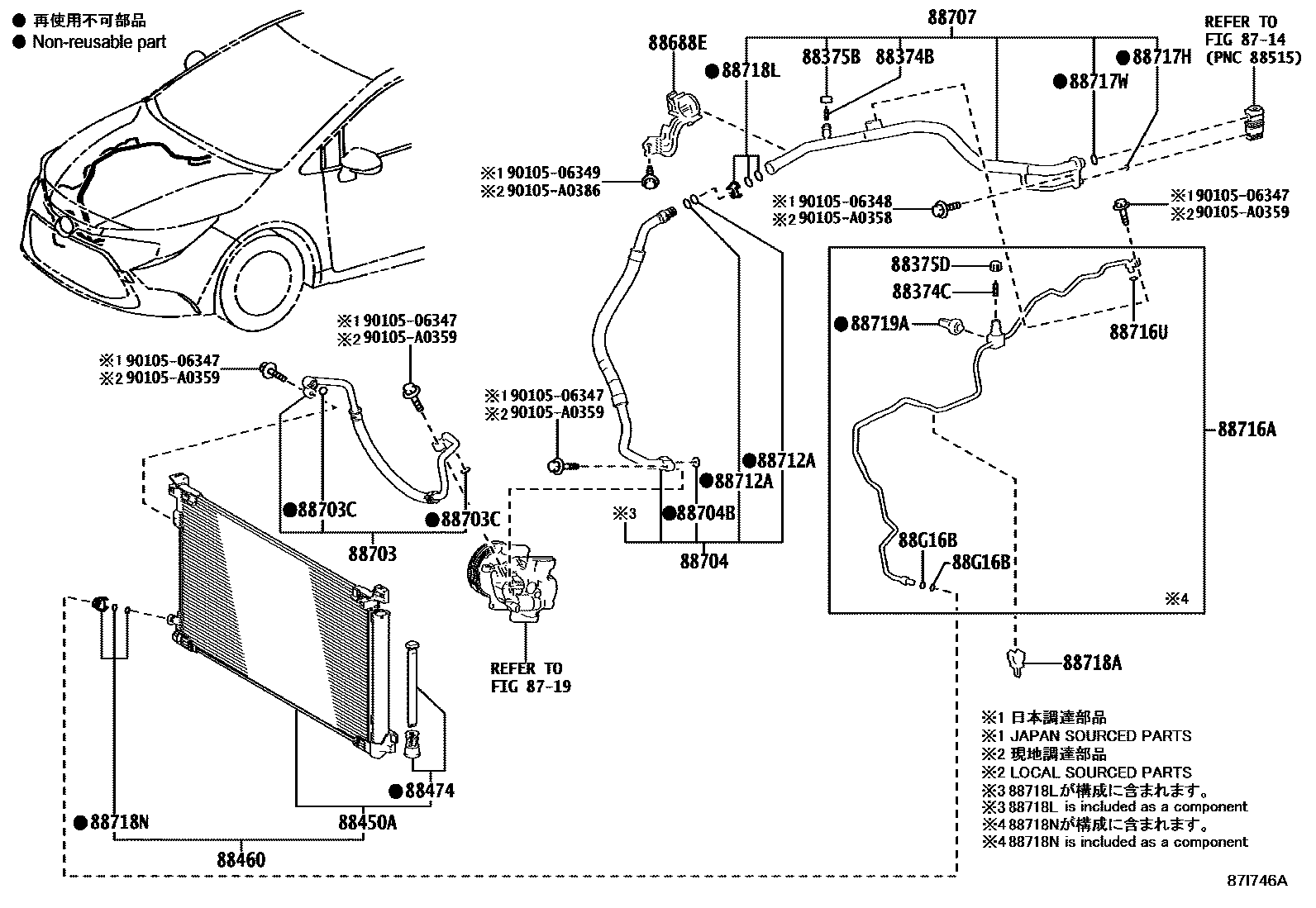

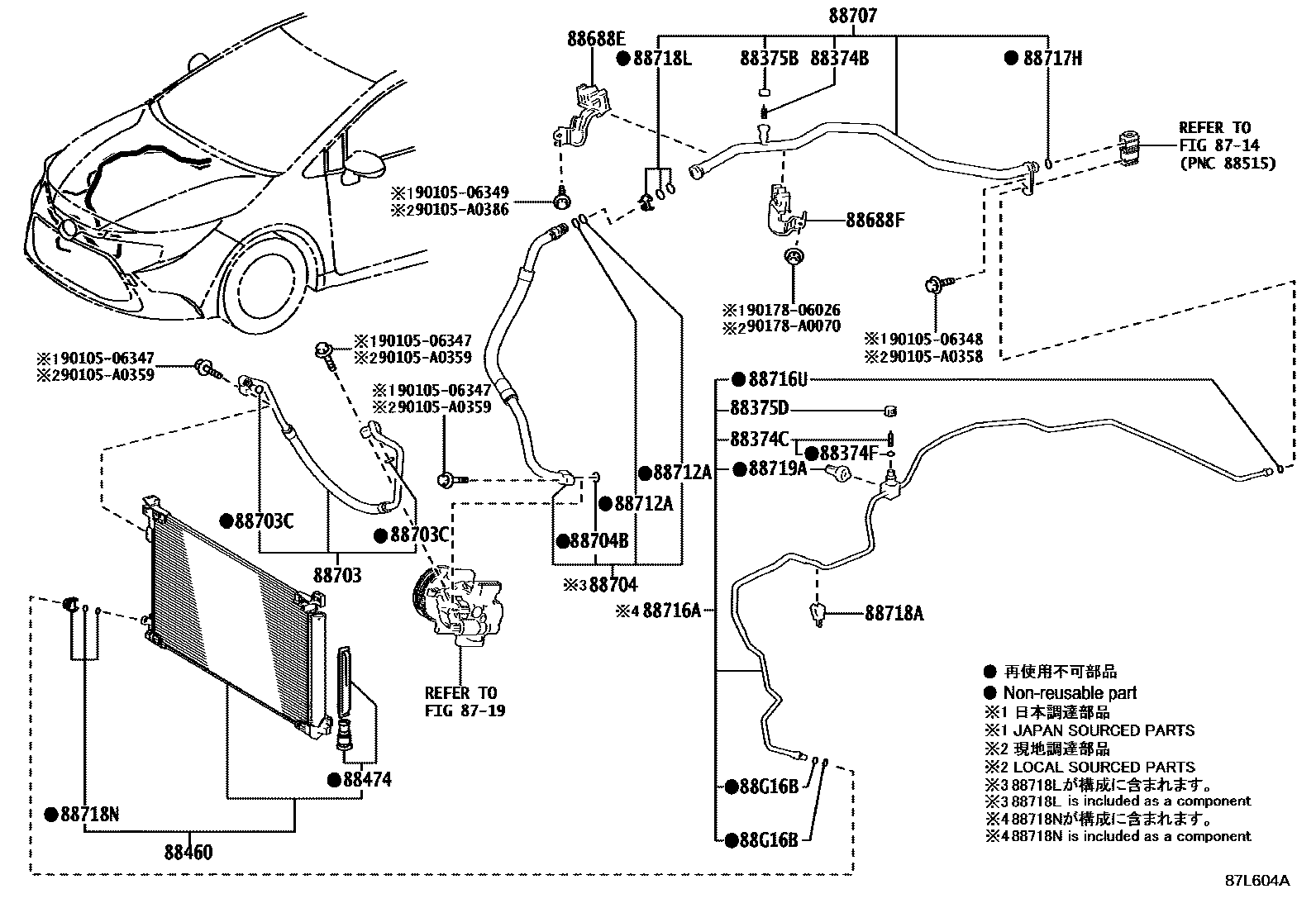

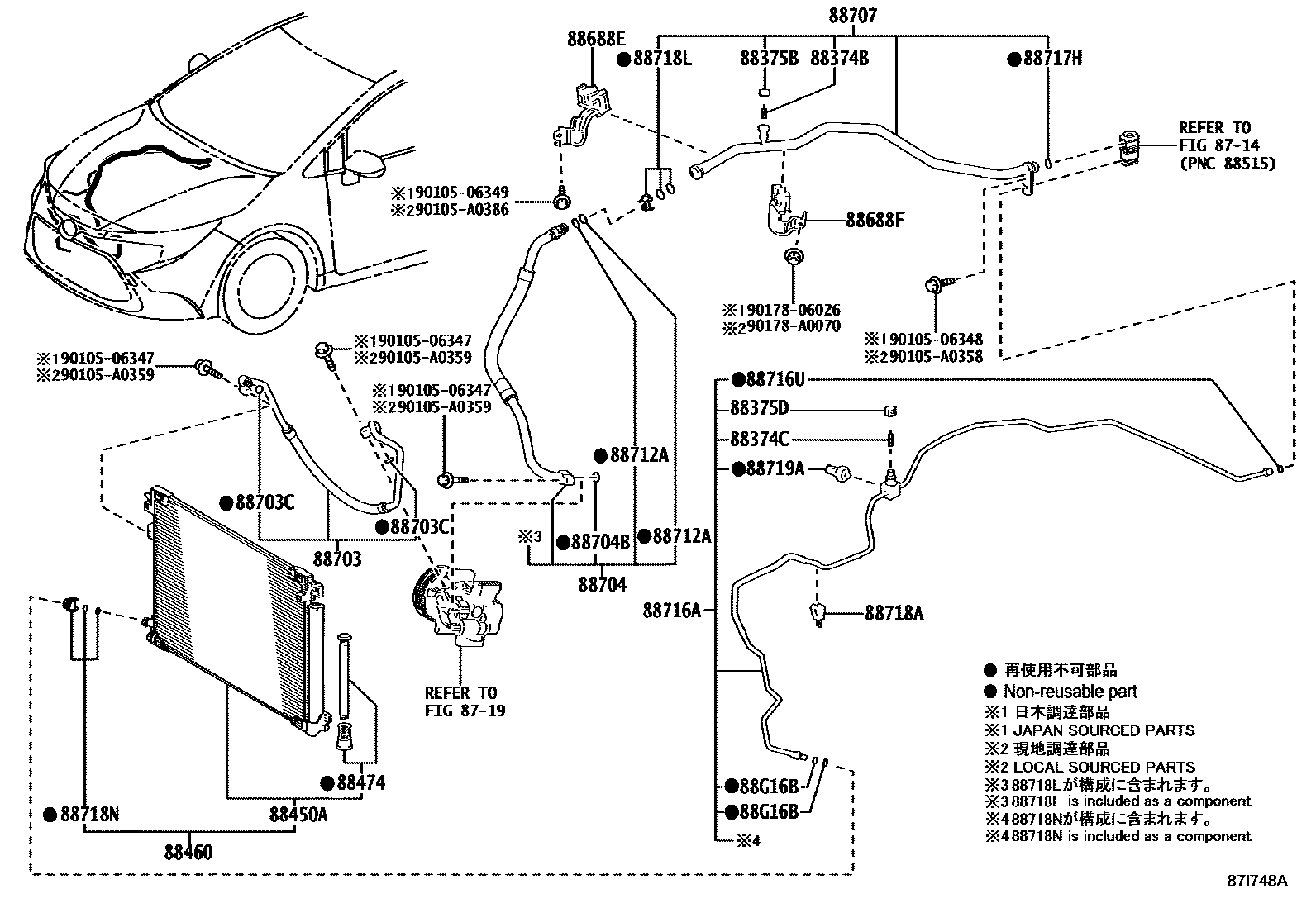

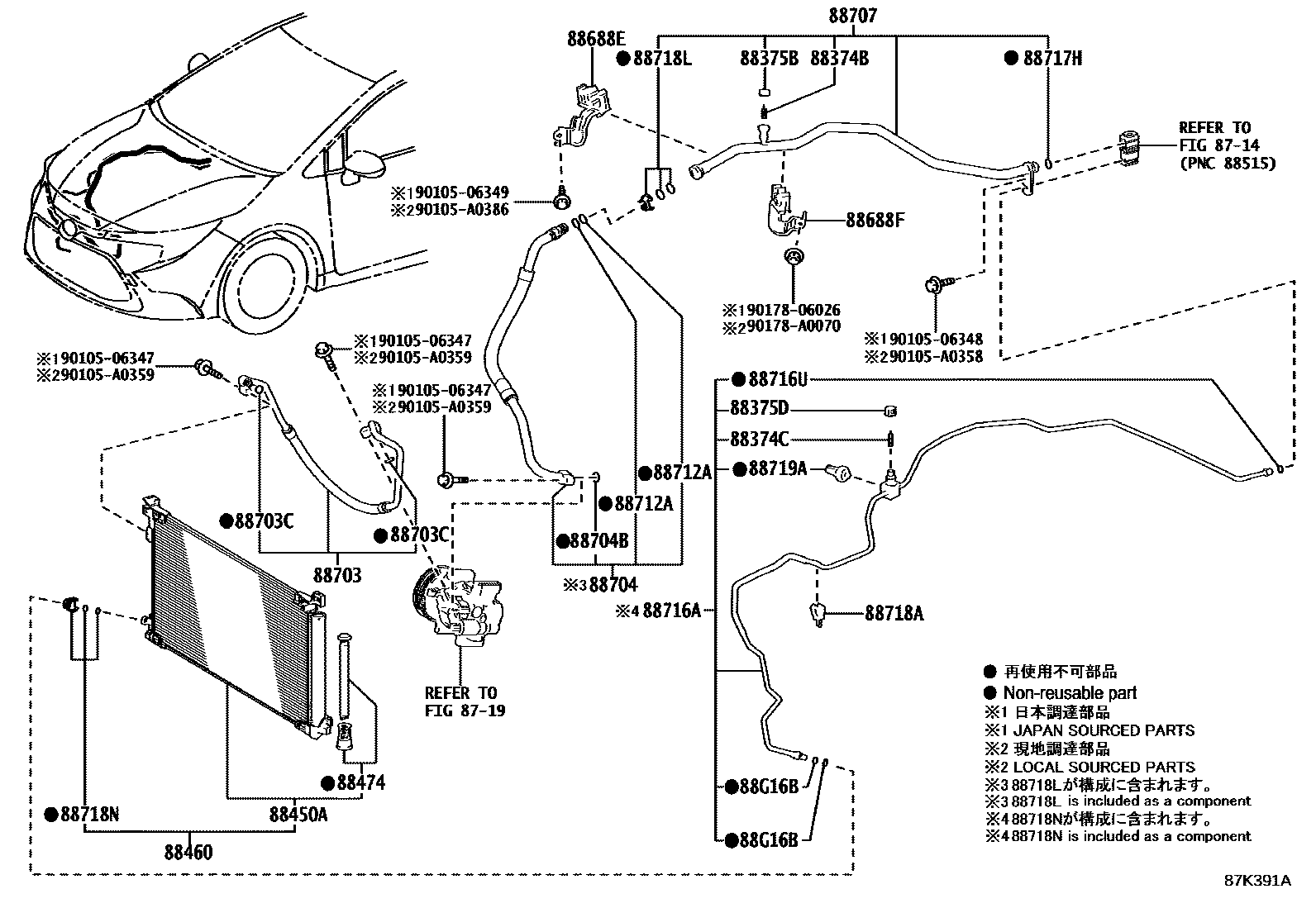

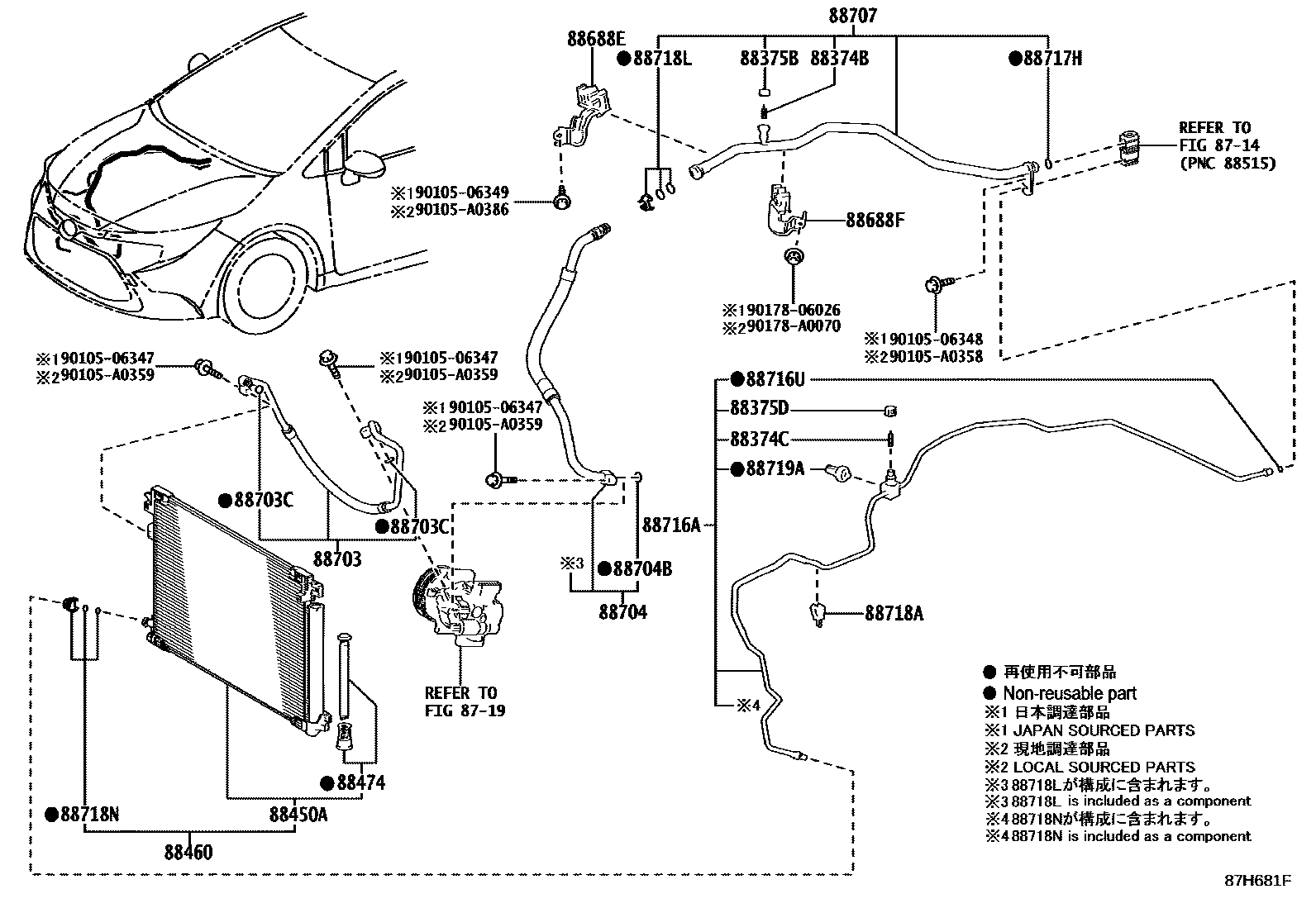

Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 6 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30020 |
| 88374F | JOINT, TORIQUE, NO.1 (POUR ROBINET DE SERVICE) | 90099-14122 |
| 88375B | No. 1 maintenance valve cover | 88375-30310 |
| 88375D | No. 2 maintenance valve cover | 88375-30320 |
| 88450A | Sub-condenser assembly | 88460-02360 · 88460-02370 |
| 88460 | Air conditioning condenser assembly | 884A0-02070 · 884A0-02090 · 884A0-02130 |
| 88474 | cooler dryer | 88474-06020 · 88474-08010 |
| 88688E | Cooler No. 1 refrigerant hose bracket | 88688-02C40 · 88688-02F30 |
| 88688F | Cooler No. 2 refrigerant hose bracket | 88688-02C50 |
| 88703 | Discharge hose sub-assembly | 88703-02C60 · 88703-02C70 |
| 88703C | JOINT, TORIQUE(POUR TUYAU DECHARGE) | 90069-08007 |
| 88704 | Oil suction hose sub-assembly | 88704-02C70 · 88704-02C90 |
| 88704B | JOINT, TORIQUE(POUR FLEXIBLE ASPIRATION) | 90069-08009 |
| 88707 | Suction pipe sub-assembly | 88707-02780 · 88710-02C60 |
| 88712A | O-ring (for cooler refrigerant suction hose) | 90099-14157 |
| 88716A | Cooler refrigerant liquid pipe A | 88710-02C70 · 88710-02C71 · 88710-02C90 · 88710-02K00 · 88710-02K01 |
| 88716U | O-ring (for cooler refrigerant liquid pipe) | 90069-08011 |
| 88717H | O-ring (for cooler refrigerant suction pipe) | 90069-08009 · 90069-08011 |
| 88717W | JOINT, TORIQUE(TUYAU ASPIRATION REFRIG REFROID) NO.2 | 90069-08009 |
| 88718A | Clamp No. 1 (for cooler refrigerant pipe) | 88718-47110 |
| 88718L | Pipe clamp | 88718-52280 |
| 88718N | FIXATION, TUYAUTERIE | 88718-1E150 |
| 88719A | Air conditioning pressure sensor | 88719-11010 |
| 88G16B | JOINT, TORIQUE, NO.2(TUYAU LIQUID REFRIG REFROID) | 90099-14158 |
