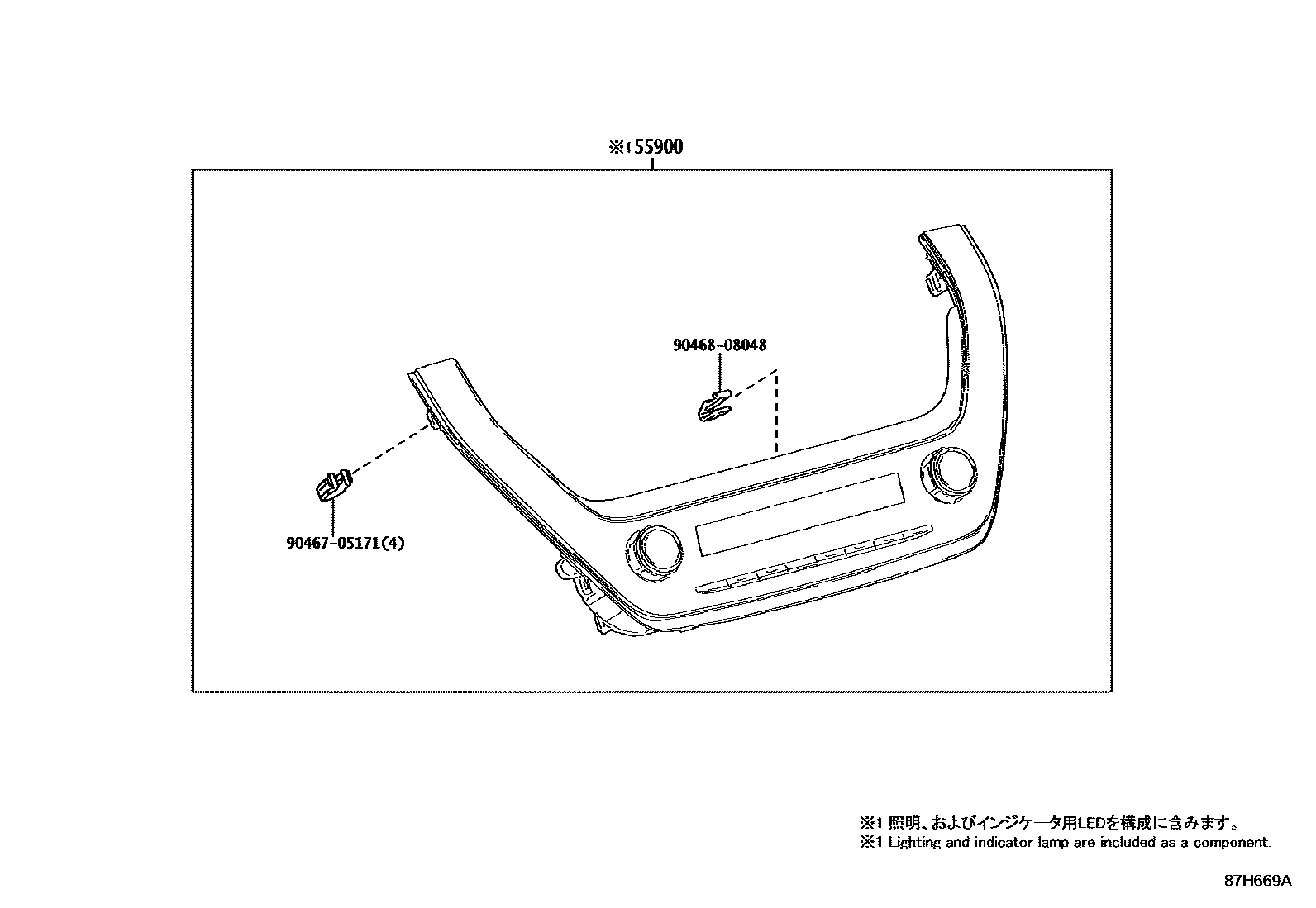

Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 3 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

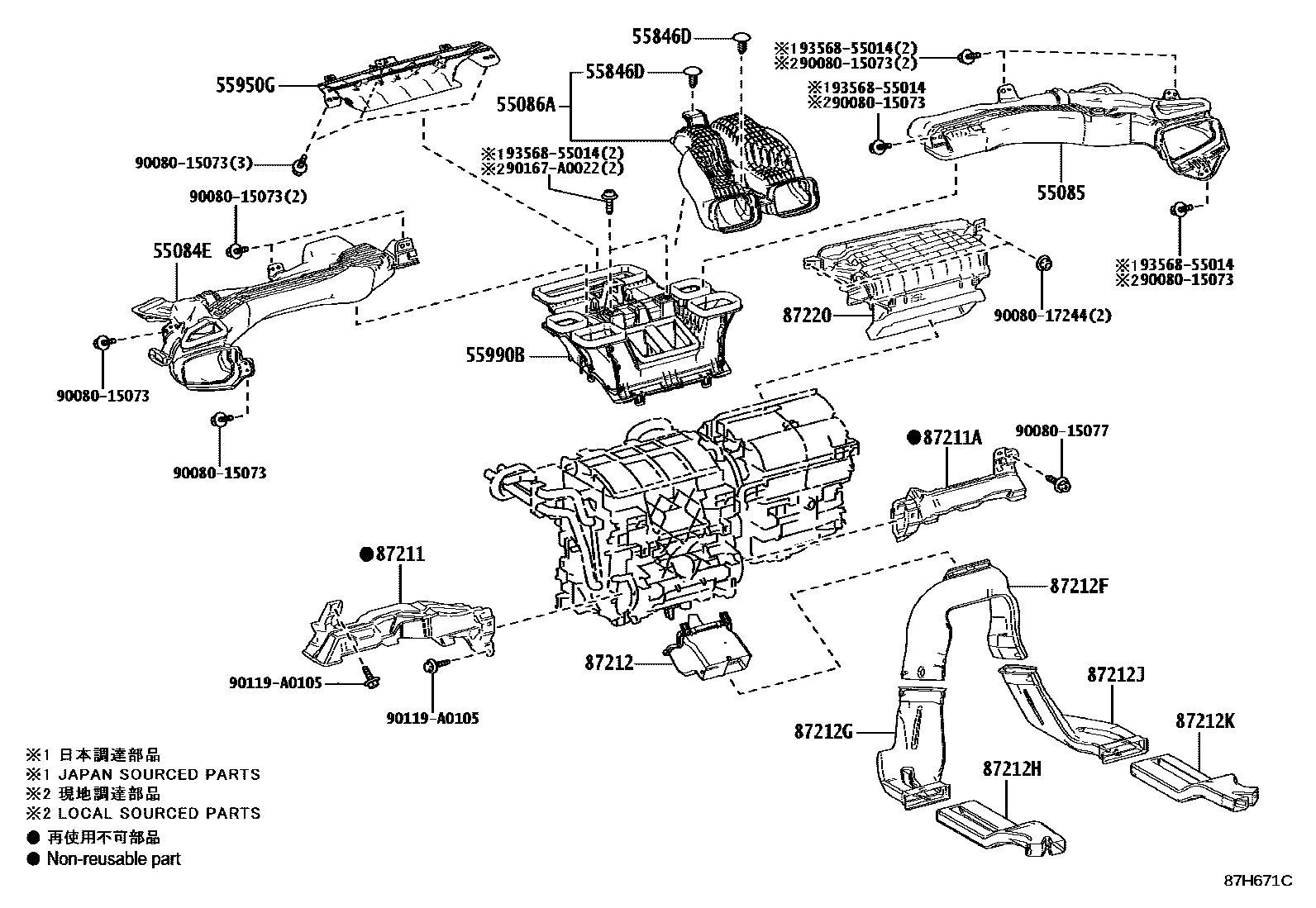

| 55084E | Heater to air regulator No. 1 air duct sub-assembly | 55084-02600 |
| 55085 | Heater to air regulator No. 2 air duct sub-assembly | 55085-02050 |
| 55086A | Heater to central air register air duct sub-assembly | 55086-02570 |
| 55950G | Defroster nozzle assembly | 55950-02400 |
| 55990B | Lower defroster nozzle assembly | 55990-02270 |
| 87211 | No. 1 air duct | 87211-02570 |
| 87211A | Duct No. 2 | 87211-02580 |
| 87212 | No. 1 rear air duct | 87413-02030 |
| 87212F | No. 2 rear air duct | 87215-02120 |
| 87212G | No. 3 rear air duct | 87213-02140 |
| 87212H | No. 4 rear air duct | 87217-02010 |
| 87212J | No. 5 rear air duct | 87212-02150 |
| 87212K | No. 6 rear air duct | 87216-02060 |
| 87220 | Air duct assembly | 87220-02190 · 87220-02191 |

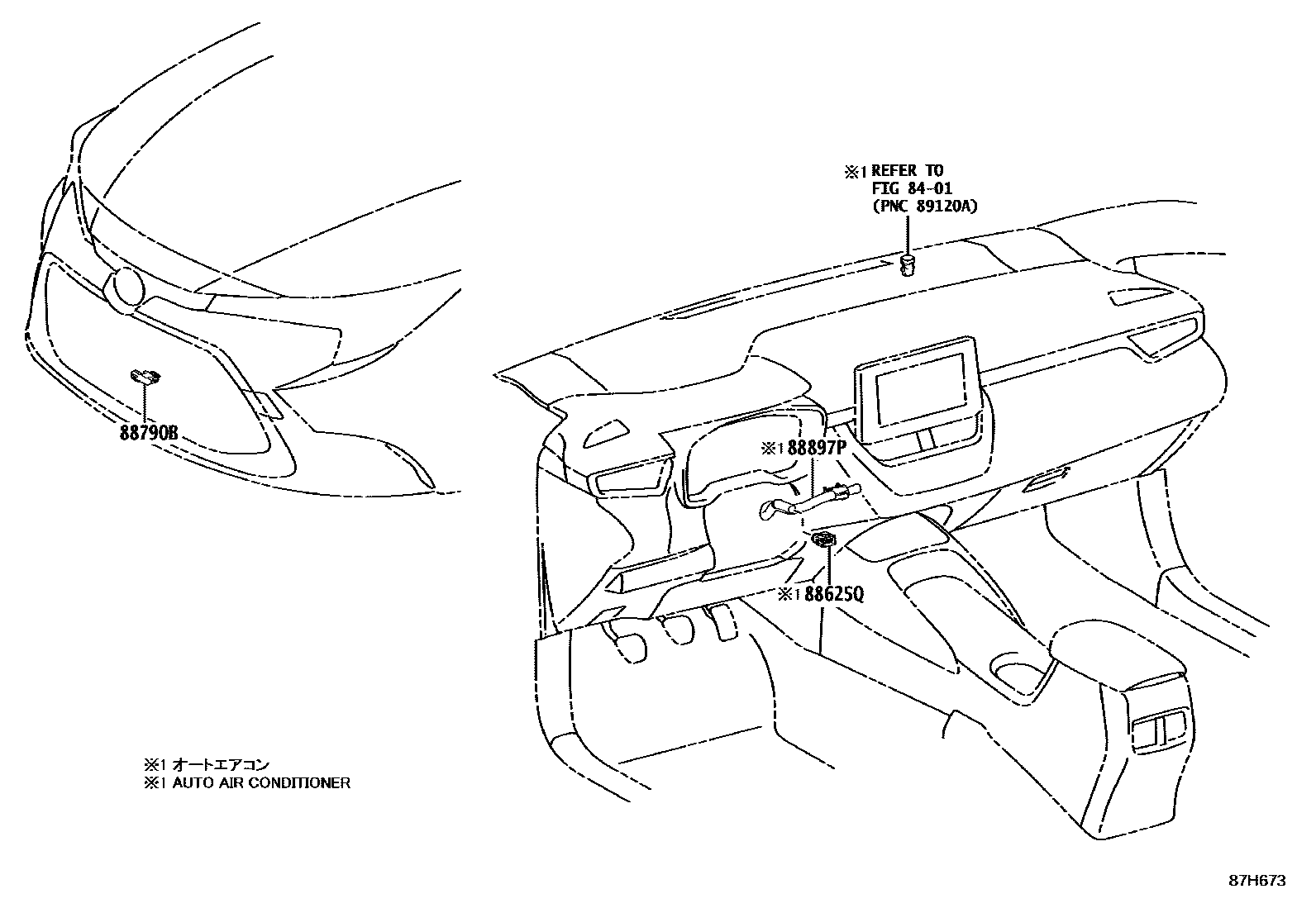

| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-06040 |
| 88790B | Thermistor assembly | 88790-06020 |
| 88897P | aspirator | 88505-02210 |
