Toyota COROLLA 后视镜 — Figure 8701

Toyota COROLLA EPC diagram 8701, 后视镜, with 2 images and 7 PNC and OE references.

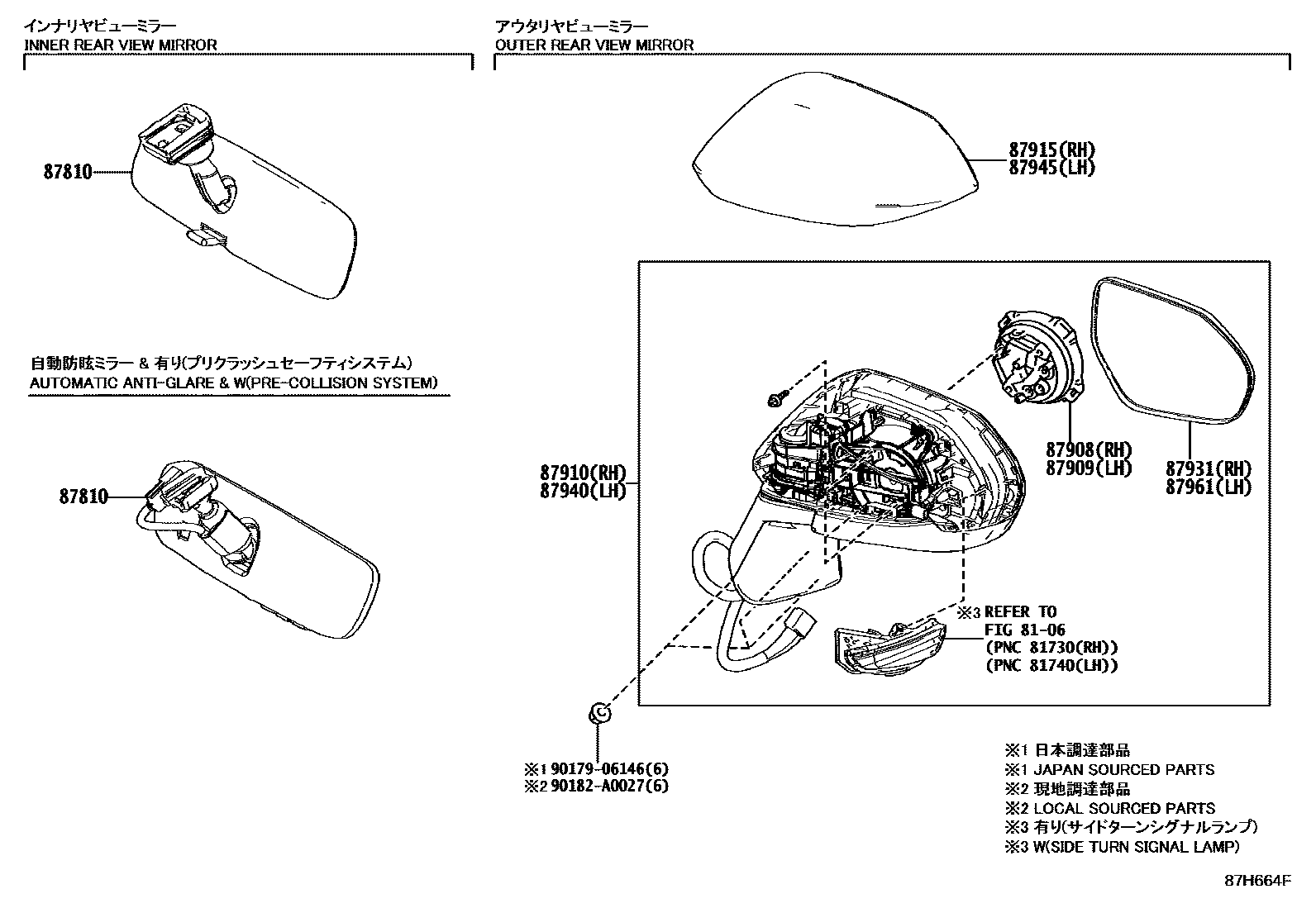

Toyota COROLLA 后视镜 EPC diagram — 87H664F
后视镜 — 87H664F (201903 – 201909)

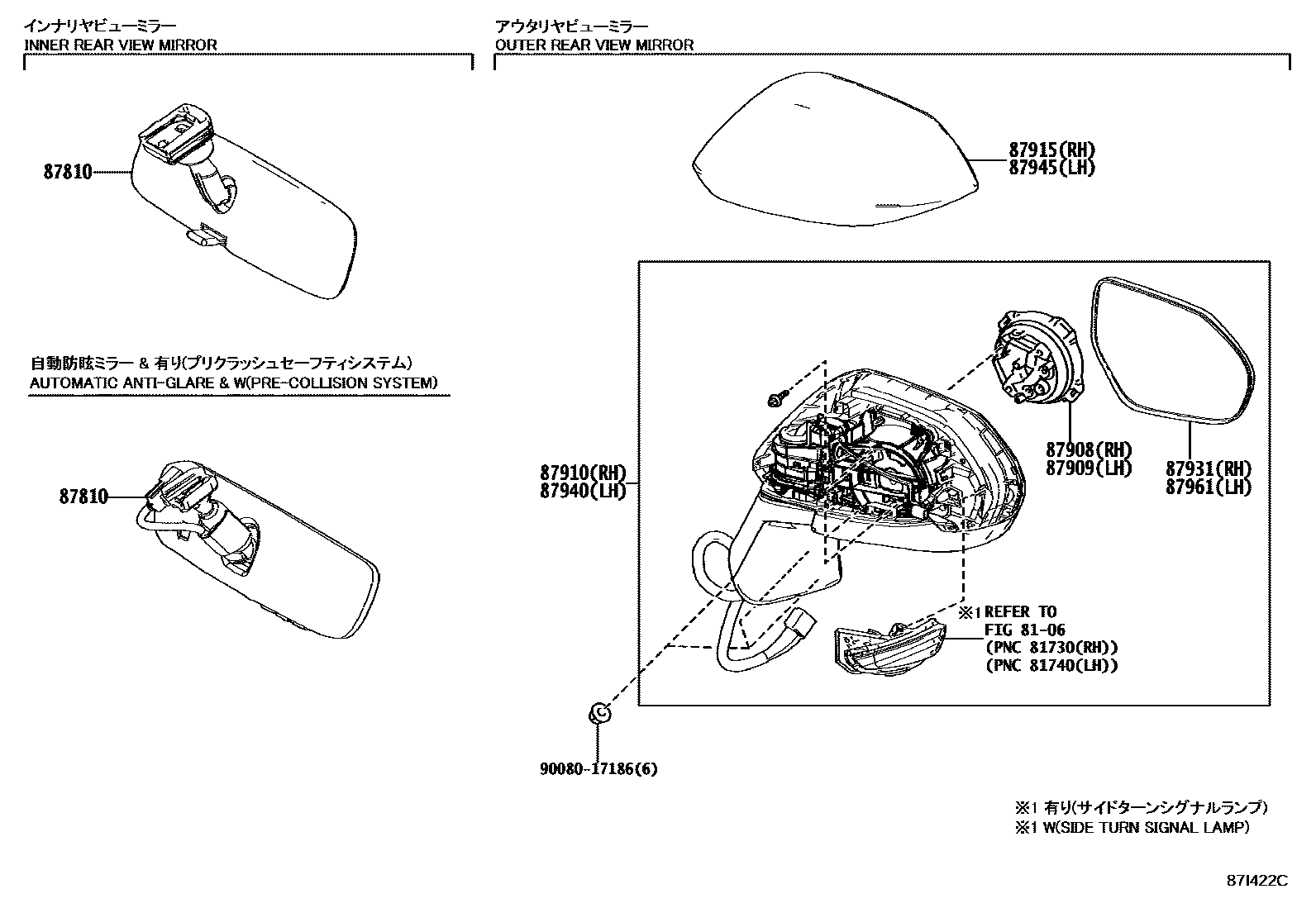

Toyota COROLLA 后视镜 EPC diagram — 87I422C
后视镜 — 87I422C (201909 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-02310 · 87810-0WS10
87908Right exterior rearview mirror actuator assembly87925-0R260
87909Left exterior rearview mirror actuator assembly87925-0R260
87910Right exterior rearview mirror assembly87910-02916 · 87910-02917 · 87910-02918 · 87910-02919 · 87910-02920 · 87910-02926 · 87910-02927 · 87910-02928 · 87910-02929 · 87910-02930
87931Right exterior rearview mirror87902-02070 · 87902-02250 · 87902-02260 · 87902-06160 · 87902-06190
87940Left exterior rearview mirror assembly87940-02916 · 87940-02917 · 87940-02918 · 87940-02919 · 87940-02920 · 87940-02926 · 87940-02927 · 87940-02928 · 87940-02929 · 87940-02930
87961Left exterior rearview mirror87907-02060 · 87907-02070 · 87907-02240 · 87907-06170
