Toyota COROLLA 扬声器 — Figure 8602

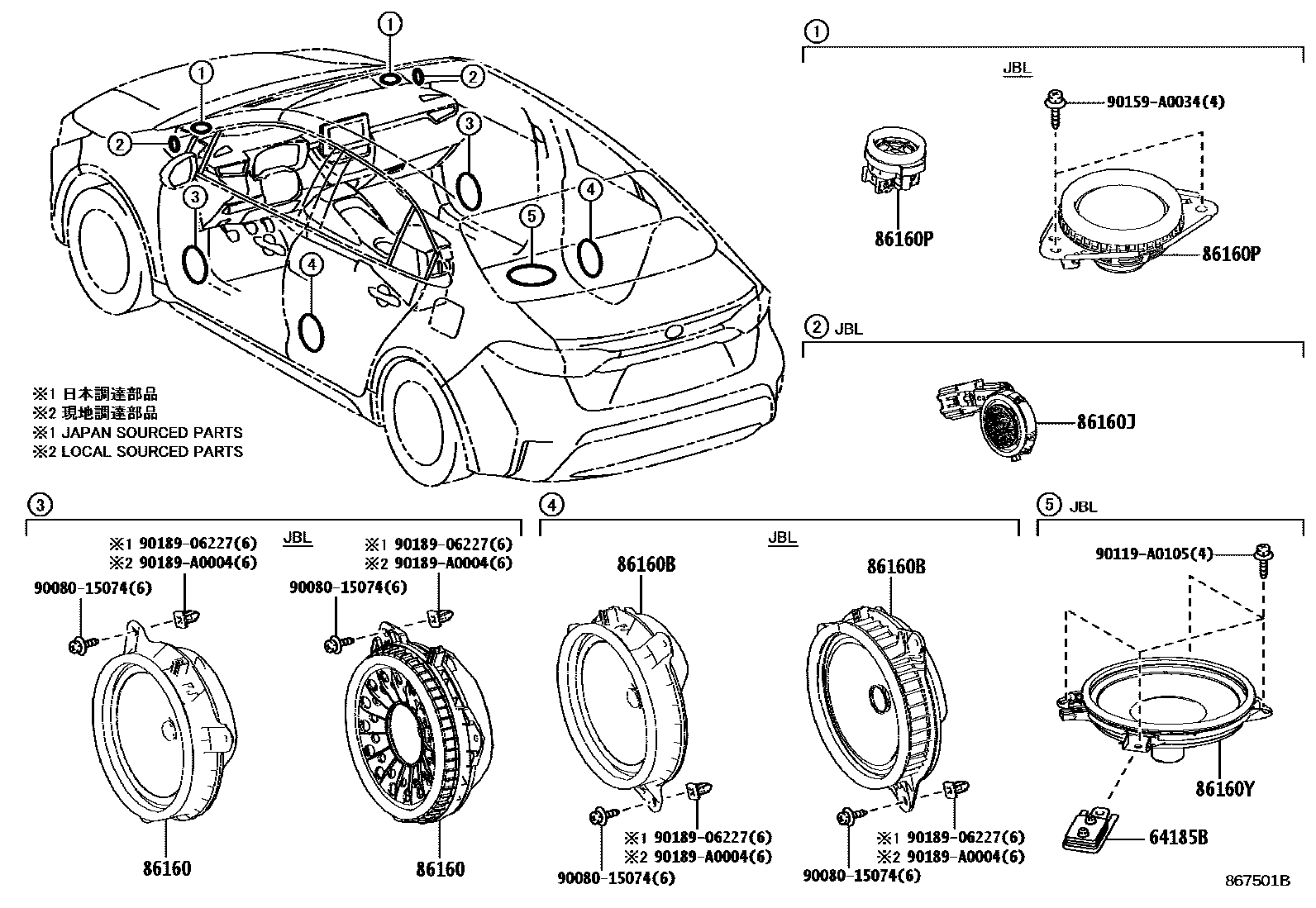

Toyota COROLLA EPC diagram 8602, 扬声器, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64185B | AMORTISSEUR, ARR SUP, NO.1 | 64185-12011 |
| 86160 | No. 1 front speaker assembly | 86160-02B40 · 86160-0WS00 |
| 86160B | Rear speaker assembly | 86160-02B40 · 86160-0WY50 |
| 86160J | No. 3 front speaker assembly | 86150-02090 · 86150-02150 |
| 86160P | No. 2 front speaker assembly | 86150-0W670 · 86160-0R010 |
| 86160Y | No. 2 rear speaker assembly | 86150-02101 |
