Toyota COROLLA 收音机、放大器和冷凝器 — Figure 8601

Toyota COROLLA EPC diagram 8601, 收音机、放大器和冷凝器, with 2 images and 4 PNC and OE references.

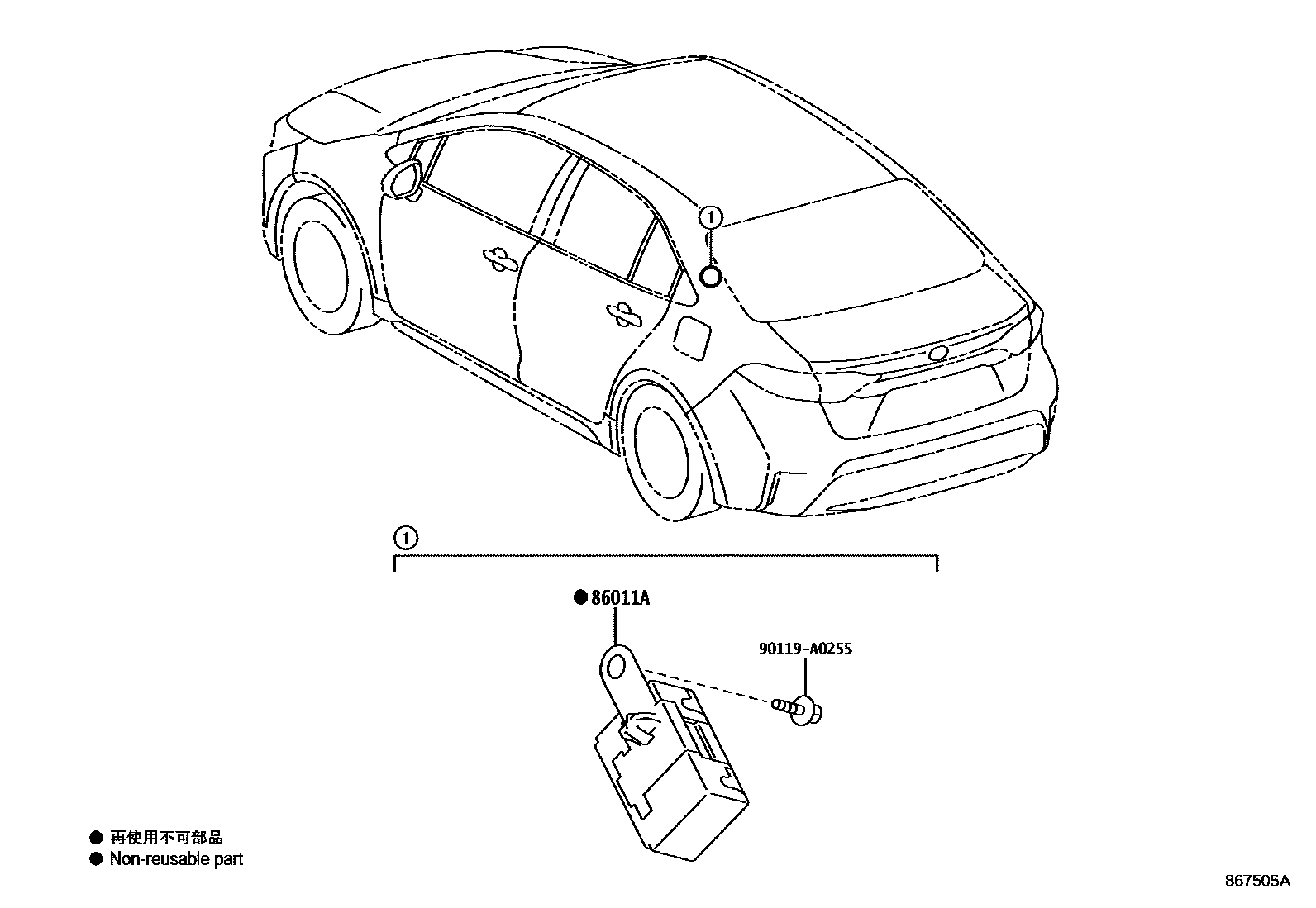

Toyota COROLLA 收音机、放大器和冷凝器 EPC diagram — 867505A
收音机、放大器和冷凝器 — 867505A (201903 – 999999)

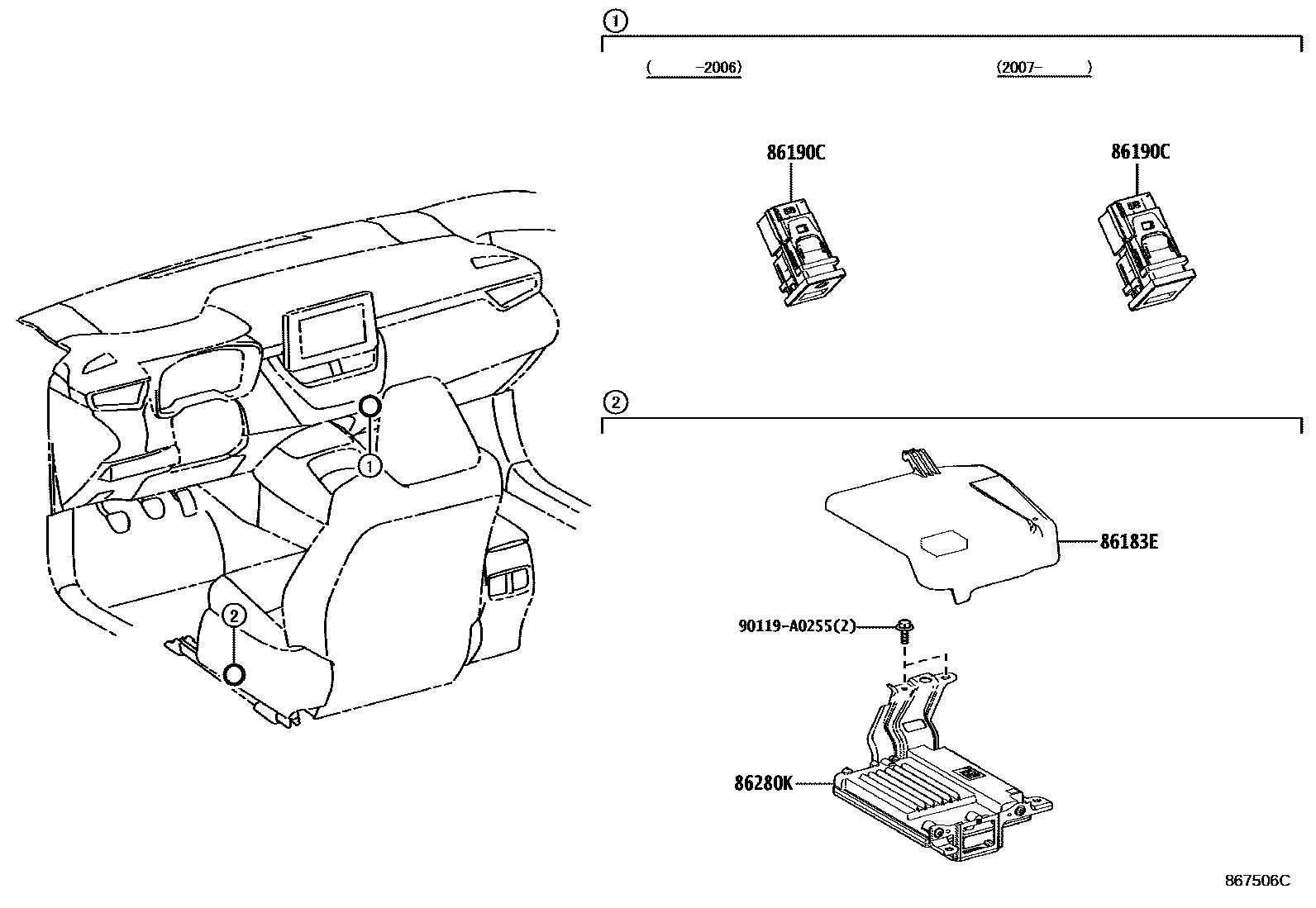

Toyota COROLLA 收音机、放大器和冷凝器 EPC diagram — 867506C
收音机、放大器和冷凝器 — 867506C (201903 – 999999)

PNC and OE references

PNCPart nameOE numbers
86011Aradio settings phase modulator90980-04204
86183Eaudio amplifier cover86183-02040
86190CStereo socket connector assembly No. 186190-02130 · 86190-12070 · 86190-33060
86280KStereo parts amplifier assembly86280-02100 · 86280-02160
