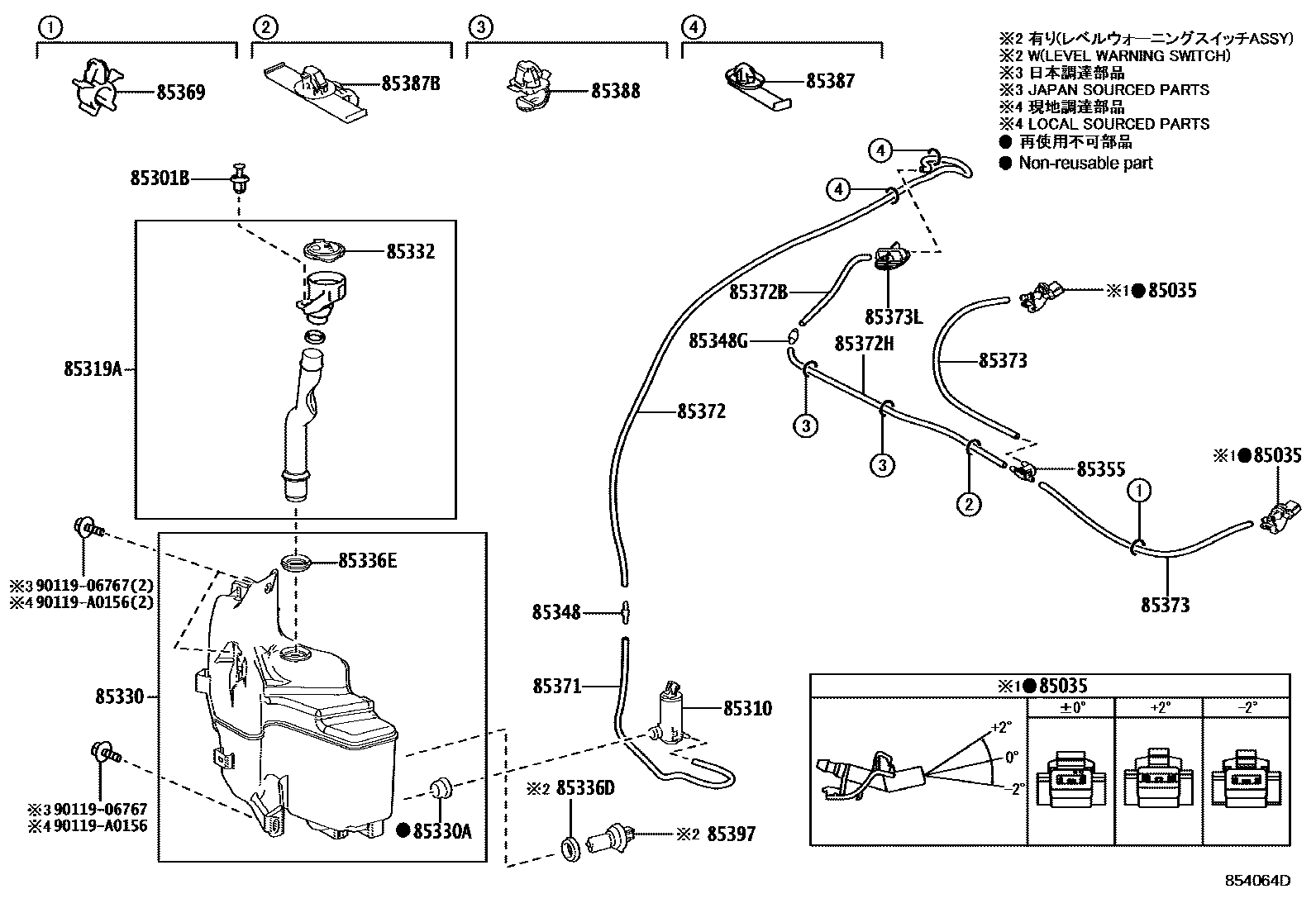

Toyota COROLLA 挡风玻璃清洗器 — Figure 8503
Toyota COROLLA EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-12360 · 85381-12440 · 85381-33080 |
| 85301B | ATTACHE, RONDELLE | 90467-07214 |
| 85310 | Windshield washer motor and pump assembly | 85330-04011 |
| 85319A | water inlet hose | 85301-02160 |
| 85330 | Windshield washer fluid tank assembly | 85315-02670 · 85315-02690 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 |
| 85332 | Windshield washer fluid tank cap | 85386-60050 |
| 85336D | Windshield washer fluid tank seal | 85319-AA020 |
| 85336E | Windshield washer water inlet hose seal | 85336-30160 |
| 85348 | Windshield washer hose connector No. 1 | 85349-89122 |
| 85348G | Windshield washer hose connector No. 2 | 85317-02300 |
| 85355 | Windshield washer hose valve | 85321-28020 |
| 85369 | card holder | 90469-07011 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90068-33344 |
| 85372B | Windshield washer hose No. 2 (from connector to connector) | 90068-33095 |
| 85372H | No. 3 windshield washer hose (from connector to connector) | 90068-33068 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90068-33359 |
| 85373L | OEILLET, RONDELLE | 85373-12050 |
| 85387 | Clip No. 1 (for windshield washer) | 82711-52090 |
| 85387B | No. 3 cleaner clip | 82711-35750 |
| 85388 | Clip No. 2 (for windshield washer) | 85371-12040 |
| 85397 | Liquid level warning switch assembly | 85397-AA040 |
