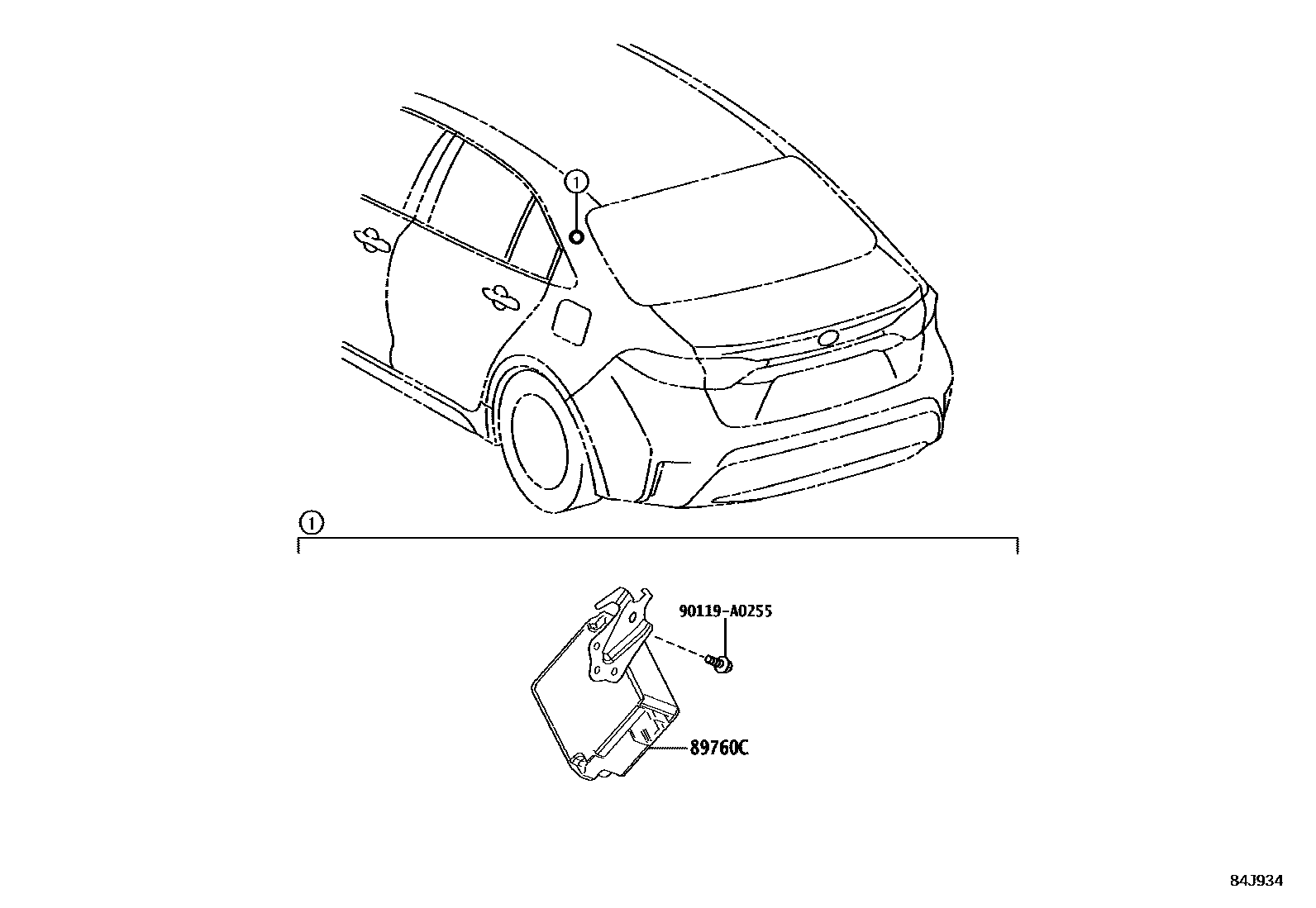

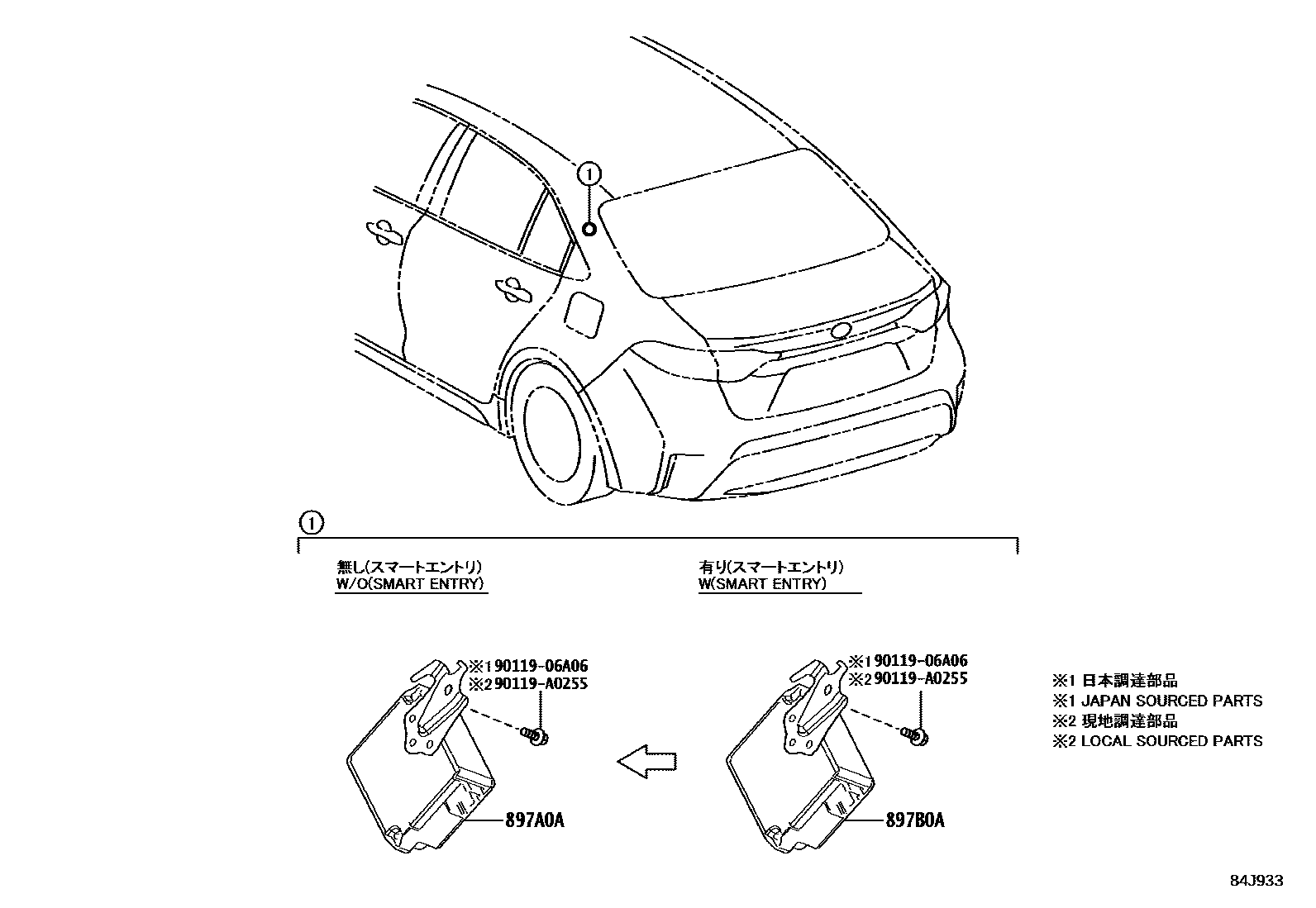

Toyota COROLLA 轮胎压力警告系统 — Figure 8435
Toyota COROLLA EPC diagram 8435, 轮胎压力警告系统, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89760C | Tire pressure monitoring receiver assembly | 89760-02190 · 897B0-02150 |
| 897A0A | ENS. RECEPT,COMMANDE PORTE ET SYST SURVEILL PRESSION PNEU | 897A0-02020 · 897A0-02200 · 897A0-02210 |
| 897B0A | RECEP ASS, CLE ELEC & TPMS | 897B0-02050 · 897B0-02090 · 897B0-02150 |
