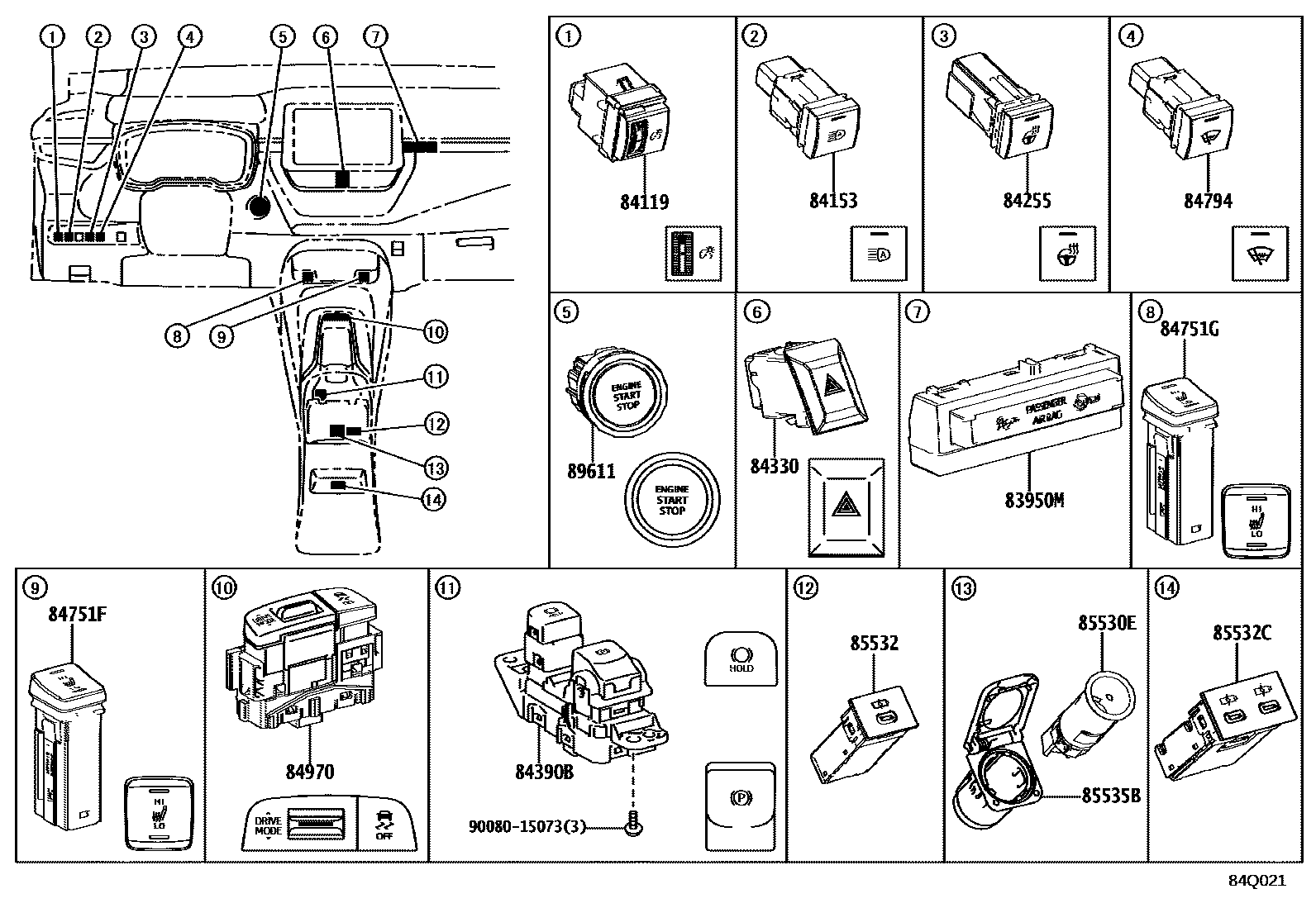

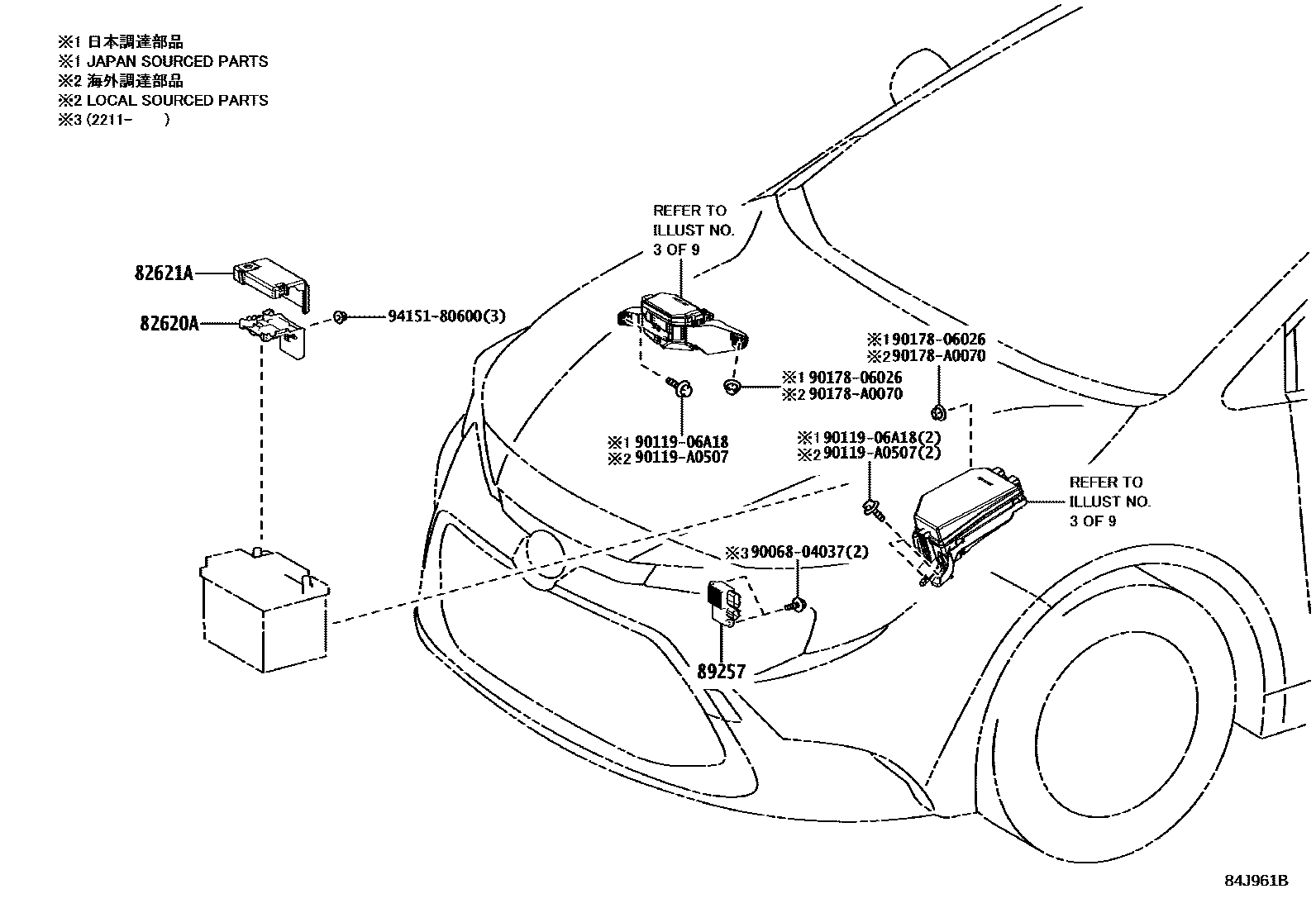

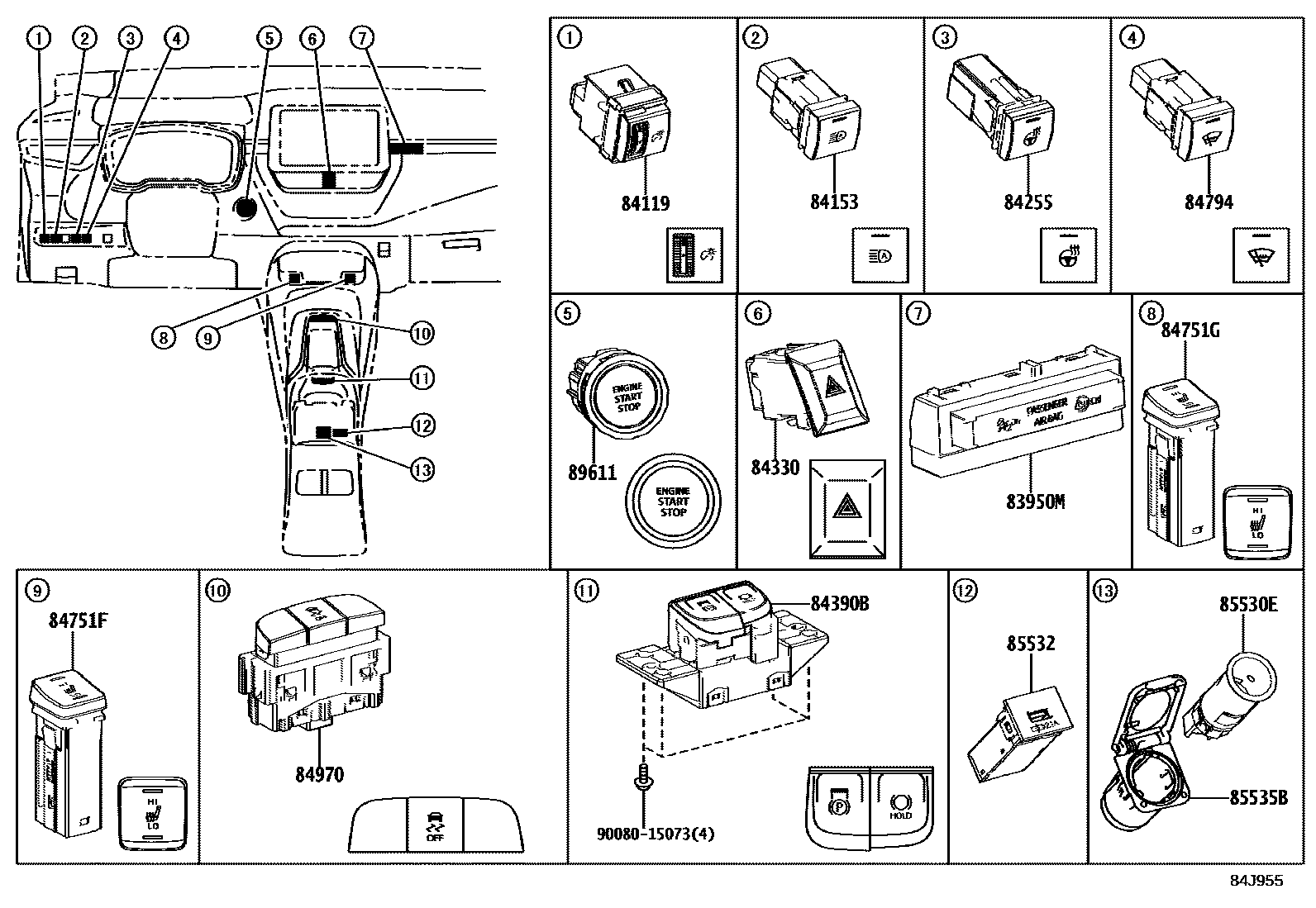

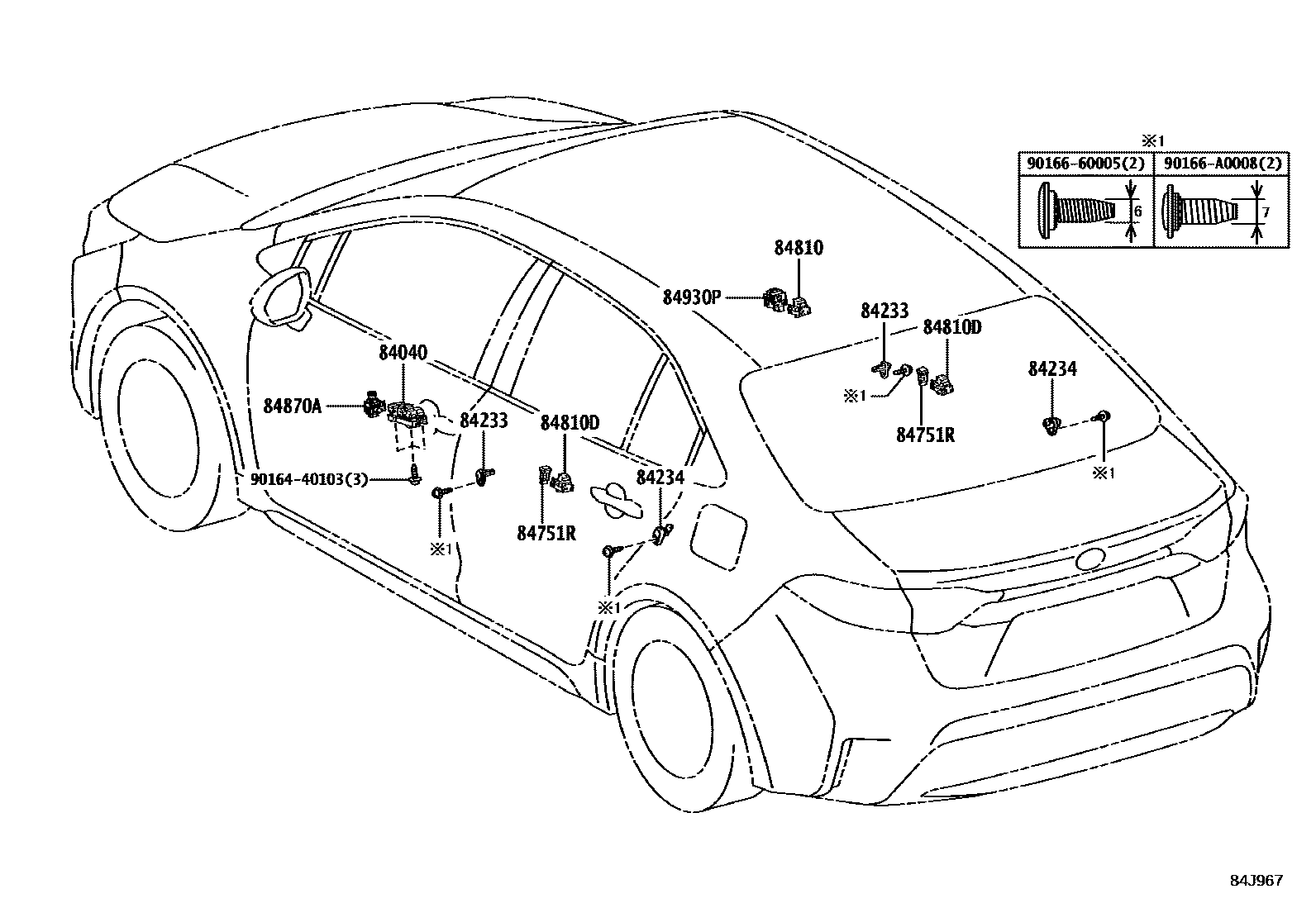

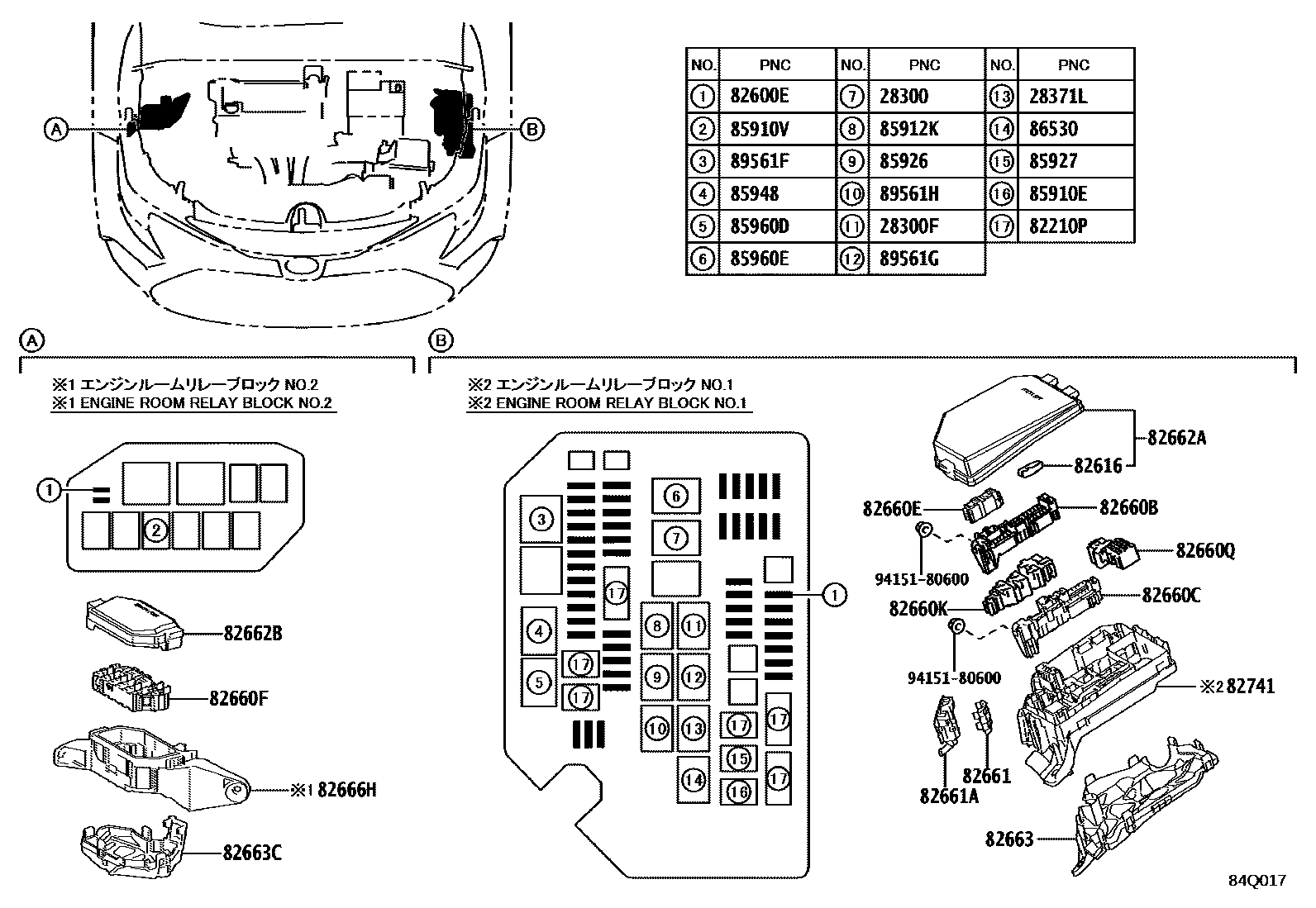

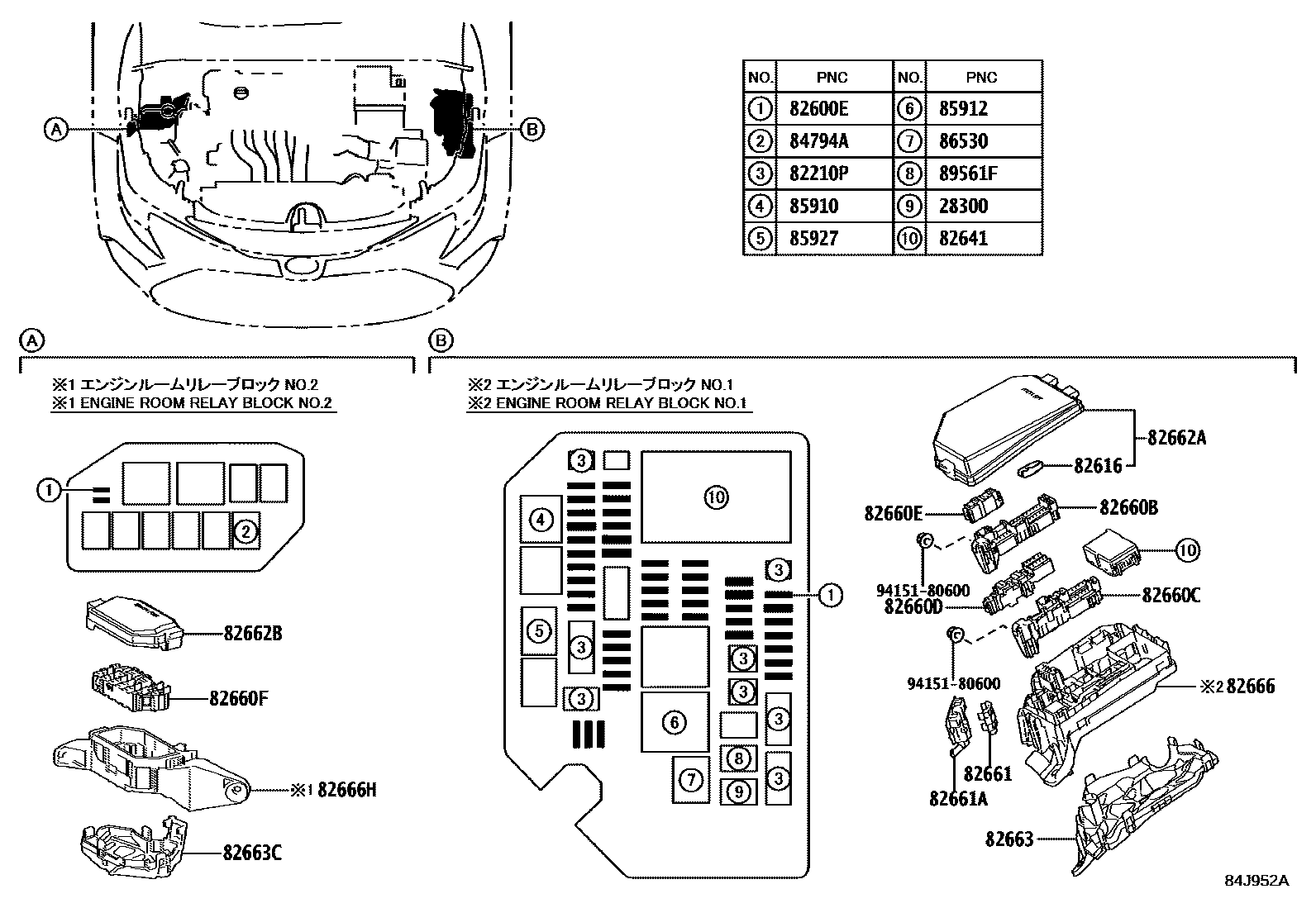

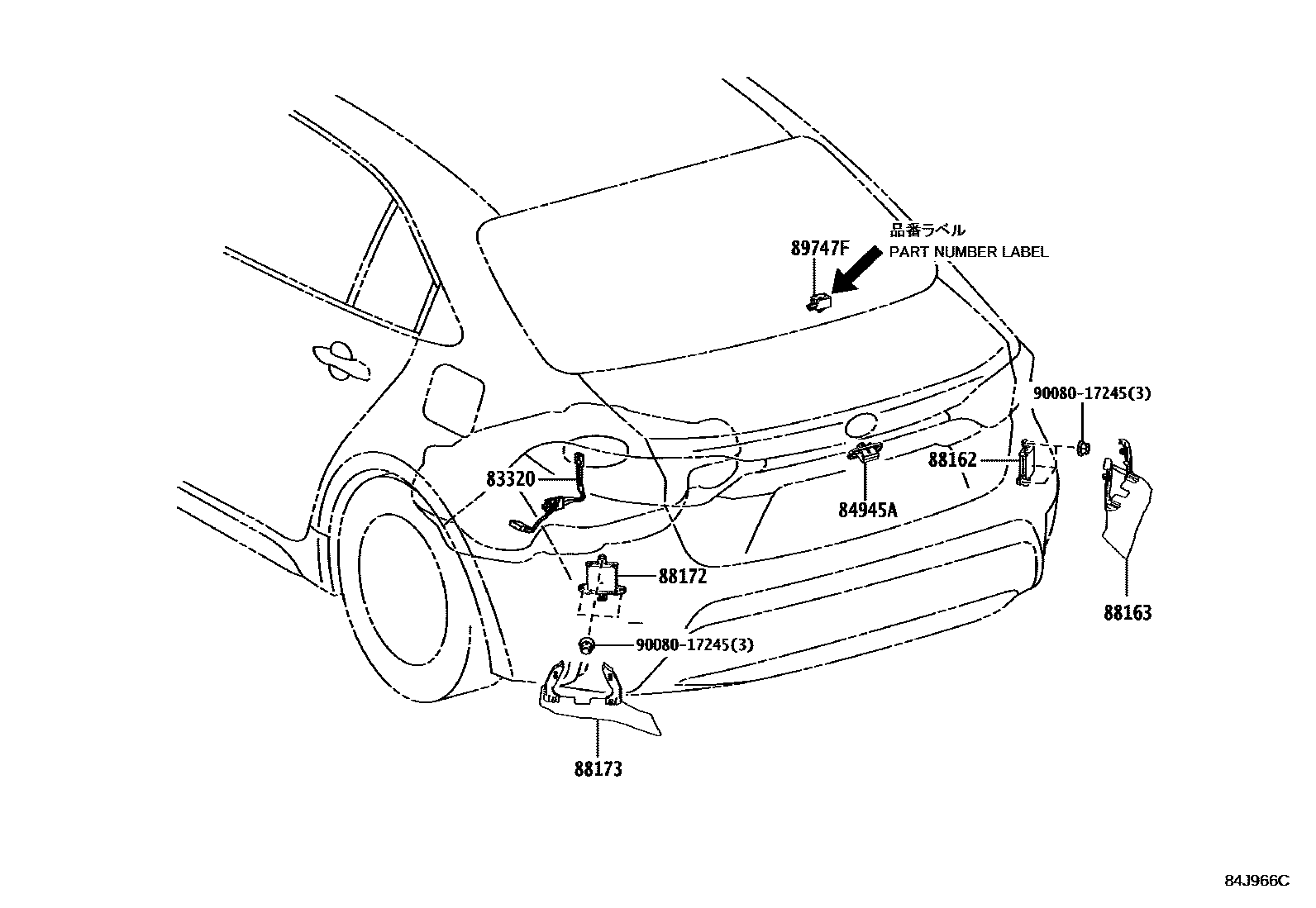

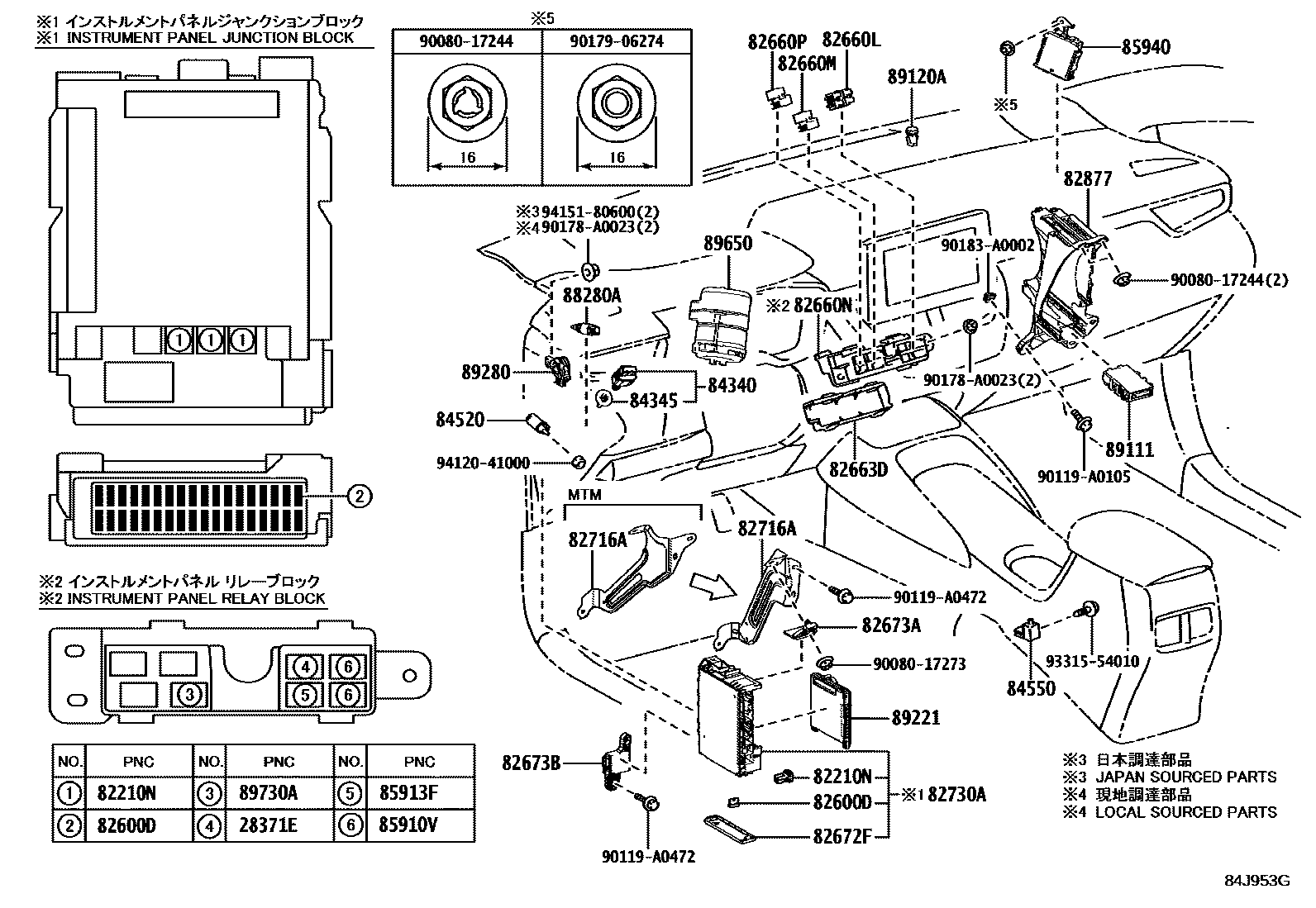

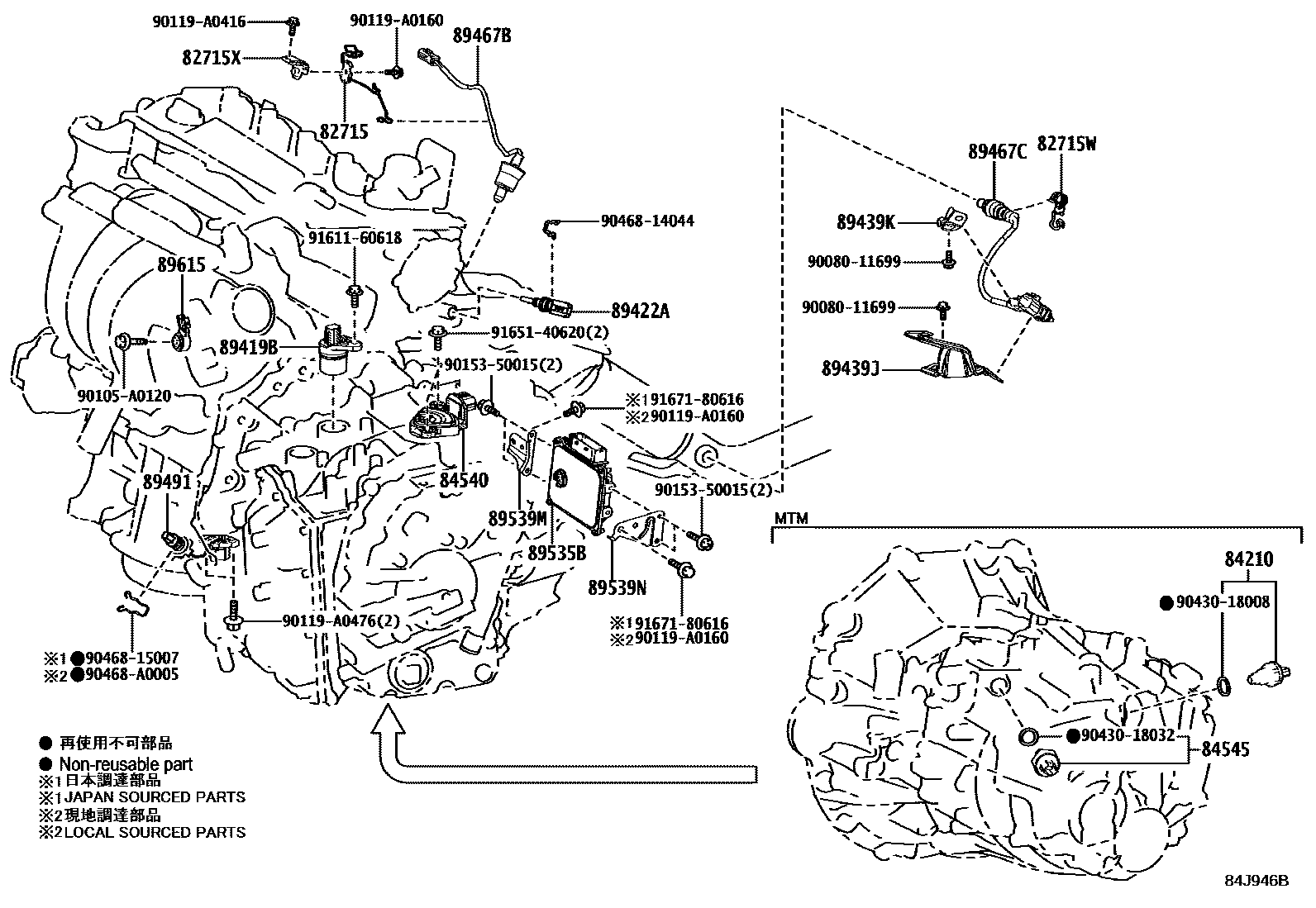

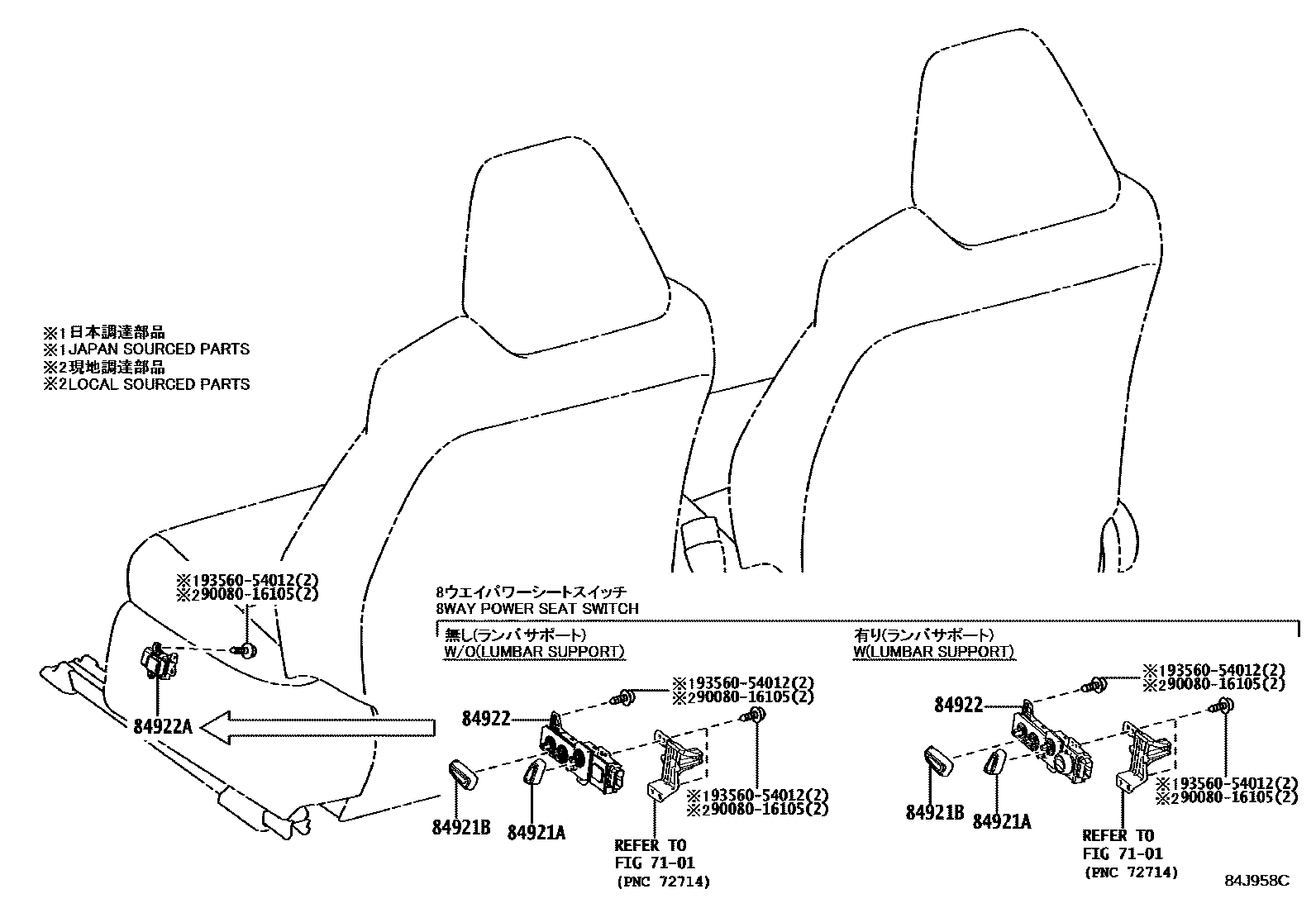

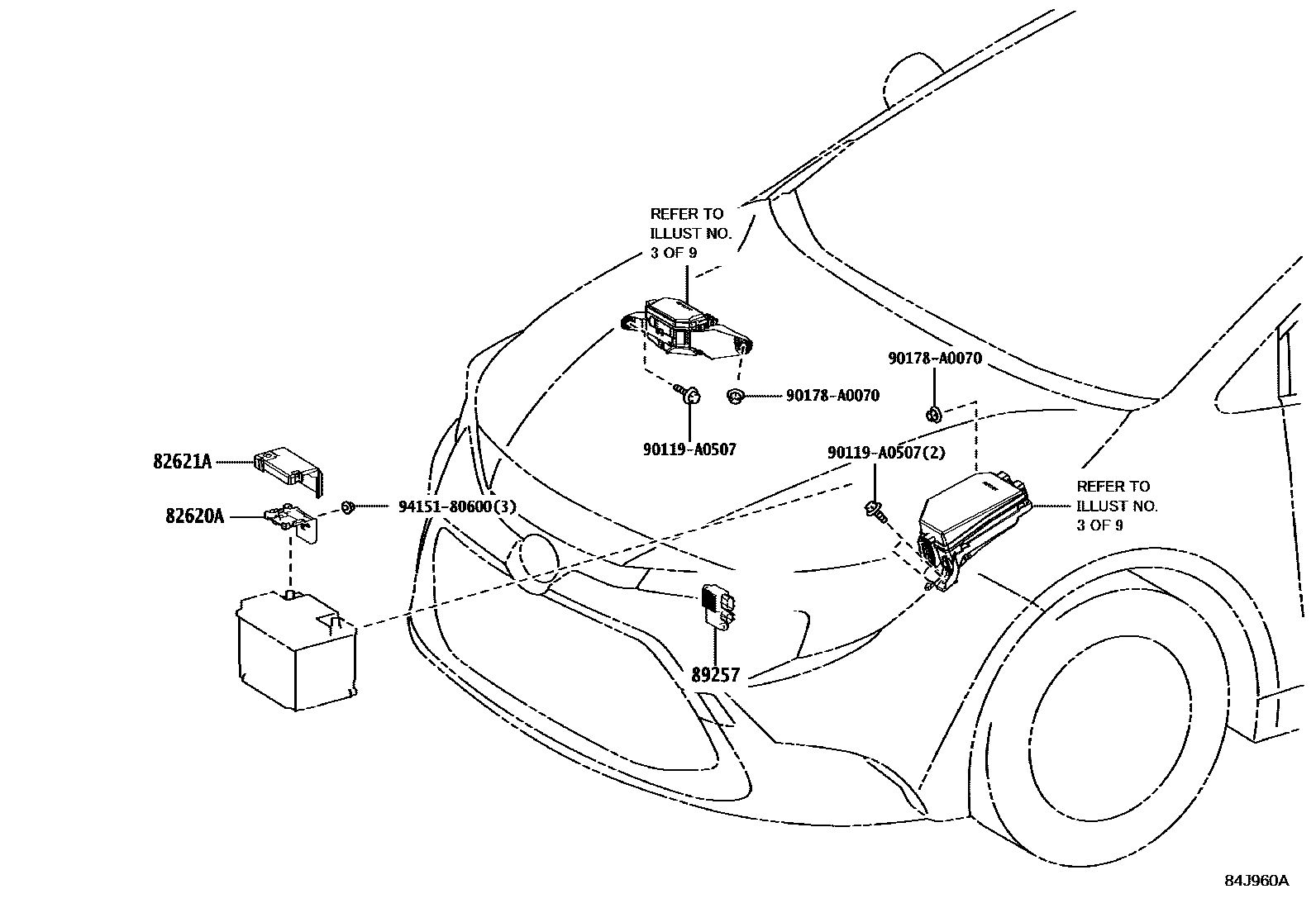

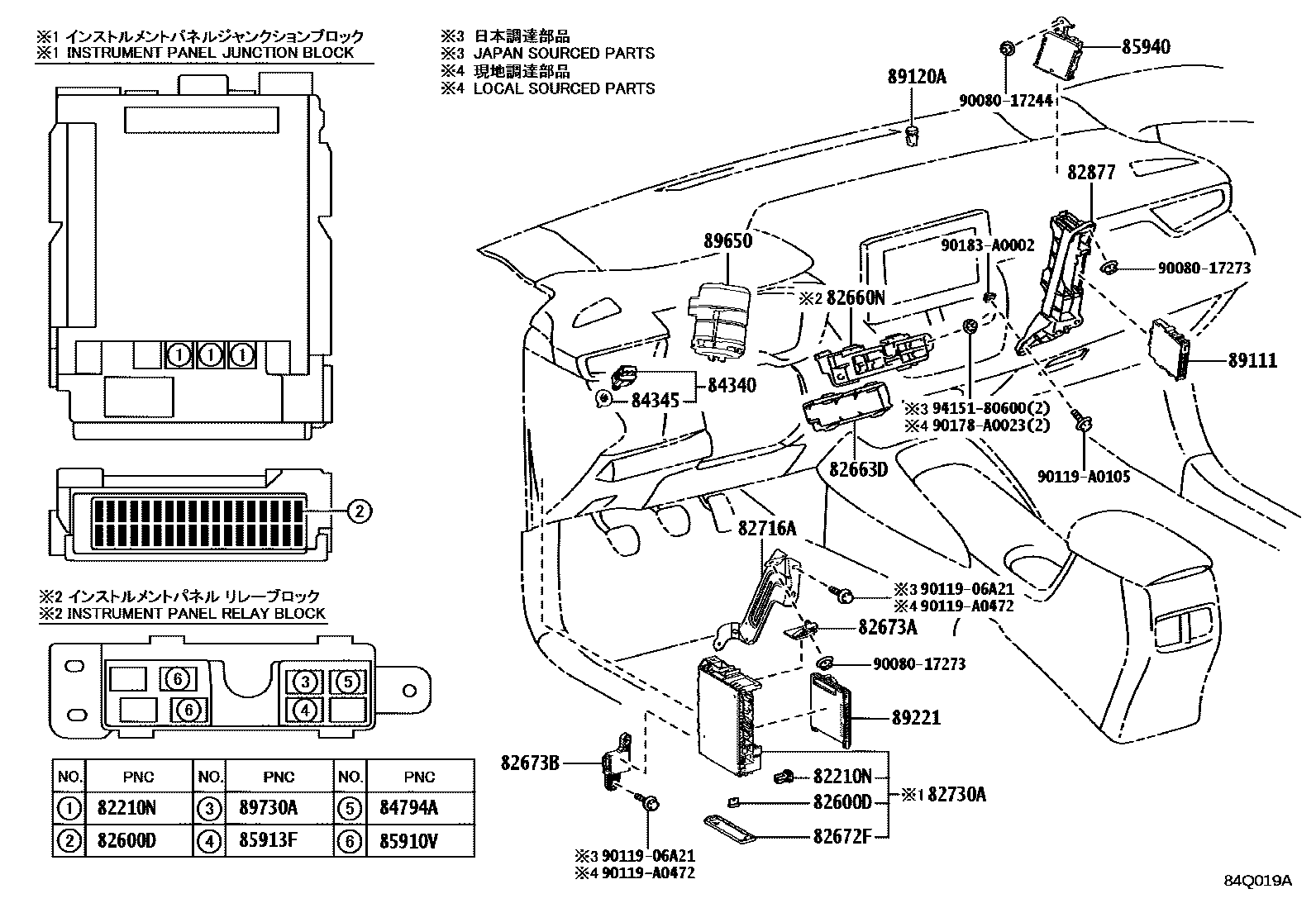

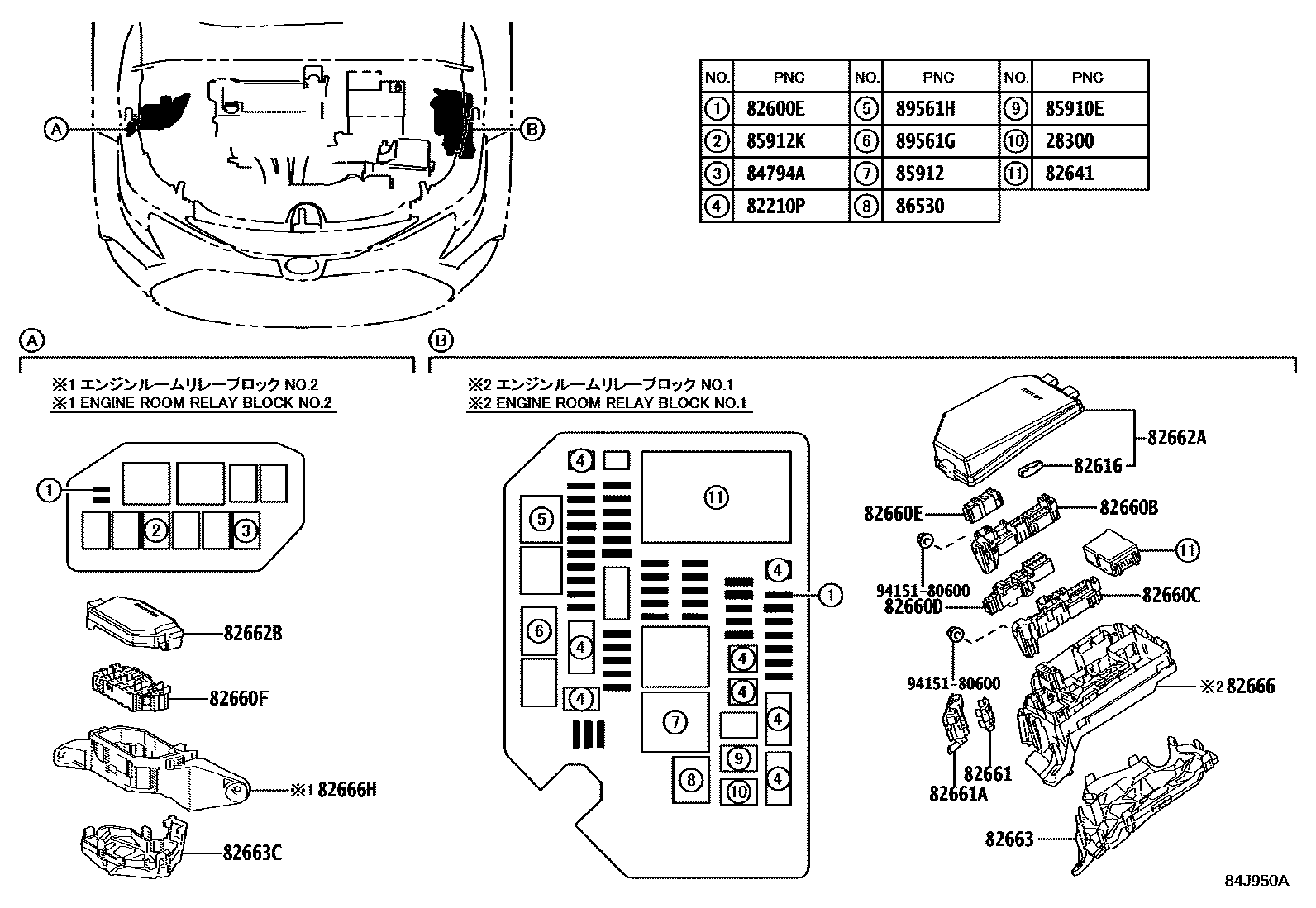

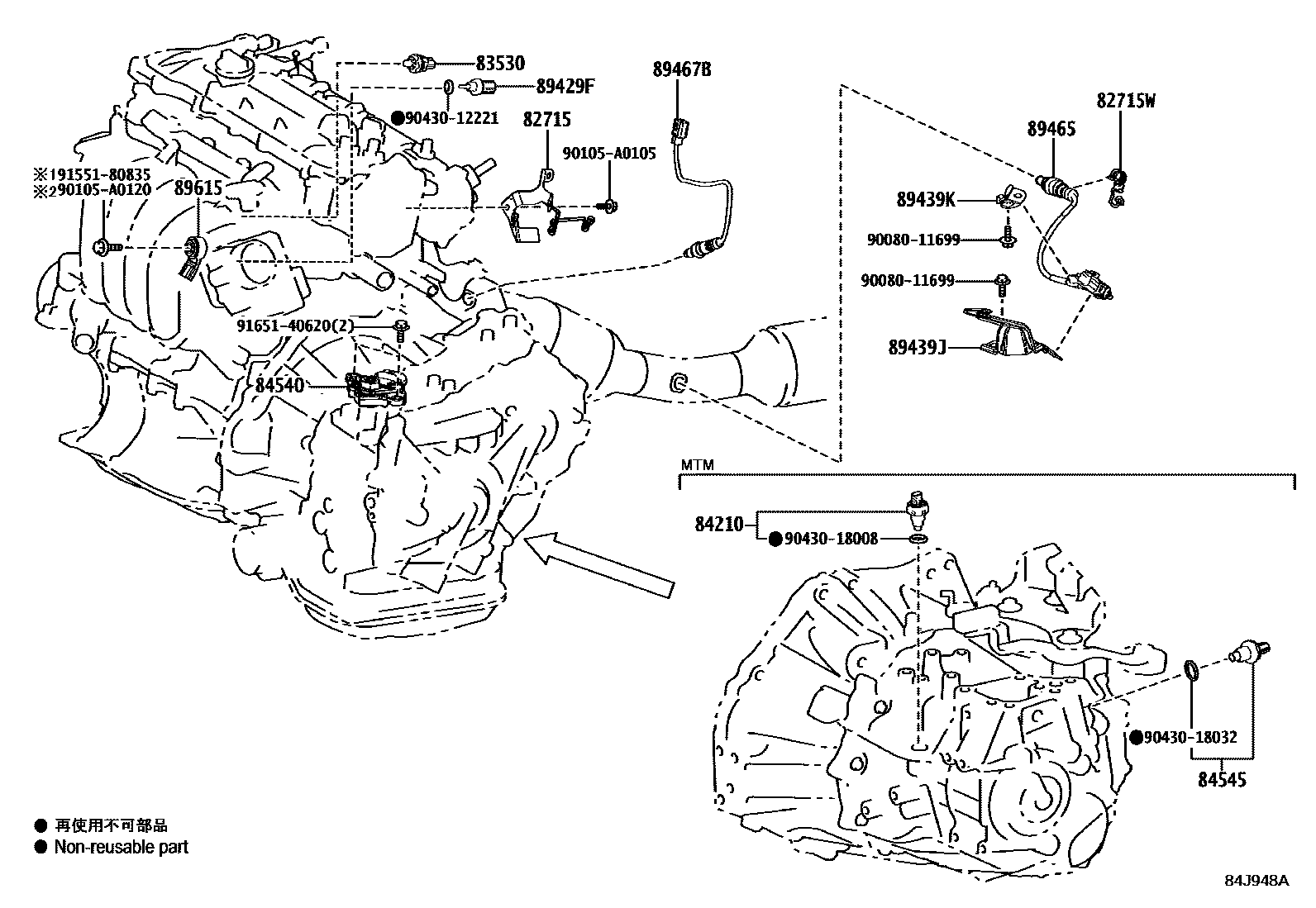

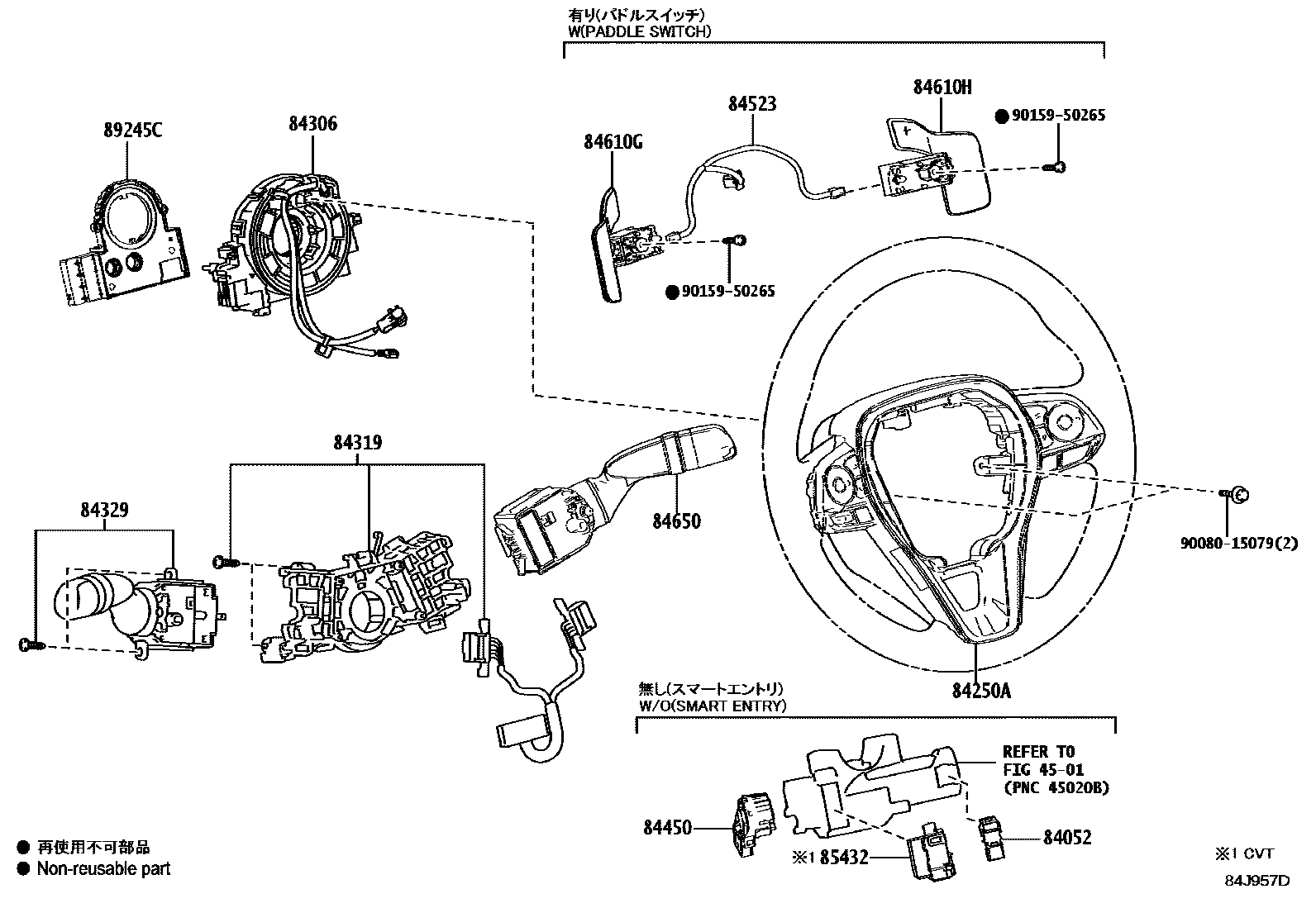

Toyota COROLLA 开关和继电器和ECU — Figure 8401
Toyota COROLLA EPC diagram 8401, 开关和继电器和ECU, with 15 images and 131 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-0A011 |
| 28300F | ENSEMBLE RELAI, DEMARREUR, NO.2 | 28300-0A011 · 28300-21020 |
| 28371E | RELAIS ALLUMAGE NO.4 | 90080-87026 |
| 28371L | RELAIS, IGP | 90080-87026 |
| 82210N | Instrument panel fuse | 90982-08306 |
| 82210P | Engine room fuse | 90982-08294 · 90982-08295 · 90982-08296 · 90982-08299 · 90982-08300 · 90982-08301 · 90982-08302 · 90982-08303 · 90982-08304 · 90982-08305 · 90982-08307 · 90982-08308 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09025 · 90982-09026 |
| 82600E | Engine room fuse | 90982-08294 · 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-12310 |
| 82621A | Fuse cover | 82621-12040 |
| 82641 | Integrated relay No. 1 | 82641-47050 |
| 82660B | Relay assembly | 82660-12360 · 82660-16530 |
| 82660C | Relay assembly | 82660-12390 |
| 82660D | Relay assembly | 82660-12400 |
| 82660E | Relay assembly | 82660-12470 |
| 82660F | Relay assembly | 82660-12410 |
| 82660K | ENS. BLOC RELAIS | 82660-0A060 |
| 82660L | ENS. BLOC RELAIS | 82660-08020 |
| 82660M | ENS. BLOC RELAIS | 82660-0C110 |
| 82660N | ENS. BLOC RELAIS | 82660-12460 |
| 82660P | ENS. BLOC, RELAIS | 82660-52010 |
| 82660Q | ENS. BLOC, RELAIS | 82660-0A050 |
| 82661 | No. 1 relay box cover | 82661-12350 |
| 82661A | No. 2 relay box cover | 82661-12340 |
| 82662A | No. 1 relay box upper cover | 82662-02A00 · 82662-02A40 · 82662-02K60 |
| 82662B | No. 2 relay box upper cover | 82662-02C00 · 82662-02K70 |
| 82663 | Relay box lower cover | 82663-12160 |
| 82663C | No. 4 relay box lower cover | 82663-47090 |
| 82663D | COUVERCLE INFERIEUR BLOC RELAIS NO. 5 | 82663-12150 |
| 82666 | Connector holder | 82666-12650 |
| 82666H | Connector holder No. 2 | 82666-47620 |
| 82672F | Junction box cover | 82672-02190 · 82672-02191 · 82672-12650 · 82672-12660 |
| 82673A | Junction box bracket | 82673-02250 |
| 82673B | Junction box bracket | 82673-02260 |
| 82715 | Wire harness clamp bracket | 82715-10410 · 82715-12V90 |
| 82715W | SUPPORT, COLLIER DE FAISCEAU DE CABLAGE | 82729-20040 |
| 82715X | SUPPORT, COLLIER FAISCEAU CABLAGE, NO.2 | 82715-0Z390 |
| 82716A | SUPPORT, COLLIER DE FAISCEAU DE CABLAGE | 82715-12W60 · 82715-12X60 |
| 82730A | Driver's side junction box assembly | 82730-02N10 · 82730-02N11 · 82730-12Z10 · 82730-12Z80 · 82730-12Z90 · 82730-1A080 |
| 82741 | Engine room relay box | 82741-0A020 |
| 82877 | Right ECU integrated box | 82877-02050 · 82877-02100 |
| 83320 | Fuel gauge sensor assembly | 83320-02500 · 83320-0A130 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-12060 |
| 83950M | Warning light assembly | 83950-02490 |
| 84040 | Multi-channel network main switch assembly | 84040-0A170 · 84040-0R040 · 84040-0R050 |
| 84052 | Unlock warning switch assembly | 84052-71010 |
| 84119 | Light control rheostat | 84119-02080 · 84119-0R020 |
| 84153 | Automatic high beam switch | 84153-02050 · 84153-0R010 |
| 84210 | Reversing light switch assembly | 84210-52050 |
| 84233 | Door control light switch assembly (for front door) | 84231-08030 |
| 84234 | Door control light switch assembly (for rear door) | 84231-AA030 |
| 84250A | Steering wheel decorative cover switch assembly | 84250-02C00 · 84250-02G50 · 84250-02J90 · 84250-02K00 |
| 84255 | Steering heater switch | 84255-02030 · 84255-0R020 |
| 84306 | Spiral cable sub-assembly | 84308-02130 · 84308-0A010 · 84308-0A020 · 84308-0R030 |
| 84319 | Steering wheel switch housing | 84319-02020 |
| 84329 | turn signal switch | 84329-02050 · 84329-0E020 · 84329-0R030 |
| 84330 | Hazard warning signal switch assembly | 84332-02390 |
| 84340 | brake light switch assembly | 84340-09291 |
| 84345 | Brake light switch base adjuster | 84345-08010 |
| 84390B | Electric parking brake switch assembly | 84390-02010 · 84390-02030 · 84390-02100 |
| 84450 | Ignition or starter switch assembly | 84450-06050 |
| 84520 | Clutch start switch assembly | 88280-70010 |
| 84523 | No. 1 switch harness | 84523-11010 |
| 84540 | Neutral start switch assembly | 84540-12240 · 84540-52070 · 89451-42010 |
| 84545 | INTERRUPTEUR, POSITION NEUTRE | 84545-52010 |
| 84550 | Parking brake switch assembly | 84550-33010 |
| 84610G | ENS. COM, BOITE VITESSES, NO.1 | 84610-33011 |
| 84610H | ENS. COM, BOITE VITESSES, NO.2 | 84610-33021 |
| 84650 | Windshield wiper switch assembly | 84652-02840 · 84652-02870 · 84652-06400 · 84652-06410 |
| 84751F | Seat heater switch | 84751-02050 · 84751-02140 |
| 84751G | Seat heater switch | 84751-02060 · 84751-02150 |
| 84751R | Seat heater switch (rear) | 84751-02100 · 84751-0R120 |
| 84794 | Front wiper de-icer switch | 84794-0R030 · 84871-02020 |
| 84794A | Front wiper de-icer relay | 90080-87026 · 90987-02027 |
| 84810 | Electric window lift switch assembly | 84810-0R030 · 84810-0R040 |
| 84810D | Rear electric window lift switch assembly | 84810-0R030 · 84810-0R040 |
| 84870A | Exterior rearview mirror switch assembly | 84872-02290 · 84872-02300 · 84872-0A170 |
| 84922 | Front electric seat switch | 84922-0R030 |
| 84930P | ENS. INT, COMMANDE PORTE | 84930-0R050 |
| 84945A | COMMANDE, CLE ELECTRIQUE COMP BAGAGES | 84945-12070 |
| 84970 | Combination switch assembly | 84970-02340 · 84970-02350 · 84970-02360 · 84970-02660 · 84970-02820 |
| 85432 | Key interlock solenoid valve | 85432-06040 |
| 85530E | No. 3 power socket assembly | 85530-06030 |
| 85532 | PRISE, CHARGEUR USB | 85532-02050 · 85532-12020 · 85532-60010 |
| 85532C | PRISE, CHARGEUR USB, NO.2 | 85532-06080 |
| 85535B | No. 1 power outlet cover | 85535-02200 |
| 85910 | Circuit breaking relay assembly | 90080-87026 · 90987-02027 |
| 85910E | Injector relay | 90080-87026 |
| 85910V | seat heater relay | 90080-87026 · 90987-02027 |
| 85912 | defogger relay | 90080-87025 |
| 85912K | RELAIS, VVT | 90080-87026 |
| 85913F | Steering heater relay | 90080-87026 · 90987-02027 |
| 85926 | Headlight dimmer relay | 90080-87026 |
| 85927 | cooling fan relay | 90080-87026 · 90987-02027 |
| 85940 | Windshield wiper relay assembly | 85940-12230 · 85940-12240 |
| 85948 | windshield wiper relay | 90080-87026 · 90987-02027 |
| 85960D | RELAIS, PHARE, MD | 90080-87026 |
| 85960E | RELAIS, PHARE, MG | 90080-87026 |
| 86530 | Speaker relay assembly | 90080-87026 |
| 88162 | Blind spot monitor right sensor | 88162-02010 · 88162-02070 · 88162-02130 |
| 88163 | Blind spot monitor right side cover | 88163-02010 |
| 88172 | Blind spot monitor left sensor | 88162-02010 · 88162-02070 · 88162-02130 |
| 88173 | Blind spot monitor left cover | 88173-02010 |
| 88280A | Clutch switch assembly | 88280-42010 |
| 89111 | Network gateway ECU | 89111-0R020 · 89111-12190 |
| 89120A | Automatic light control sensor | 89121-0E060 |
| 89221 | Multi-channel network body ECU | 89220-02A00 · 89220-02A10 · 89220-02B90 · 89220-02C00 · 89220-02C10 · 89220-02C20 · 89220-02C30 · 89220-02C40 · 89220-02C50 · 89220-02E30 · 89220-02E40 · 89220-02M20 · 89220-02M30 · 89220-02V80 · 89220-02V90 · 89220-02W00 · 89220-02W10 · 89220-02W20 · 89220-02X00 · 89220-02X10 · 89220-02X20 · 89220-02X30 · 89221-12L80 · 89221-12L81 · 89221-12M00 · 89221-12M01 |
| 89245C | steering sensor | 8924B-02190 · 8924B-0E040 |
| 89257 | Cooling fan ECU | 89257-12020 · 89257-K0020 |
| 89280 | Clutch pedal stroke sensor assembly | 89280-10010 |
| 89419B | CAPTEUR COURSE RAPPORTS | 89419-12010 · 89419-12011 · 89419-K2010 |
| 89422A | water temperature sensor | 89422-33040 |
| 89429F | temperature sensor | 89429-12010 |
| 89439J | PLATINE FIXATION, DETECTEUR, NO.2 | 82715-02V70 |
| 89439K | PLATINE FIXATION, DETECTEUR, NO.3 | 82715-02V80 |
| 89465 | oxygen sensor | 89465-02430 |
| 89467B | air fuel ratio sensor | 89467-02090 · 89467-02130 · 89467-0A010 |
| 89467C | No. 2 air-fuel ratio sensor | 89467-02140 · 89467-02360 |
| 89491 | Engine oil level sensor | 89491-33051 · 89491-33052 |
| 89535B | ORDINATEUR, COMMANDE TRANSMISSION | 89535-12040 · 89535-12041 · 89535-12230 · 89535-12240 · 89535-12360 |
| 89539M | No. 1 transmission control ECU bracket | 89539-12070 |
| 89539N | No. 2 transmission control ECU bracket | 89539-12080 |
| 89561F | RELAIS, PRINCIPAL INJECTION CARB ELEC, NO.1 | 90080-87026 · 90987-02027 |
| 89561G | RELAIS, PRINCIPAL INJECTION CARB ELEC, NO.2 | 90080-87026 |
| 89561H | RELAIS, PRINCIPAL INJECTION CARB ELEC, NO.3 | 90080-87026 · 90987-02033 |
| 89611 | push button start switch | 89611-02130 · 89611-0E200 |
| 89615 | knock control sensor | 89615-06010 · 89615-20090 · 89615-F6010 |
| 89650 | Power steering ECU assembly | 89650-12K10 · 89650-12K20 · 89650-12K30 · 89650-12M50 · 89650-12N70 |
| 89730A | Relay (for safety warnings) | 90080-87026 |
| 89747F | Blind spot monitor buzzer | 89747-02010 · 89747-08010 · 89747-52010 |
