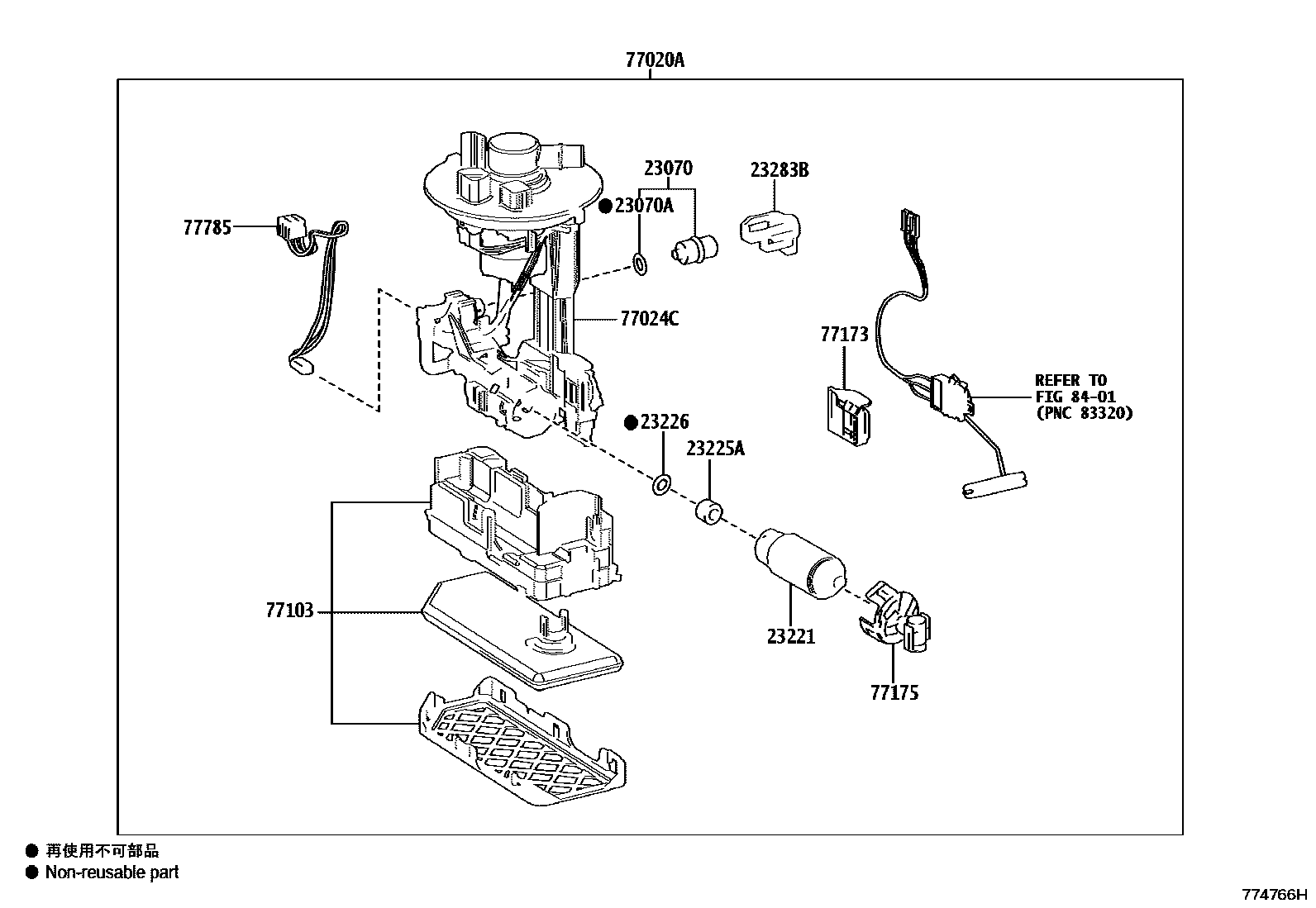

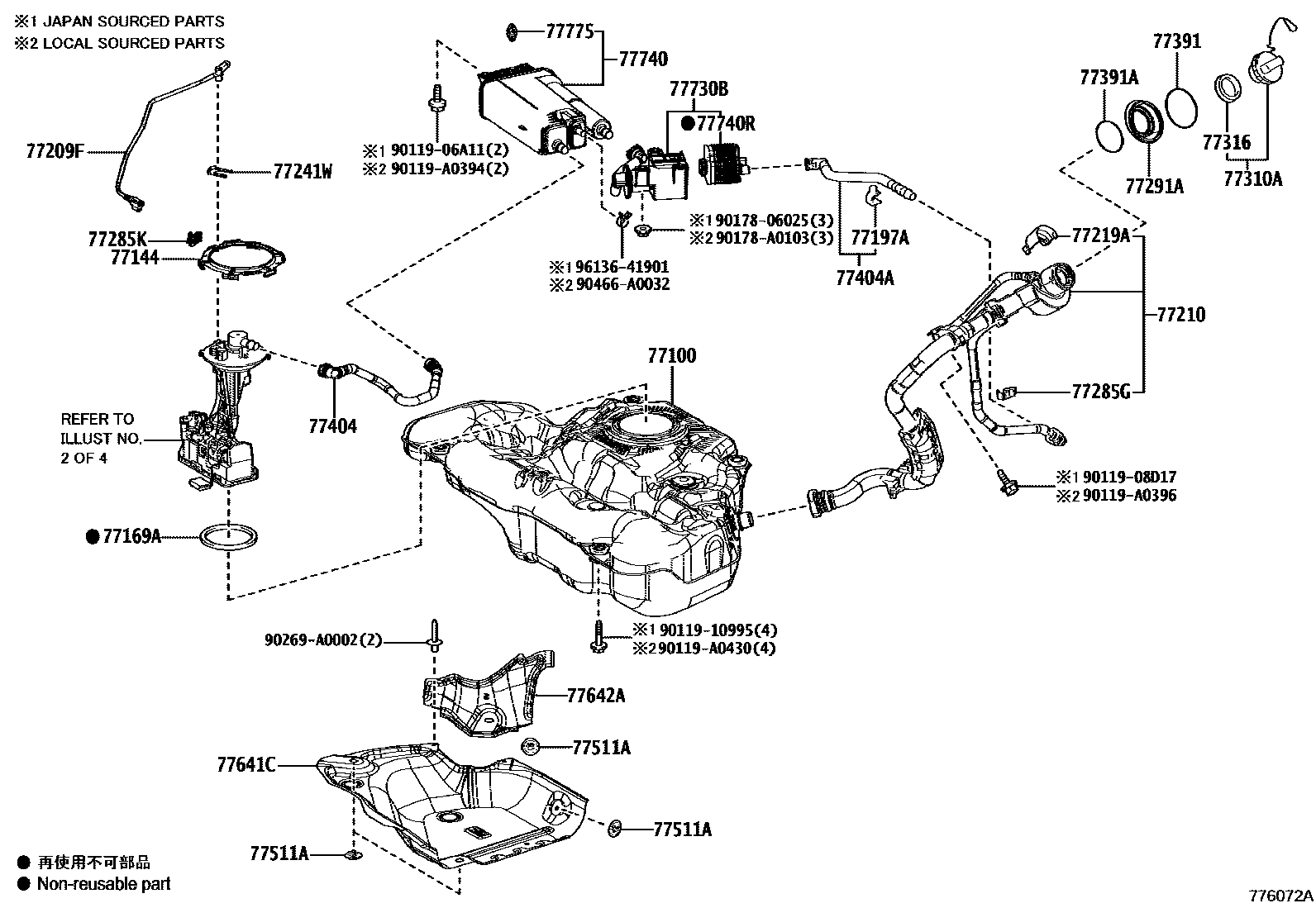

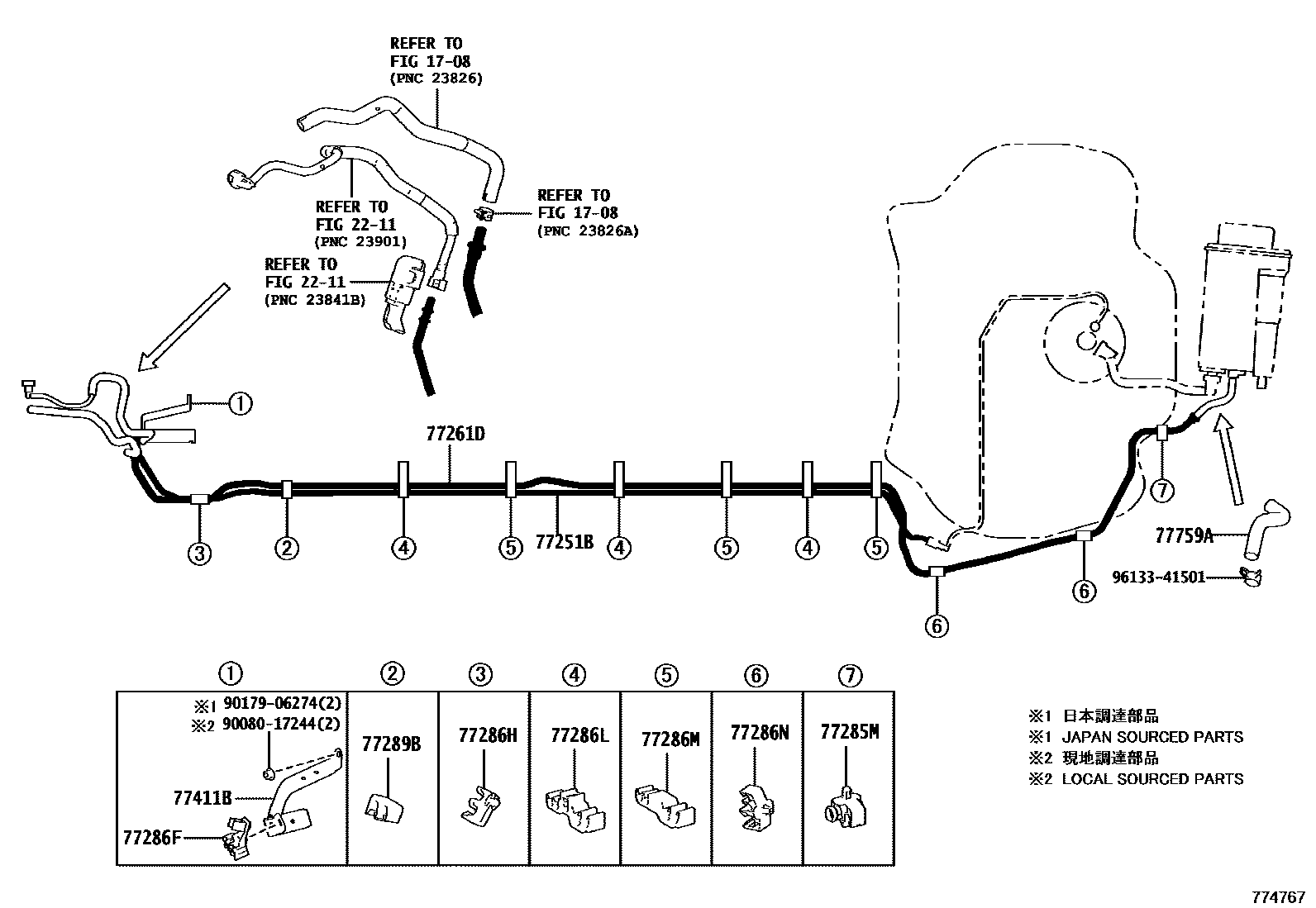

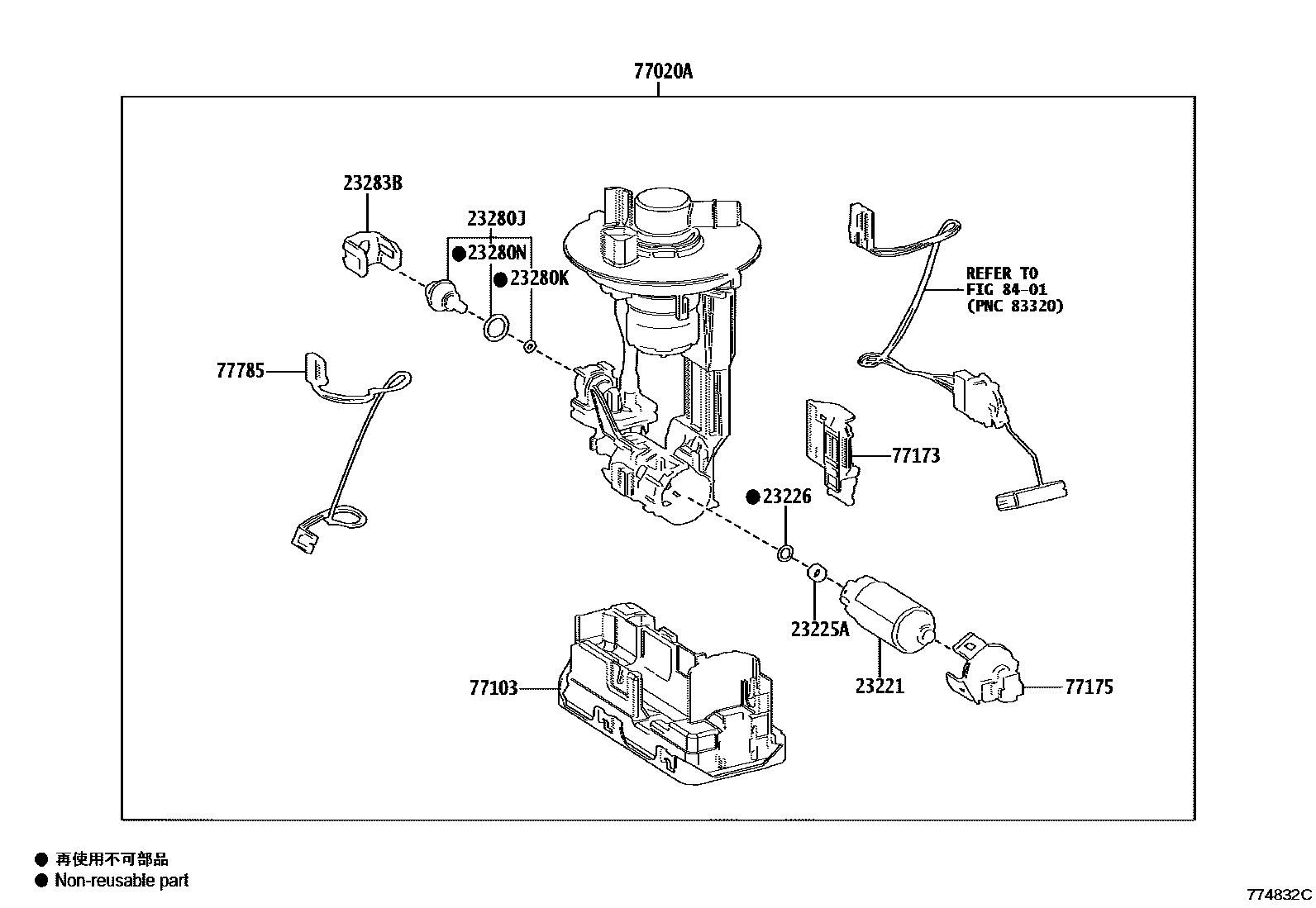

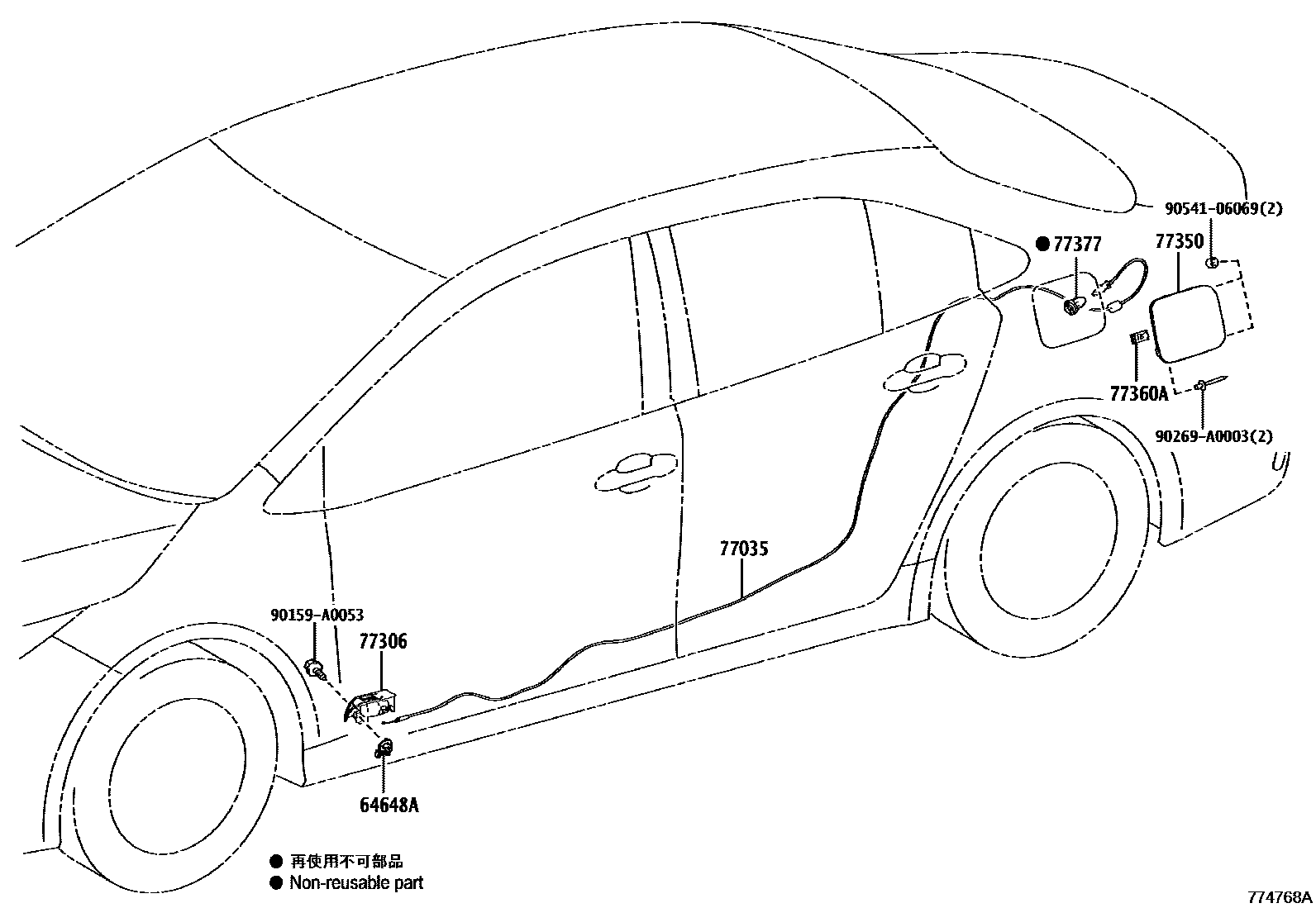

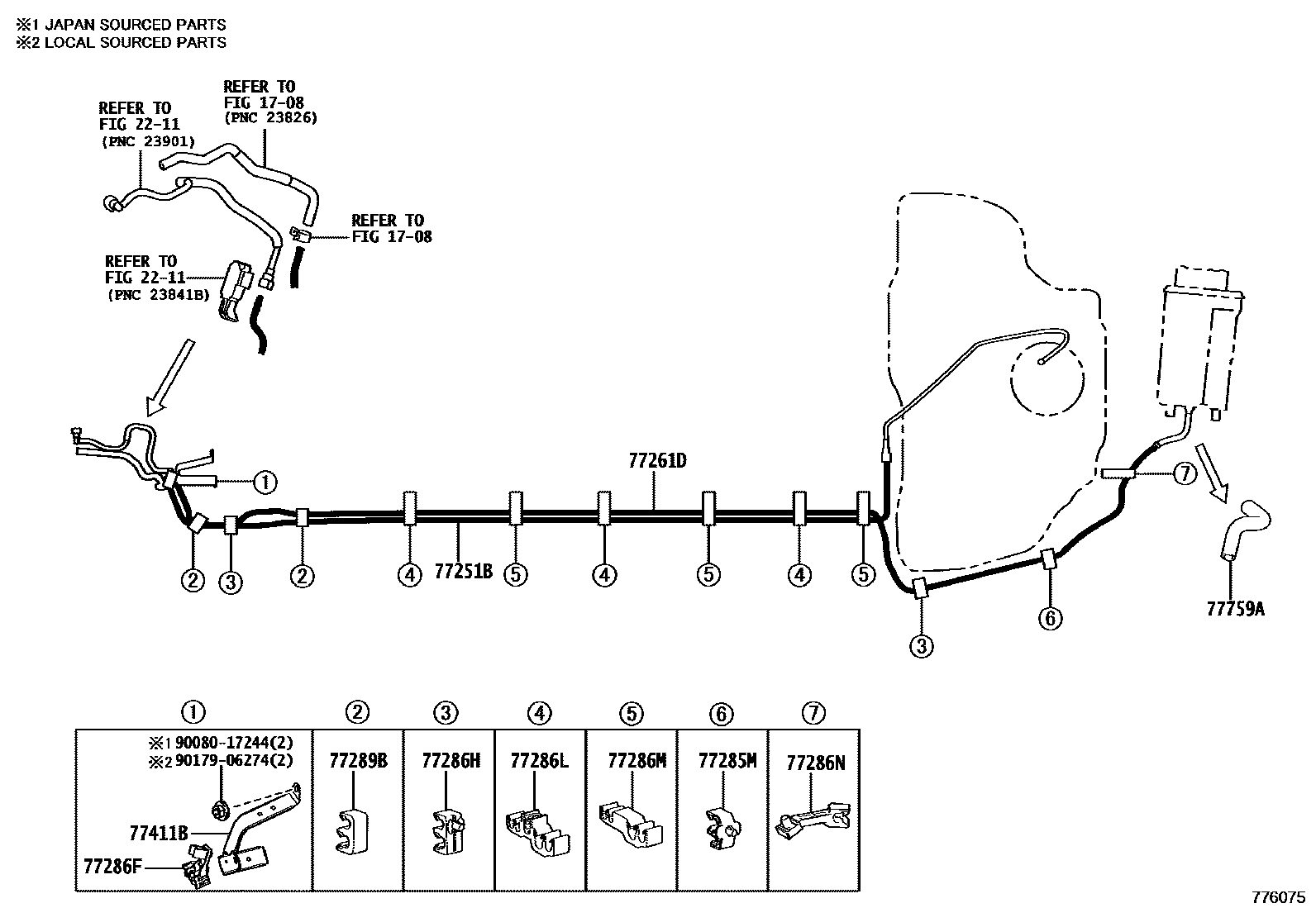

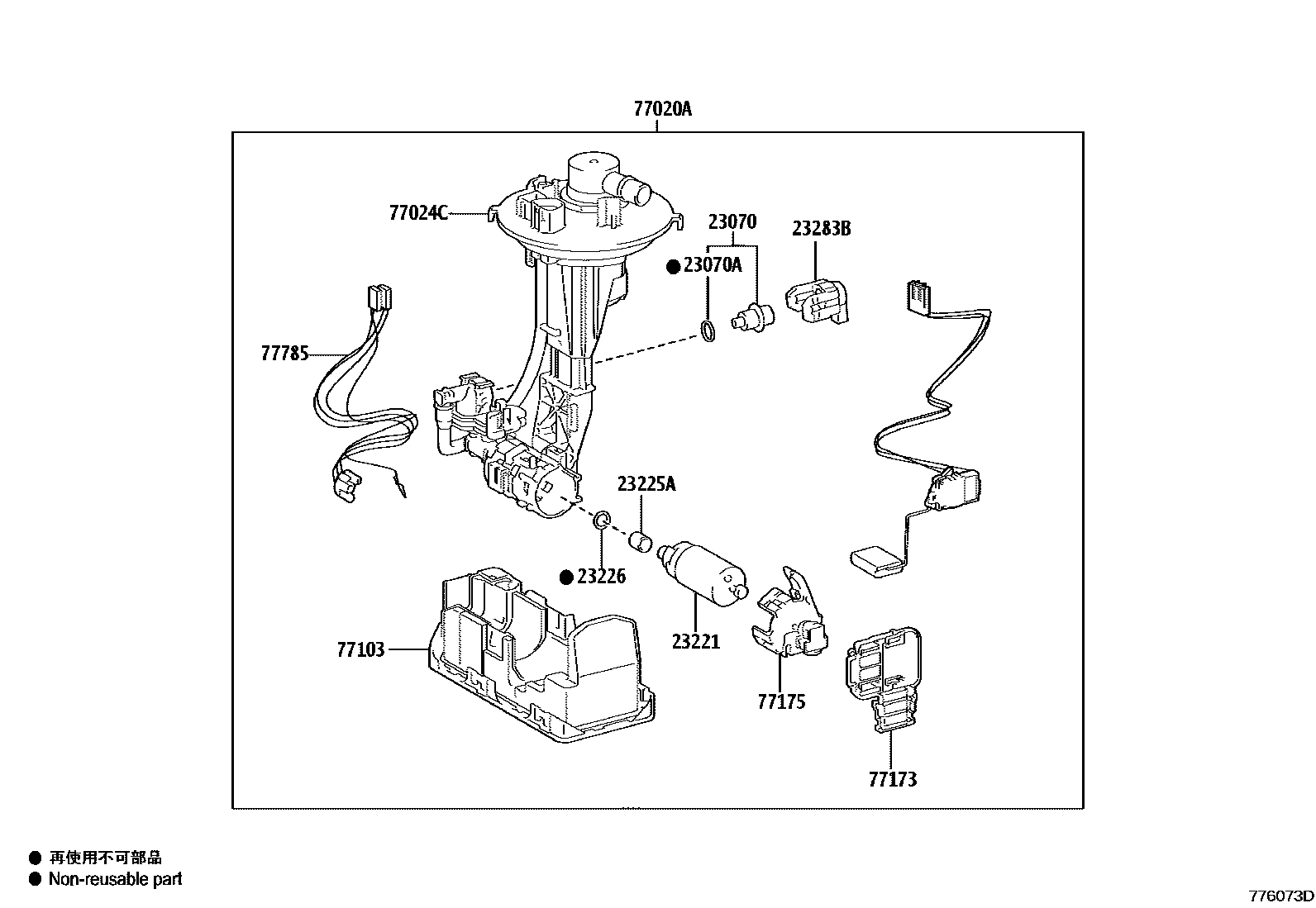

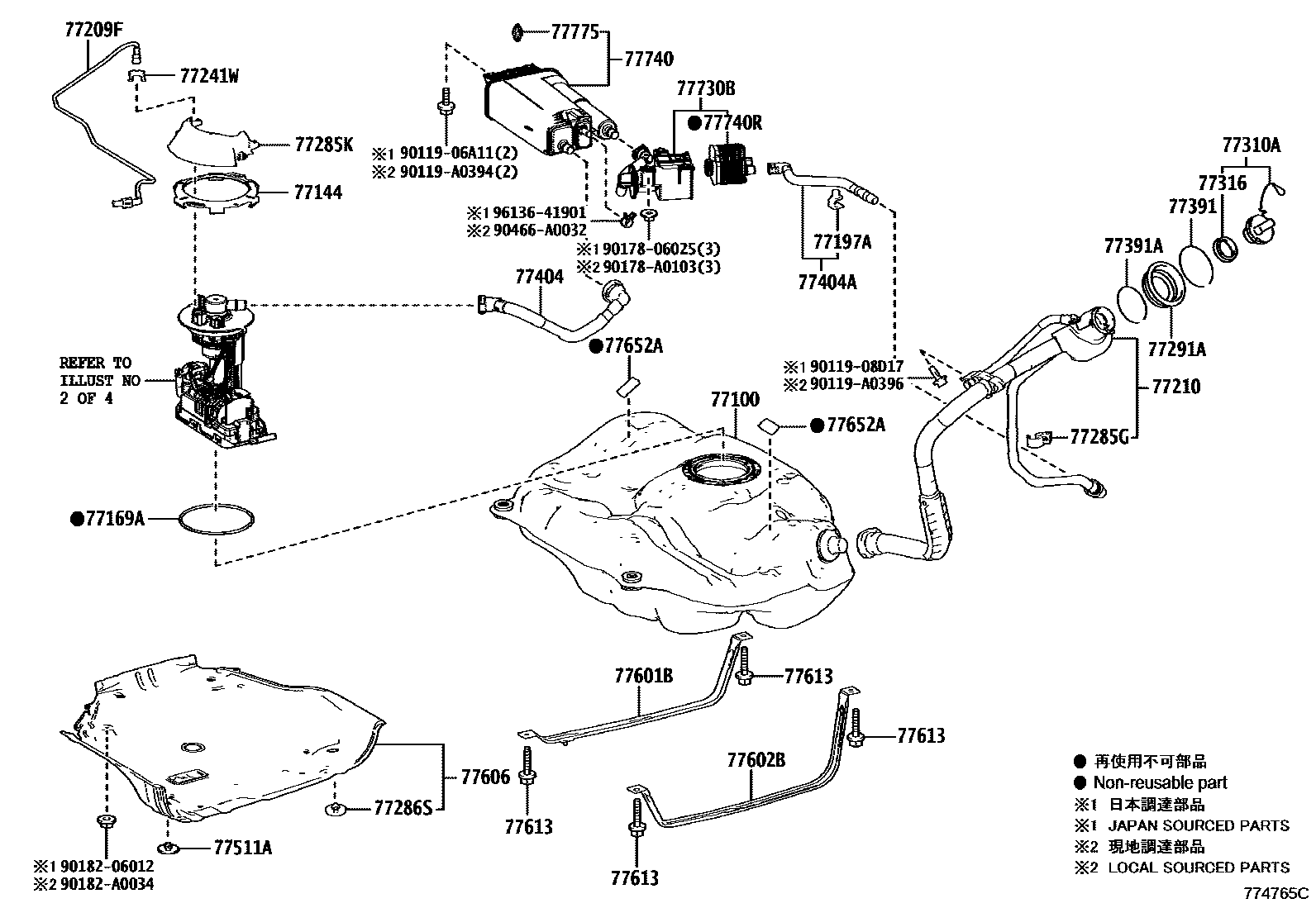

Toyota COROLLA 燃油箱和燃油管 — Figure 7701
Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 8 images and 62 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23070 | Main fuel valve assembly | 23070-25020 |
| 23070A | JOINT, TORIQUE, NO.1(POUR SOUP PRINC CARB) | 90301-15024 |
| 23221 | fuel pump | 23221-25030 · 23221-37040 |
| 23225A | fuel pump septum | 23225-0V010 · 23225-31020 · 23225-F0010 |
| 23226 | O-ring (for fuel pump) | 90301-A0013 · 90301-A0021 |
| 23280J | Fuel pressure regulator assembly | 23280-21010 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 |
| 23280N | JOINT TORIQUE (DE REGULATEUR PRESSION ESSENCE), NO.2 | 90301-15024 |
| 23283B | SUPPORT REGULATEUR PRESSION ESSENCE | 23283-0T010 · 23283-F0010 |
| 64648A | Trunk door lock opener seal | 64648-12020 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-02890 · 77020-02A00 · 77020-0A120 |
| 77024C | SOUS-ENS PLAQUE, ASPI CARBURANT AVEC FILTRE A CARB | 77024-02590 · 77024-0A010 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-02510 · 77035-02511 |
| 77100 | fuel tank assembly | 77001-02850 · 77001-02C20 |
| 77103 | SOUS-ENS. RESERVOIR AUX, CARB | 77103-0R010 · 77103-0R020 |
| 77144 | Fuel pump instrument fixture | 77144-06040 |
| 77169A | Fuel suction pipe fixed gasket | 77169-06060 |
| 77173 | SUPPORT, JAUGE CARB | 77173-02010 · 77173-0E021 |
| 77175 | No. 2 oil suction pipe bracket | 77175-02070 · 77175-0R010 |
| 77197A | No. 2 evaporation vent pipe clamp | 77197-47010 |
| 77209F | Fuel tank main pipe sub-assembly | 77209-02210 · 77209-02250 · 77209-0A120 |
| 77210 | ENS. TUYAU, REMPLISSAGE DU RESERVOIR A CARBURANT | 77210-02650 · 77210-02810 |
| 77219A | Fuel tank filler pipe cap | 77219-0R020 |
| 77241W | Pipe joint clip | 77241-02010 |
| 77251B | main fuel pipe | 77251-02830 · 77251-02850 · 77251-02D50 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-02720 · 77261-02B50 |
| 77285G | No. 1 fuel pipe clamp | 77285-06510 |
| 77285K | No. 1 fuel pipe clamp | 77285-02220 · 77285-06240 |
| 77285M | No. 1 fuel pipe clamp | 77285-02260 |
| 77286F | No. 2 fuel pipe clamp | 77286-02260 · 77286-02270 |
| 77286H | No. 3 fuel pipe clamp | 77286-02280 · 77286-02300 |
| 77286L | No. 5 fuel pipe clamp | 77298-02290 · 77298-02310 |
| 77286M | No. 6 fuel pipe clamp | 77298-02300 · 77298-02320 |
| 77286N | No. 7 fuel pipe clamp | 77286-02290 · 77299-02070 |
| 77286S | Fuel tank protective shell cushion | 77286-12110 |
| 77289B | No. 3 fuel pipe clamp | 77289-02150 · 77289-02160 |
| 77291A | Fuel tank filler pipe cover | 77291-02250 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 64606-02230 |
| 77310A | Fuel tank cap assembly | 77300-07040 |
| 77316 | fuel tank cap gasket | 77316-06090 |
| 77350 | Fuel filler cap assembly | 77350-02210 |
| 77360A | ENS. RESSORT, COUVERCLE OUVERTURE DU REMPLISSAGE RESERVOIR | 77360-02020 |
| 77377 | Fuel filler cap lock retainer | 77377-0R040 |
| 77391 | fuel inlet ring | 77391-02041 |
| 77391A | fuel inlet ring | 77391-20040 |
| 77404 | Fuel tank vent hose sub-assembly | 77404-02300 · 77404-02400 |
| 77404A | Fuel tank vent hose sub-assembly | 77404-02310 |
| 77411B | No. 1 fuel pipe retaining ring bracket | 77411-02020 |
| 77511A | fuel tank bracket | 77512-06060 · 77512-35140 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-02200 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-02190 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77606-02120 |
| 77613 | Fuel tank strap fixing bolts | 90119-10995 · 90119-A0430 |
| 77641C | ENS. PROTECTION, RESERVOIR CARB | 77641-0A010 |
| 77642A | No. 2 fuel tank protective shell | 77642-0A010 |
| 77652A | No. 2 fuel tank liner | 77652-02140 |
| 77730B | ENS. CARTOUCHE, CHARBON AV TUYAU SORTIE | 77730-02010 |
| 77740 | Carbon canister assembly | 77740-06230 |
| 77740R | Leak detection pump sub-assembly | 90910-AF006 |
| 77759A | Carbon canister hose | 77759-02010 |
| 77775 | Carbon canister outlet duct | 77775-33010 |
| 77785 | fuel pump wiring harness | 77785-02190 · 77785-02200 |
