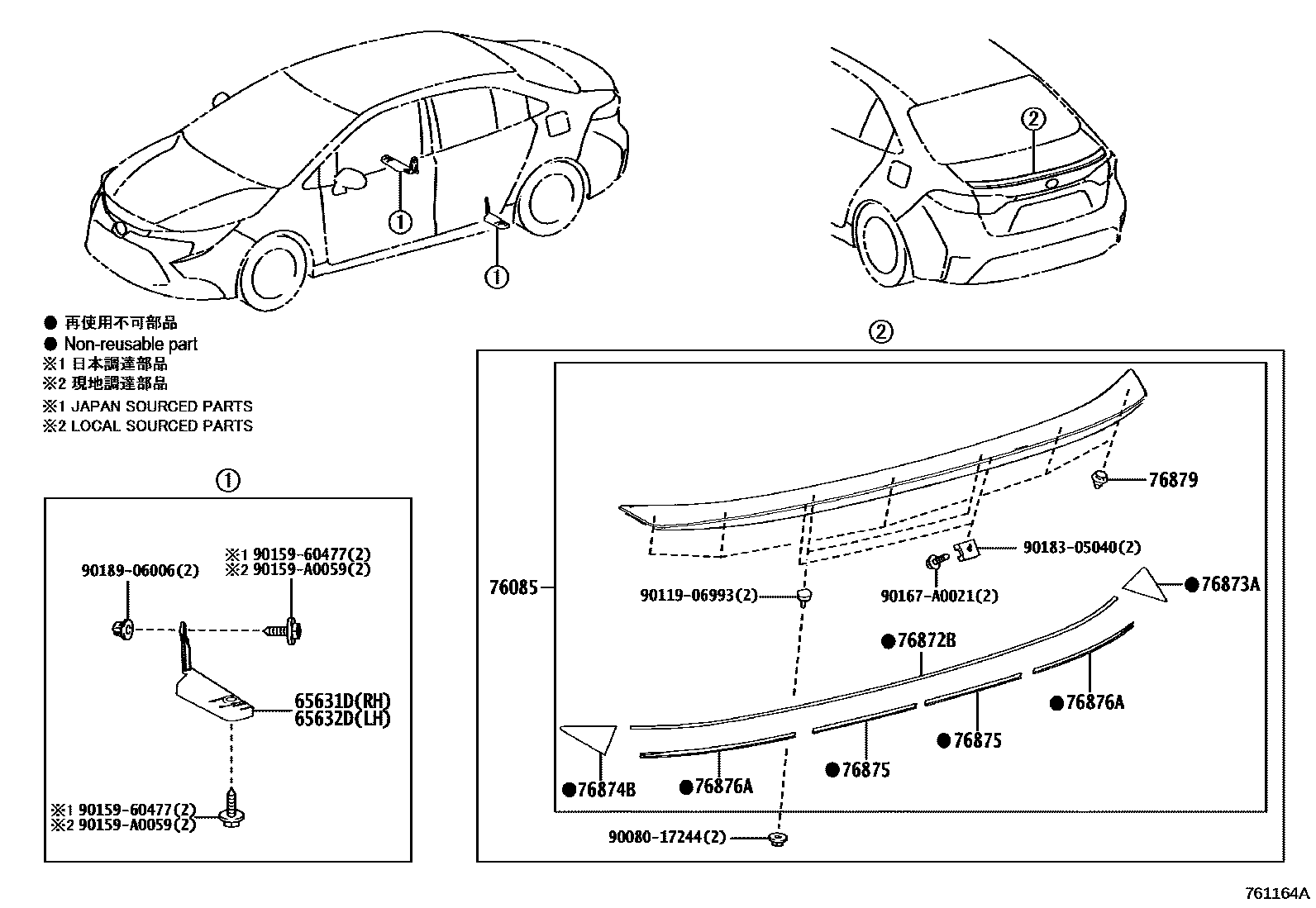

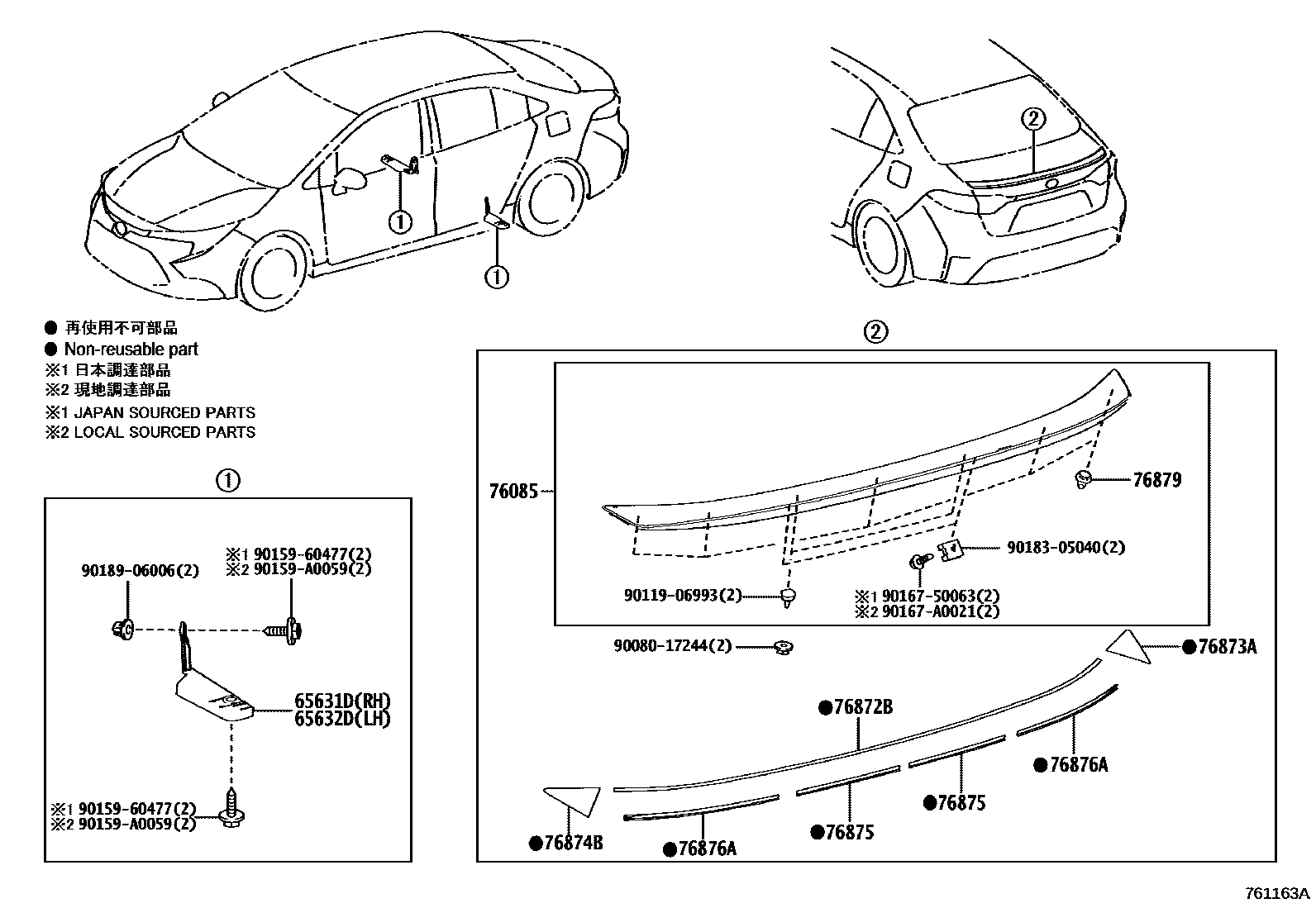

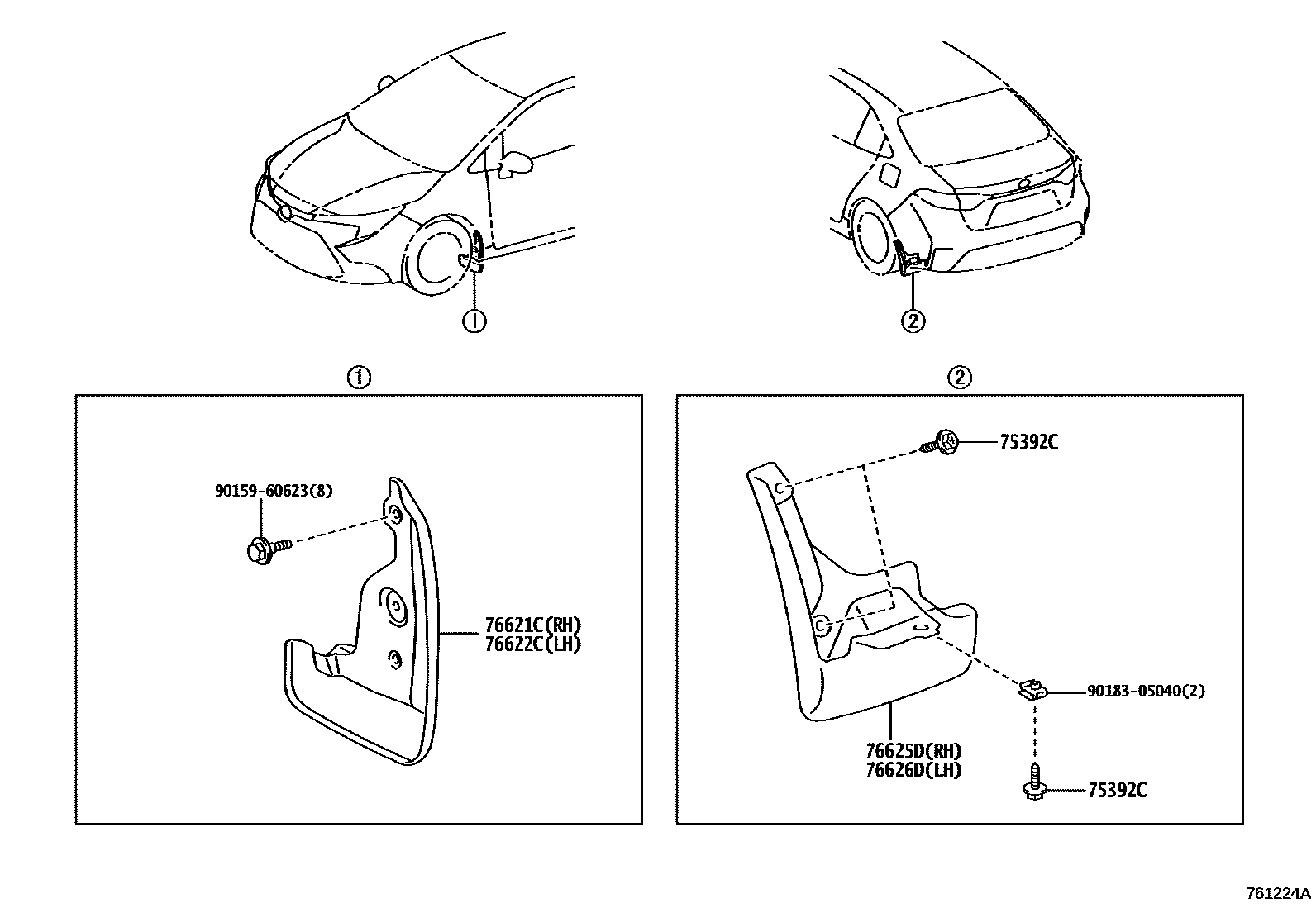

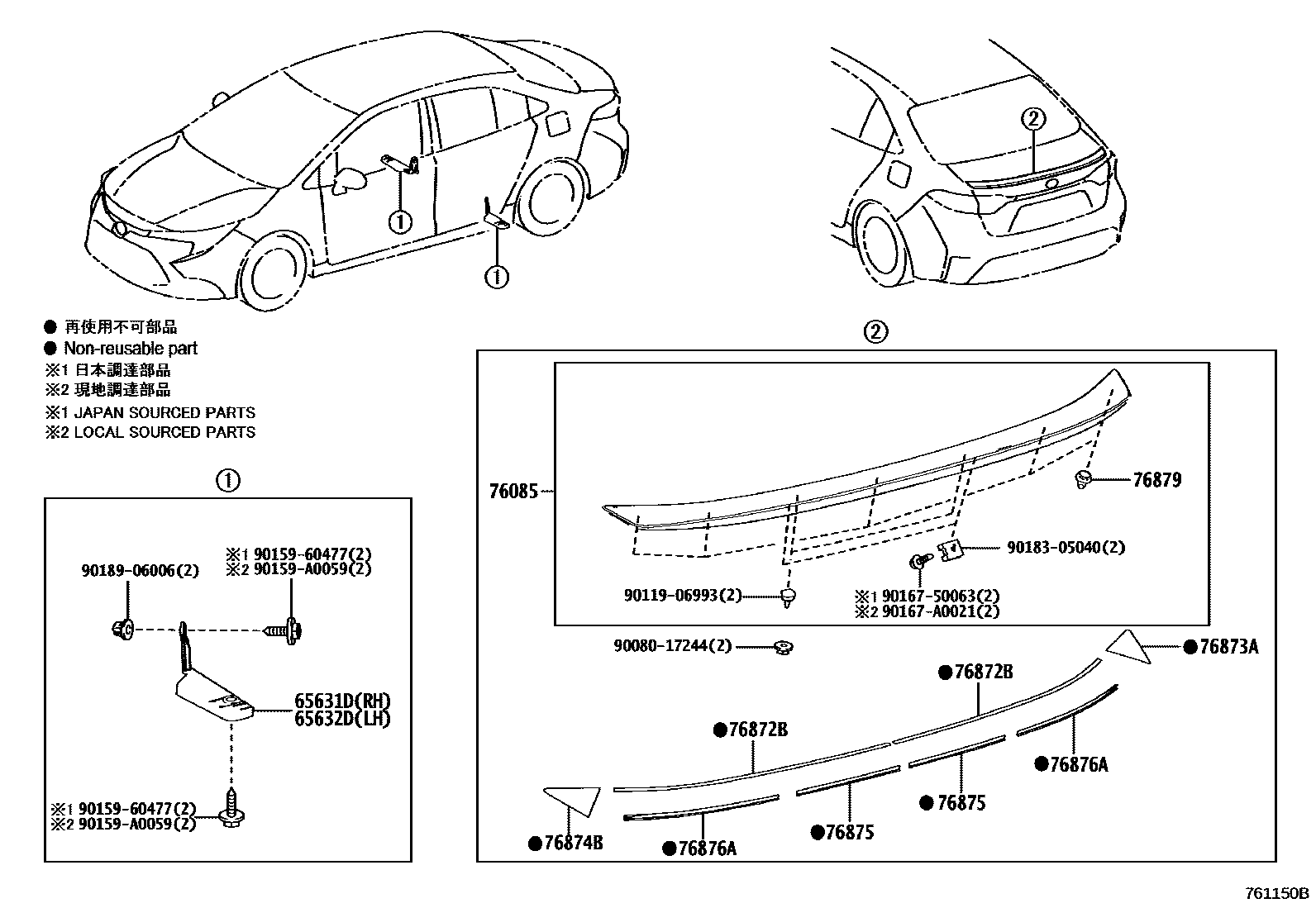

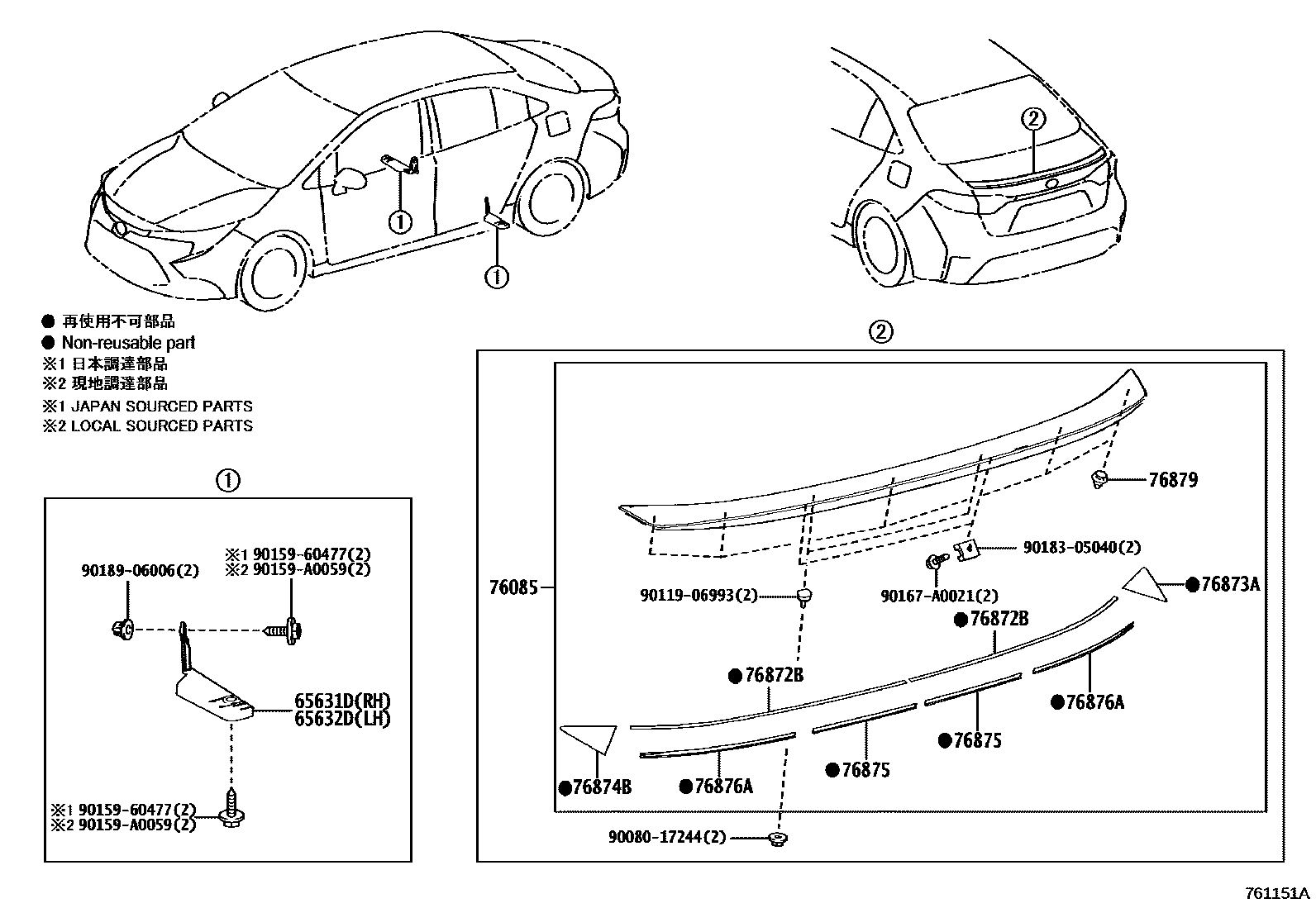

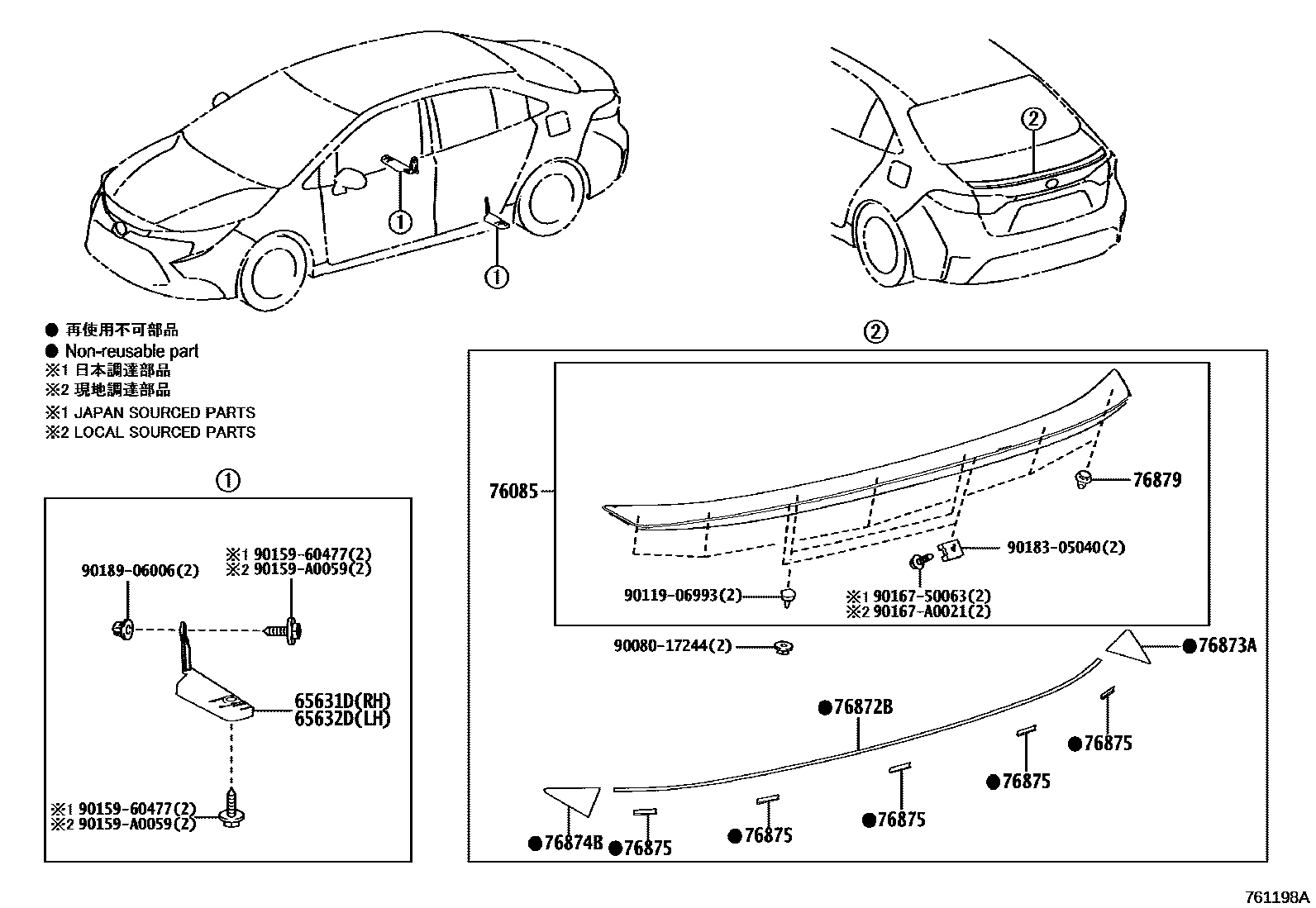

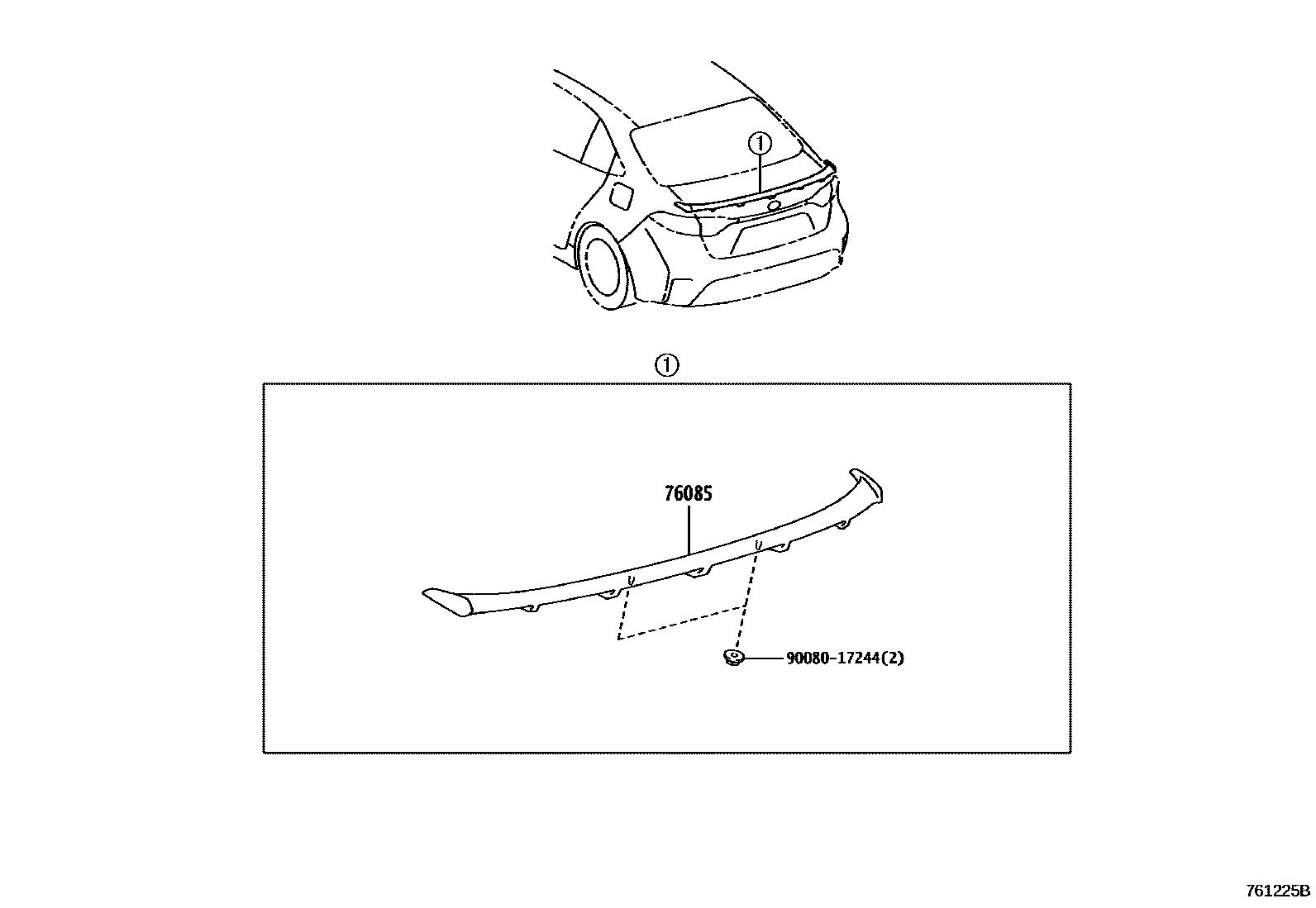

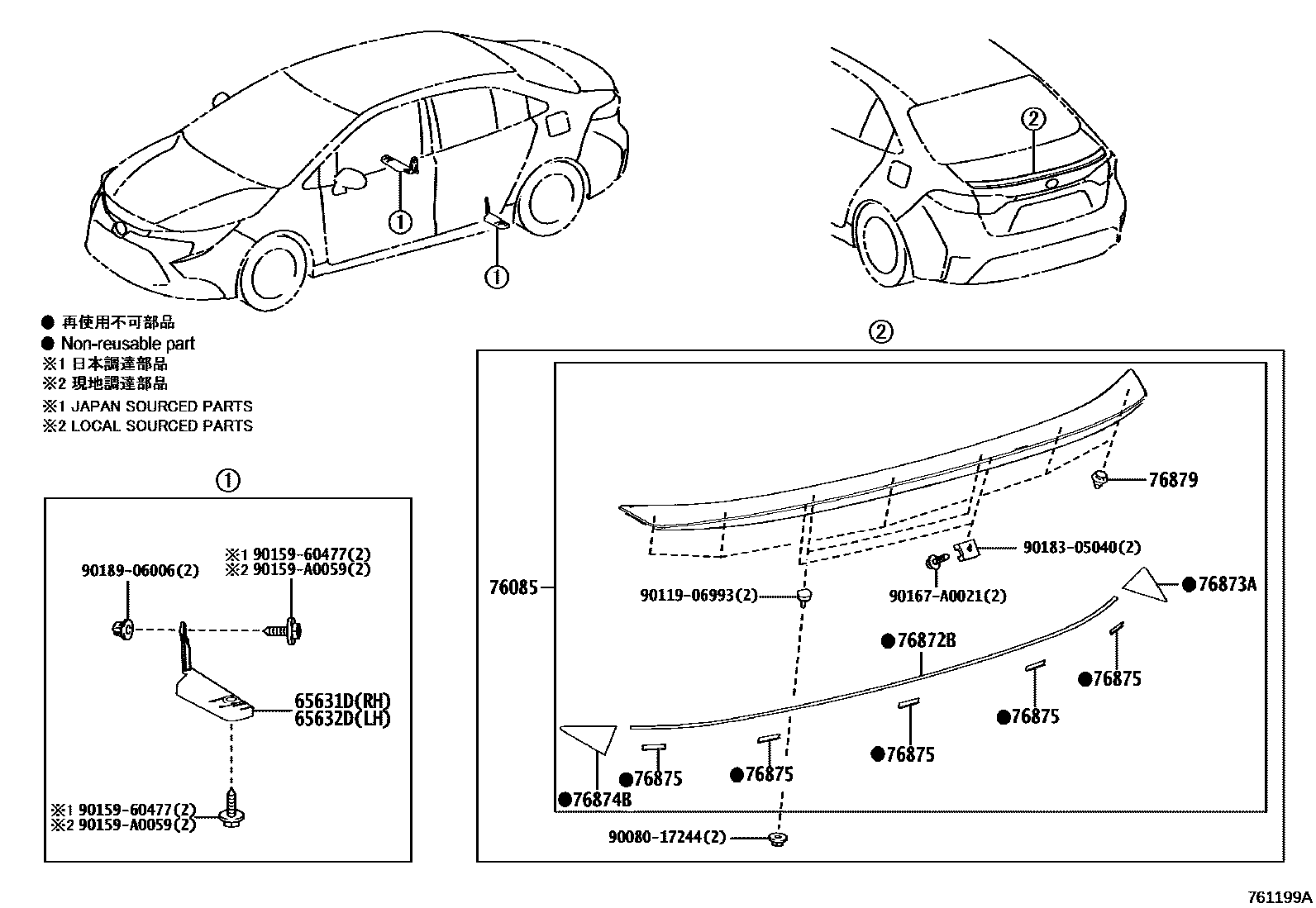

Toyota COROLLA 挡泥板和扰流板 — Figure 7601
Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 8 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65631D | Right rear wheel house front panel | 65631-02210 |
| 65632D | Left rear wheel house front panel | 65632-02210 |
| 75392C | Left outer protective strip fixing | 75392-42030 |
| 76085 | Rear spoiler sub-assembly | 76085-02260 · 76085-02280 · 76085-02904 |
| 76621C | Right front fender fender | 76621-YY160 |
| 76622C | Left front fender fender | 76622-YY150 |
| 76625D | Right rear side fender | 76625-YY160 |
| 76626D | Left rear side fender | 76626-YY160 |
| 76872B | Rear center spoiler protective strip | 76872-02060 |
| 76873A | Right rear spoiler protective strip | 76873-02070 |
| 76874B | Left rear spoiler protective strip | 76874-02080 |
| 76875 | No. 4 rear spoiler protective strip | 76875-02050 |
| 76876A | No. 10 rear spoiler protective strip | 76876-02040 |
| 76879 | No. 1 rear spoiler clip | 90467-09206 |
