Toyota COROLLA 后防护条 — Figure 7504

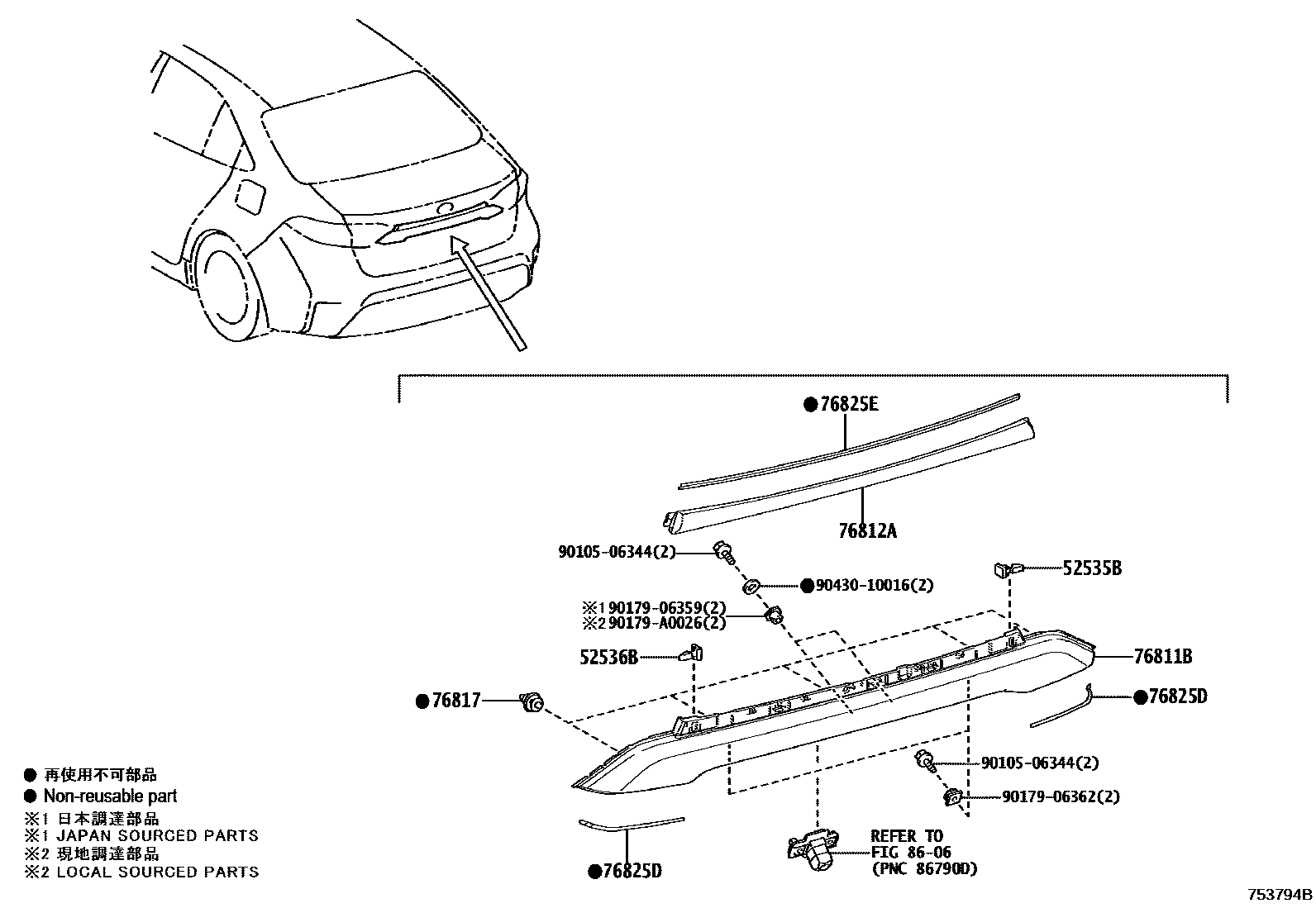

Toyota COROLLA EPC diagram 7504, 后防护条, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52535B | Front bumper right side fixing bracket | 52535-28020 |
| 52536B | Front bumper left fixed bracket | 52535-28020 |
| 76811B | Trunk door exterior trim strip | 76811-02964 · 76811-02965 |
| 76812A | No. 2 rear door exterior trim strip | 76812-02200 · 76812-12170 |
| 76817 | Rear door exterior decorative strip clip | 90467-A0005 |
| 76825D | No. 1 protective cover for rear door exterior trim strip | 76821-02220 |
| 76825E | No. 2 protective cover for rear door exterior trim strip | 76825-02340 |
