Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 4 PNC and OE references.

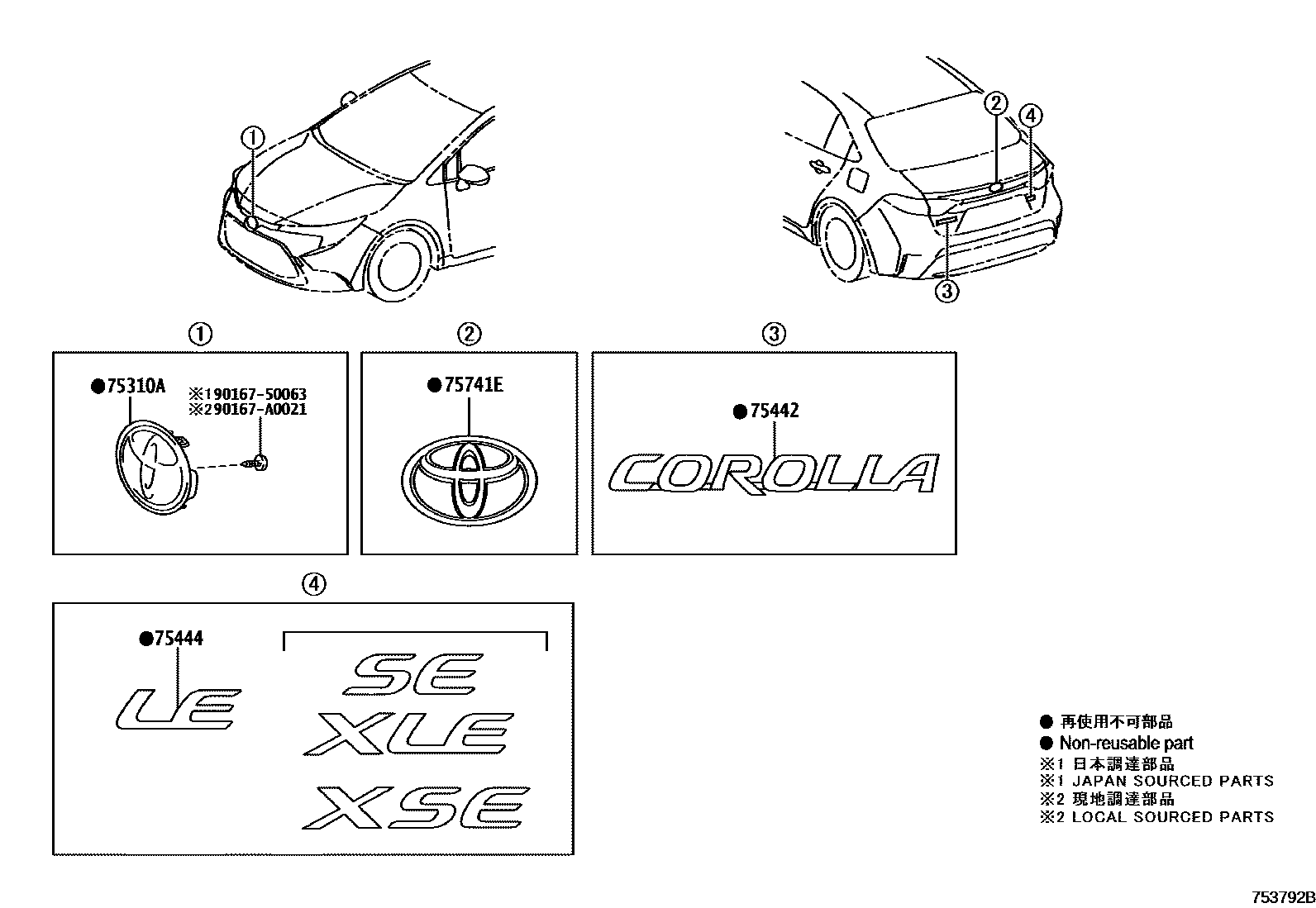

Toyota COROLLA 丰田徽标和铭牌(车外和车内) EPC diagram — 753792B
丰田徽标和铭牌(车外和车内) — 753792B (201903 – 999999)

PNC and OE references

PNCPart nameOE numbers
75310ARadiator grille plate assembly53141-12270 · 90975-02124 · 90975-A2011
75442Trunk door number plate No. 275442-02380 · 75442-02610
75444Trunk door No. 4 nameplate75444-02D00 · 75444-02D10 · 75444-02D40 · 75444-02D50 · 75444-02G10
75741Elogo90975-A2011
