Toyota COROLLA battery holder — Figure 7402

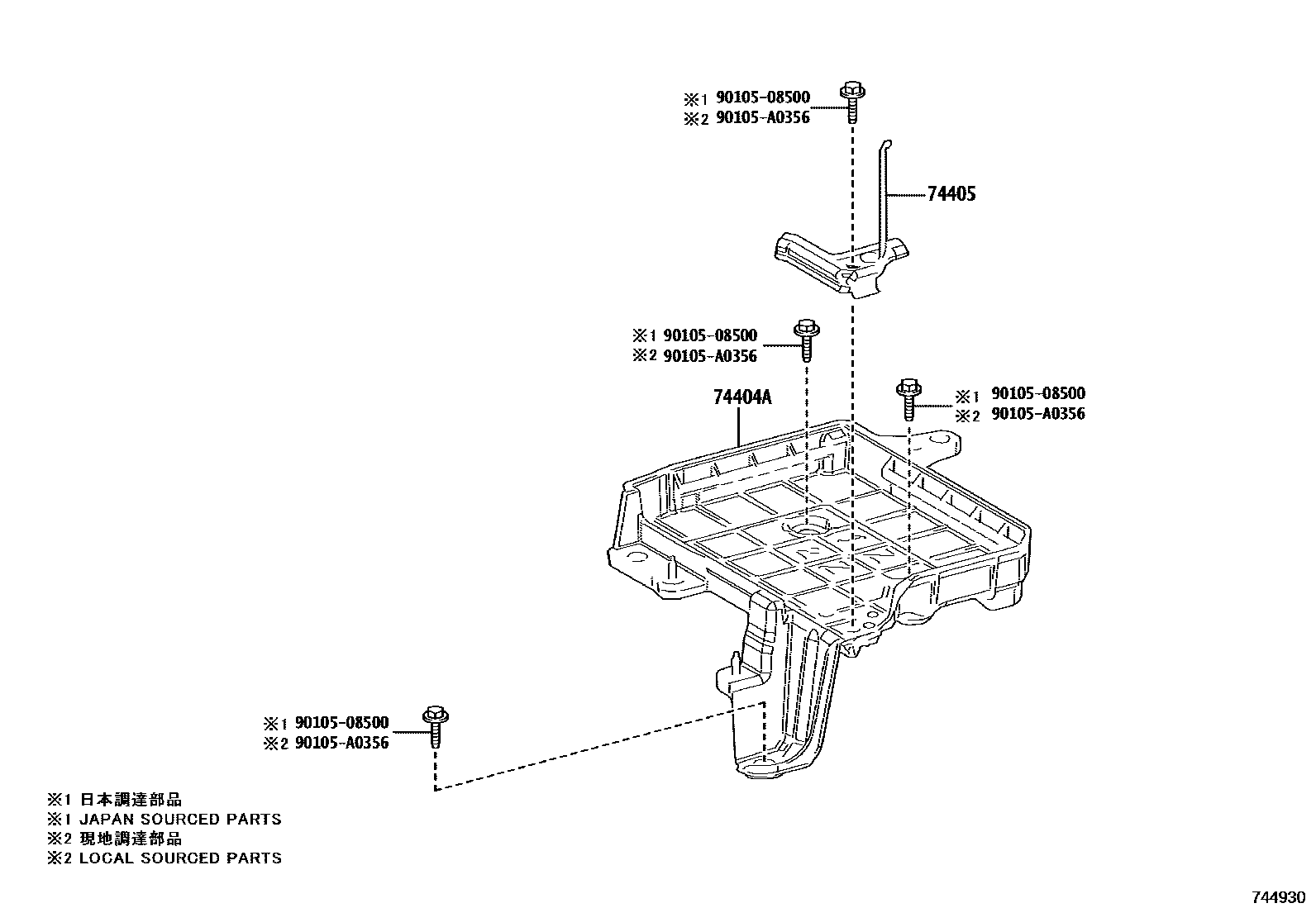

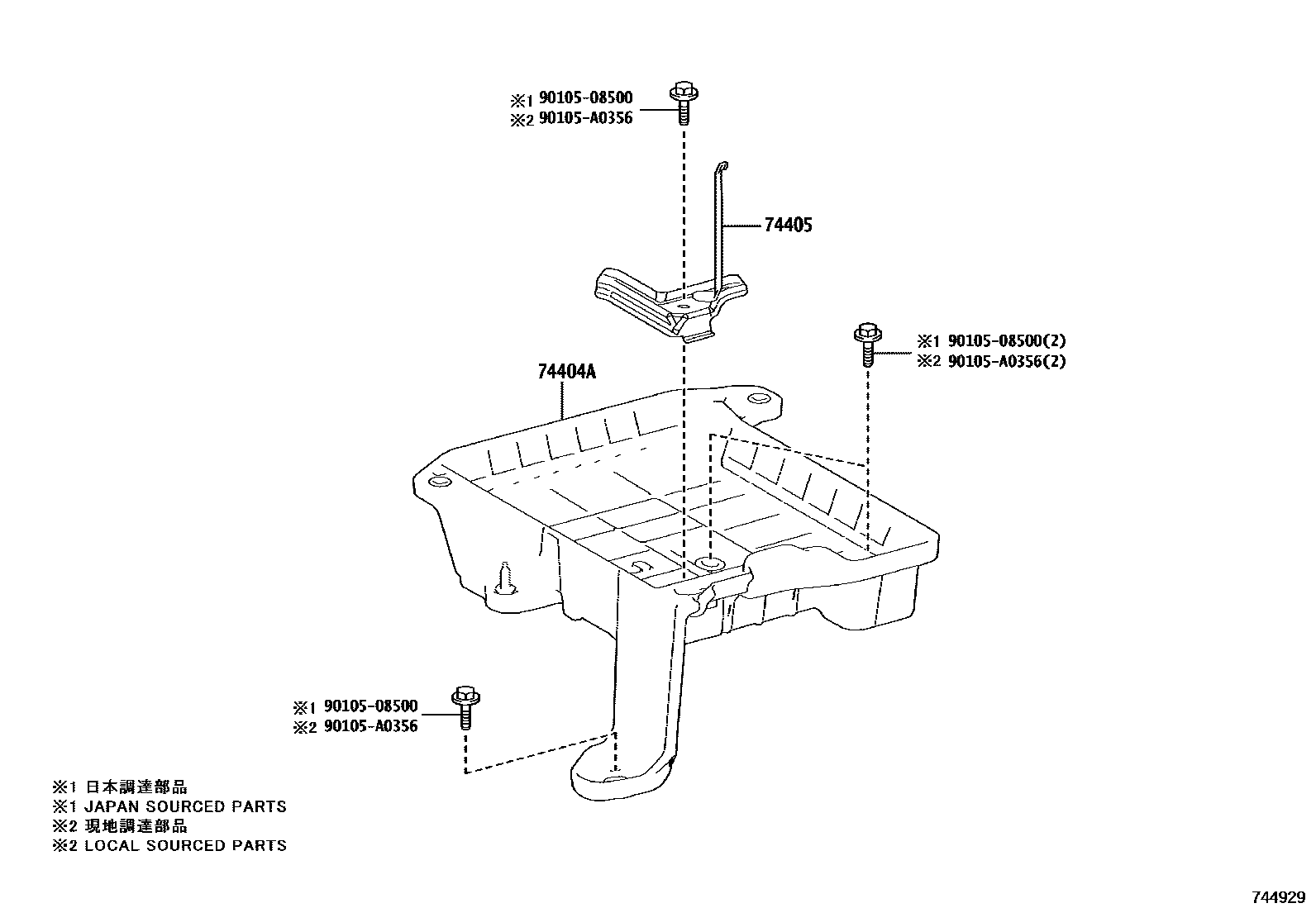

Toyota COROLLA EPC diagram 7402, battery holder, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74404A | Battery clip sub-assembly | 74404-02510 · 74404-02580 · 74404-02A30 · 74404-02A80 |
| 74405 | No. 2 battery clip sub-assembly | 74405-02010 |
