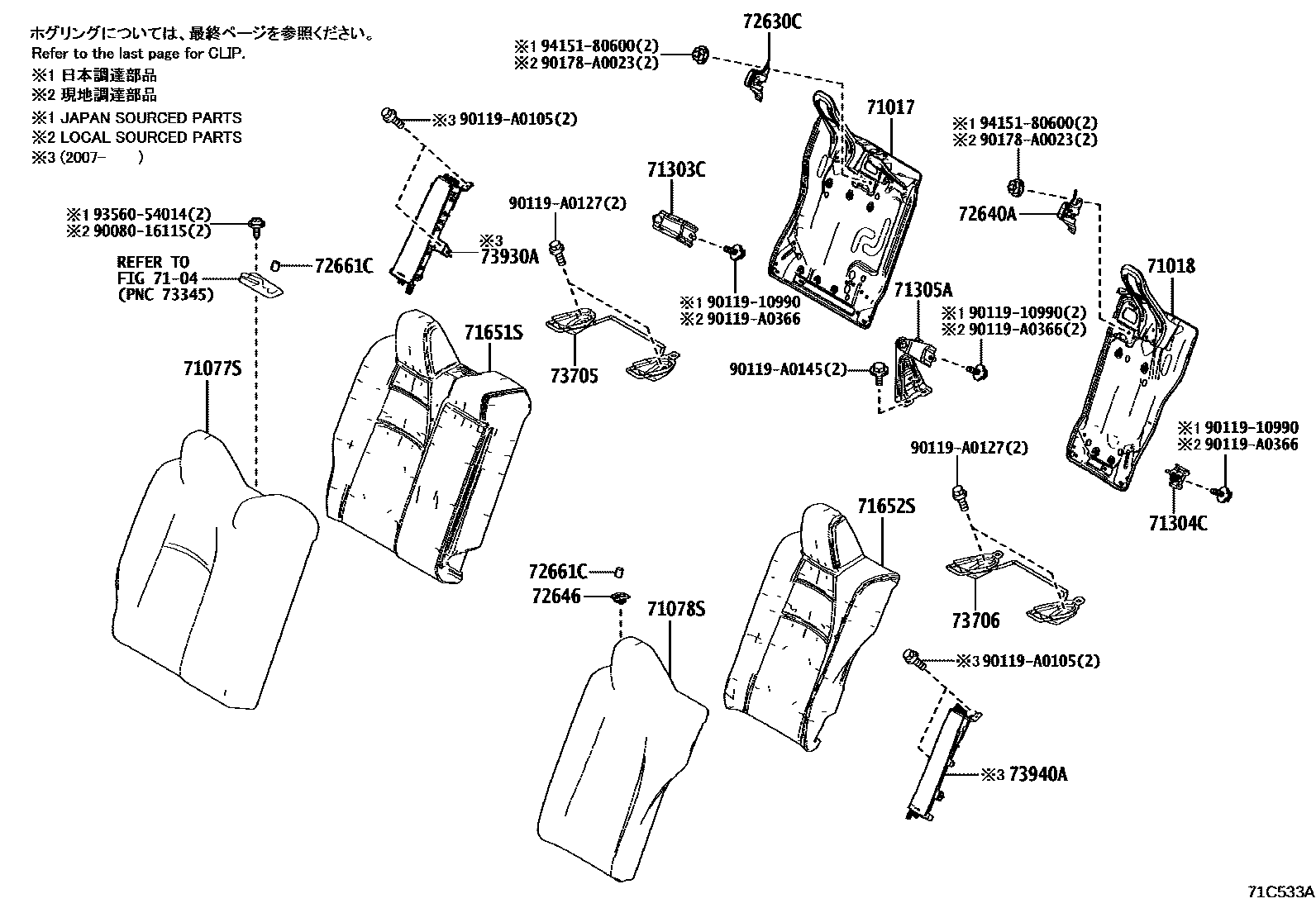

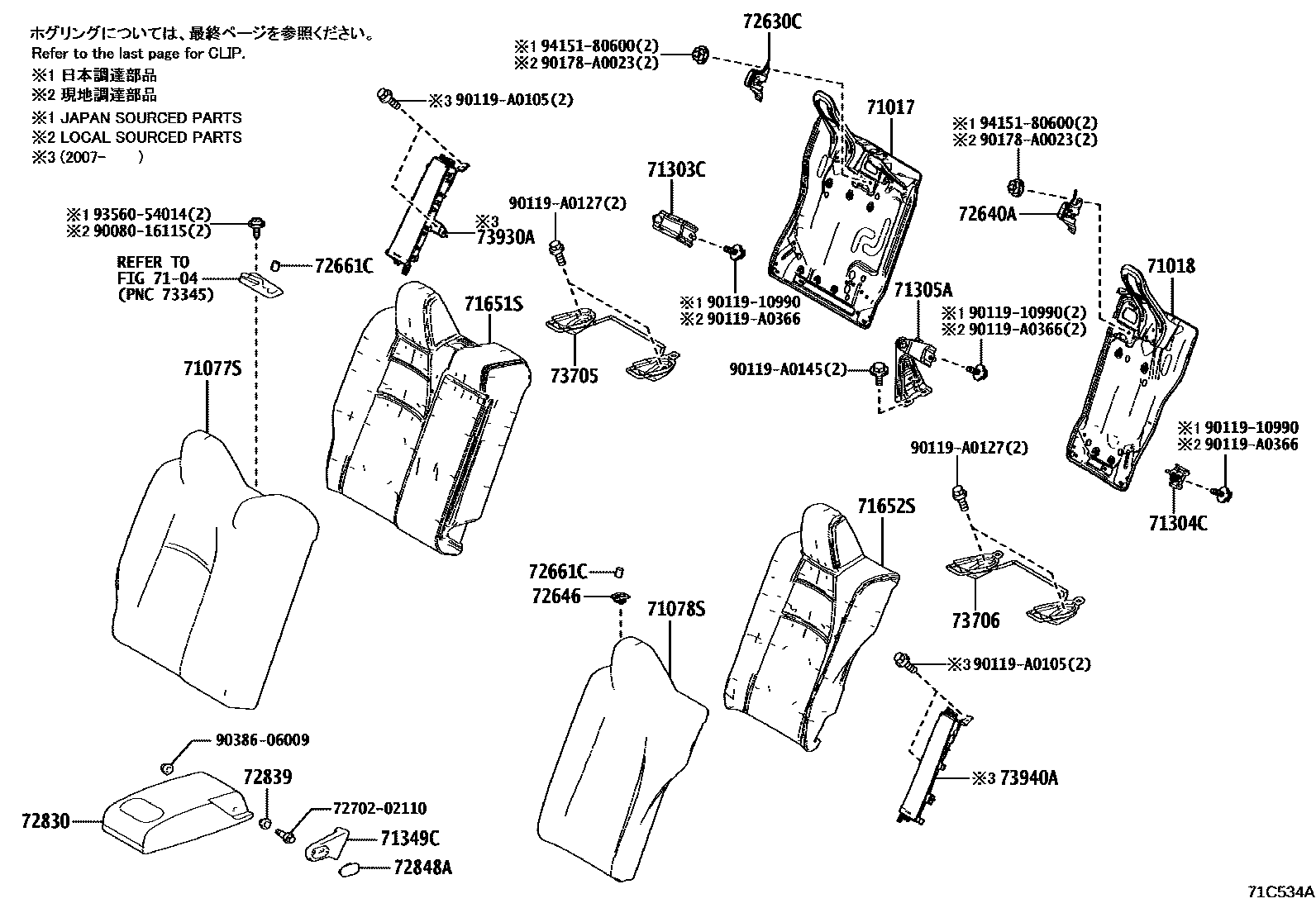

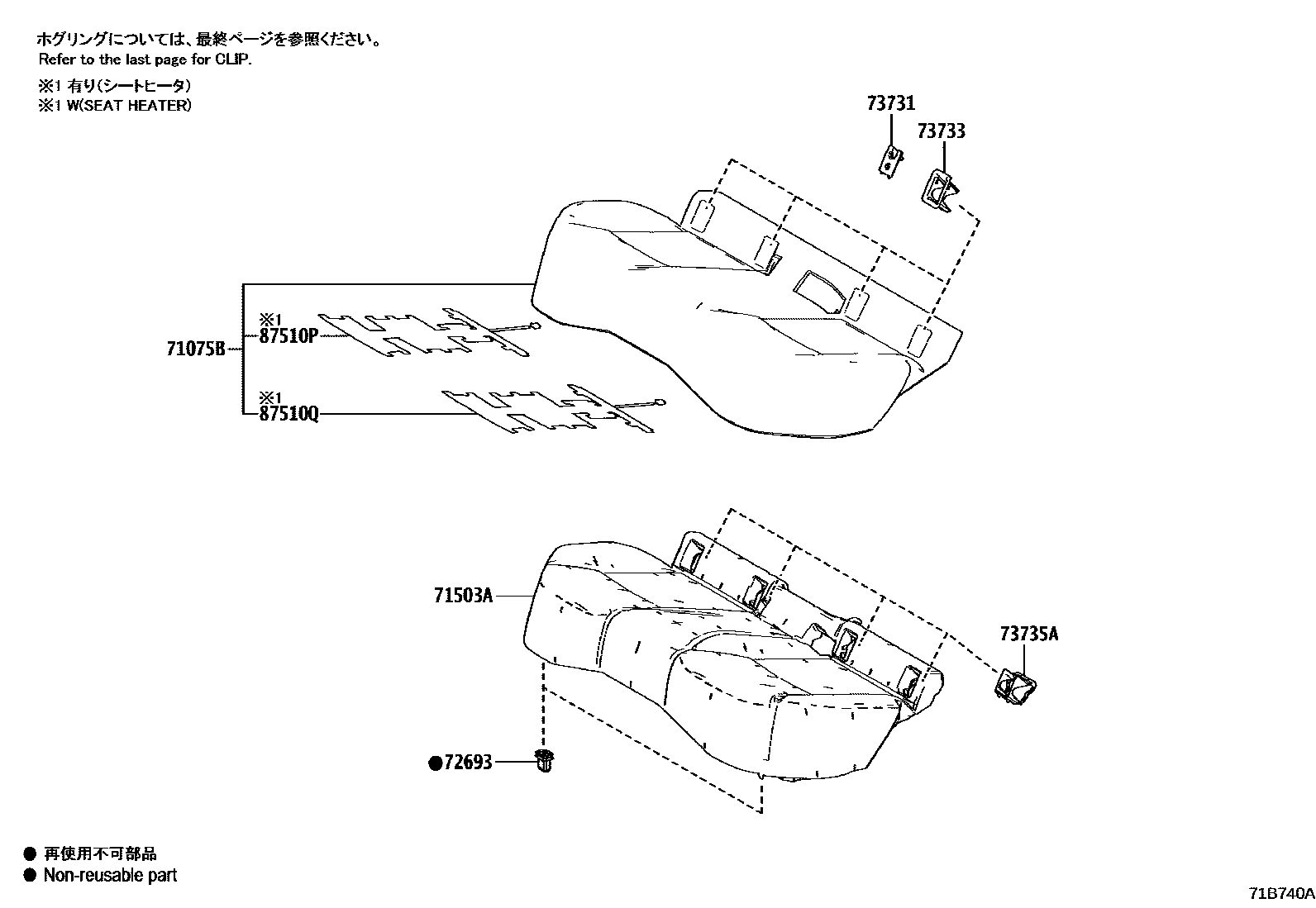

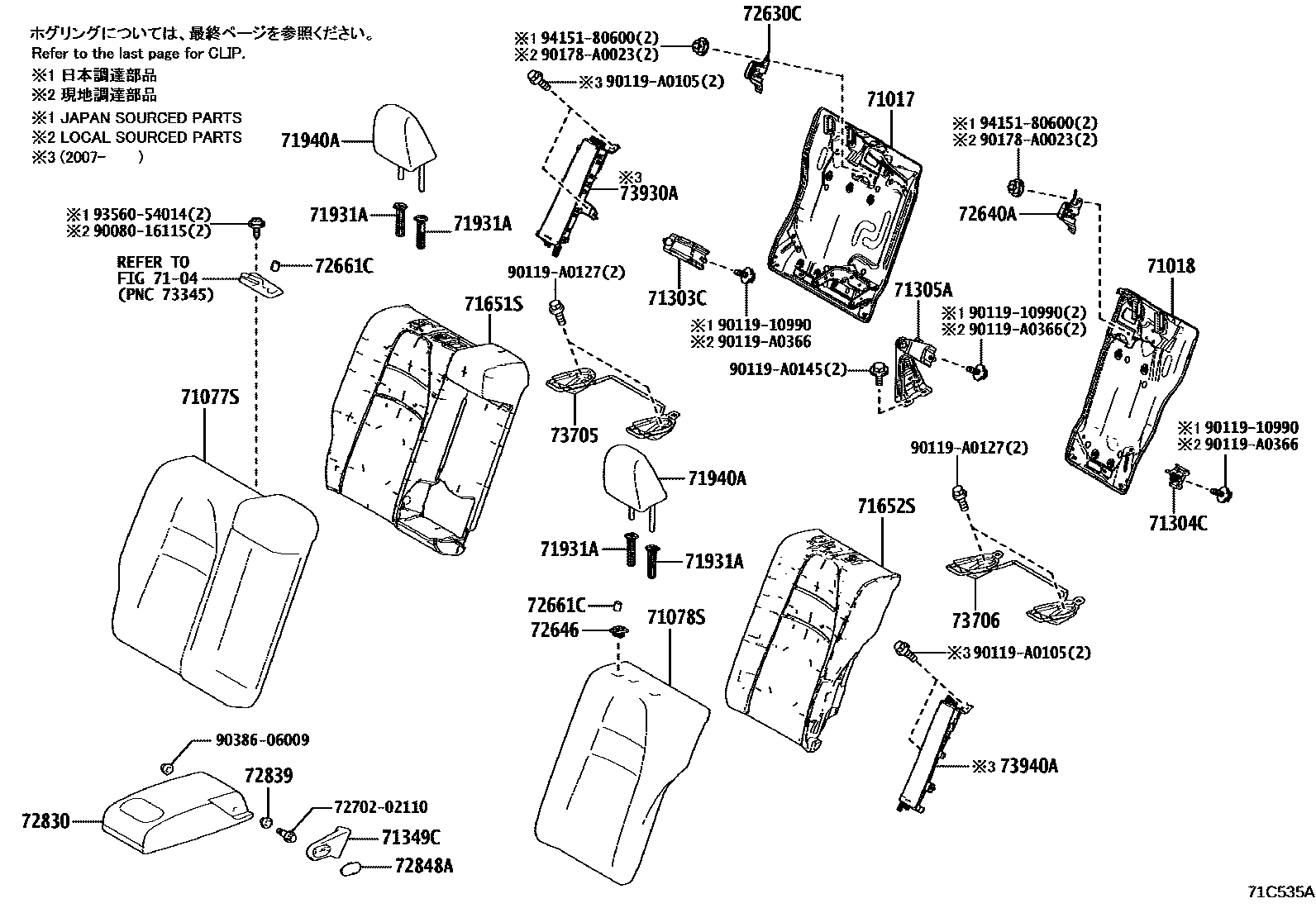

Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102
Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 5 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-02A80 · 71017-02A90 · 71017-02B00 |
| 71018 | Rear left seat back frame sub-assembly | 71018-02520 · 71018-02560 |
| 71075B | Rear seat cushion cover (for bench seat) | 71075-0ZE80 · 71075-0ZG40 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-02300 |
| 71304C | Rear left seat back hinge sub-assembly | 71304-02040 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-02220 |
| 71503A | SS-ENS. REMBOURRAGE, COUSSIN SIEGE ARRIERE | 71503-02630 · 71503-02730 · 71503-02A40 · 71503-02B80 · 71503-02C30 · 71503-02C40 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-02860 · 71651-02870 · 71651-02880 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-02610 · 71652-02640 |
| 72630C | Rear right seat back lock assembly | 72630-02210 |
| 72640A | Rear left seat back lock assembly | 72640-02220 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 72839 | Rear seat armrest hinge gasket | 72839-02020 |
| 73705 | Child restraint seat anchor right side bracket sub-assembly | 73705-02260 |
| 73706 | Child restraint seat anchor left bracket sub-assembly | 73706-02150 |
| 73735A | Child restraint seat belt guide cover | 73735-02010 · 73735-02030 · 73735-02100 |
| 73930A | Rear right seat airbag assembly | 73930-02030 |
| 73940A | Rear left seat air bag assembly | 73940-02030 |
| 87510P | Seat heater assembly | 87510-02420 |
| 87510Q | Seat heater assembly | 87510-02430 |
