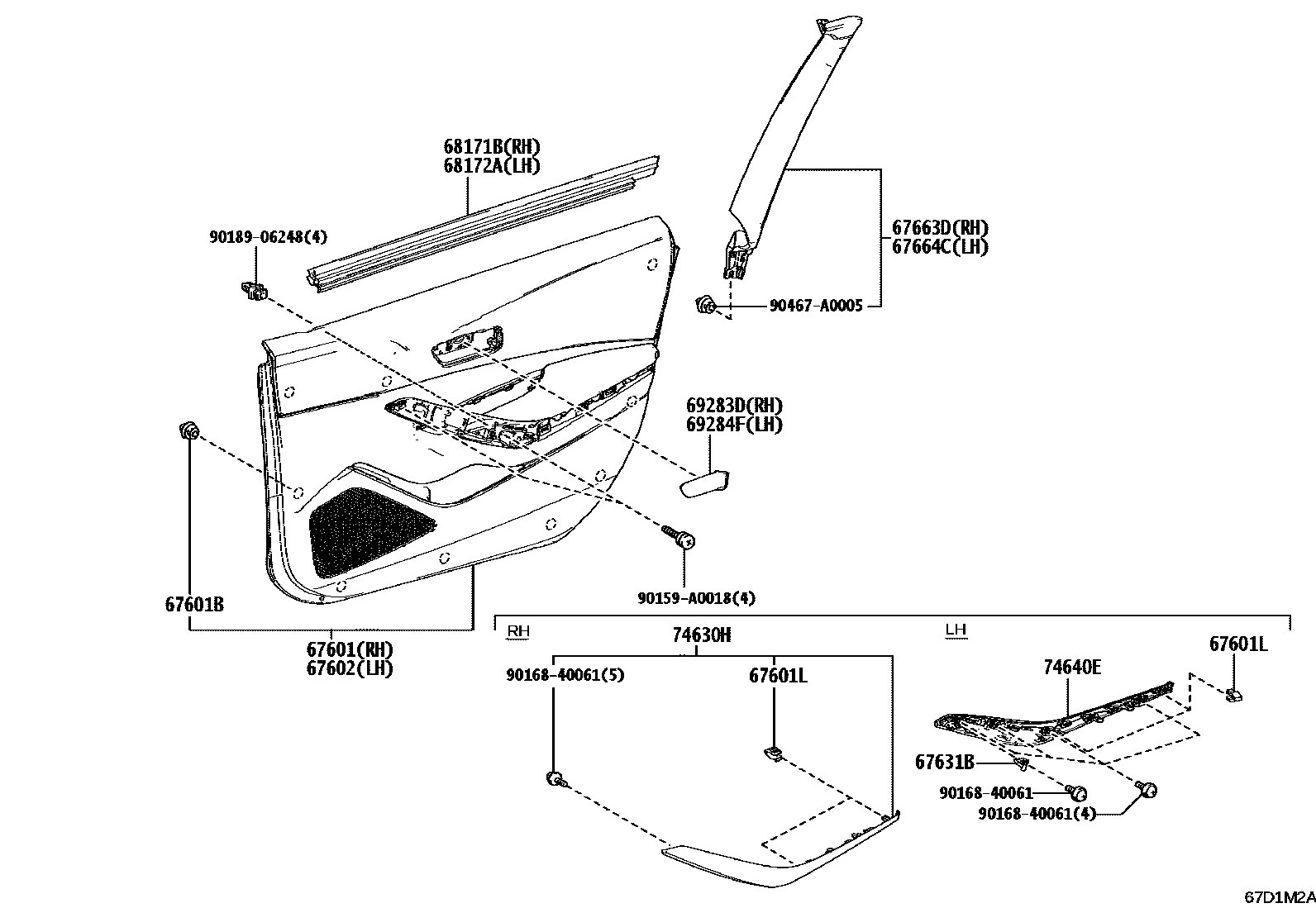

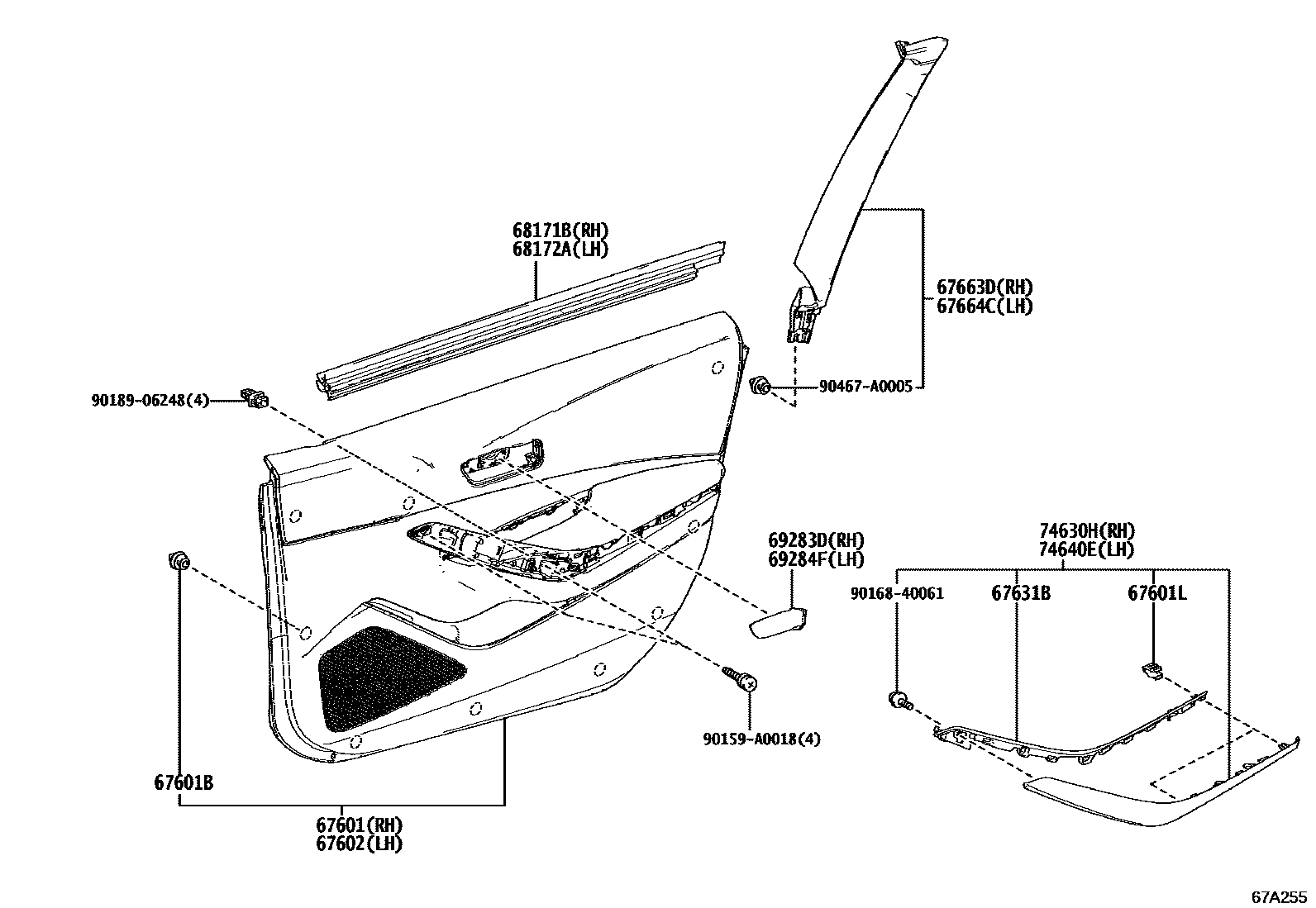

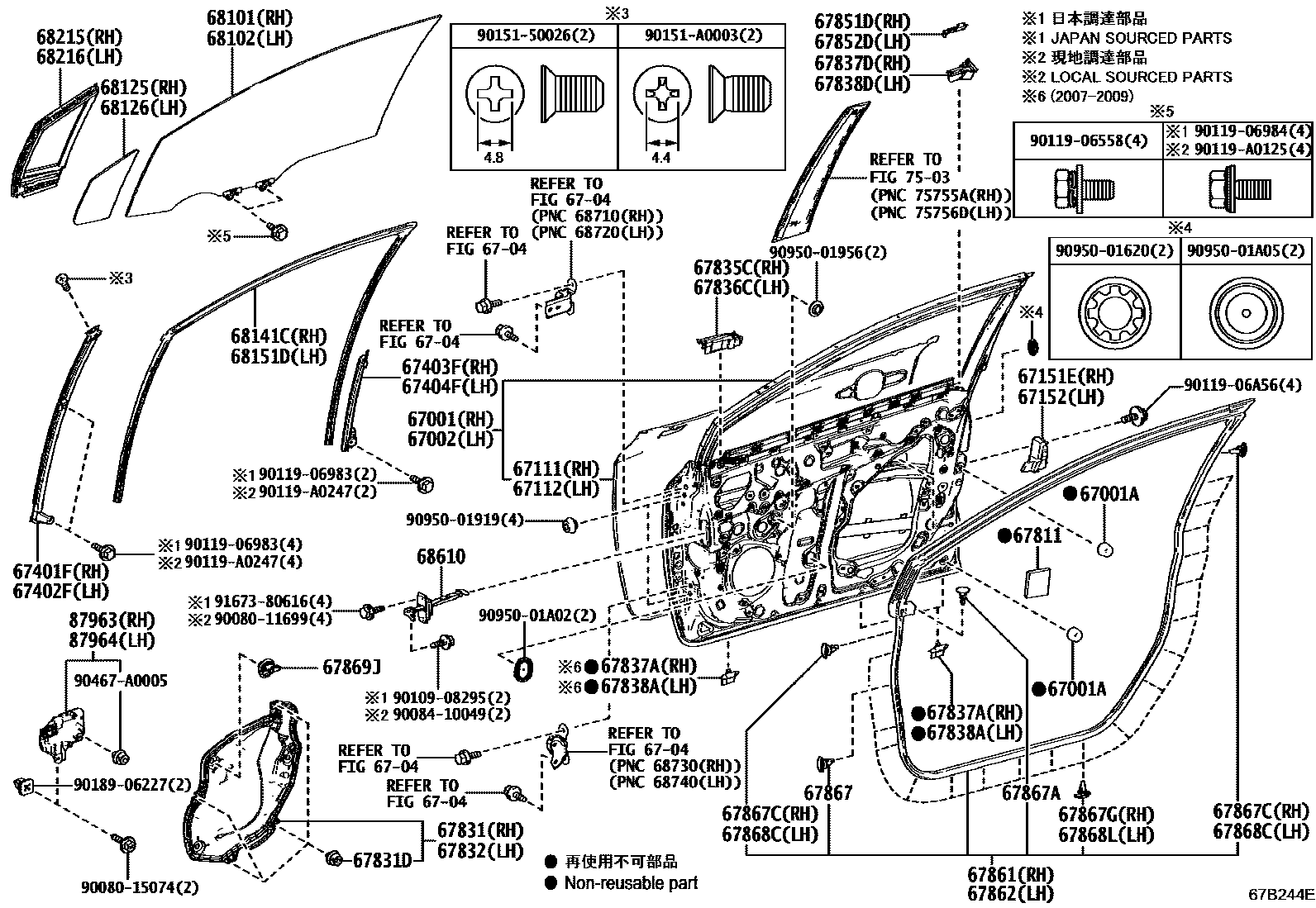

Toyota COROLLA 前门板和前门玻璃 — Figure 6701
Toyota COROLLA EPC diagram 6701, 前门板和前门玻璃, with 3 images and 52 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-02460 · 67001-02461 · 67001-02650 |
| 67001A | Front door panel cushion | 90541-09124 |
| 67002 | Left front door panel sub-assembly | 67002-02460 · 67002-02461 · 67002-02640 |
| 67111 | Outer right front door panel | 67111-02280 |
| 67112 | Outer left front door panel | 67112-02280 |
| 67151E | Right front door inner panel reinforcement sub-assembly | 67053-02070 |
| 67152 | Left front door inner panel reinforcement sub-assembly | 67054-02070 |
| 67401F | Right front door front lower door frame sub-assembly | 67401-02030 |
| 67402F | Left front door front lower door frame sub-assembly | 67402-02030 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-02240 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-02240 |
| 67601B | Catch (for front door trim panel) | 90467-A0005 · 90467-A0048 |
| 67601L | Catch (for front door trim panel) | 90467-05172 |
| 67631B | Front door trim panel fixings | 67631-02010 |
| 67663D | Right door frame decorative strip | 67663-02020 |
| 67664C | Left door frame decorative strip | 67664-02020 |
| 67811 | Front door silencer pad | 67811-AA040 |
| 67831 | Right front door access hole cover | 67831-02370 |
| 67831D | Catch (for front door access hole cover) | 90467-A0005 |
| 67832 | Left front door access hole cover | 67832-02370 |
| 67835C | Right front door No. 3 inspection hole cover | 67835-02010 |
| 67836C | Left front door No. 3 access hole cover | 67836-02060 |
| 67837A | Right front door ventilator seal | 67837-47060 |
| 67837D | Right front door ventilator seal | 67837-02040 |
| 67838A | Left front door ventilator seal | 67837-47060 |
| 67838D | Left front door ventilator seal | 67838-02050 |
| 67851D | JOINT, EXTERIEUR ARRIERE PORTE AVANT, MD | 67851-02010 |
| 67852D | JOINT, EXTERIEUR ARRIERE PORTE AVANT, MG | 67852-02010 |
| 67861 | Right front door seal | 67861-02330 |
| 67862 | Left front door seal | 67862-02330 |
| 67867 | Car door seal strip clip | 67867-52030 |
| 67867A | Door seal strip clip (for front door) | 67868-30030 |
| 67867C | Right front door seal strip fixing | 67867-12150 |
| 67867G | Right door sealing strip fixing | 67867-12150 |
| 67868C | Left front door seal strip fixing | 67867-12150 |
| 67868L | Left door seal strip fixing | 67867-12150 |
| 67869J | Front door seal strip clip | 67869-0E010 |
| 68101 | Right front door glass sub-assembly | 68101-02520 |
| 68102 | Left front door glass sub-assembly | 68102-02520 |
| 68125 | Right front door fixed window glass | 68125-02010 |
| 68126 | Left front door fixed window glass | 68126-02010 |
| 68141C | Right front door glass lift channel | 68141-02370 · 68141-02371 |
| 68151D | Left front door glass lift channel | 68151-02360 · 68151-02361 |
| 68171B | Right front door glass inner sealing strip | 68171-02340 |
| 68172A | Left front door glass inner sealing strip | 68172-02330 |
| 68215 | Right front door fixed window seal | 68215-02010 |
| 68216 | Left front door fixed window seal | 68216-02010 |
| 68610 | Front door opening limiter assembly | 68610-02340 |
| 74630H | Right front door auxiliary handle assembly | 74645-02440 |
| 74640E | Left front door auxiliary handle assembly | 74646-02440 |
| 87963 | Right exterior rearview mirror mounting hole cover | 87963-02010 · 87963-02011 |
| 87964 | Left exterior rearview mirror mounting hole cover | 87964-02010 · 87964-02011 |
