Toyota COROLLA 杂物箱板和行李箱垫 — Figure 6403

Toyota COROLLA EPC diagram 6403, 杂物箱板和行李箱垫, with 2 images and 11 PNC and OE references.

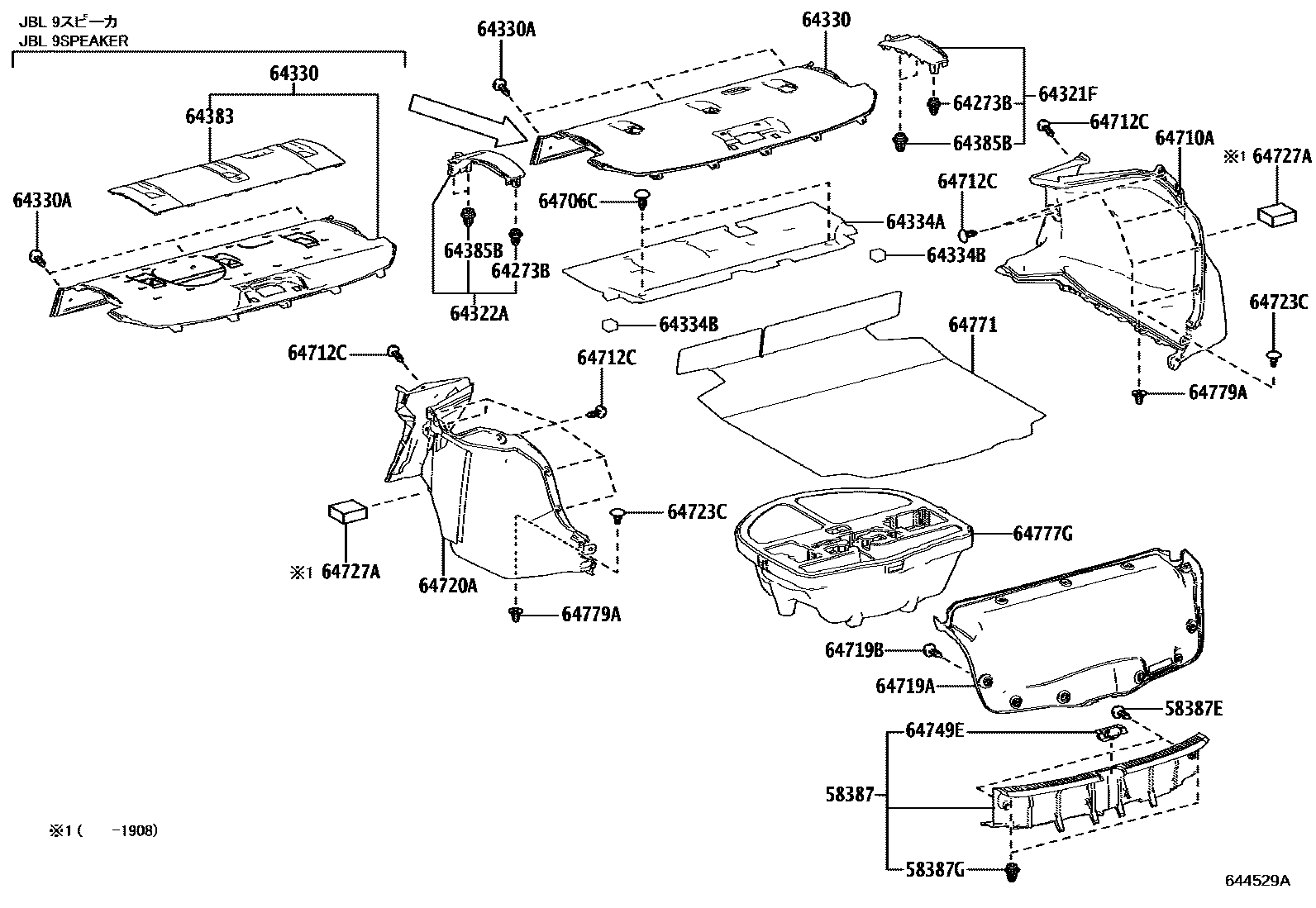

Toyota COROLLA 杂物箱板和行李箱垫 EPC diagram — 644529A
杂物箱板和行李箱垫 — 644529A (201903 – 202211)

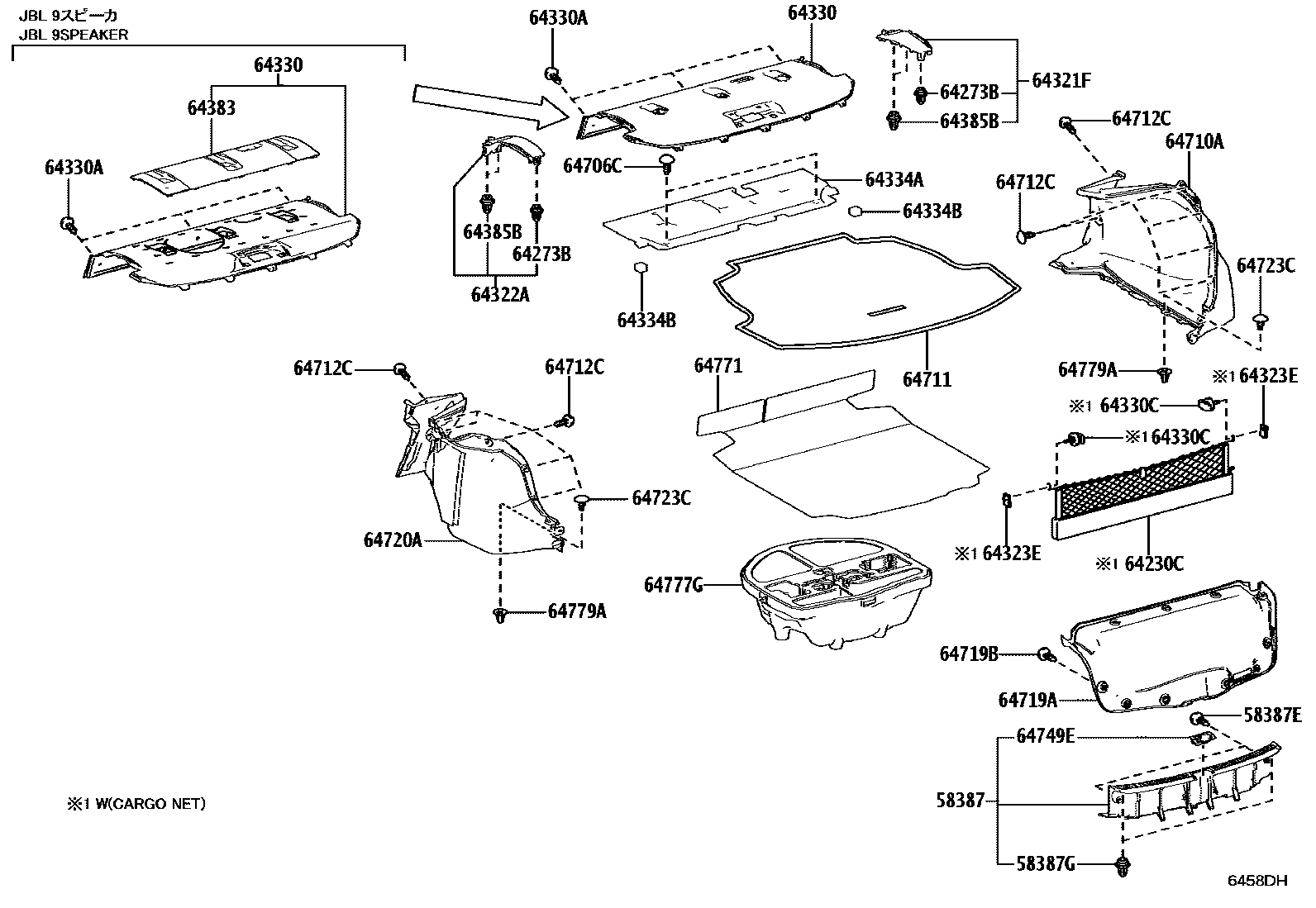

Toyota COROLLA 杂物箱板和行李箱垫 EPC diagram — 6458DH
杂物箱板和行李箱垫 — 6458DH (202211 – 999999)

PNC and OE references

PNCPart nameOE numbers
58387GClip (for rear floor trim panel)90467-A0006
64230CCar partition net assembly64230-YY120
64273BBack panel decorative bag90467-09240
64323EGlove box decorative plate card holder64323-YY020
64330CHook (for glove box trim panel)64338-YY020
64334AGlove box decorative mat64334-02450
64334BREMB., GARNITURE VIDE-POCHES, NO.263352-02030
64385Bclip90467-A0006
64727ALuggage interior decorative mat64727-02100
64777GSpare tire cushion64777-02340 · 64777-02470 · 64777-02520
64779ASpare tire cover stop64779-26010
