Toyota COROLLA 行李箱门和行李箱锁 — Figure 6105

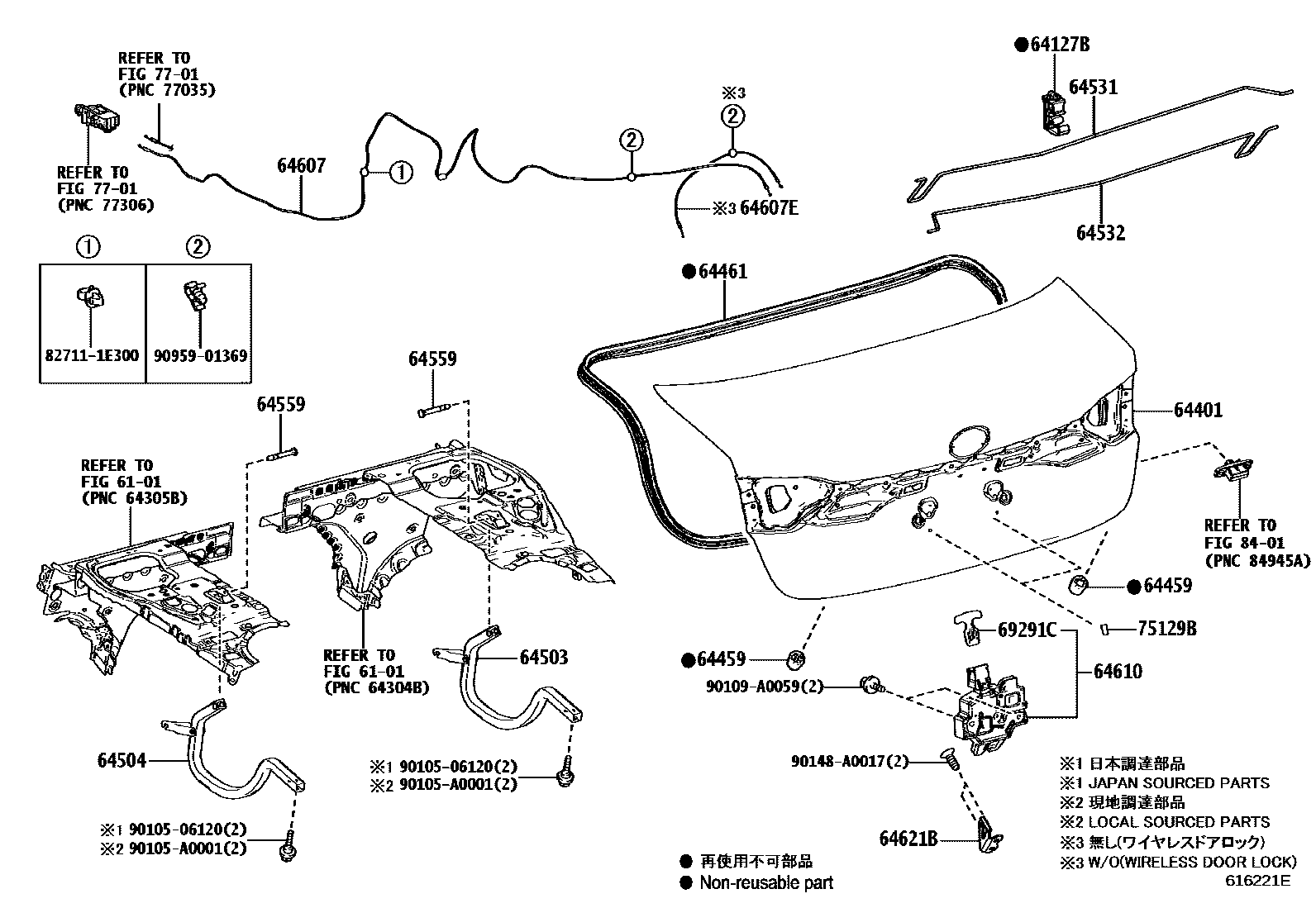

Toyota COROLLA EPC diagram 6105, 行李箱门和行李箱锁, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64127B | Trunk door torsion bar bracket | 64127-06052 |
| 64401 | Trunk door panel sub-assembly | 64401-02E80 · 64401-02F00 · 64401-02F10 · 64401-02J00 · 64401-02J20 |
| 64459 | Trunk door cushion | 90541-09069 |
| 64461 | Trunk door seal | 64461-02290 |
| 64503 | Trunk door right hinge arm sub-assembly | 64503-02220 |
| 64504 | Trunk door left hinge arm sub-assembly | 64503-02220 |
| 64531 | Trunk door right hinge torsion bar | 64531-02530 · 64531-02540 · 64531-02700 |
| 64532 | Trunk door left hinge torsion bar | 64532-02530 · 64532-02540 · 64532-02700 |
| 64559 | Trunk door hinge pin | 64559-12040 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-02481 · 64607-02500 · 64607-02501 |
| 64607E | Trunk door lock control cable sub-assembly | 64607-02490 |
| 64610 | Trunk door lock assembly | 64600-06041 · 64610-02180 |
| 64621B | Trunk door latch | 64621-06030 |
| 69291C | Luggage door inner handle | 69291-33020 |
| 75129B | rear license plate cushion | 75129-30010 |
