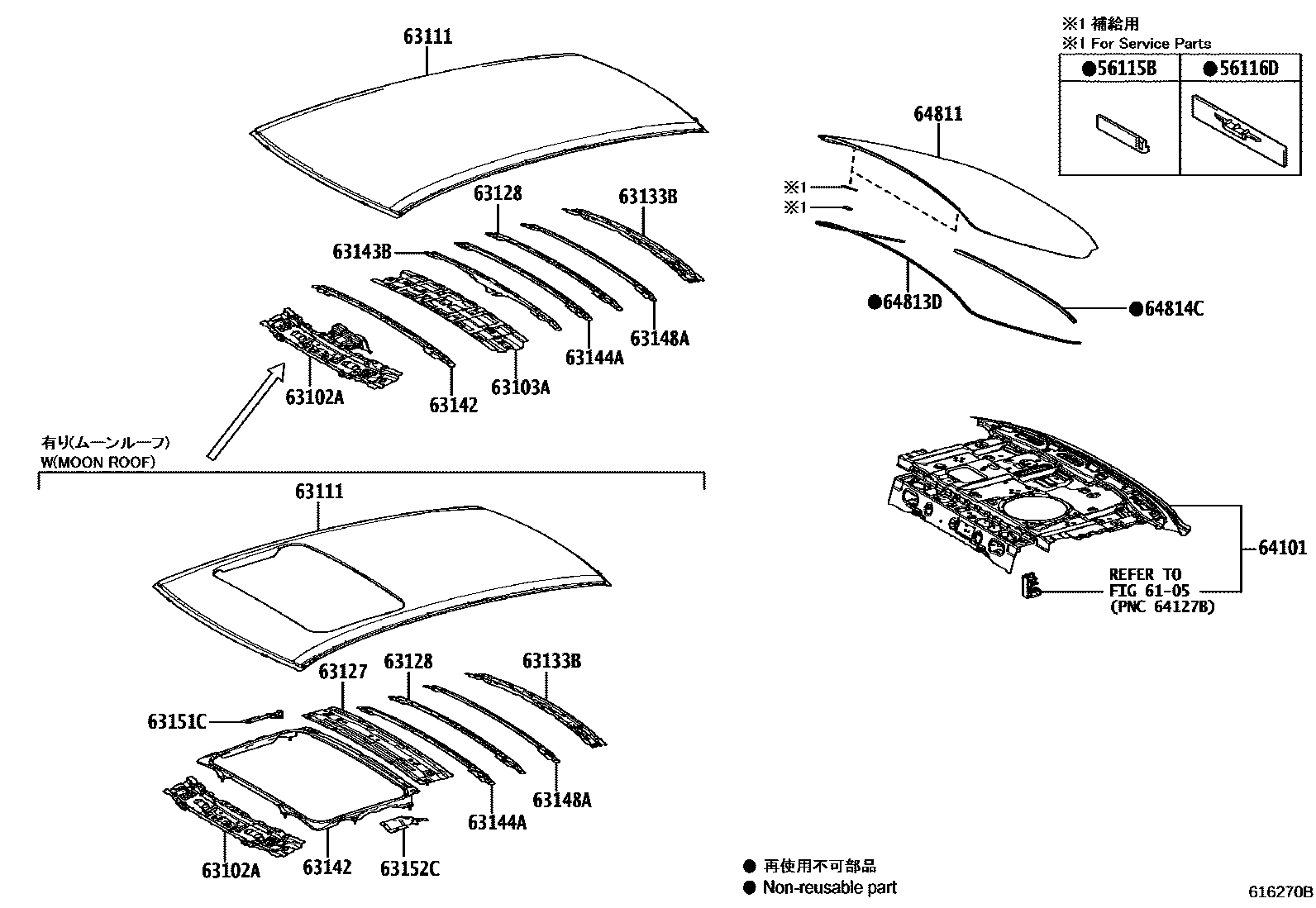

Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104
Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 2 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56115-30120 |
| 56116D | No. 2 stopper for back window glass | 56116-22050 |
| 63102A | Windshield roof sub-assembly | 63102-02440 · 63102-02450 |
| 63103A | Roof panel reinforcement sub-assembly | 63103-02110 |
| 63111 | roof panel | 63111-02620 · 63111-02630 · 63111-02640 · 63111-02650 |
| 63127 | No. 5 roof panel reinforcement | 63107-02010 |
| 63128 | No. 6 roof panel reinforcement | 63128-02050 |
| 63133B | back window frame | 63133-02210 |
| 63142 | No. 2 roof panel reinforcement | 63142-02120 · 63142-02130 |
| 63143B | No. 3 roof panel reinforcement | 63143-02210 |
| 63144A | No. 4 roof panel reinforcement | 63144-02140 |
| 63148A | No. 7 roof panel reinforcement | 63148-02110 |
| 63151C | CADRE, LAT OUVERTURE TOIT, MD | 63151-02010 |
| 63152C | CADRE, LAT OUVERTURE TOIT, MG | 63152-02010 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-02130 · 63201-02131 · 63201-02132 |
| 63203A | Sliding sunroof or removable sunroof frame sub-assembly | 63203-02130 · 63203-02240 |
| 63205A | Sliding sunroof transmission cable sub-assembly | 63205-02130 |
| 63217G | Right sliding sunroof trim | 63217-0E070 |
| 63218G | Sliding sunroof trim, left | 63217-0E070 |
| 63233H | CACHE, CHARNIERE DEFLECTEUR D'AIR, NO.2 MD | 63233-12170 |
| 63234C | CACHE, CHARNIERE DEFLECTEUR D'AIR, NO.2 MG | 63234-12010 |
| 63235D | central sliding skylight frame | 63235-02100 |
| 63236 | Sliding skylight or removable skylight drain hose clamp | 63236-33030 · 90466-A0008 |
| 63236D | Sliding skylight drain hose clamp | 63236-30010 |
| 63236G | PINCES, TUYAU DE VIDANGE A COUVERCLE COULISSANT | 86147-30030 · 86147-30040 |
| 63236H | PINCES, TUYAU DE VIDANGE A COUVERCLE COULISSANT | 86147-50050 |
| 63236J | PINCES, TUYAU DE VIDANGE A COUVERCLE COULISSANT | 86147-30020 |
| 63247E | Right rear sliding sunroof drain hose | 63249-02390 |
| 63248E | Left rear sliding sunroof drain hose | 63249-02490 |
| 63249E | Sliding skylight drain hose | 63249-02320 |
| 63249F | Sliding skylight drain hose | 63249-02410 |
| 63251H | Sliding skylight seal | 63251-02120 · 63251-02121 · 63251-0A040 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-02160 · 63260-02281 |
| 63669B | Sliding skylight drain seal | 63669-50010 |
| 64101 | Upper back panel sub-assembly | 64101-02580 |
| 64811 | back window glass | 64801-02280 |
| 64813D | Back window glass adhesive seal | 64813-02240 |
| 64814C | Adhesive sealing strip under rear window glass | 64813-02400 |
