Toyota COROLLA 中央扶手箱和支架 — Figure 5806

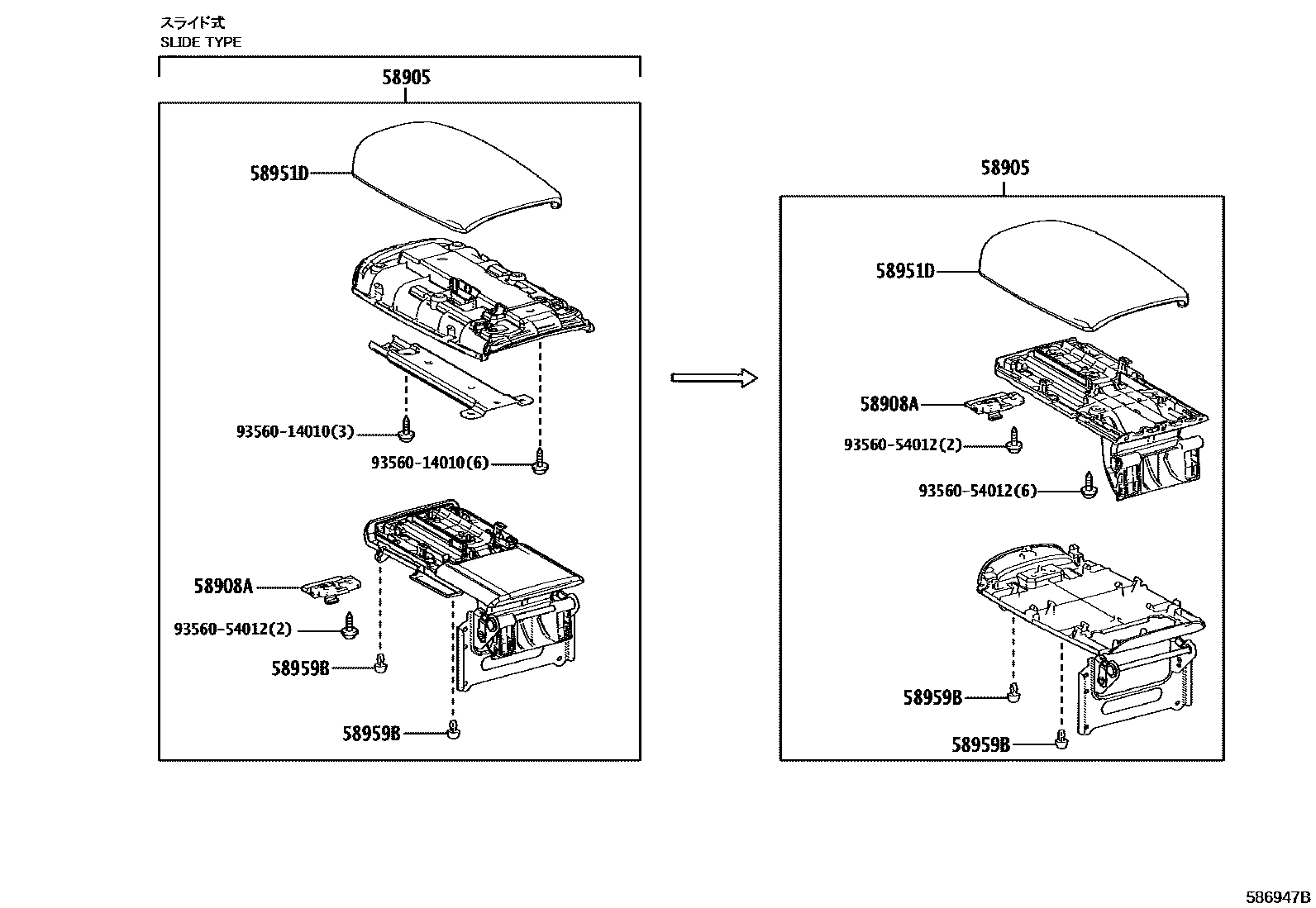

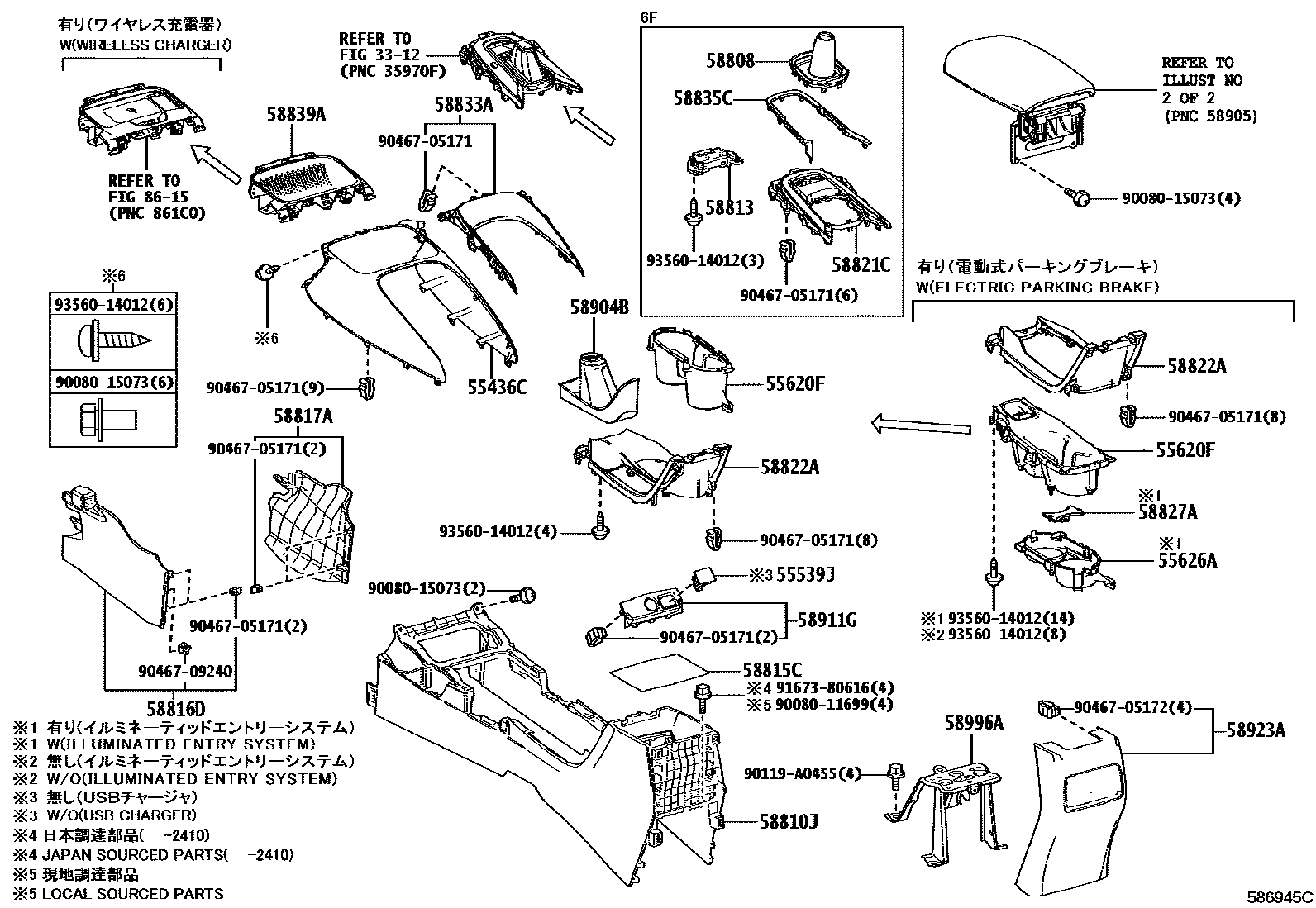

Toyota COROLLA EPC diagram 5806, 中央扶手箱和支架, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55620F | ENS. SUPPORT, GOBELET BOITIER DE CONSOLE | 55620-02180 · 55620-02220 · 55620-02221 · 55620-02450 · 55620-02451 · 55620-02490 |
| 55626A | ARRETOIR, TABLEAU DE BORD SOUS CAISSON | 55626-02140 |
| 58813 | Upper armrest box | 58813-02200 |
| 58815C | Armrest box felt pad | 58815-02390 |
| 58821C | Armrest box upper panel | 58821-02A40 |
| 58822A | Rear armrest box upper panel | 58822-02270 · 58822-02310 · 58822-02560 · 58822-02580 · 58822-02590 |
| 58827A | Armrest box groove decorative parts | 58827-12020 |
| 58908A | Armrest box lid lock assembly | 58908-33030 |
| 58959B | Armrest box cover cushion | 58959-60060 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-02290 |
