Toyota COROLLA 前翼子板挡泥板和前围板 — Figure 5304
Toyota COROLLA EPC diagram 5304, 前翼子板挡泥板和前围板, with 4 images and 50 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

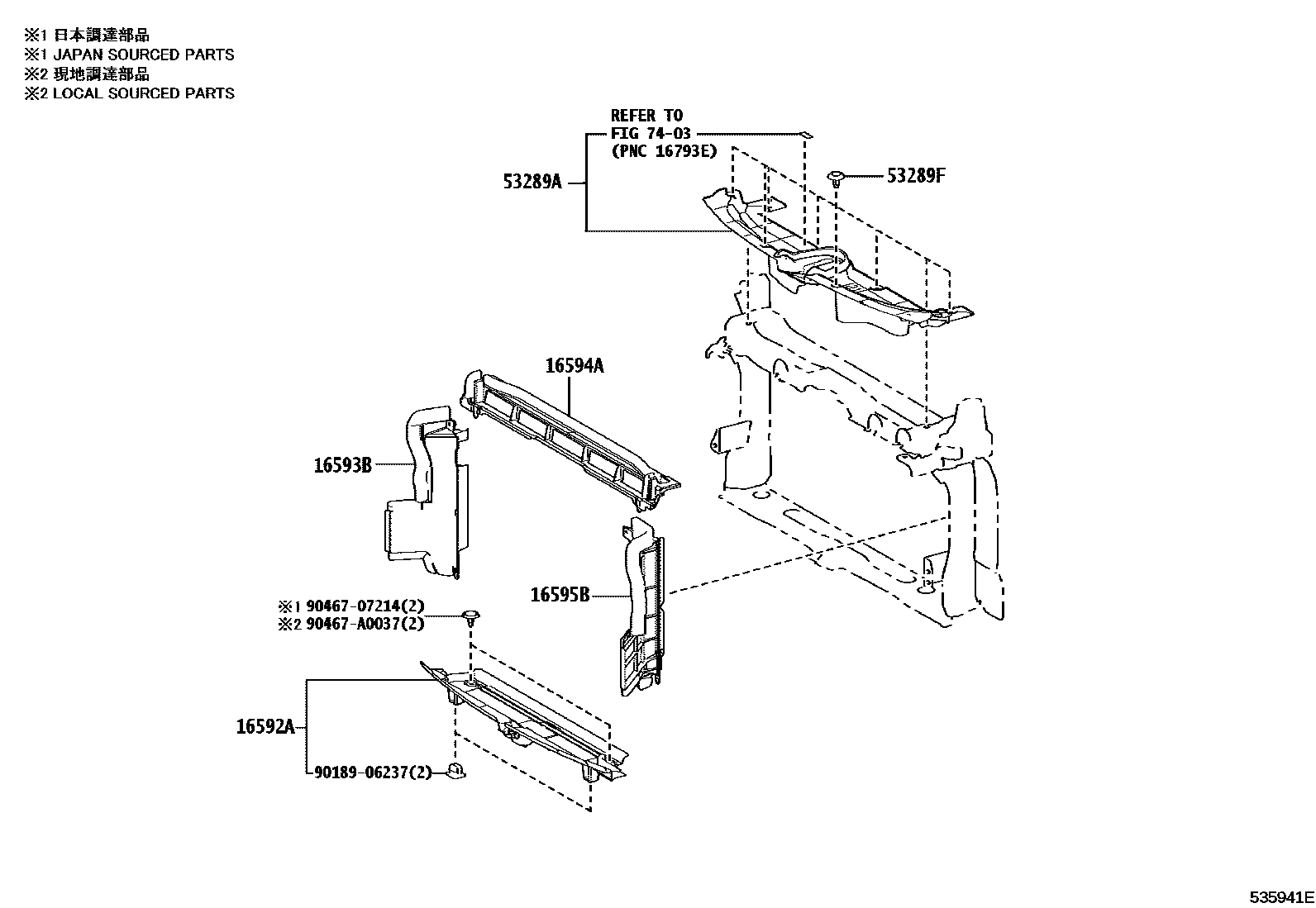

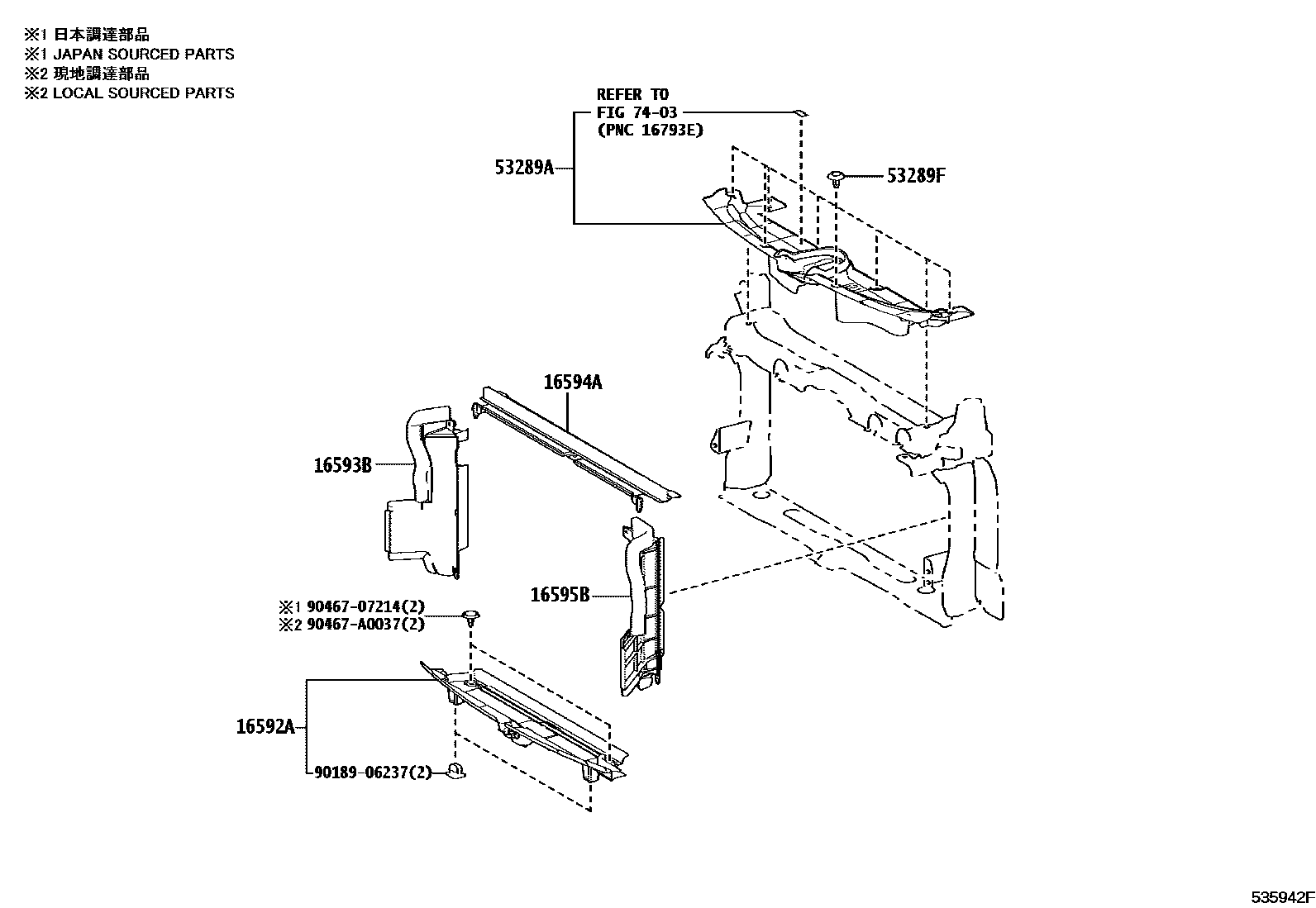

| 16592A | GUIDE, AIR DU RADIATEUR, NO.3 | 16592-0T070 · 16592-F2010 |
| 16593B | GUIDE, AIR DU RADIATEUR, NO.1 MD | 16593-0T110 · 16593-F2020 |
| 16594A | GUIDE, AIR DU RADIATEUR, NO.2 | 16594-0T050 · 16594-F2010 · 16594-F2090 |
| 16595B | GUIDE, AIR DU RADIATEUR, NO.1 MG | 16595-0T110 · 16595-F2020 |
| 52143F | Front bumper right side bracket | 52143-02050 |
| 52144G | Front bumper left bracket | 52144-02040 |
| 53028 | Radiator lower bracket sub-assembly | 53028-02020 · 53028-02040 |
| 53201 | Radiator bracket sub-assembly | 53201-02340 · 53201-02430 · 53201-02630 |
| 53202 | Radiator right side bracket sub-assembly | 53202-02907 |
| 53203 | Radiator left bracket sub-assembly | 53203-02902 |
| 53205 | Radiator upper bracket sub-assembly | 53205-02220 · 53205-02300 · 53205-02501 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-02250 |
| 53213A | Radiator upper right bracket | 53213-02190 |
| 53214A | Radiator upper left bracket | 53214-02180 |
| 53245 | Right headlight bracket | 53245-02030 |
| 53246 | Left headlight bracket | 53246-02030 |
| 53289A | Radiator bracket opening cover | 53289-02020 · 53289-02260 |
| 53289F | CLIP(POUR CACHE OUVERTURE SUPPORT RADIATEUR) | 90467-07217 |
| 53301G | engine cover cushion | 90541-15111 |

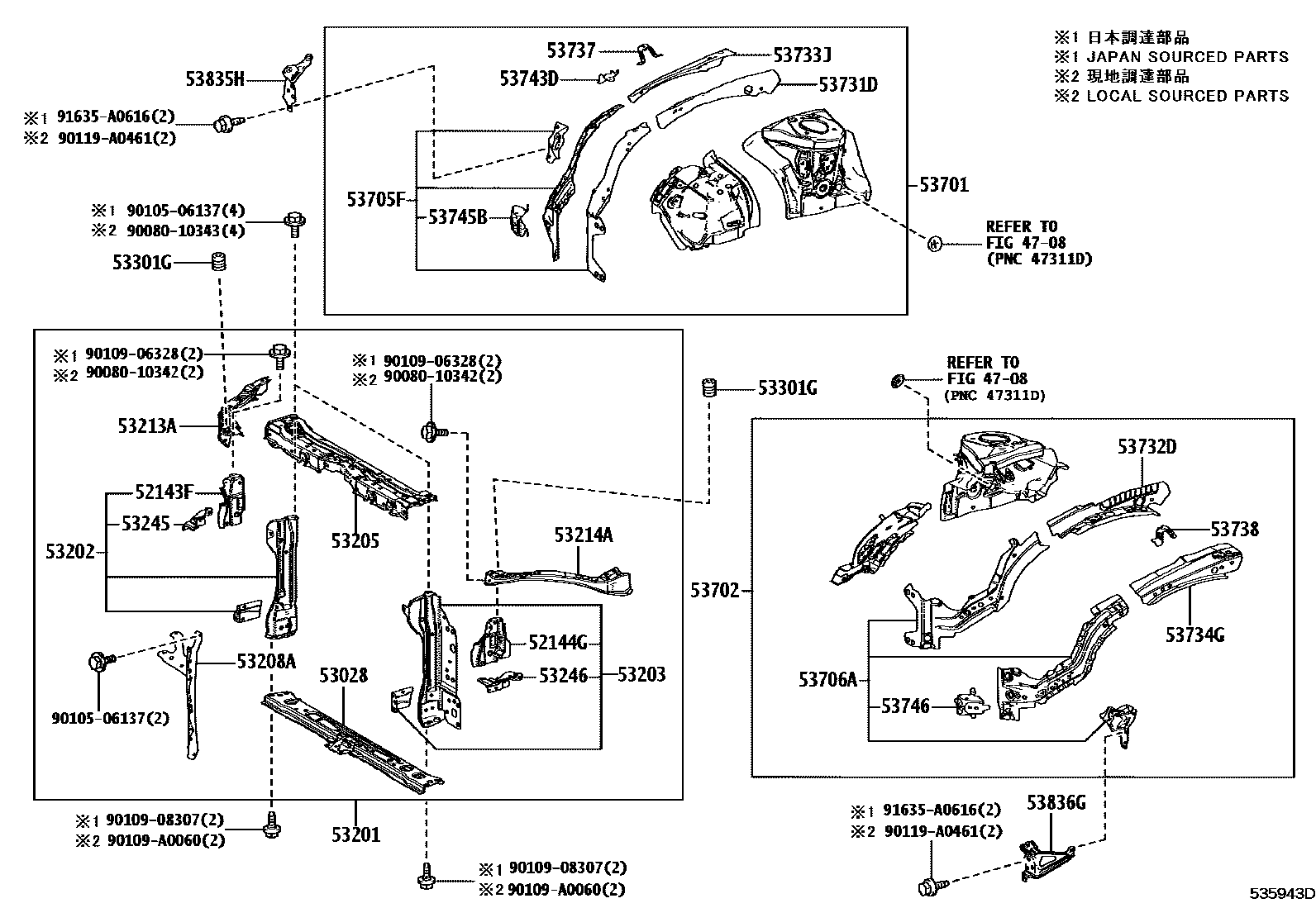

| 53701 | Right front fender fender sub-assembly | 53701-02390 |
| 53702 | Left front fender fender sub-assembly | 53702-02310 |
| 53705F | Right fender fender bracket sub-assembly | 53705-47901 |
| 53706A | Left fender fender bracket sub-assembly | 53706-47901 |
| 53731D | Right front fender to cowl side upper beam | 53731-02110 |
| 53732D | Left front fender to cowl side upper beam | 53732-02110 |
| 53733J | TRVRSE, TABLIER AVNT AU COTE D'AUVENT, AVNT EXTER MD | 53733-02070 |
| 53734G | TRVRSE, TABLIER AVNT AU COTE D'AUVENT, AVNT EXTER MG | 53734-02070 |
| 53737 | Right front fender to front wall side sill | 53737-02190 |
| 53738 | Left front fender to front wall side sill | 53738-02160 |
| 53743D | RENFORT, EXTENSION AVANT TABLIER AILE AVANT, MD | 53743-02040 |
| 53745B | Right front fender fender rear reinforcement | 53745-02010 |
| 53746 | Left front fender rear reinforcement | 53746-02010 |
| 53835H | ENTRETOISE, AILE AVANT A EXTENSION DROITE | 53835-02020 |
| 53836G | ENTRETOISE, AILE AVANT A EXTENSION GAUCHE | 53836-02020 |

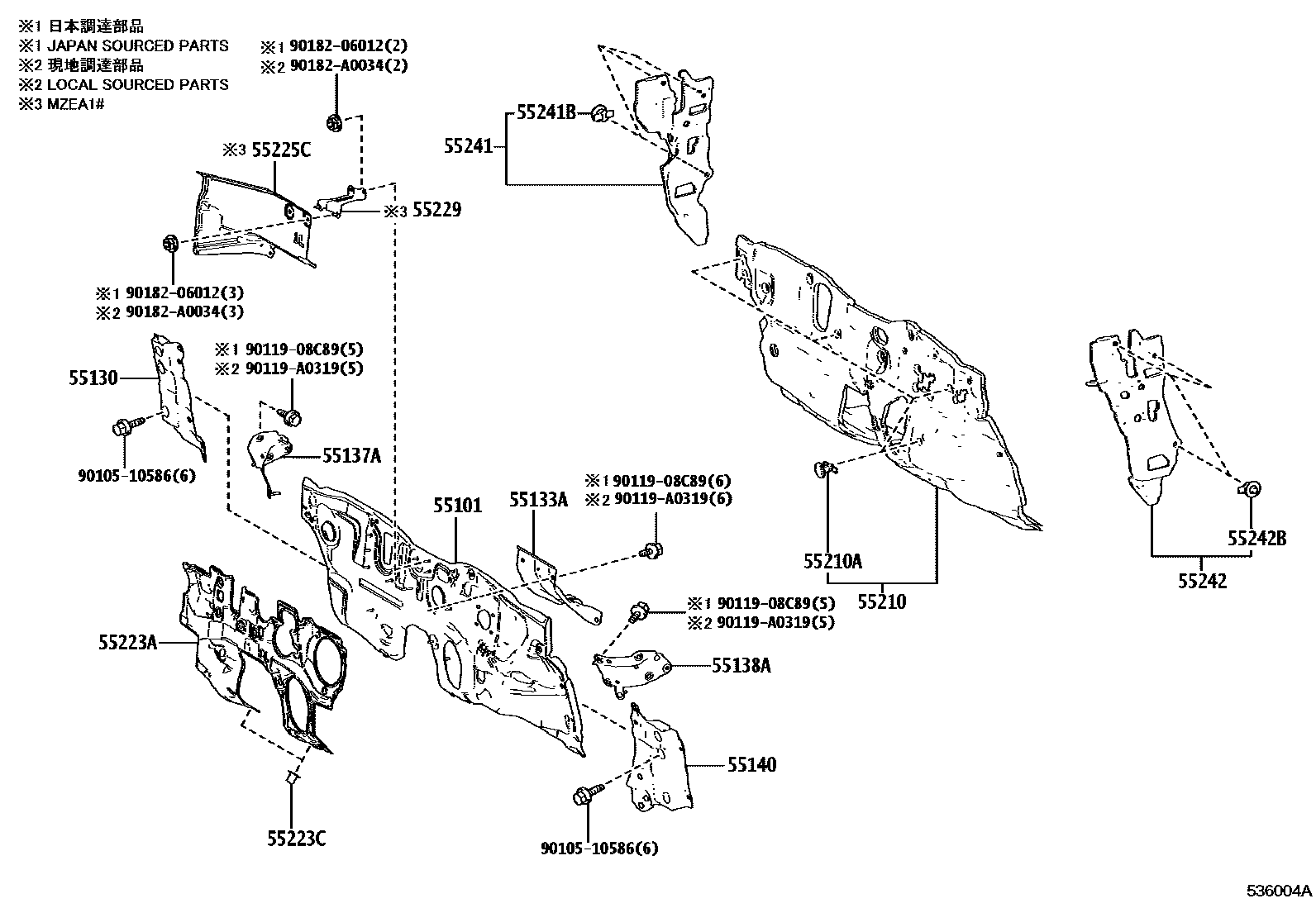

| 55101 | Front apron sub-assembly | 55101-02C40 · 55101-02D00 |
| 55130 | Right fender fender fixing plate assembly | 55130-02010 |
| 55133A | Right reinforcement (front wall to floor) | 55133-02040 |
| 55137A | Right side bracket (front wall to frame) | 55137-02190 |
| 55138A | Left side bracket (front wall to frame) | 55138-02180 |
| 55140 | Left fender fender fixing plate assembly | 55140-02010 |
| 55210 | Front wall insulation pad assembly | 55210-02640 · 55210-02780 · 55210-02870 |
| 55210A | clip | 90467-11122 |
| 55223A | Front wall outer heat insulation pad | 55223-02390 · 55223-02391 |
| 55223C | clip | 90467-06197 |
| 55225C | ISOLANT, THERMIQUE TABLEAU BORD | 55225-02010 |
| 55229 | No. 4 heat insulation pad for front wall | 55229-02010 |
| 55241 | Front panel No. 1 right side silencer | 55241-02020 · 55241-02030 |
| 55241B | ATTACHE, SILENCIEUX COTE PANNEAU AVANT | 90467-13079 |
| 55242 | Front panel No. 1 left side silencer | 55242-02010 · 55242-02020 |
| 55242B | ATTACHE, SILENCIEUX COTE PANNEAU AVANT | 90467-13079 |
