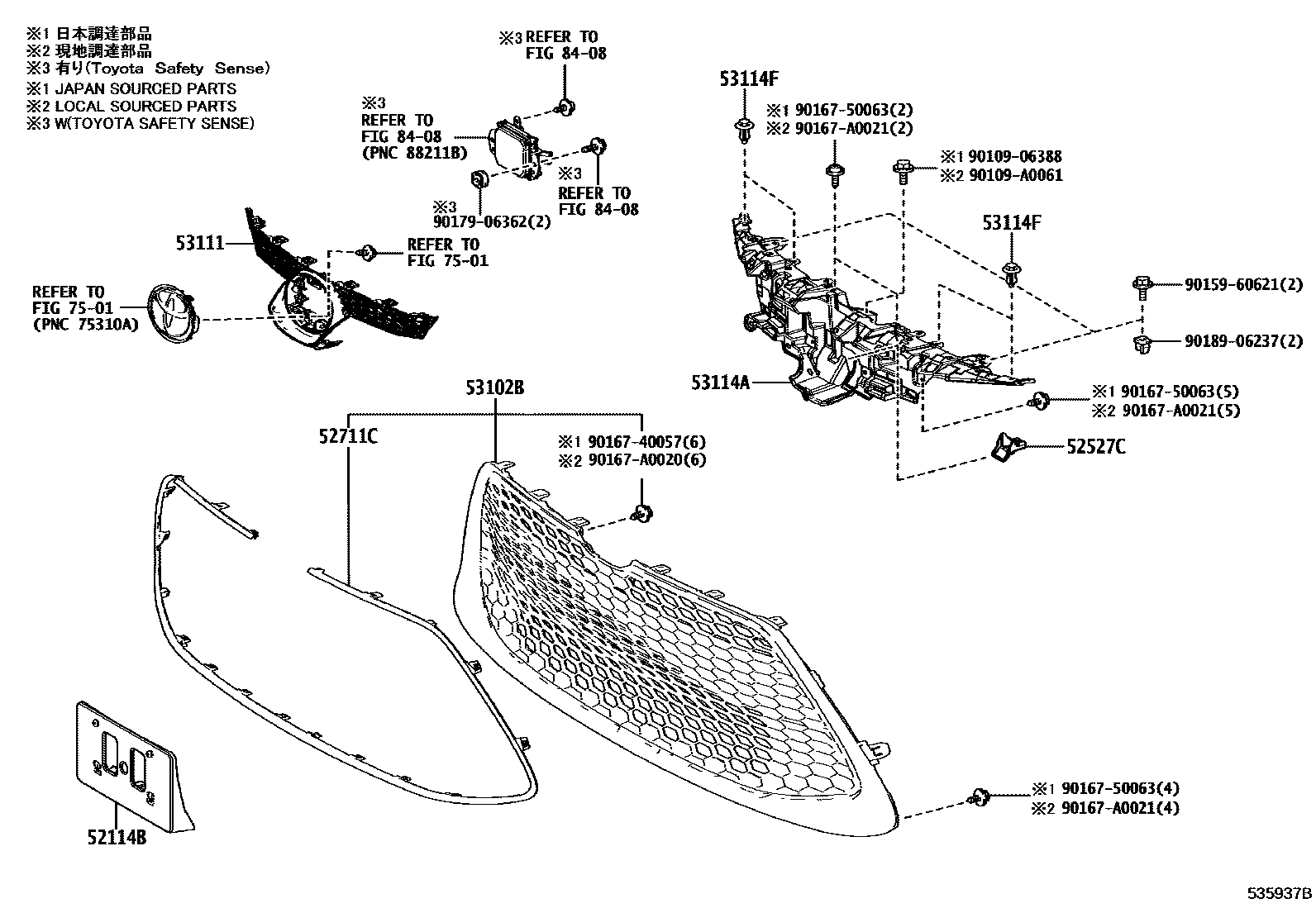

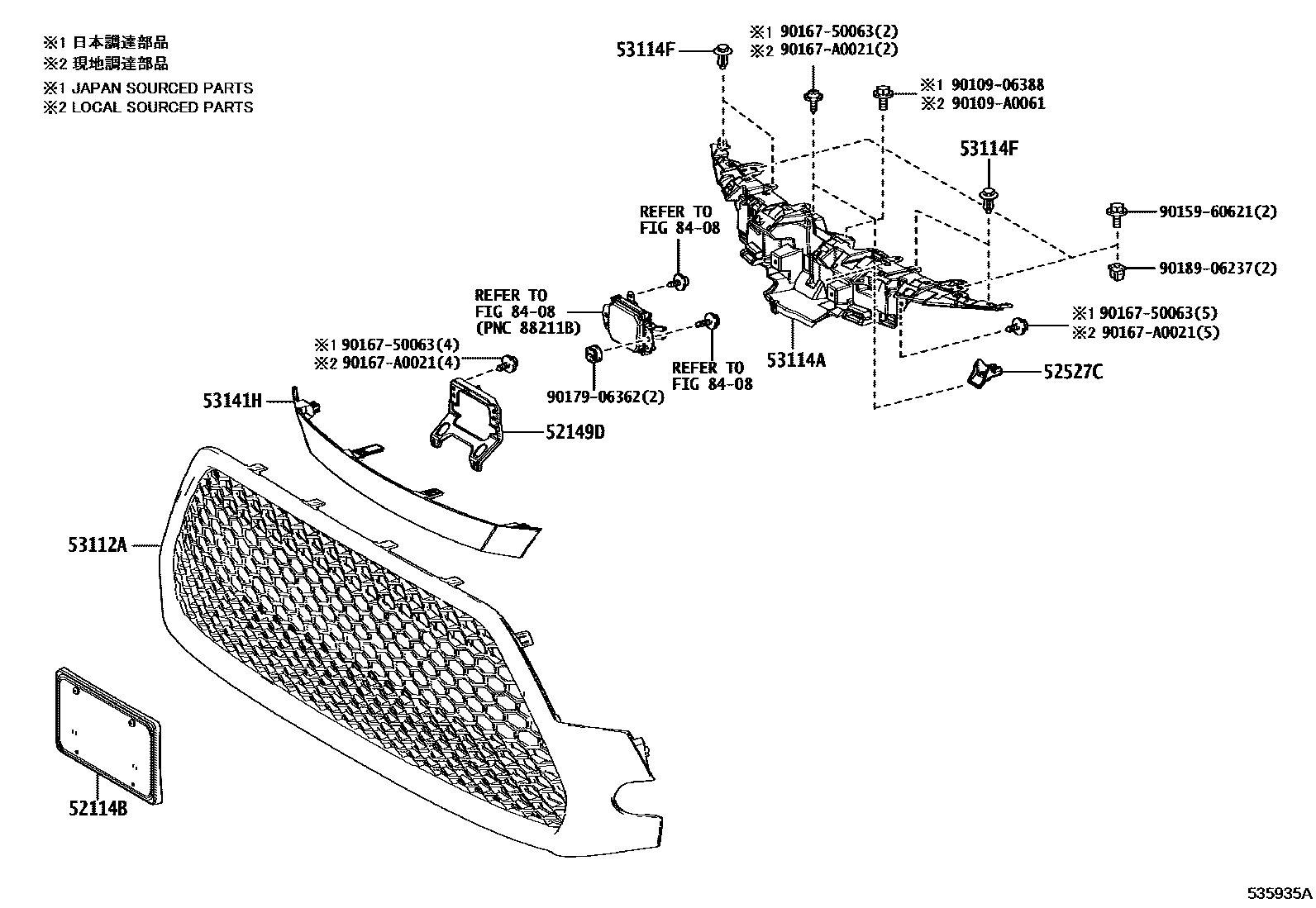

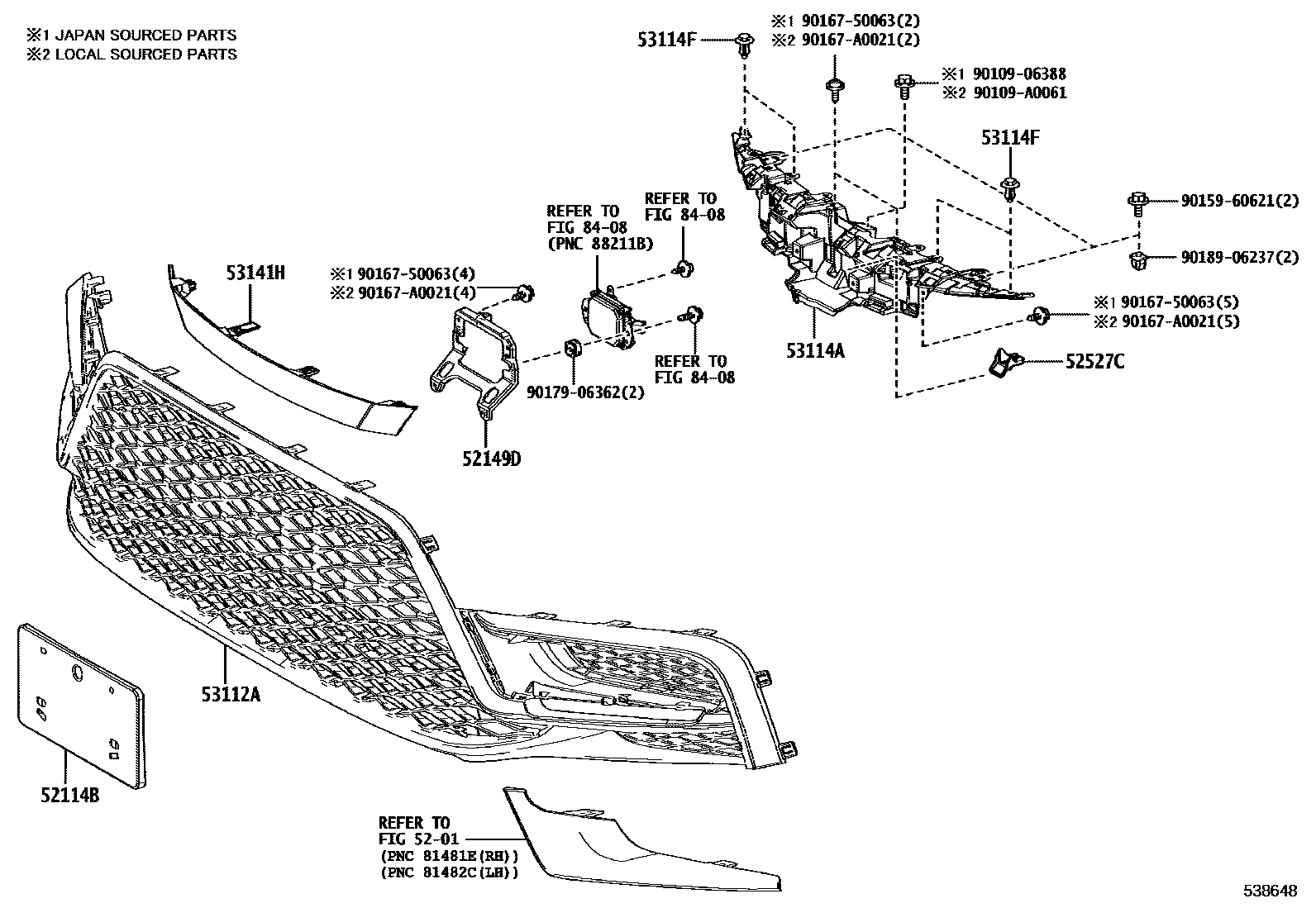

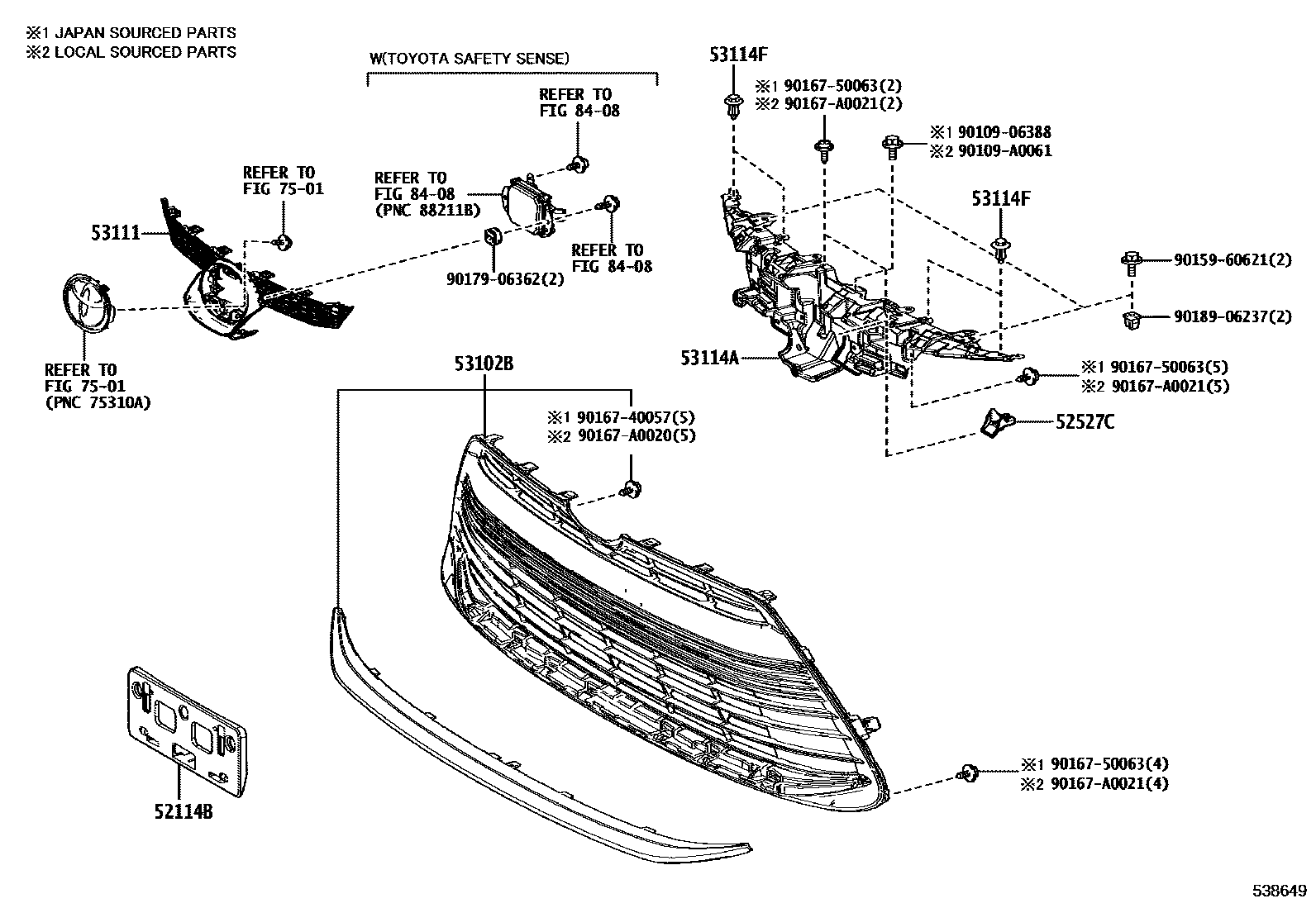

Toyota COROLLA radiator grille — Figure 5301
Toyota COROLLA EPC diagram 5301, radiator grille, with 4 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52114B | CONSOLE DE MONTAGE DE RALLONGE DE PARE-CHOC AV | 52114-02200 · 52114-02210 · 52114-02290 · 52114-02300 |
| 52149D | SUPPORT, PARE-CHOCS AVANT, INT | 52149-02010 · 52149-02060 |
| 52527C | Front bumper No. 2 lower fixing bracket | 52527-02110 |
| 52711C | MOULURE, PARE-CHOCS AVANT | 52711-02160 · 52711-02300 |
| 53102B | SOUS-ENS. GRILLE, RADIATEUR, INF | 53102-02280 · 53102-02290 · 53102-02640 |
| 53111 | radiator grille | 53111-02850 |
| 53112A | Lower radiator grille | 53112-02760 · 53112-02A50 · 53112-02E10 · 53112-02G10 |
| 53114A | inner radiator grille | 53114-02510 · 53114-02560 · 53114-02561 |
| 53141H | GARNITURE, GRILLE DE RADIATEUR | 53141-02180 |
