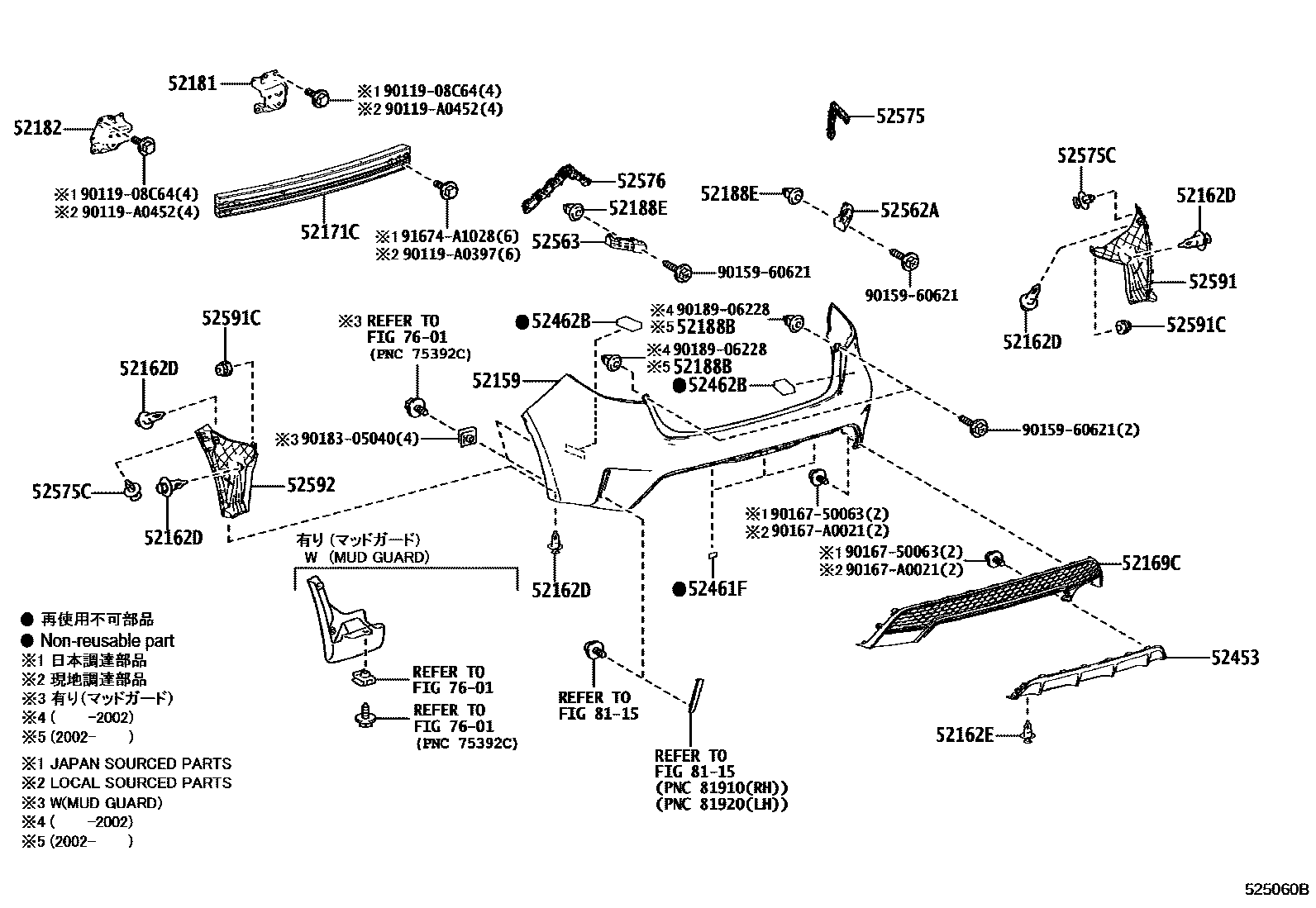

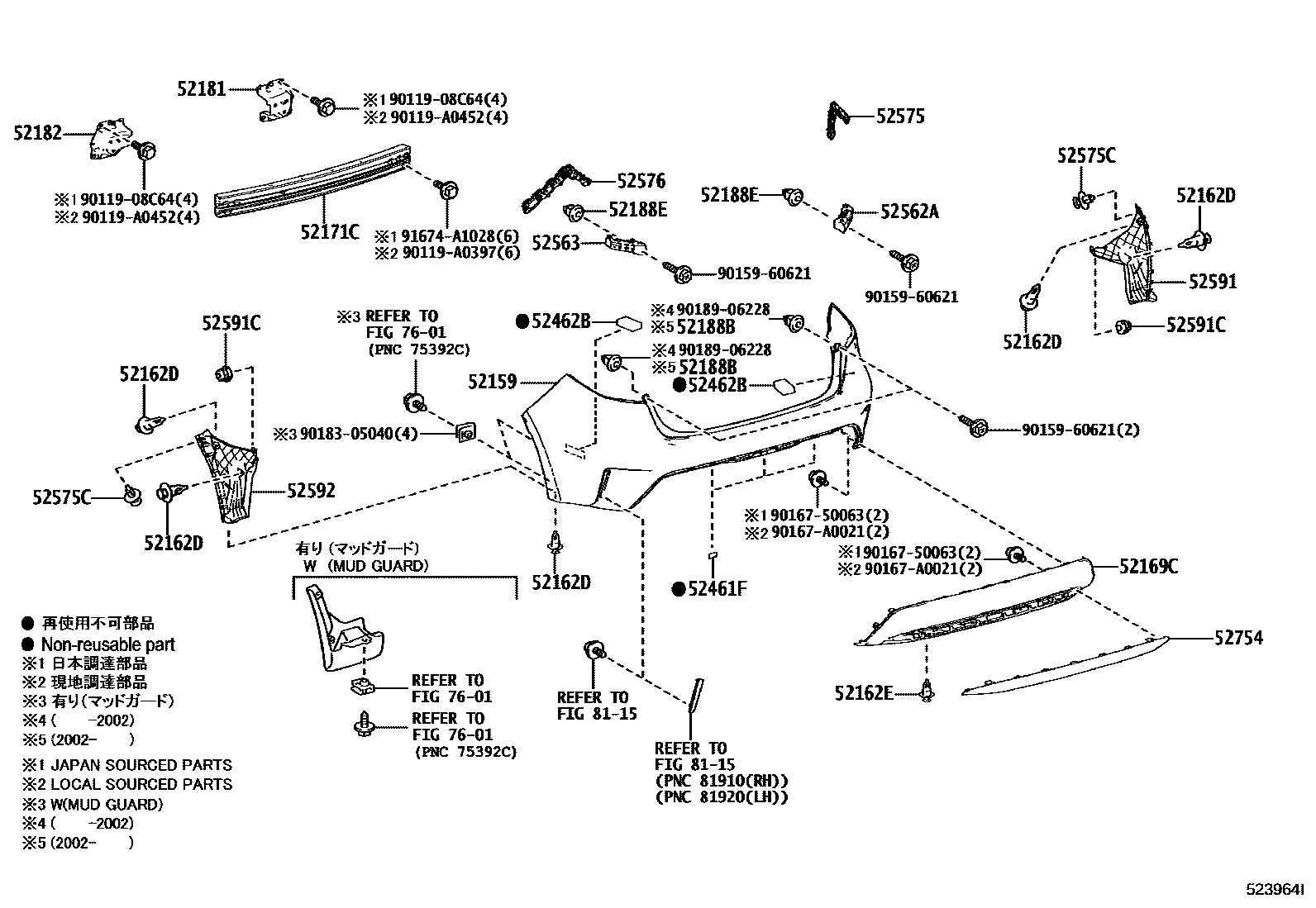

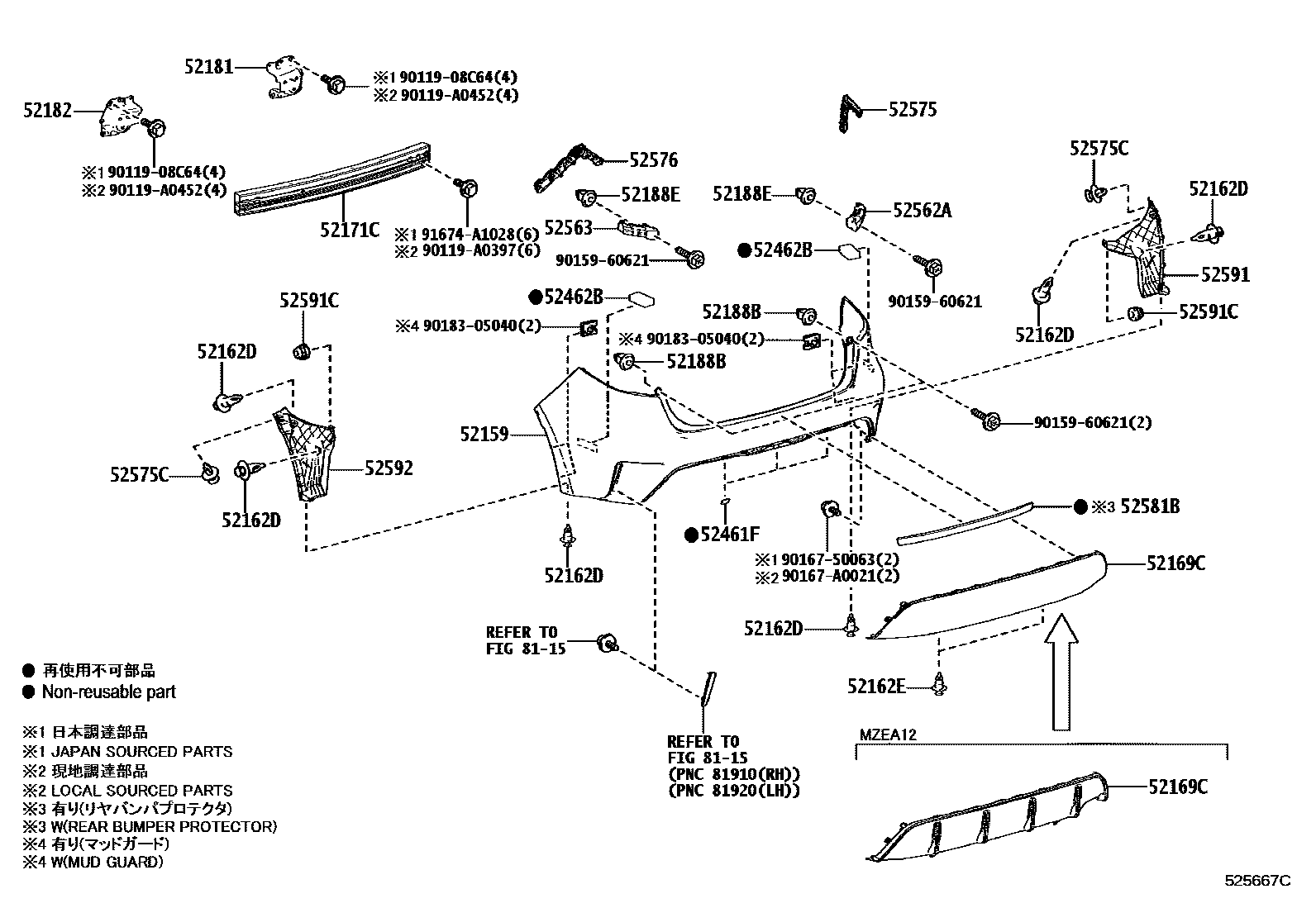

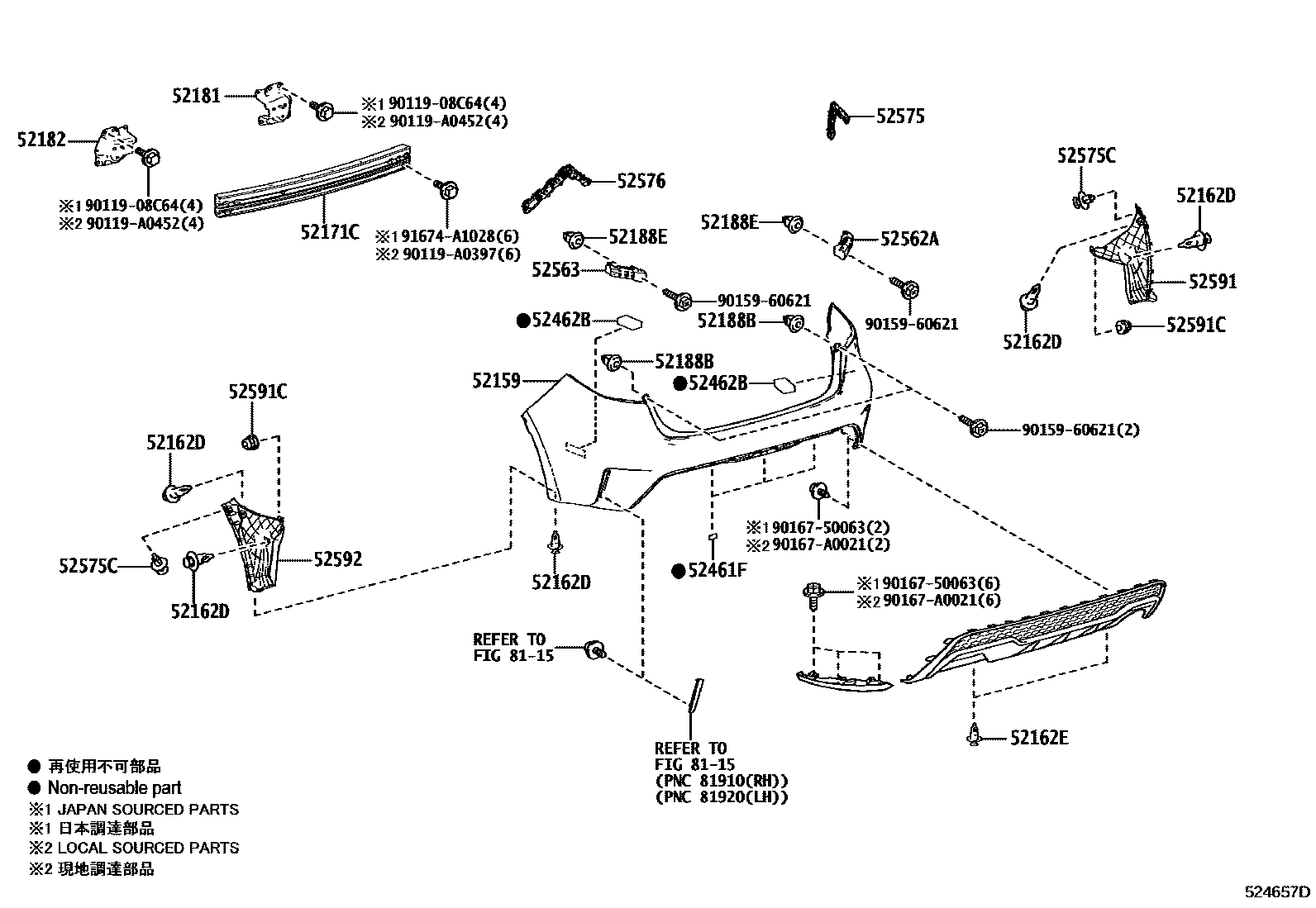

Toyota COROLLA 后保险杠及附件 — Figure 5202
Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 4 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52159 | rear bumper cover | 52159-0X927 · 52159-0Z970 |
| 52162D | Rear bumper insert | 52161-02020 |
| 52162E | Rear bumper insert | 52161-02020 |
| 52169C | Rear bumper lower cover | 52169-02060 · 52169-02070 · 52169-02071 · 52169-02170 · 52169-02190 · 52169-02200 · 52169-02260 |
| 52171C | RENFORT PARE-CHOCS ARRIERE | 52171-02260 · 52171-02370 |
| 52181 | Rear bumper right arm | 52181-02260 |
| 52182 | Rear bumper left arm | 52182-02120 |
| 52188B | Rear bumper installation spacer | 52188-33040 |
| 52188E | Rear bumper installation spacer | 52188-33040 |
| 52453 | PROTECTION, PARE-CHOCS ARRIERE, CENTRALE | 52453-02900 |
| 52461F | rear bumper lining | 52461-02070 |
| 52462B | TAMPON, PARE-CHOCS ARR | 52462-02260 |
| 52562A | Rear bumper arc filler No. 2 fixing piece | 52562-02300 |
| 52563 | Rear bumper arc filler No. 3 fixing piece | 52563-02170 |
| 52575 | Rear bumper right side fixing bracket | 52575-02180 |
| 52575C | ATTACHE, RETENUE LATERALE PARE-CHOCS ARR | 90467-05170 |
| 52576 | Rear bumper left side fixing bracket | 52576-02180 |
| 52581B | rear bumper protector | 52581-YY150 |
| 52591 | Rear bumper right seal | 52591-02370 |
| 52591C | ATTACHE, JOINT LAT PARE-CHOCS ARR | 90467-A0043 |
| 52592 | Rear bumper left seal | 52592-02340 |
| 52754 | Rear bumper No. 2 protective strip | 52754-02903 |
