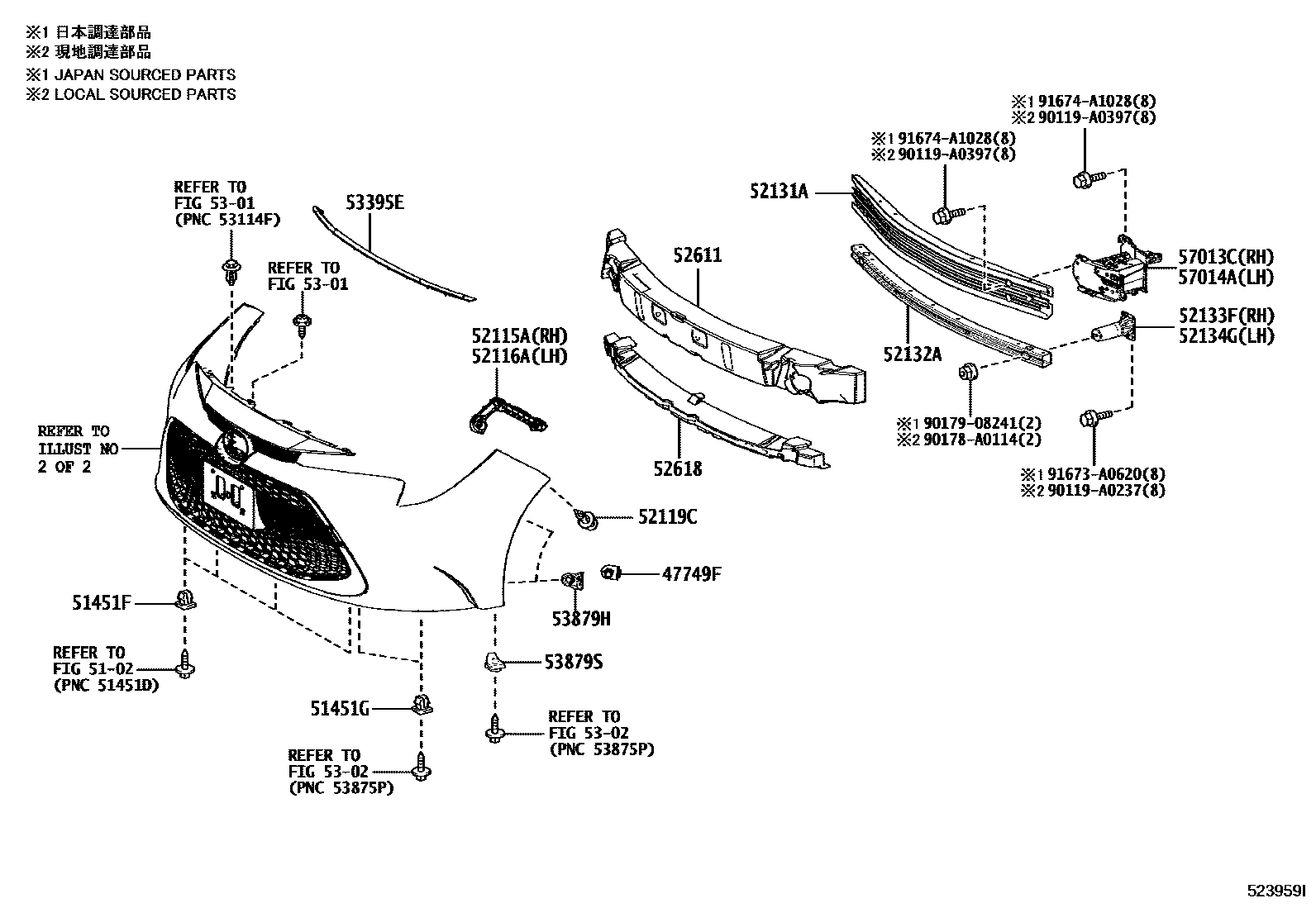

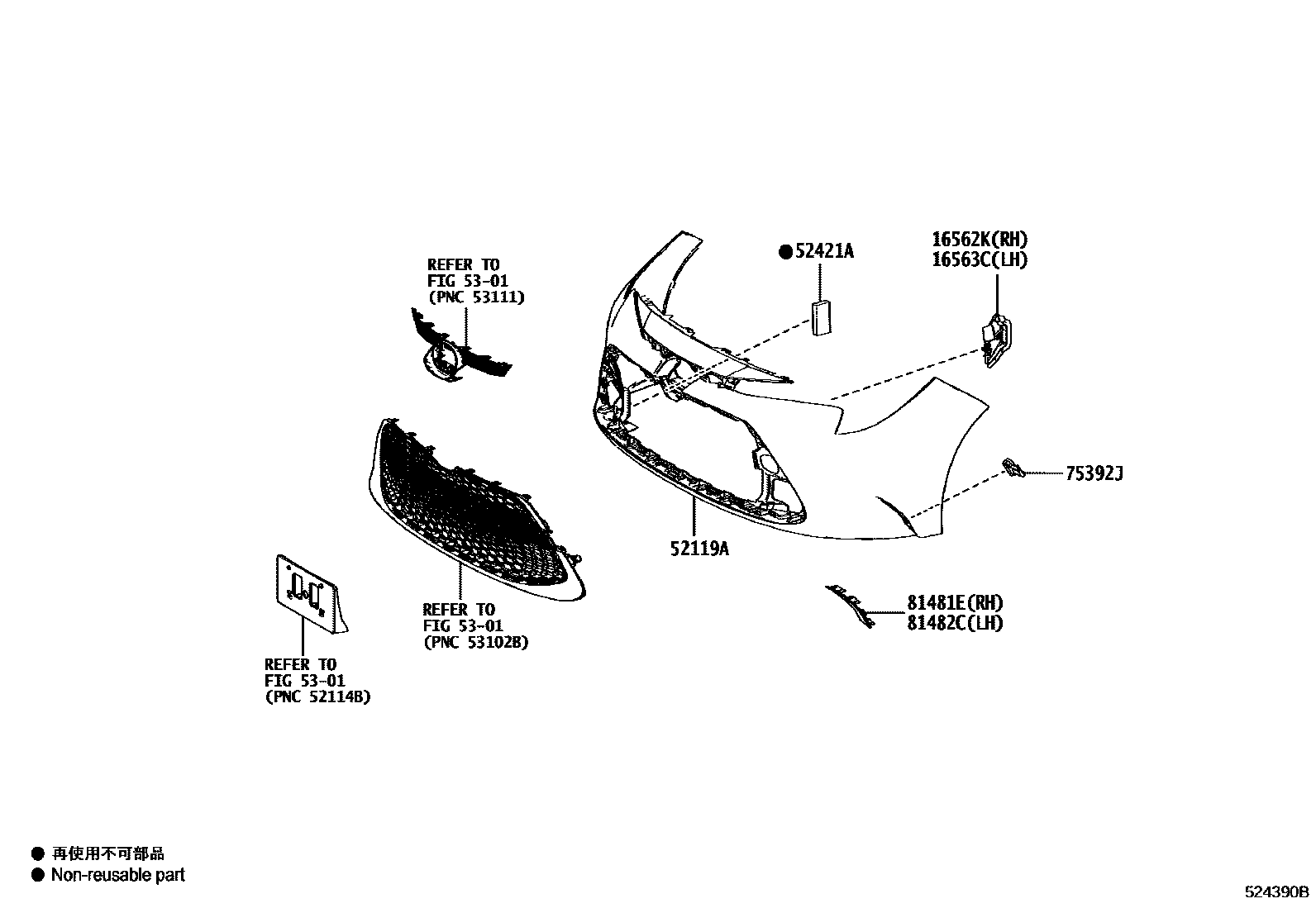

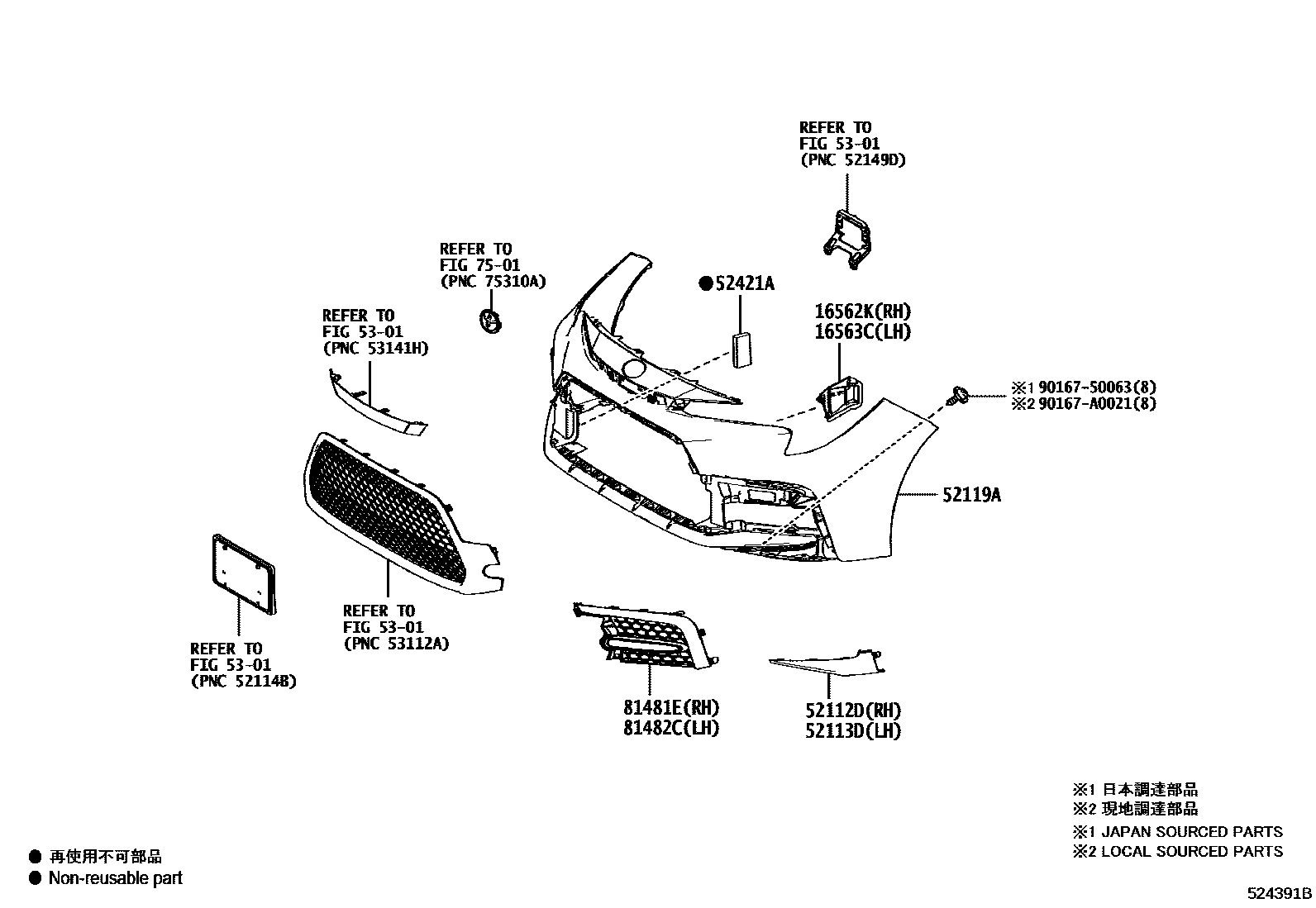

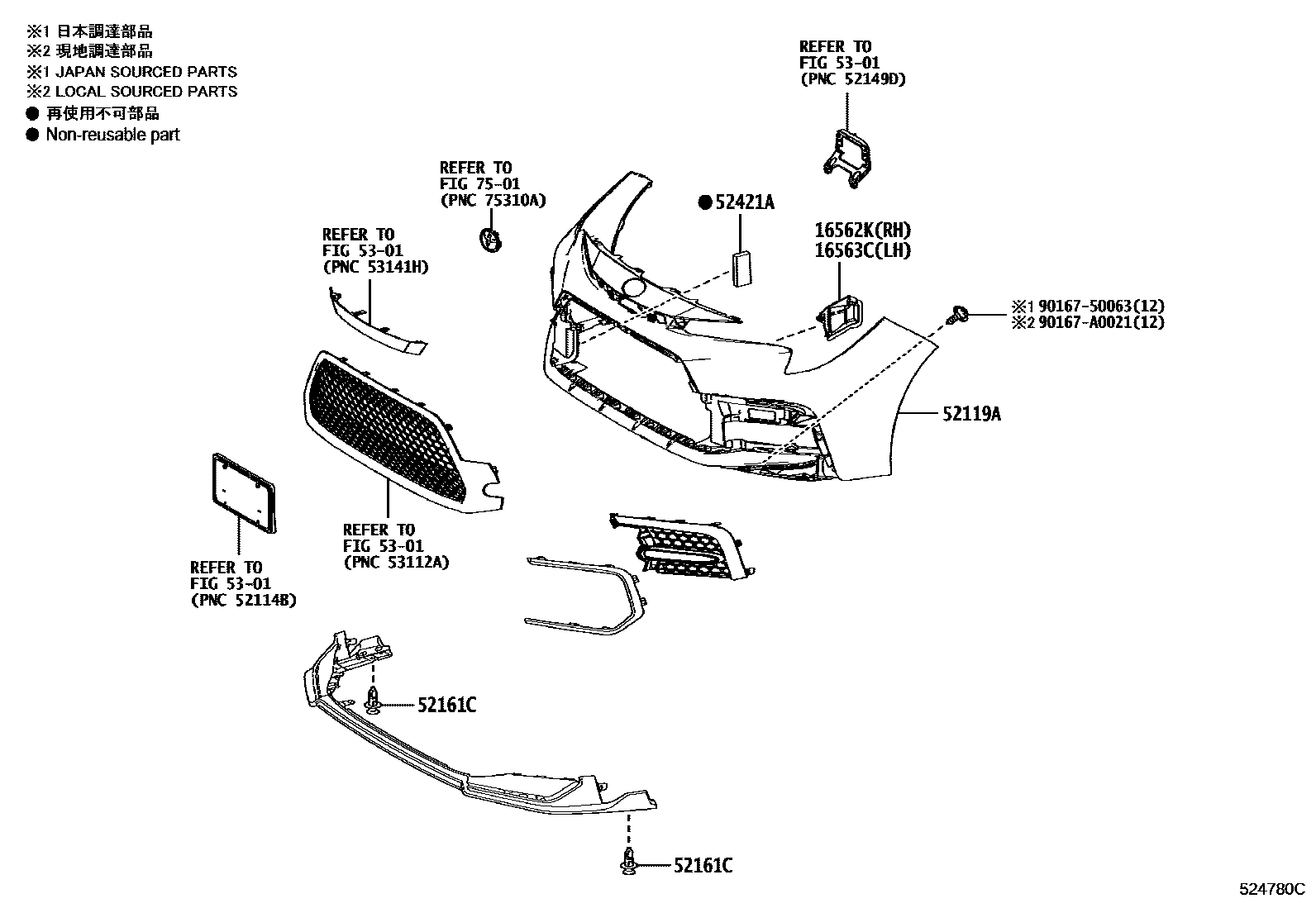

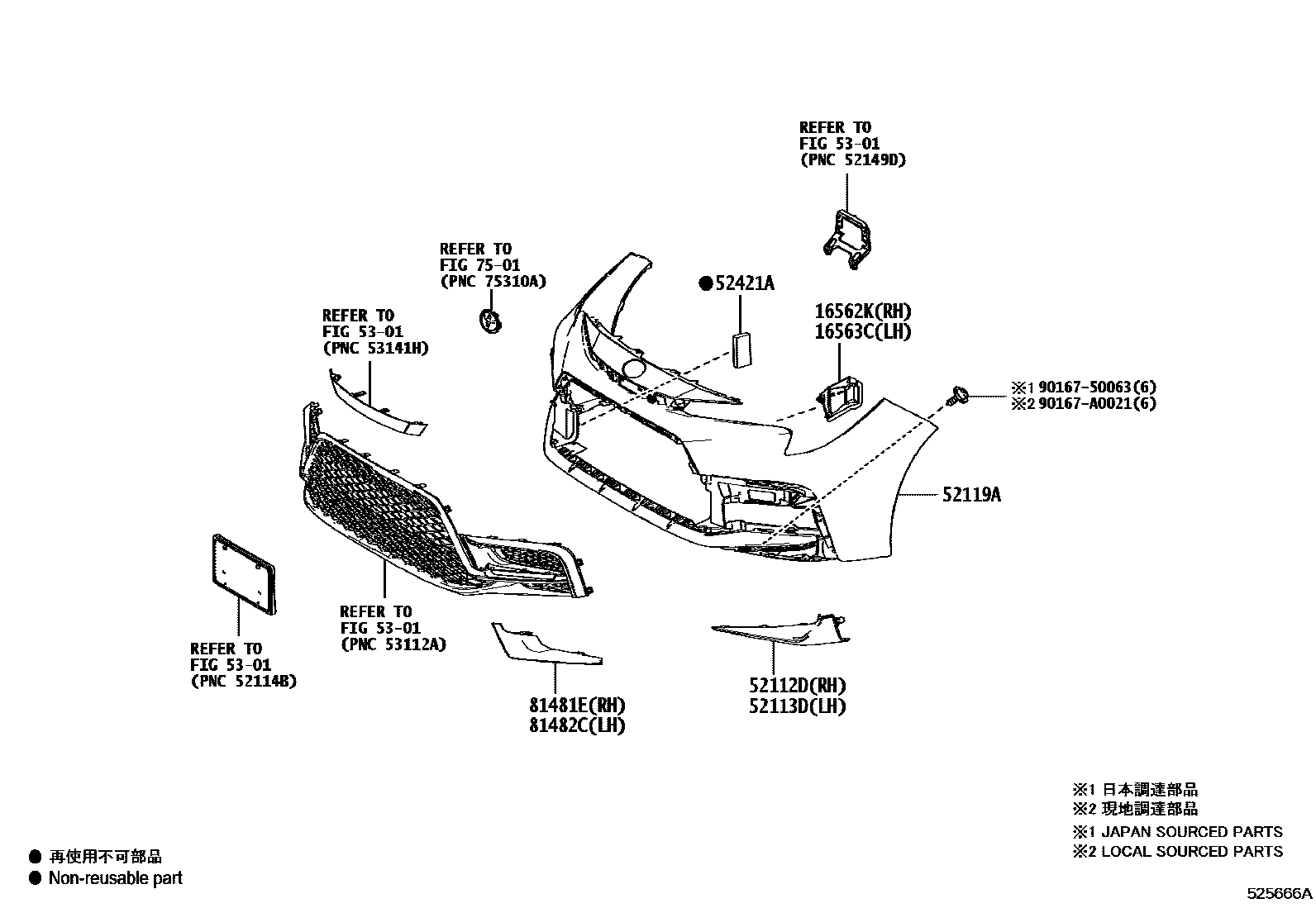

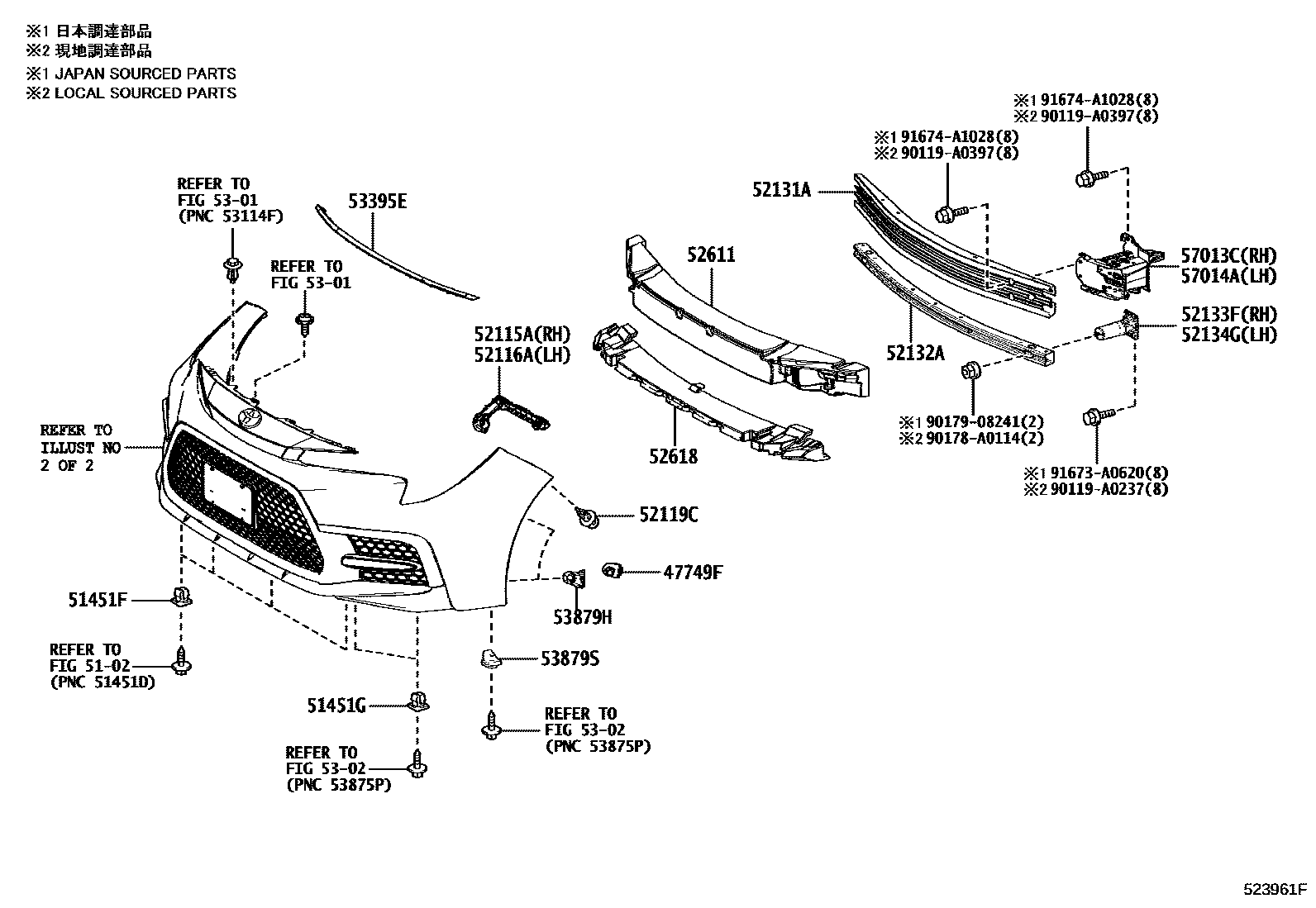

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 6 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16562K | JOINT, RADIATEUR AU SUPPORT, NO.2 | 16562-0T020 · 16562-F2010 |
| 16563C | JOINT, RADIATEUR AU SUPPORT, NO.3 | 16563-0T020 · 16563-F2010 |
| 47749F | ATTACHE, BROCHE FIXATION | 47749-02020 |
| 51451F | OEILLET, NO.1 | 90189-06237 |
| 51451G | OEILLET, NO.2 | 90189-06237 |
| 52112D | Front bumper right extension | 52112-02090 · 52112-02110 · 52112-02180 · 52112-02190 |
| 52113D | Front bumper left extension | 52113-02030 · 52113-02040 · 52113-02110 · 52113-02120 |
| 52115A | Front bumper right side bracket | 52115-02480 |
| 52116A | Front bumper left bracket | 52116-02460 |
| 52119A | front bumper cover | 52119-F2921 · 52119-F2922 · 52119-F2936 · 52119-F2941 |
| 52119C | ATTACHE, PROTECTION PARE-CHOCS AVANT | 90467-05170 |
| 52131A | Front bumper reinforcement | 52131-02270 |
| 52132A | No. 2 front bumper reinforcement | 52132-02050 |
| 52133F | Front bumper right side bracket | 52133-02120 |
| 52134G | Front bumper left bracket | 52133-02120 |
| 52161C | front bumper insert | 52161-02020 |
| 52421A | front bumper lining | 52421-02050 |
| 52611 | front bumper energy absorber | 52611-02500 · 52611-02540 |
| 52618 | Front bumper lower shock absorber | 52618-02290 · 52618-02310 |
| 53395E | Engine cover to front end plate seal | 53395-02240 |
| 53879H | Front fender lining fixing parts | 53879-02150 |
| 53879S | Front fender lining fixing parts | 53879-17020 |
| 57013C | Right front longitudinal beam bracket sub-assembly | 57013-02100 |
| 57014A | Left front longitudinal beam bracket sub-assembly | 57014-02170 |
| 75392J | External protective strip fixings | 75392-0R050 |
| 81481E | Right fog light cover | 81481-02850 · 81481-02922 · 81481-02A30 · 81481-02C30 |
| 81482C | Left fog light cover | 81482-02840 · 81482-02901 · 81482-02A20 · 81482-02C30 |
