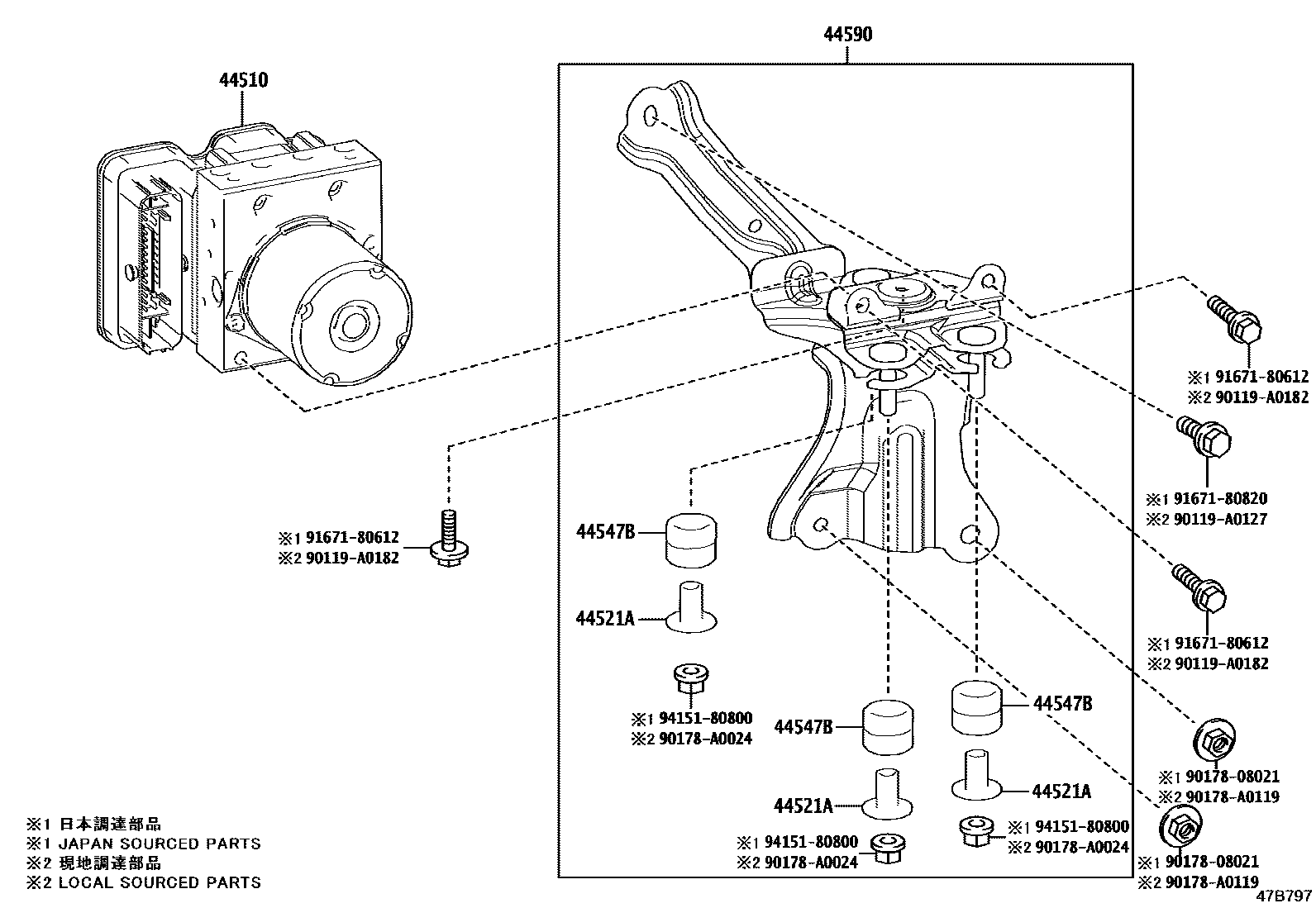

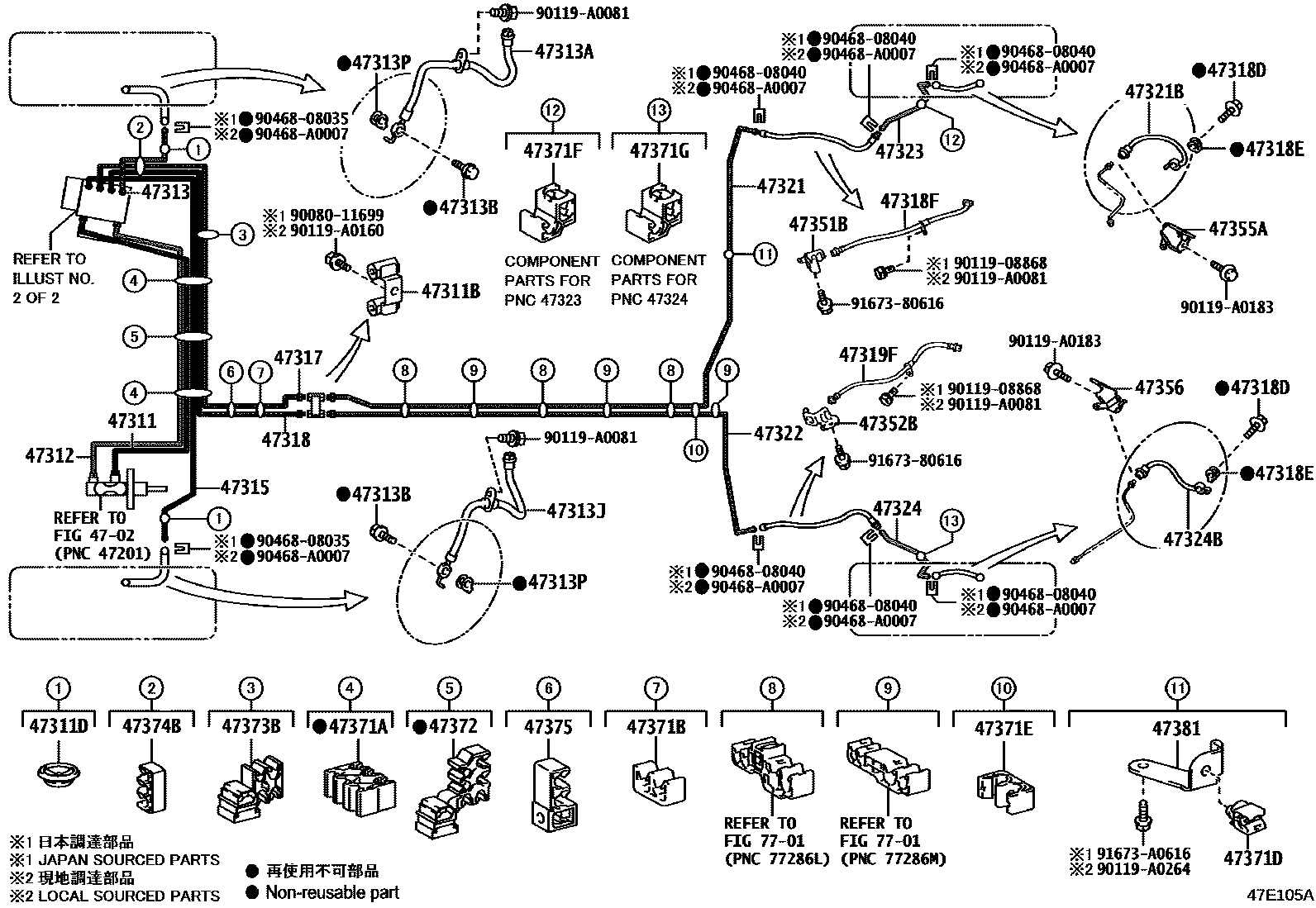

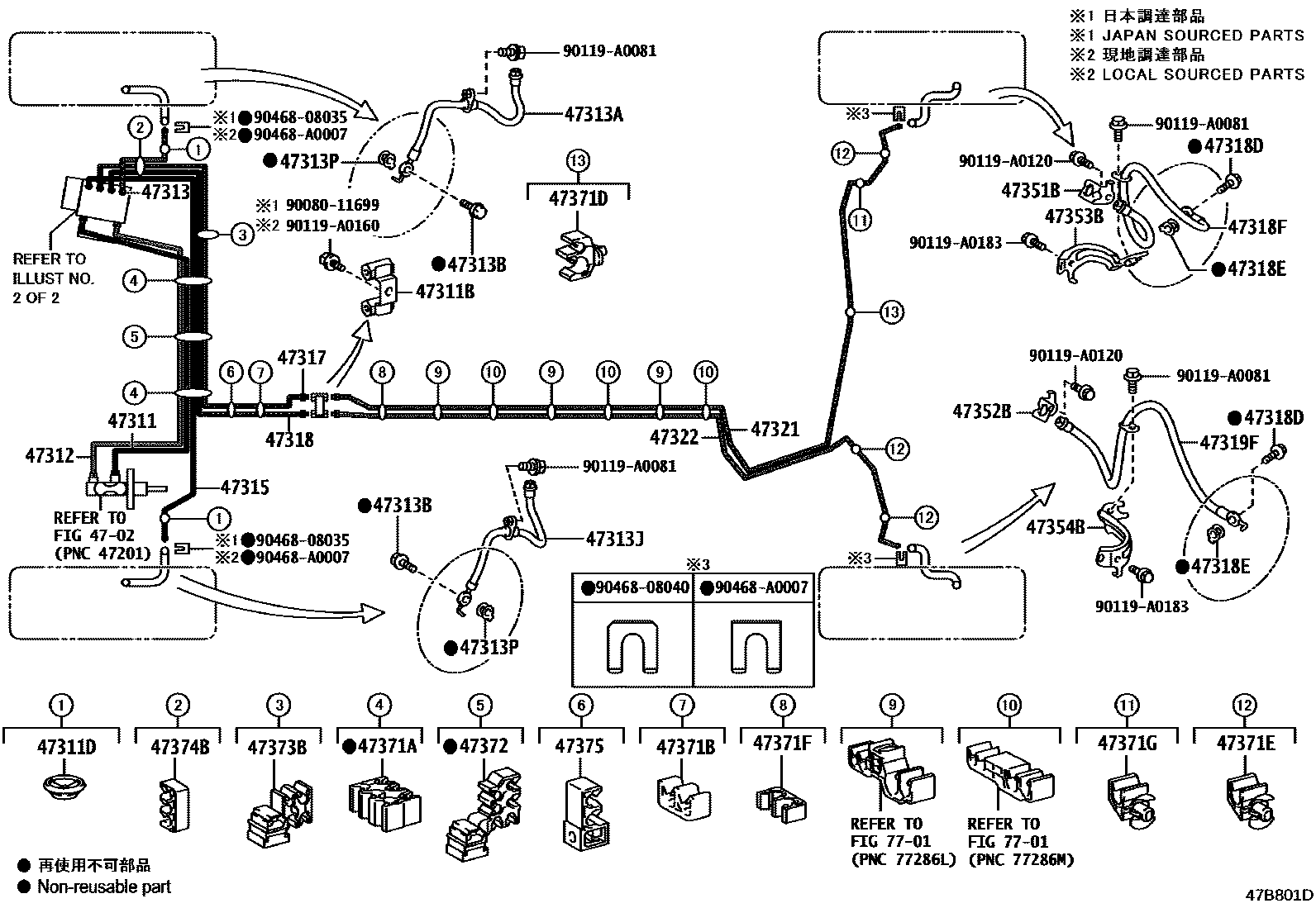

Toyota COROLLA 制动配管和卡箍 — Figure 4708
Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 3 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-02C40 · 44050-02C50 · 44050-02M00 · 44050-02M01 · 44050-02N00 |
| 44521A | COLLIER, BOITIER ACTIONNEUR FREIN, NO.1 | 44521-33020 |
| 44547B | brake actuator bracket cushion | 44547-33100 |
| 44590 | Brake actuator bracket assembly | 44590-02370 · 44590-02480 |
| 47311 | No. 1 front brake pipe | 47311-02E00 · 47311-02G60 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-A0011 |
| 47311D | Seal (for front brake pipe) | 90480-25037 |
| 47312 | No. 2 front brake pipe | 47312-02C40 |
| 47313 | No. 3 front brake pipe | 47313-02E80 |
| 47313A | No. 1 front flexible hose | 90947-A2111 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 · 90401-A0001 |
| 47313J | No. 2 front flexible hose | 90947-A2112 |
| 47313P | Gasket (for front flex hose) | 47389-50021 |
| 47315 | No. 5 front brake pipe | 47315-02440 |
| 47317 | No. 7 front brake pipe | 47317-02D70 |
| 47318 | No. 8 front brake pipe | 47318-02D90 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 · 90401-A0001 |
| 47318E | Gasket (for rear flex hose) | 47389-50021 |
| 47318F | Right rear flexible hose | 90947-A2106 · 90947-A2109 · 90947-A2139 |
| 47319F | Left rear flexible hose | 90947-A2106 · 90947-A2110 · 90947-A2140 |
| 47321 | No. 1 rear brake pipe | 47321-02620 · 47321-02780 |
| 47321B | Flexible hose (for rear brake pipe) | 90947-A2162 |
| 47322 | No. 2 rear brake pipe | 47322-02620 · 47322-02780 |
| 47323 | No. 3 rear brake pipe | 47323-02240 |
| 47324 | No. 4 rear brake pipe | 47324-02240 |
| 47324B | Flexible hose (for No. 2 rear brake pipe) | 90947-A2163 |
| 47351B | No. 1 Flexible Hose Bracket | 47351-06050 · 47351-0A100 |
| 47352B | No. 2 Flexible Hose Bracket | 47352-06050 · 47352-0A100 |
| 47353B | No. 3 Flexible Hose Bracket | 47351-02160 · 47351-06030 |
| 47354B | No. 4 Flexible Hose Bracket | 47352-02160 · 47352-06030 |
| 47355A | No. 5 Flexible Hose Bracket | 47351-02320 |
| 47356 | No. 6 Flexible Hose Bracket | 47352-02300 |
| 47371A | No. 1 brake pipe clamp | 90949-01E44 |
| 47371B | No. 6 brake pipe clamp | 90949-01D91 |
| 47371D | No. 8 brake pipe clamp | 77285-02260 · 90949-01E01 |
| 47371E | No. 9 brake pipe clamp | 90464-00904 · 90949-01E10 |
| 47371F | No. 10 brake pipe clamp | 90464-00904 · 90949-01E81 |
| 47371G | No. 11 brake pipe clamp | 90949-01E10 · 90949-01E81 |
| 47372 | No. 2 brake pipe clamp | 90949-01E42 |
| 47373B | No. 3 brake pipe clamp | 90949-01E51 |
| 47374B | No. 4 brake pipe clamp | 90949-01D92 |
| 47375 | No. 5 brake pipe clamp | 90949-01E33 |
| 47381 | No. 1 brake pipe clamp bracket | 47381-0A011 |
