Toyota COROLLA Front Drive Shaft — Figure 4302

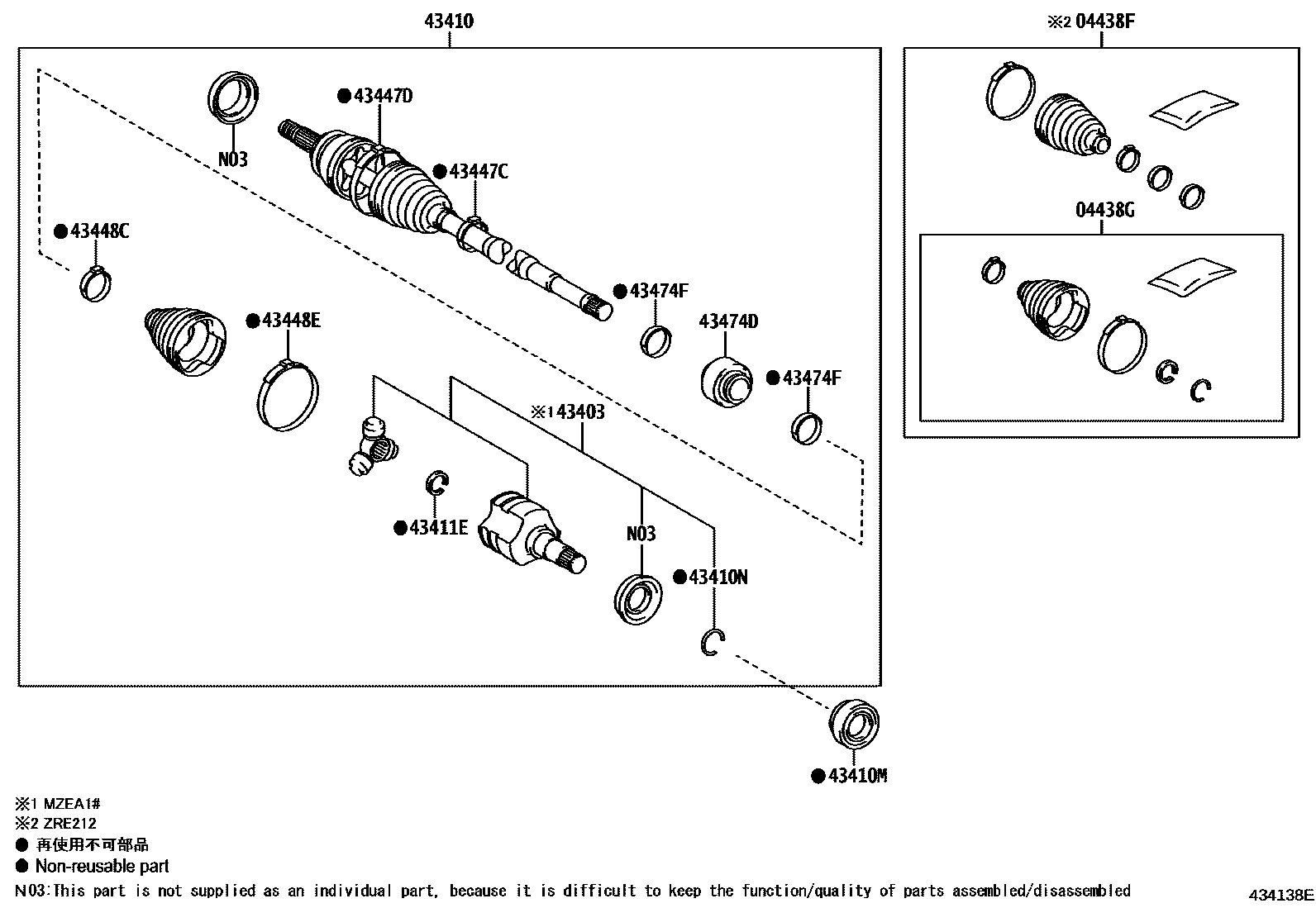

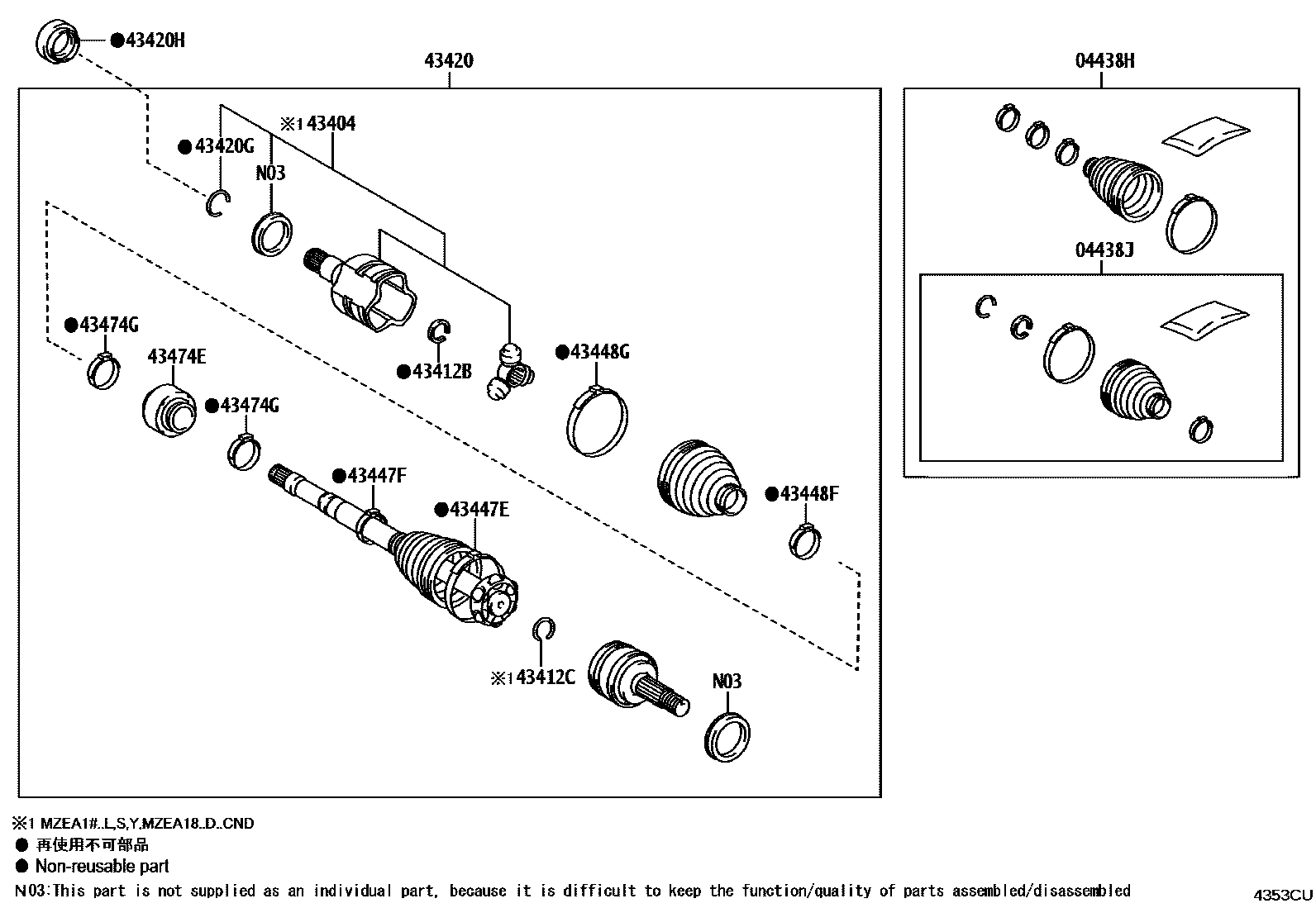

Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 2 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-02760 · 04427-02761 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-02700 · 04437-02710 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04428-02910 · 04428-02A20 · 04428-02A21 · 04428-02A30 · 04428-02A31 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04437-02700 · 04437-02710 |
| 43403 | Right front axle inner universal joint assembly | 43403-02120 |
| 43404 | Left front axle inner universal joint assembly | 43404-02020 |
| 43410 | Right front driveshaft assembly | 43410-02A30 · 43410-02A31 · 43410-02A32 · 43410-02C10 · 43410-02C11 · 43410-02C12 |
| 43410M | JOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MD | 90311-35065 · 90311-35076 · 90311-40047 |
| 43410N | Hole snap ring (for right front driveshaft) | 43425-01030 · 43425-07040 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-01040 · 43425-0R010 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-01040 · 43425-0R010 |
| 43412C | Outer shaft snap ring (for left front axle inner drive shaft) | 43425-0R020 |
| 43420 | Left front drive shaft assembly | 43420-02E70 · 43420-02E71 · 43420-02E72 · 43420-02E80 · 43420-02E81 · 43420-02E82 |
| 43420G | Hole snap ring (for left front driveshaft) | 43425-01030 · 43425-07040 |
| 43420H | JOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MG | 90311-35075 · 90311-35080 · 90311-50058 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-0R040 · 42345-0R080 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-0R030 · 42345-0R070 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-0R030 · 42345-0R070 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-0R040 · 42345-0R080 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-01060 · 42345-0R080 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-02B10 · 42345-06A00 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-01060 · 42345-0R080 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-02B10 · 42345-06A00 |
| 43474D | Right front driveshaft shock absorber | 43474-01021 · 43474-02490 |
| 43474E | Left front driveshaft shock absorber | 43474-02830 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-02871 · 42345-02B70 |
| 43474G | Clamp (for left front driveshaft shock absorber) | 42345-0R060 |
