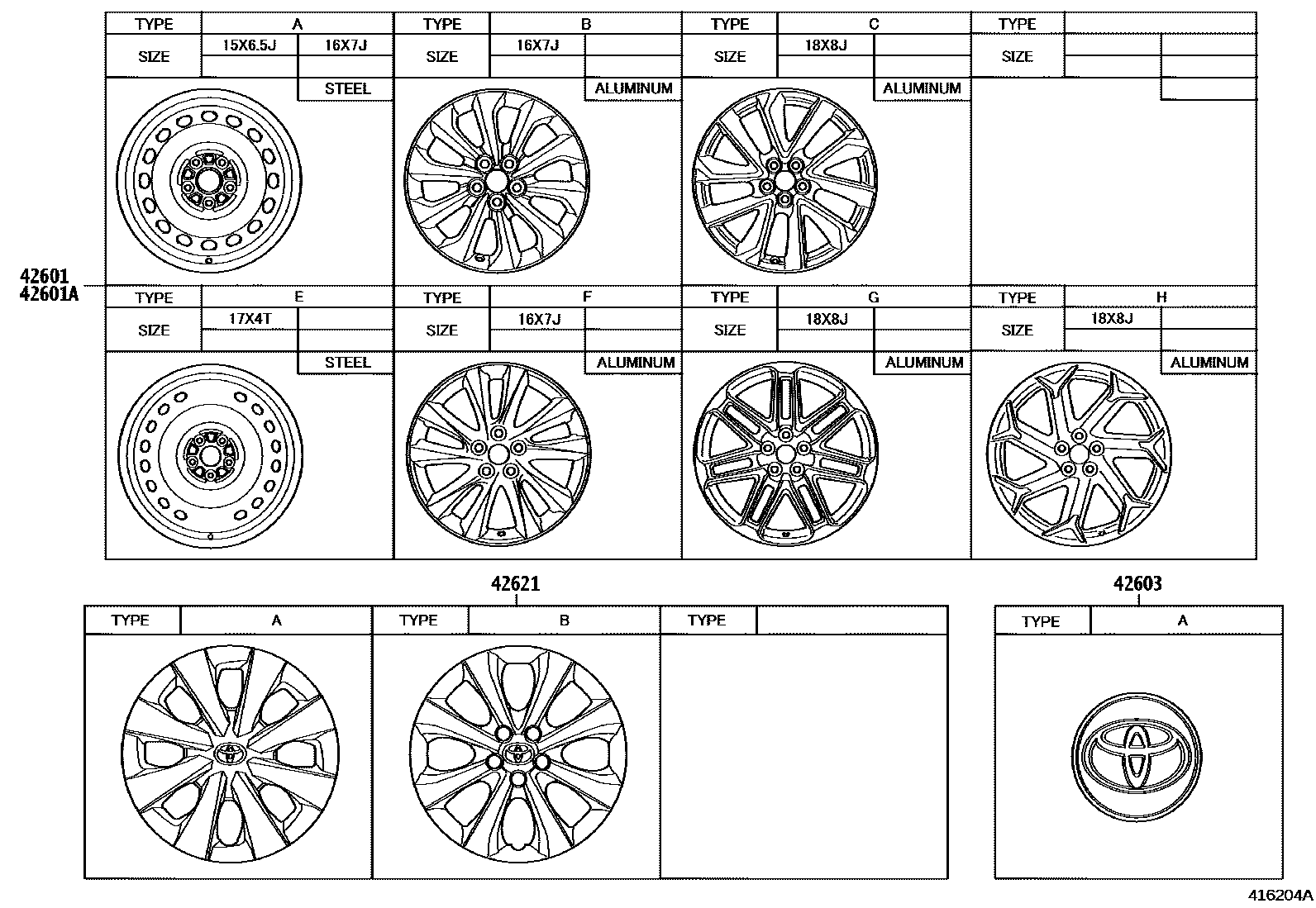

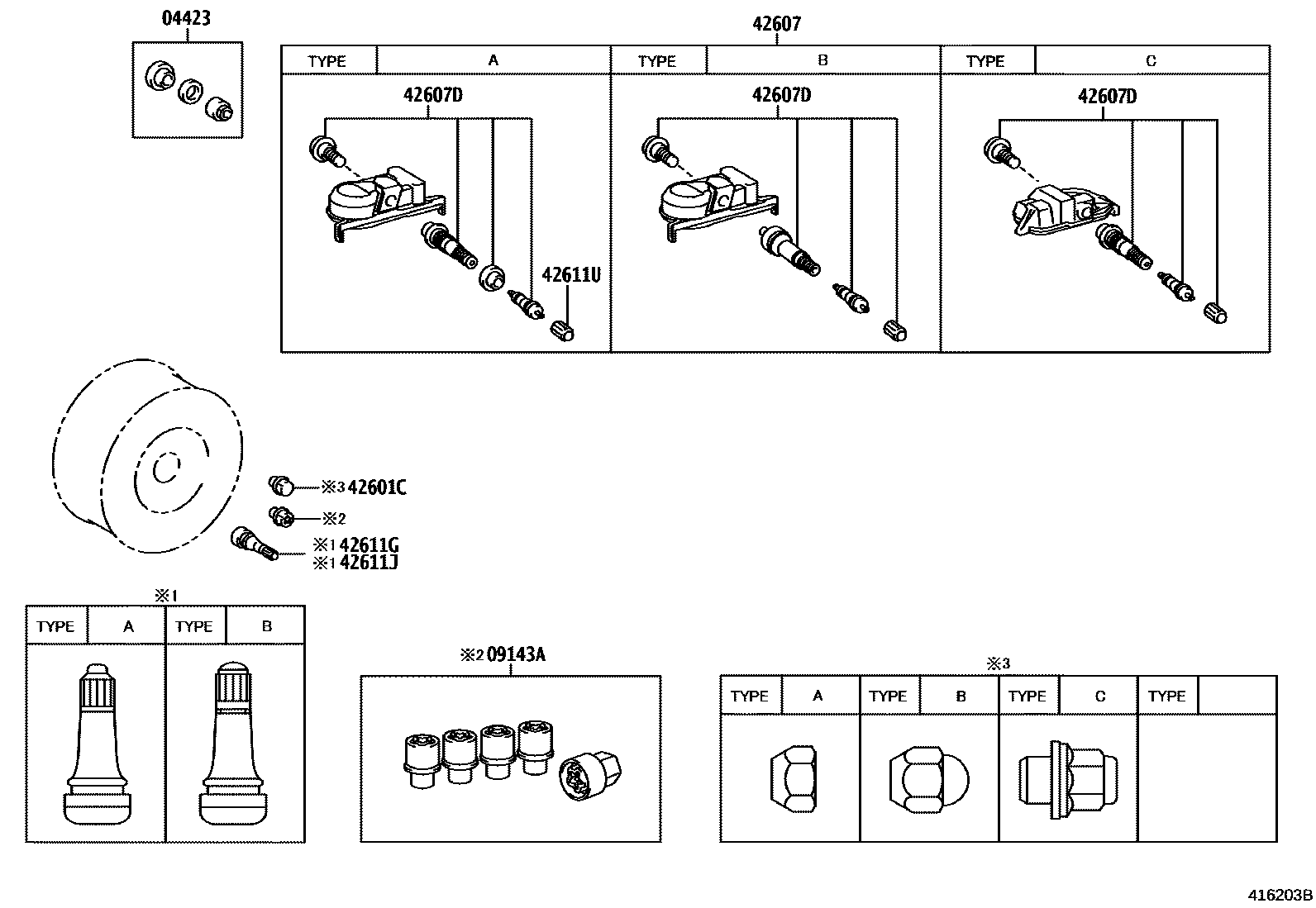

Toyota COROLLA 车轮和车轮盖 — Figure 4103
Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-0E010 |
| 09143A | ECROU, VERROUILLAGE ROUE AVEC CLE A DOUILLES | 09143-YY070 · 09143-YY120 |
| 42601 | spoke wheel | 42611-02Q40 · 42611-02Q41 · 42611-02Q50 · 42611-02Q51 · 42611-02Q60 · 42611-02Q61 · 42611-02Q70 · 42611-02Q71 · 42611-02W00 · 42611-02W01 · 42611-02Y20 · 42611-02Y30 · 42611-YYB60 · 42611-YYE30 · 42611-YYF30 |
| 42601A | Spoke wheel (for spare tire) | 42611-02Q80 |
| 42601C | Hub nut (for axle) | 90084-94001 · 90942-01007 · 90942-01082 · 90942-A1004 · 90942-A1005 · 90942-A1009 · 90942-A1010 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-52170 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-02050 · 42607-02100 · 42607-0E090 |
| 42607D | SOUPAPE, CONTROLE PRESSION PNEU | 90942-A5005 · 90942-A5007 · 90942-A5010 |
| 42611G | Valve (for tubeless tires) | 90080-45001 · 90080-45006 |
| 42611J | Valve (for tubeless spare tire) | 90080-45001 · 90080-45006 |
| 42611U | tire valve cover | 90942-A5002 |
| 42621 | wheel cover | 42602-02490 · 42602-02540 |
