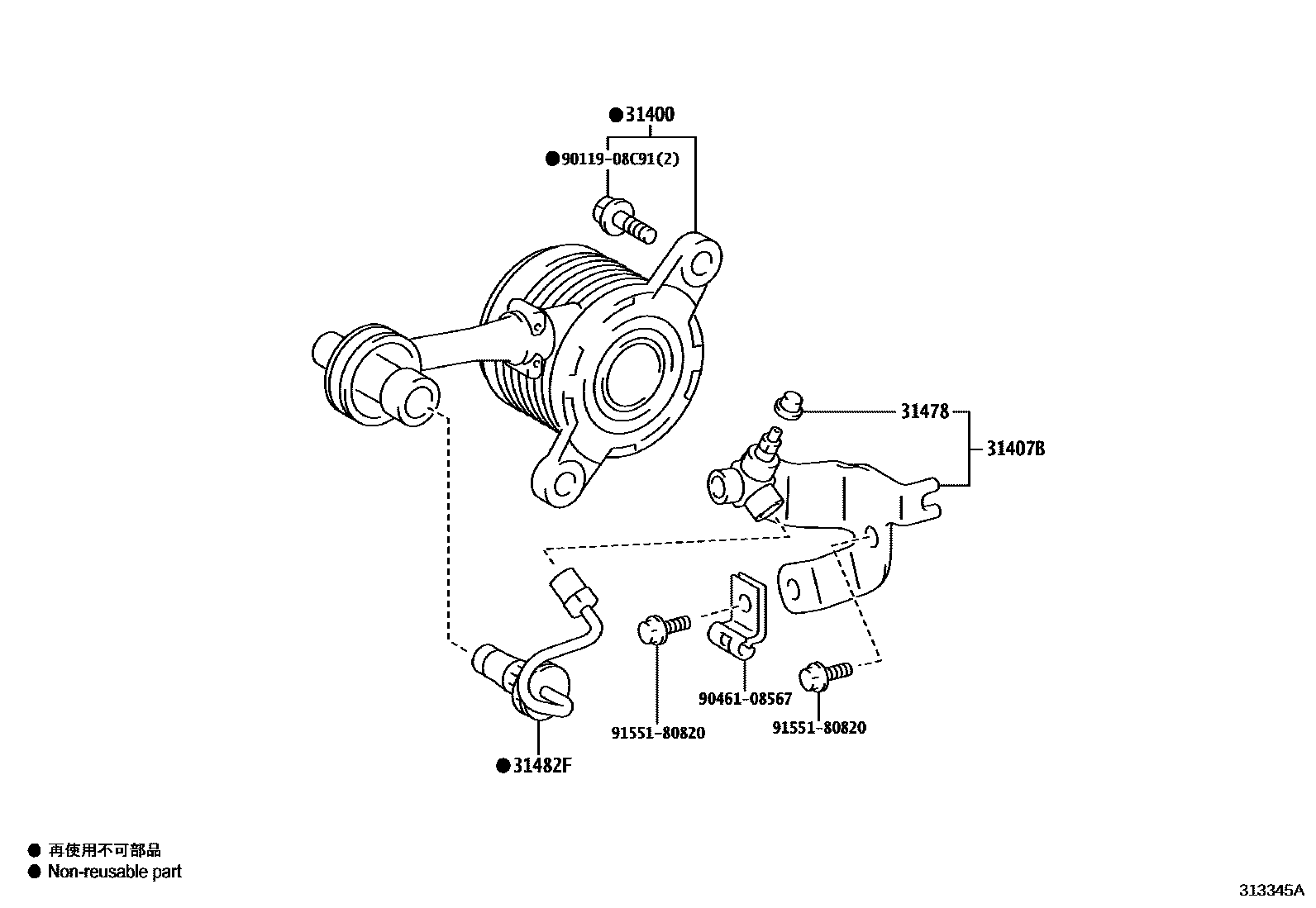

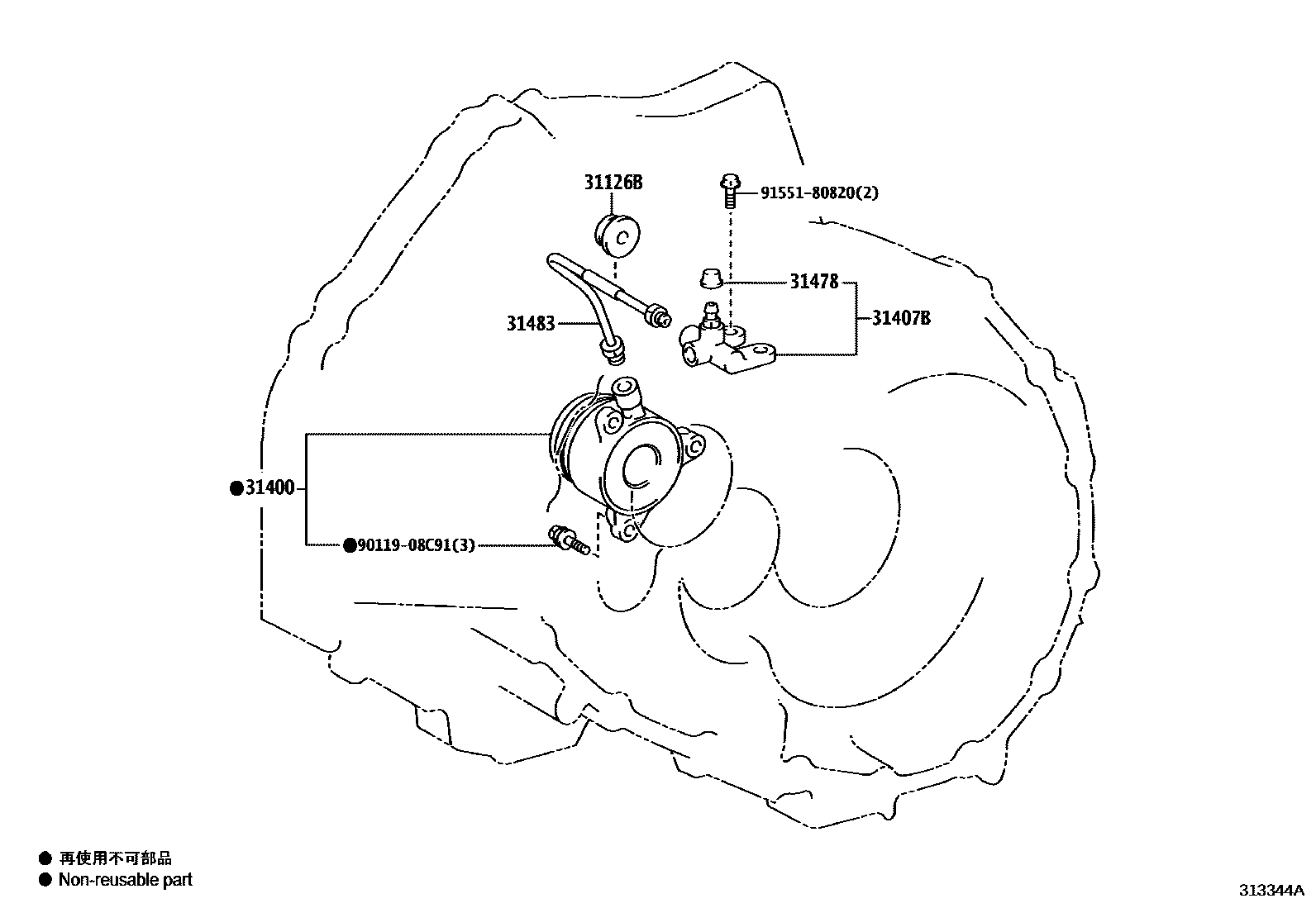

Toyota COROLLA 离合器分离缸 — Figure 3105
Toyota COROLLA EPC diagram 3105, 离合器分离缸, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31126B | Clutch tube dust boot | 31126-20090 |
| 31400 | Clutch release cylinder assembly with bearing | 31400-19025 · 31400-19026 · 31400-59025 |
| 31407B | Clutch separation and bleeder device sub-assembly | 31407-12010 · 31407-52010 |
| 31478 | Bleed plug cap (for separator cylinder) | 31478-30010 |
| 31482F | TUYAU, CYLINDRE DEBRAYAGE AV ROULEMENT AU PURGEUR | 31482-12410 |
| 31483 | Clutch release bleeder pipe | 31482-52090 |
