Toyota COROLLA Ventilation Hose — Figure 1201

Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 3 images and 10 PNC and OE references.

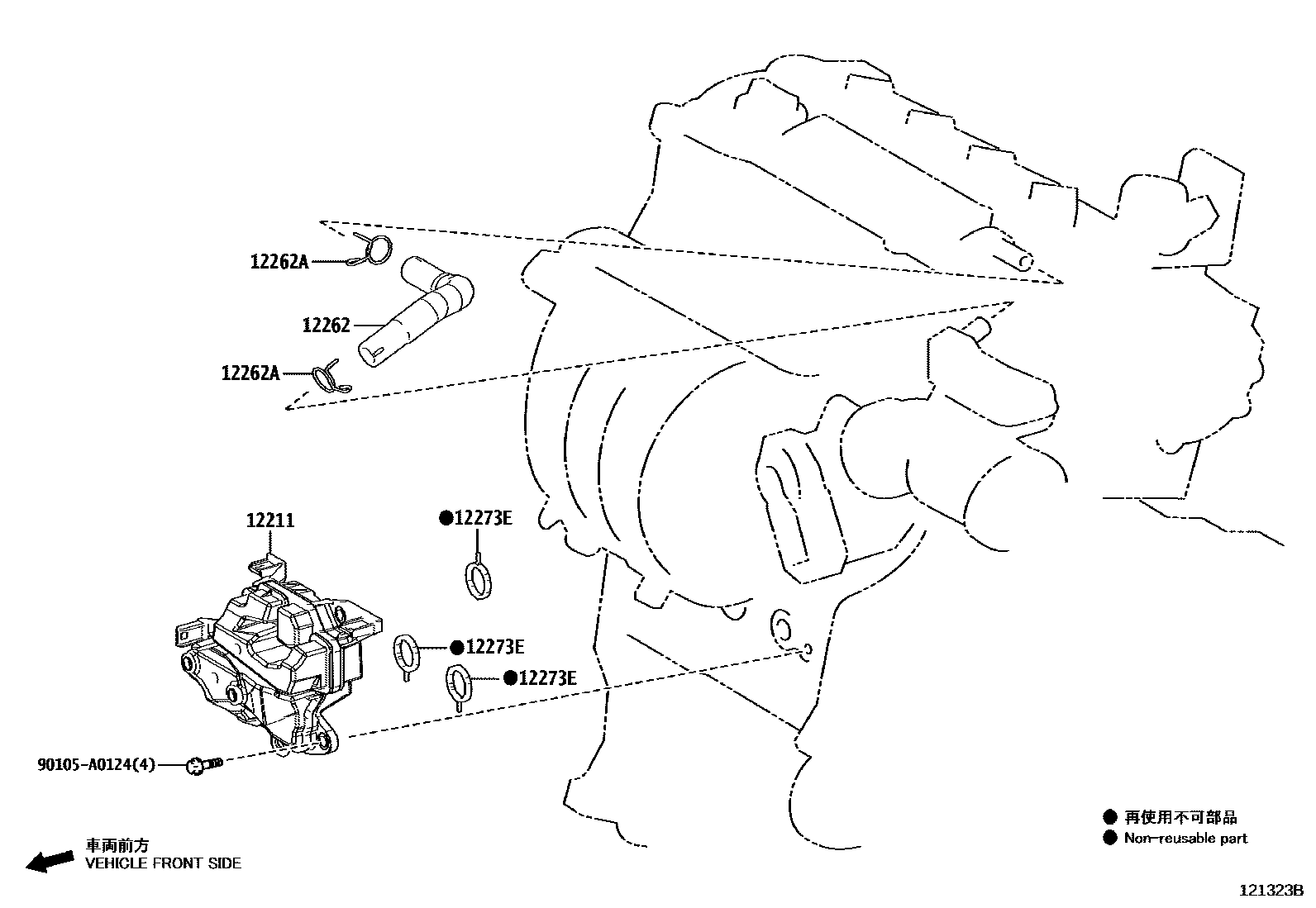

Toyota COROLLA Ventilation Hose EPC diagram — 121323B
Ventilation Hose — 121323B (201903 – 202311)

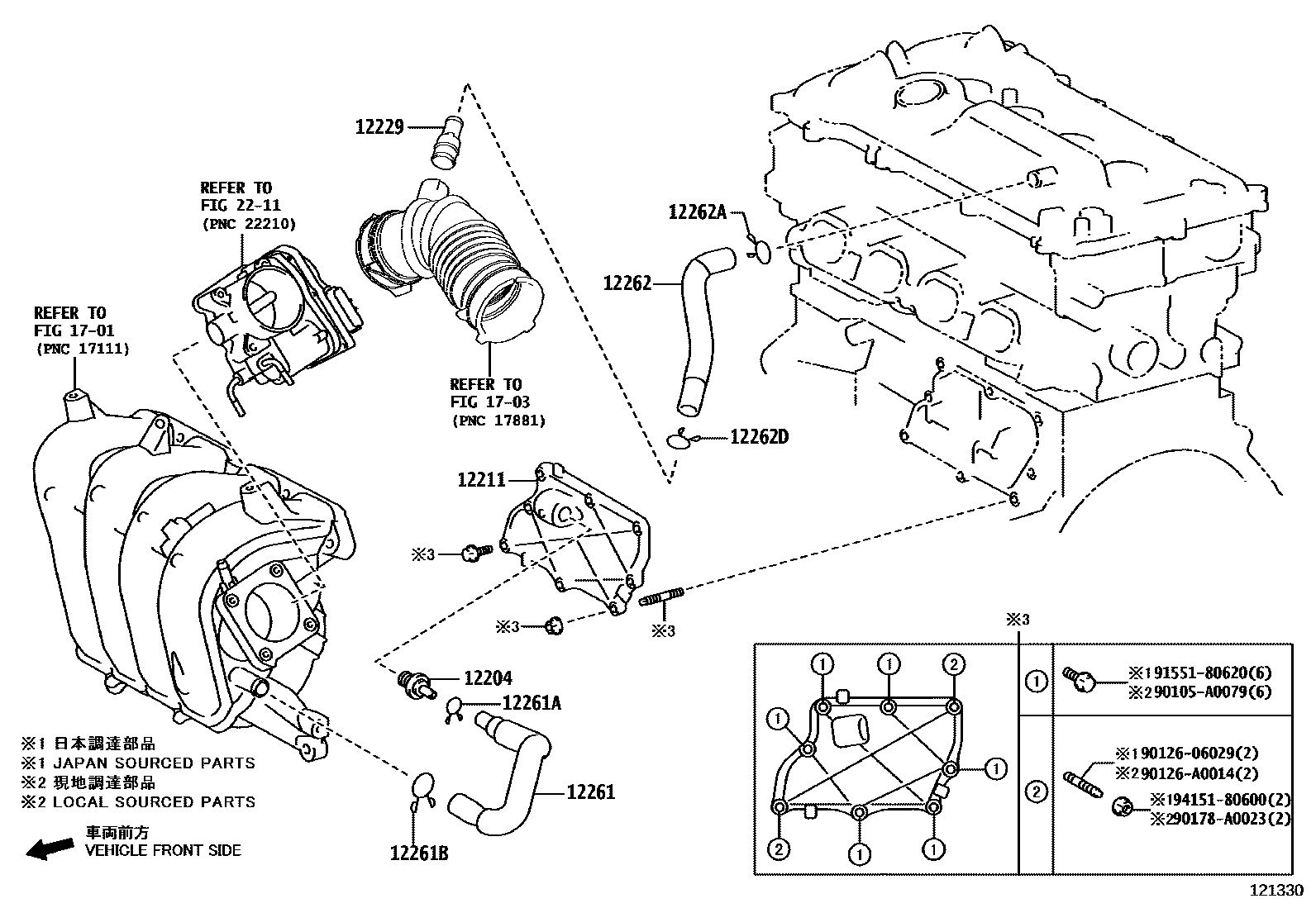

Toyota COROLLA Ventilation Hose EPC diagram — 121330
Ventilation Hose — 121330 (201903 – 999999)

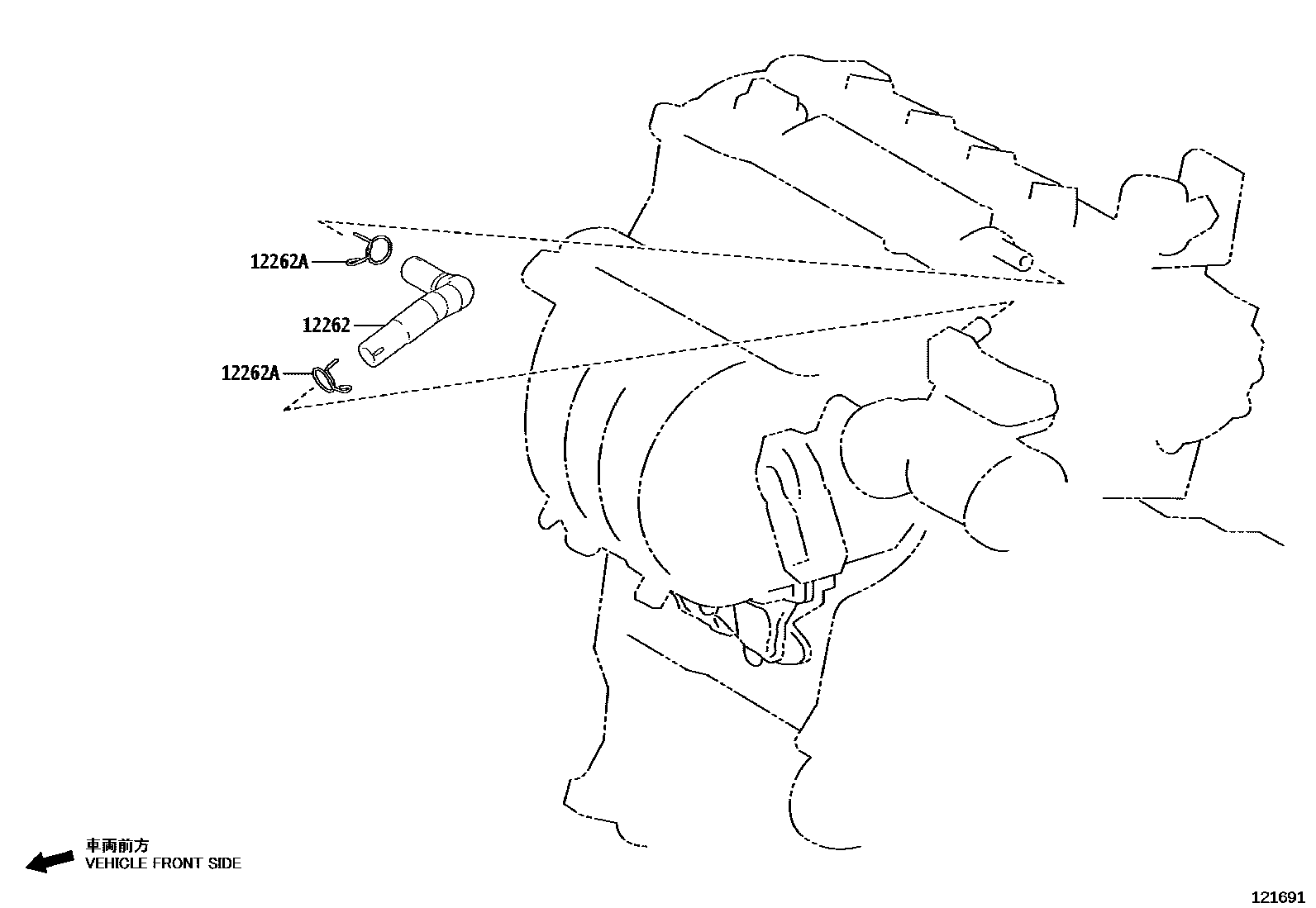

Toyota COROLLA Ventilation Hose EPC diagram — 121691
Ventilation Hose — 121691 (202311 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-37010
12211Ventilation box No. 112211-0T020 · 12211-37010 · 12211-F2010 · 12211-F2011
12229ventilation duct12229-0T030
12261Ventilation Hose12261-37040
12261AClip or clip (for vent hose)90467-15120
12261BClip or clip (for vent hose)90467-23002
12262Ventilation hose No. 212262-24020 · 12262-37020
12262AClamp (for vent hose No. 2)90467-21004
12262DClamp (for vent hose No. 2)90466-A0028 · 90467-21004
12273EJOINT(POUR CARTER VENTILATION)12273-24010
