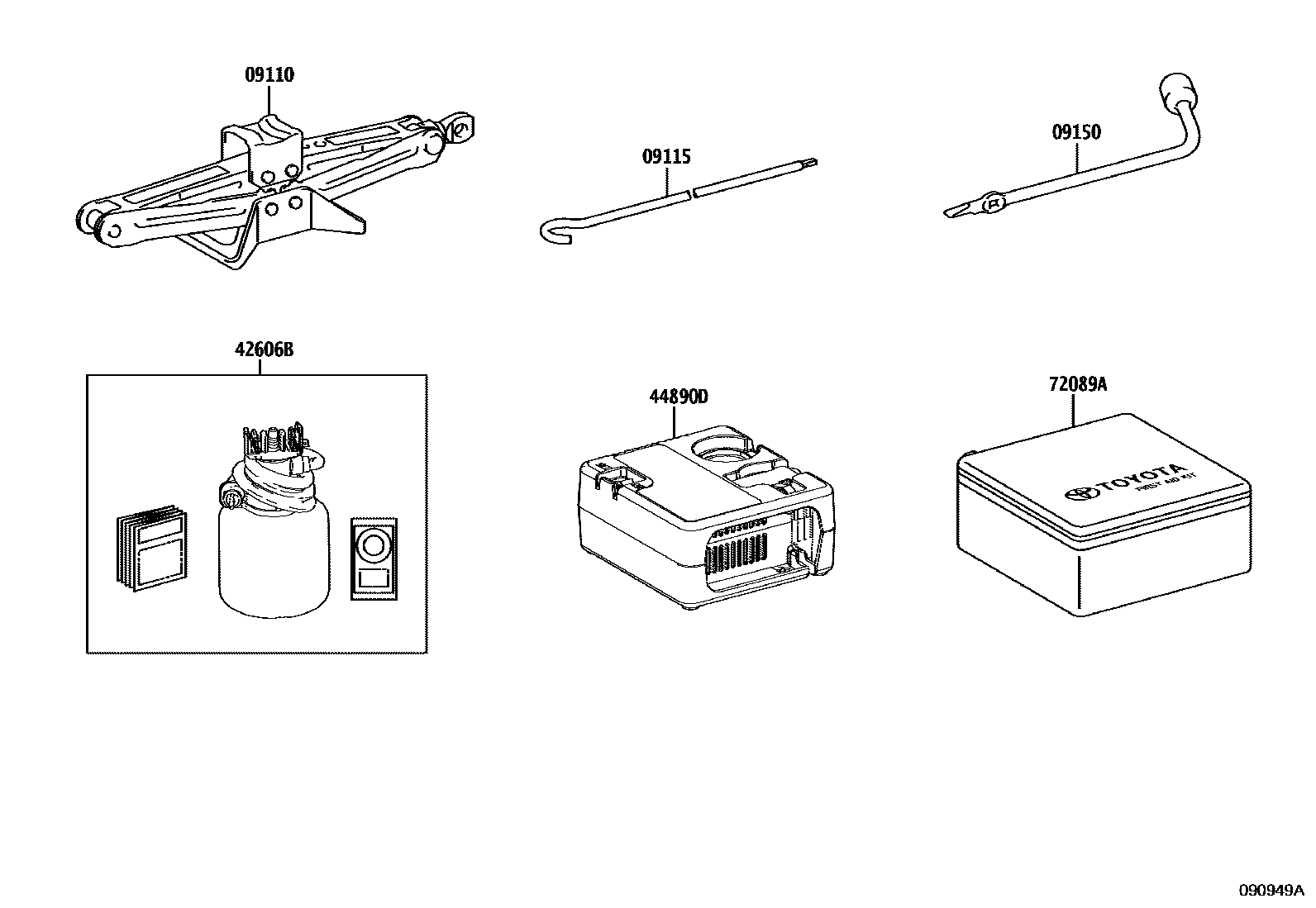

Toyota COROLLA Standard Tools — Figure 0901
Toyota COROLLA EPC diagram 0901, Standard Tools, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 09110 | Jack Assembly | 09111-02130 |
| 09115 | Jack Handle Rod Sub-Assembly | 09115-0R010 |
| 09150 | Wheel Nut Wrench | 09150-06010 |
| 42606B | Tubeless tire repair components | 42606-12020 |
| 44890D | Air Compressor Assembly | 44890-12020 |
| 72089A | JEU SAC, KIT PREMIER SECOURS | 72089-YY030 |
