VOCR EPC

Toyota COROLLA 后视镜 — Figure 8701

Toyota COROLLA EPC diagram 8701, 后视镜, with 2 images and 4 PNC and OE references.

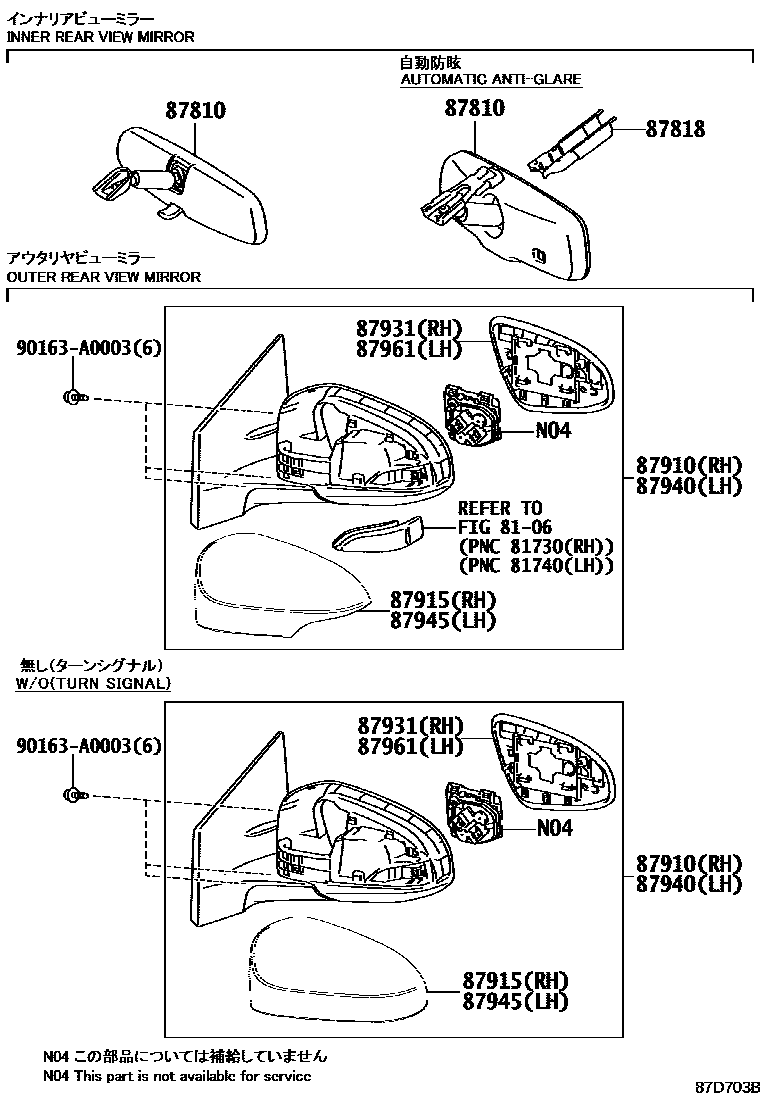

Toyota COROLLA 后视镜 EPC diagram — 87D703B
后视镜 — 87D703B (201308 – 201608)

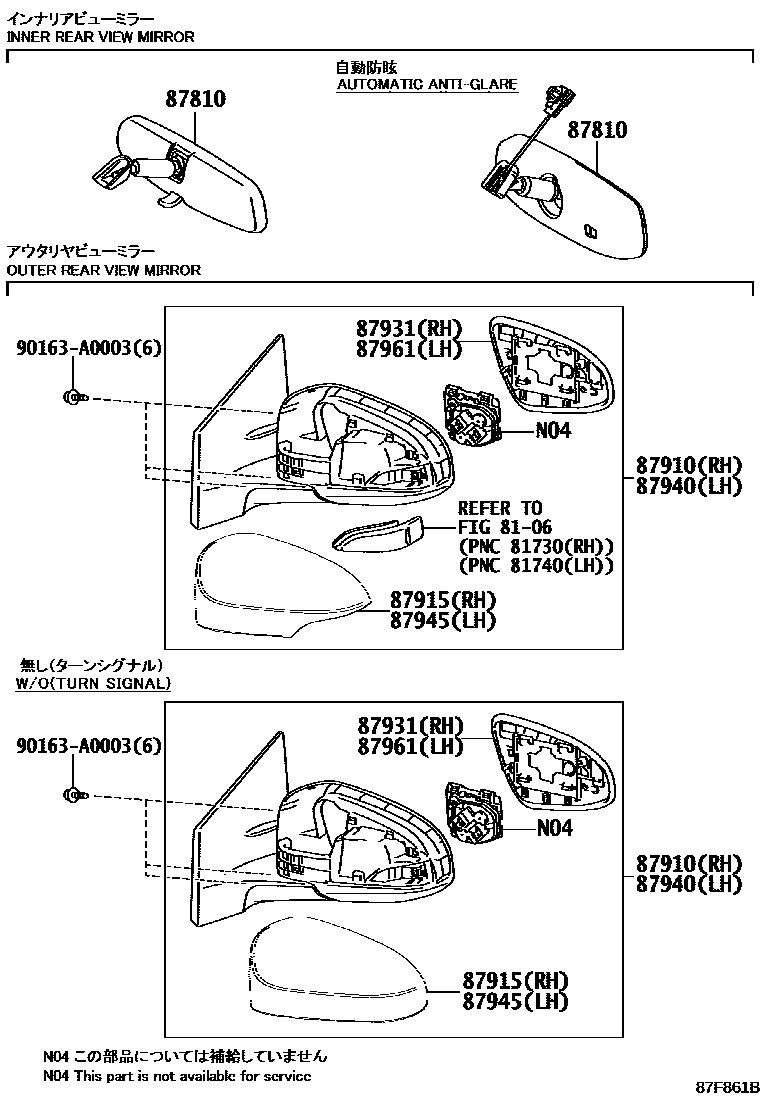

Toyota COROLLA 后视镜 EPC diagram — 87F861B
后视镜 — 87F861B (201608 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-02200 · 87810-02250 · 87810-06080 · 87810-0WQ40
87818Interior rearview mirror cover87818-06020
87931Right exterior rearview mirror87931-02F80 · 87931-02F90
87961Left exterior rearview mirror87961-02F20 · 87961-02F30
