Toyota COROLLA antenna — Figure 8604

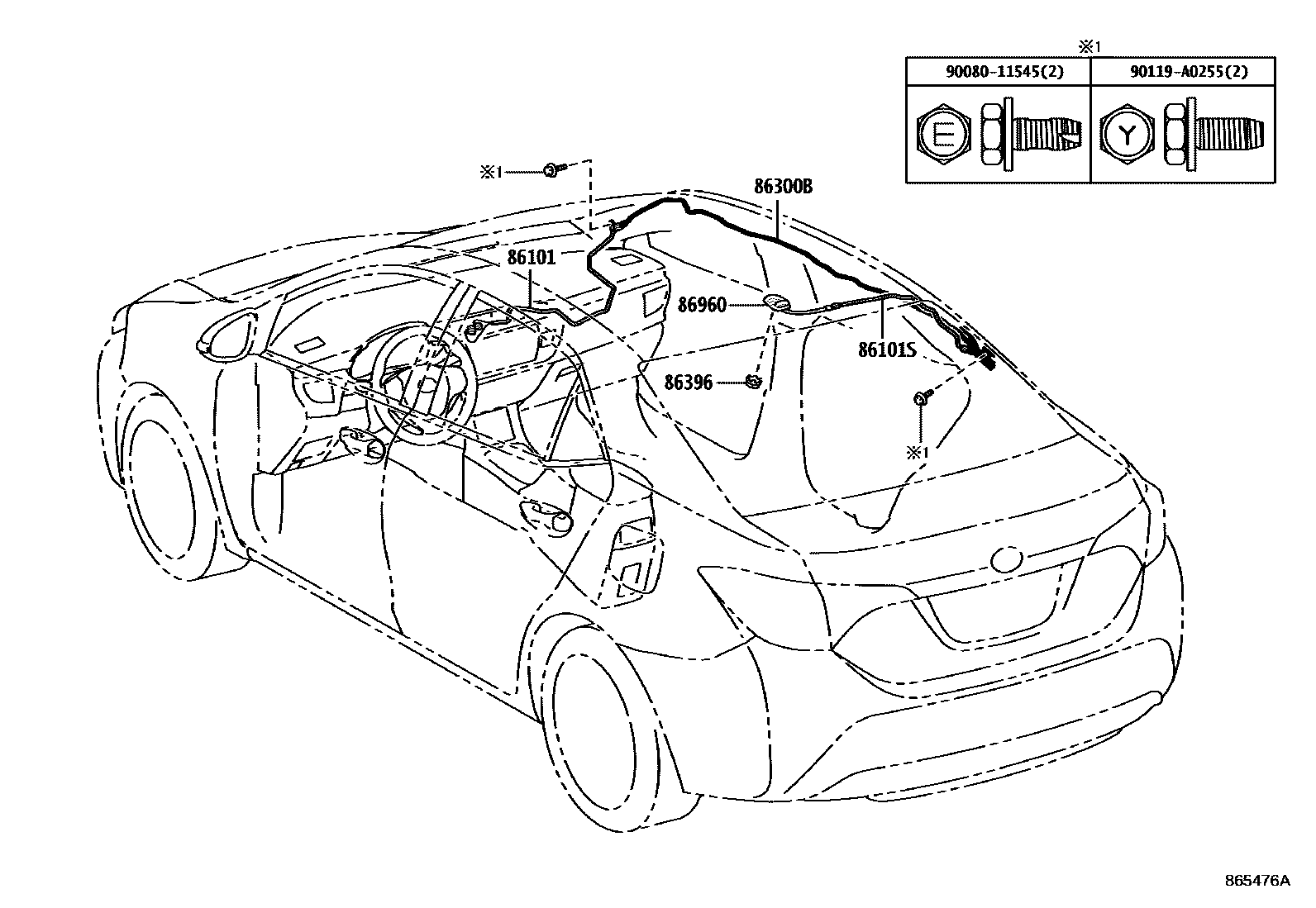

Toyota COROLLA EPC diagram 8604, antenna, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-02540 · 86101-02550 |
| 86101S | Antenna wire sub-assembly | 86101-02530 · 86101-02790 |
| 86300B | Amplifier antenna assembly | 86300-02360 · 86300-02370 · 86300-02530 · 86300-02540 |
| 86396 | Antenna nut | 86396-47010 |
| 86960 | Satellite radio antenna assembly | 86960-02050 |
