Toyota COROLLA 挡风玻璃清洗器 — Figure 8503

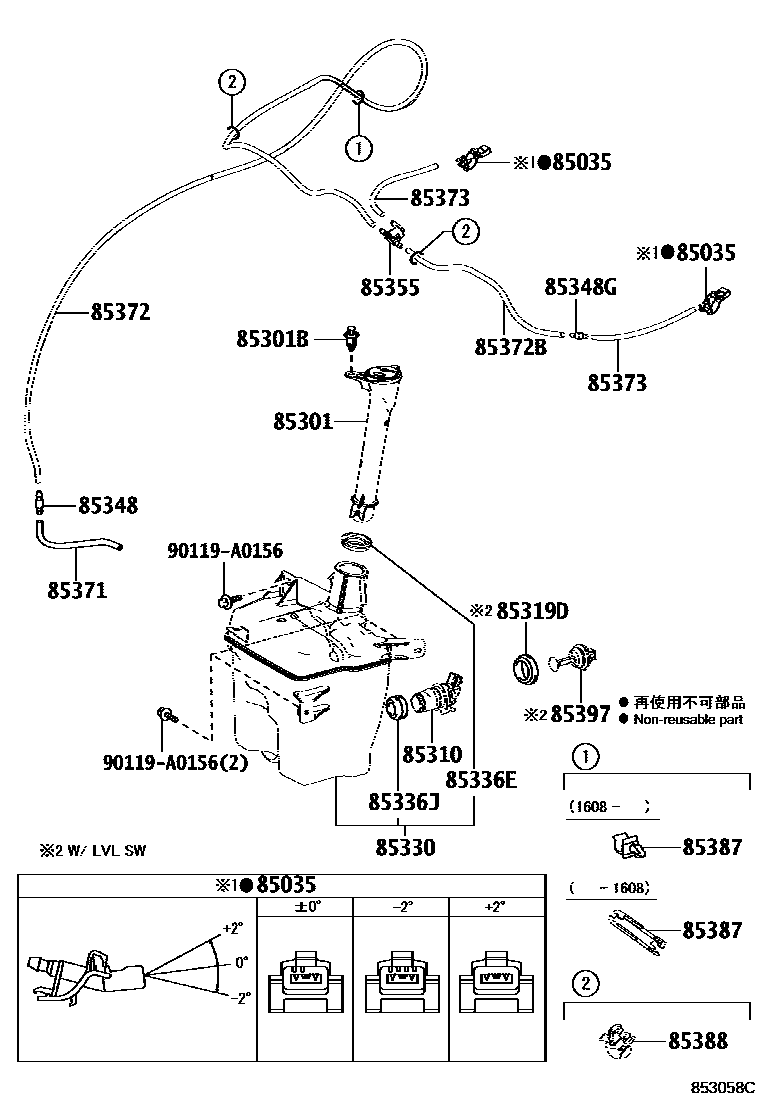

Toyota COROLLA EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-12400 · 85381-12420 · 85381-12430 |
| 85301 | Cleaner water inlet sub-assembly | 85301-02050 |
| 85310 | Windshield washer motor and pump assembly | 85330-06070 · 85330-60190 |
| 85319D | front washer seal | 85319-AA020 |
| 85330 | Windshield washer fluid tank assembly | 85315-02510 · 85315-02520 |
| 85336E | Windshield washer water inlet hose seal | 85336-30160 |
| 85336J | Cleaning fluid tank protection device | 85336-60300 |
| 85348 | Windshield washer hose connector No. 1 | 85317-02300 |
| 85348G | Windshield washer hose connector No. 2 | 85317-02300 |
| 85355 | Windshield washer hose valve | 85321-28020 |
| 85371 | Windshield washer hose (from motor to connector) | 90068-33104 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90068-33186 |
| 85372B | Windshield washer hose No. 2 (from connector to connector) | 90068-33065 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90068-33187 |
| 85387 | Clip No. 1 (for windshield washer) | 85387-02260 · 85387-30400 |
| 85388 | Clip No. 2 (for windshield washer) | 85371-12040 |
| 85397 | Liquid level warning switch assembly | 85397-AA040 |
