Toyota COROLLA 后组合灯 — Figure 8111

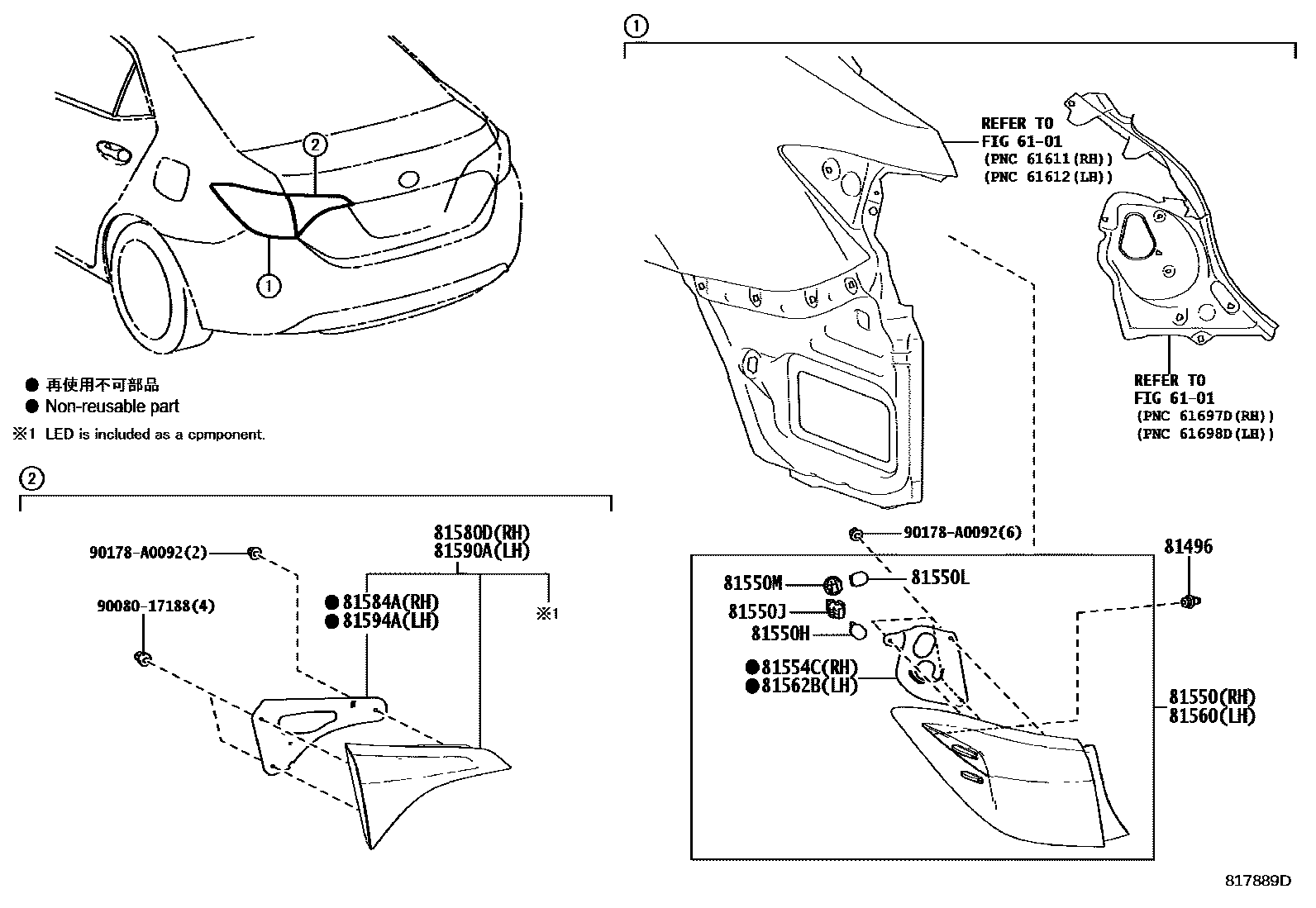

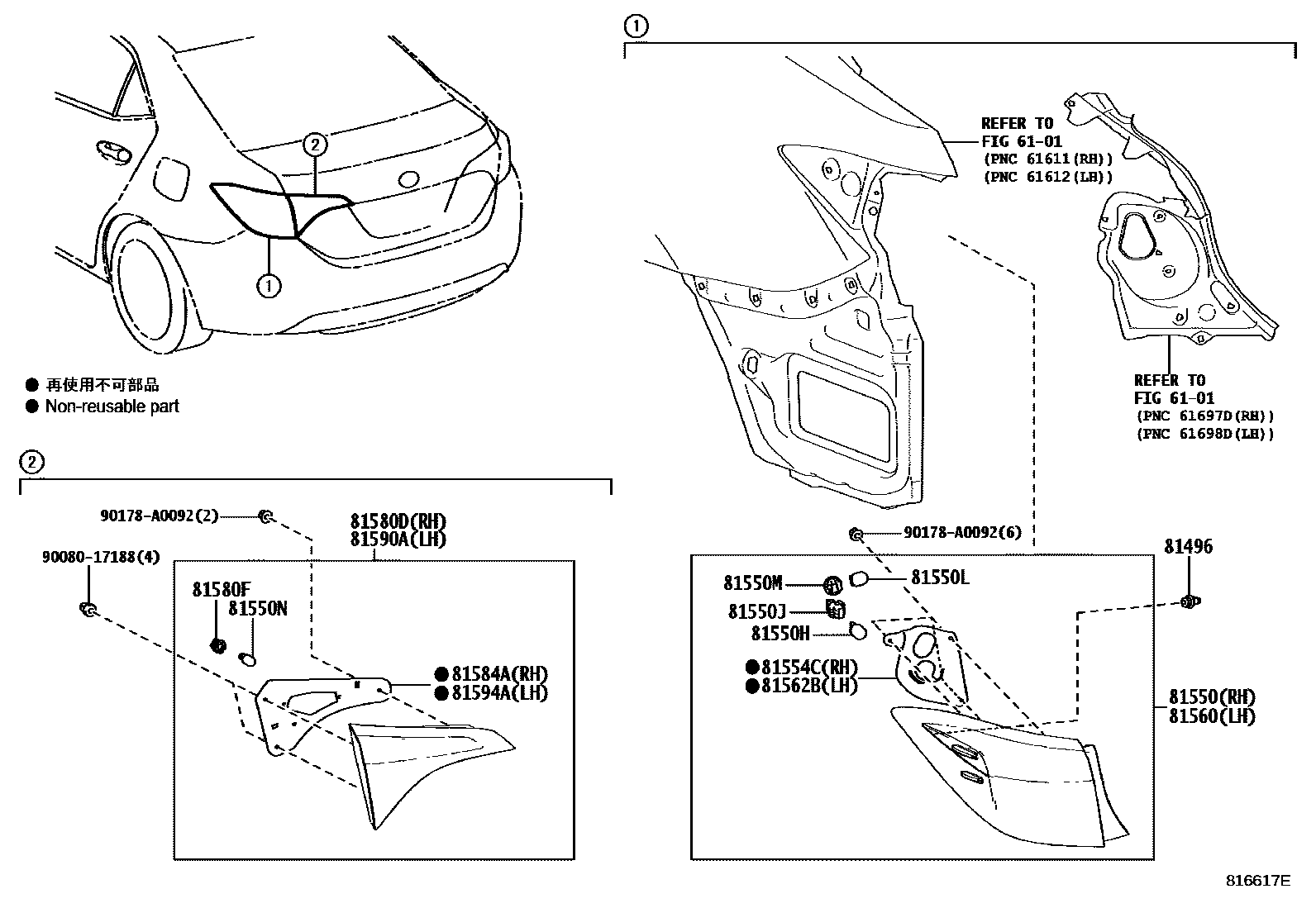

Toyota COROLLA EPC diagram 8111, 后组合灯, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-60010 |
| 81550 | Right rear combination light assembly | 81550-02750 · 81550-02751 · 81550-02B00 · 81550-02B10 |
| 81550H | Tail and brake light bulbs | 90981-13044 |
| 81550J | Tail and brake light holders | 90075-60002 |
| 81550L | Rear turn signal light bulb | 90981-13043 · 90981-15021 |
| 81550M | Rear turn signal lamp holder | 81555-02B10 · 90075-60026 |
| 81550N | reversing light bulb | 90981-11059 |
| 81554C | Right rear combination lamp lamp body seal | 81554-02750 |
| 81560 | Left rear combination light assembly | 81560-02750 · 81560-02751 · 81560-02B00 · 81560-02B10 |
| 81562B | Left rear combination lamp body seal | 81554-02750 |
| 81580D | Right rear light assembly | 81580-02510 · 81580-02A50 · 81580-02A60 |
| 81580F | Rear light lamp holder plug | 90075-60037 |
| 81584A | Right rear light gasket | 81584-02510 · 81584-02A60 |
| 81590A | Left rear light assembly | 81590-02510 · 81590-02A50 · 81590-02A60 |
| 81594A | Left rear light gasket | 81584-02510 · 81584-02A60 |
