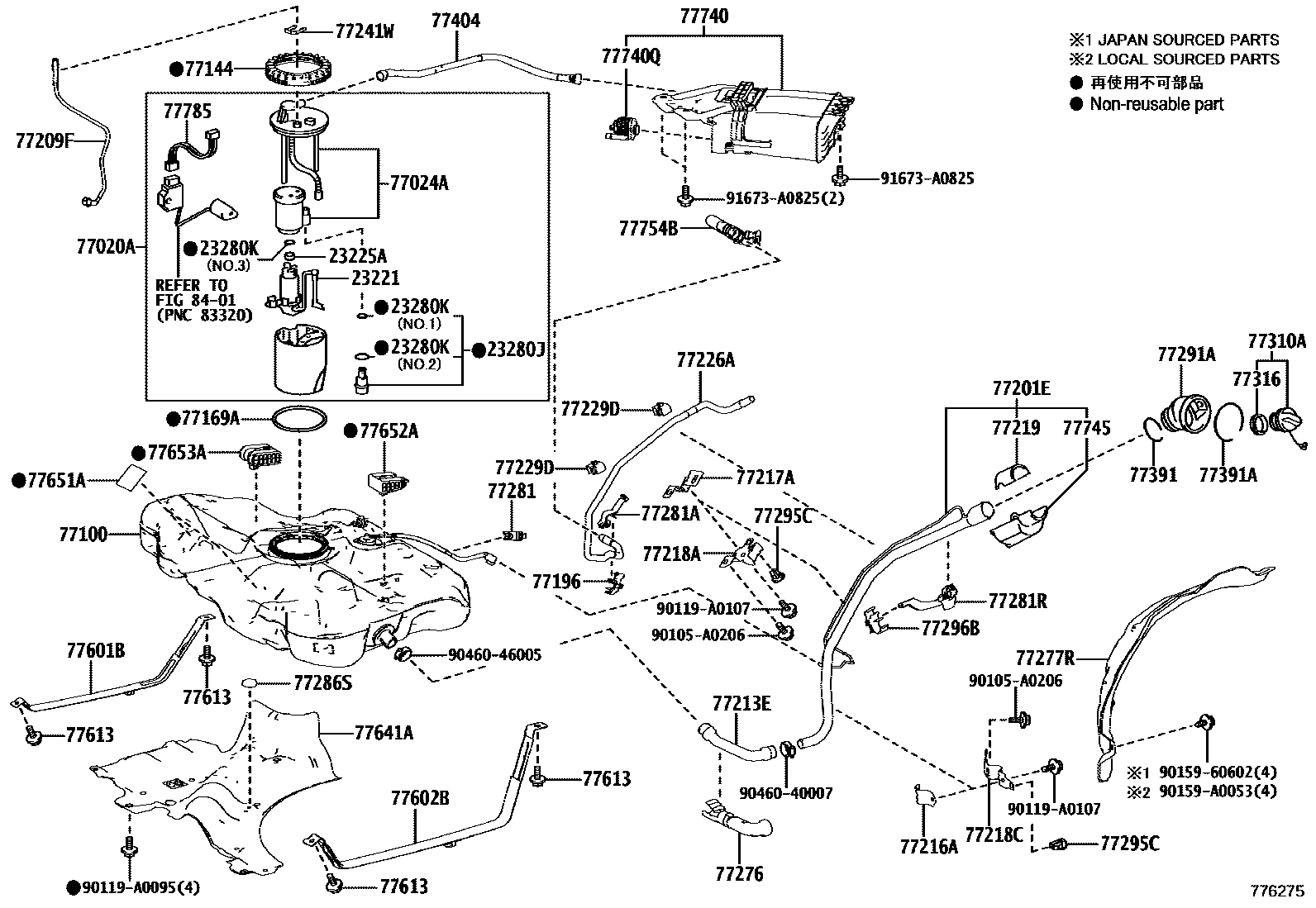

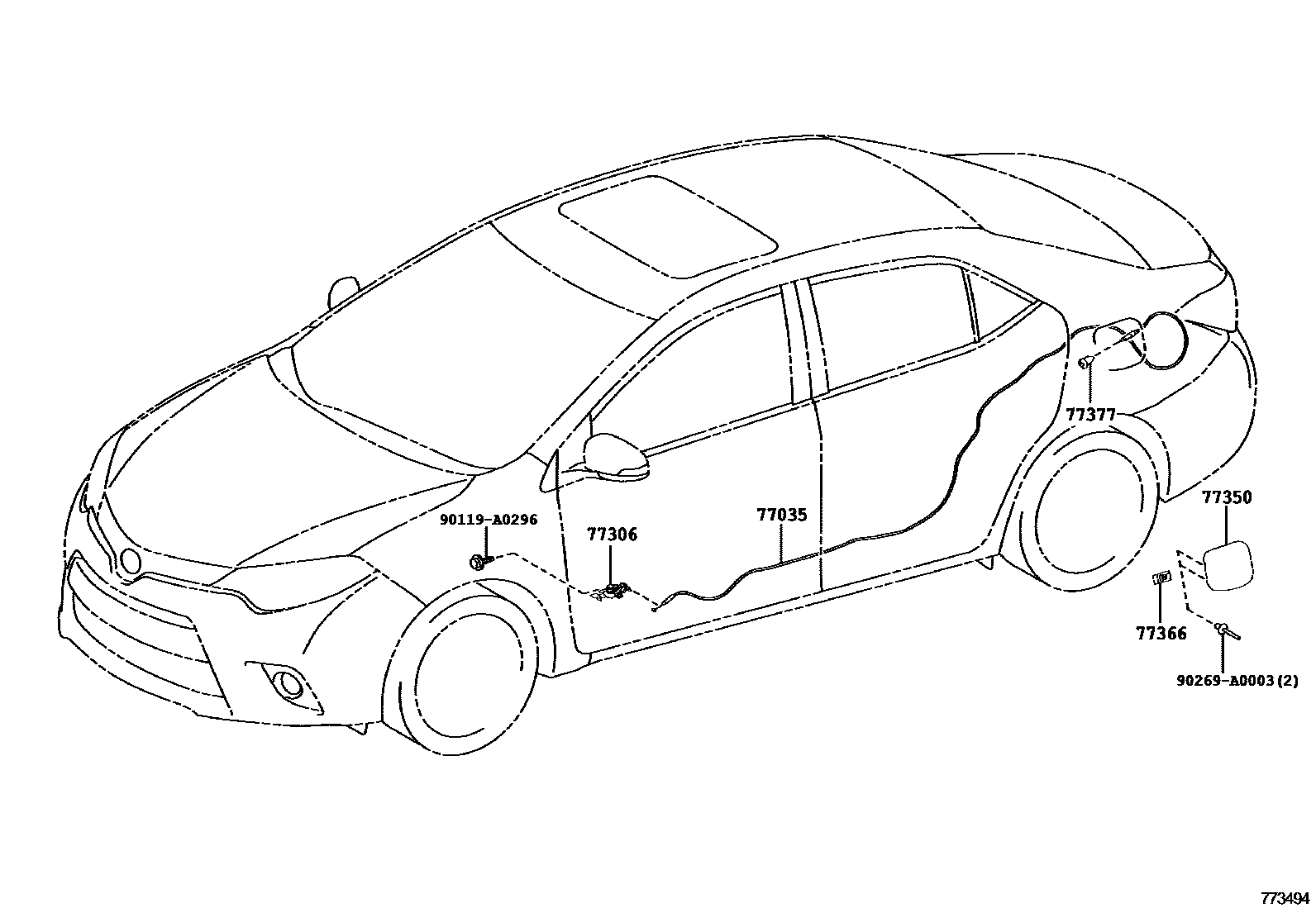

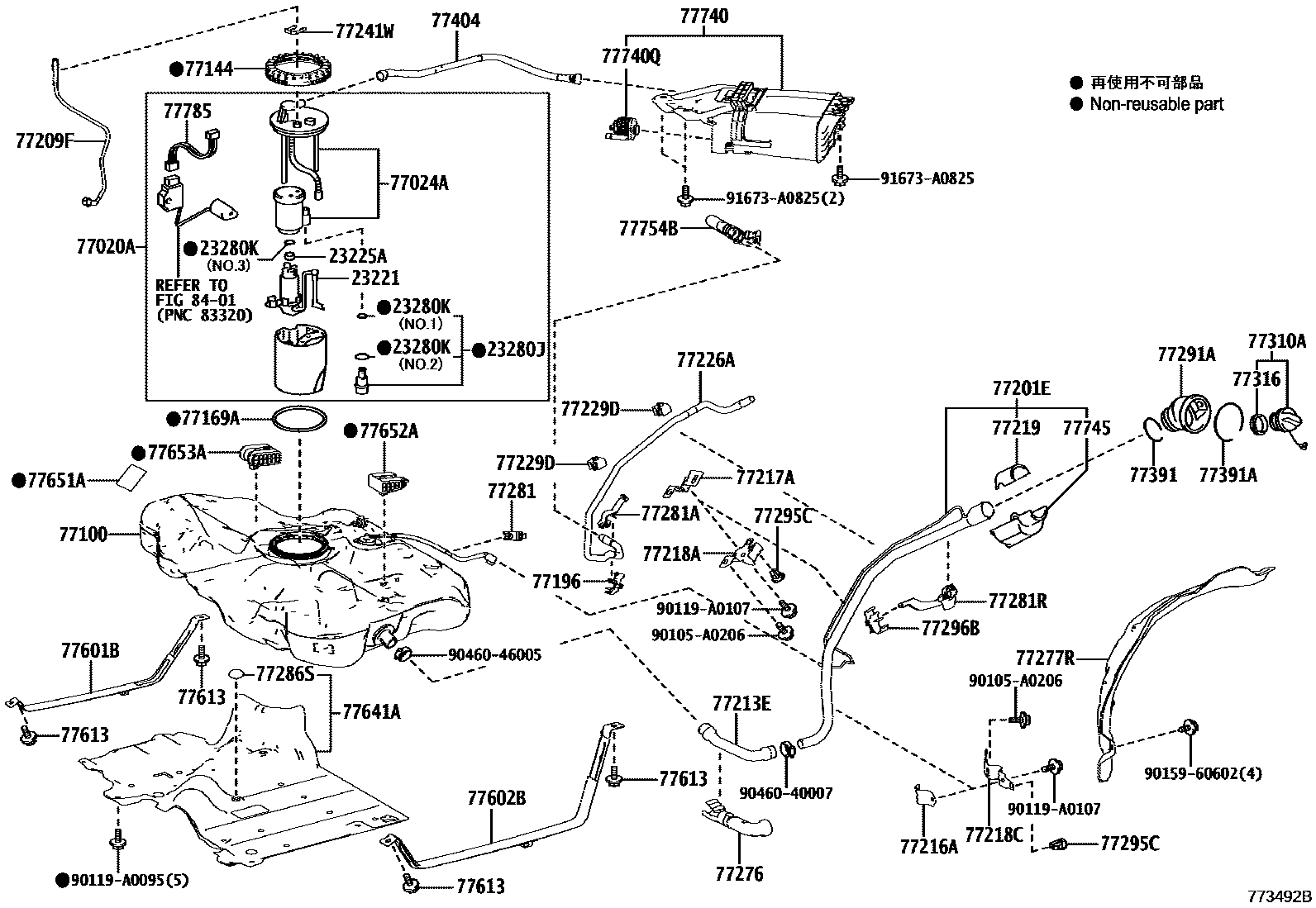

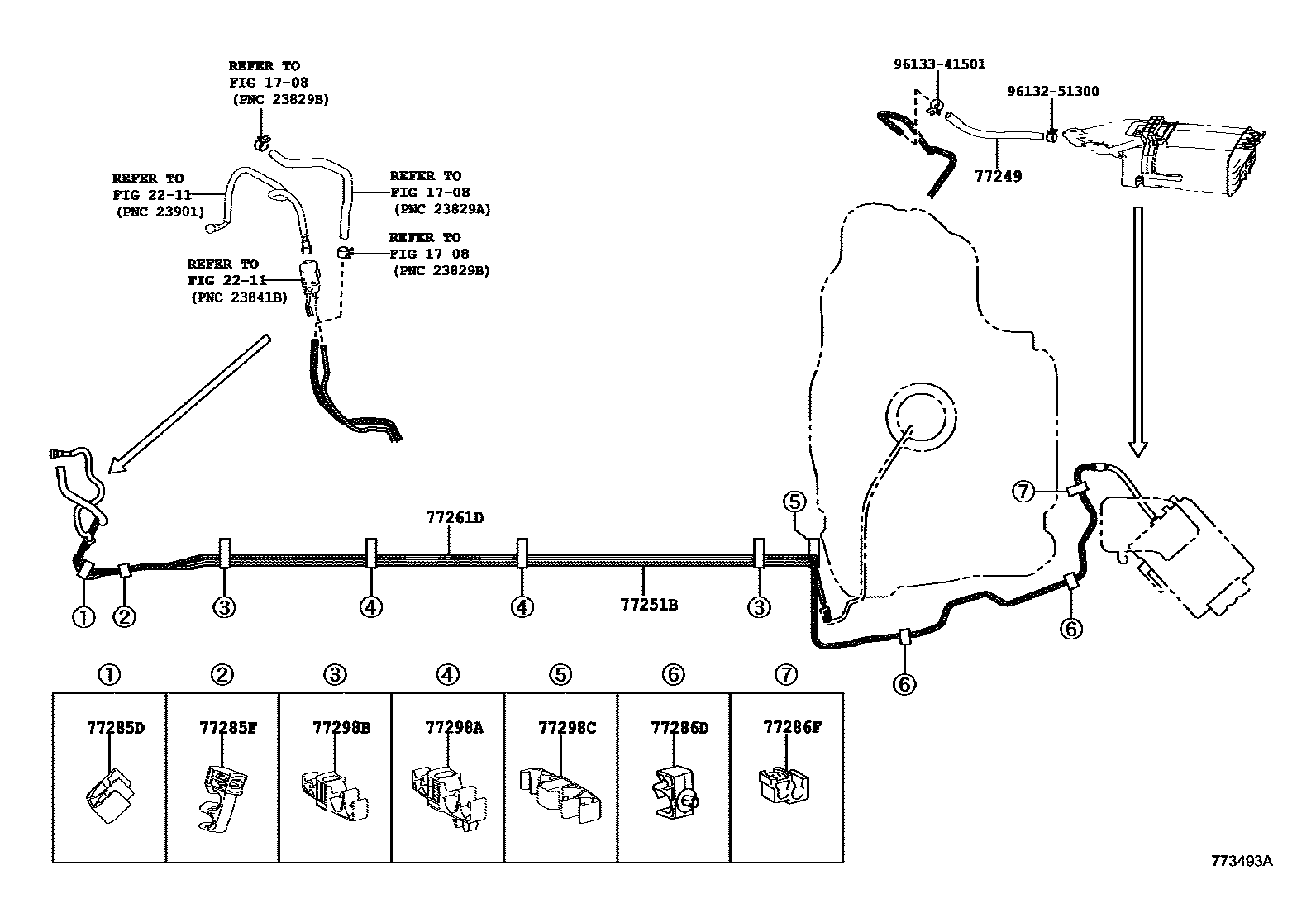

Toyota COROLLA 燃油箱和燃油管 — Figure 7701
Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 4 images and 62 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23221 | fuel pump | 23220-0T200 · 23220-0T201 |
| 23225A | fuel pump septum | 23225-0V010 |
| 23280J | Fuel pressure regulator assembly | 23280-21010 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 · 90301-15024 · 90301-A0013 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-02410 · 77020-02411 |
| 77024A | Fuel absorber sub-assembly | 77024-02230 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-02380 |
| 77100 | fuel tank assembly | 77001-02610 · 77001-02800 |
| 77144 | Fuel pump instrument fixture | 77144-04010 · 77144-04020 |
| 77169A | Fuel suction pipe fixed gasket | 77169-02050 |
| 77196 | No. 1 evaporation vent pipe clamp | 77196-02090 |
| 77201E | Fuel tank filling pipe sub-assembly | 77201-02330 |
| 77209F | Fuel tank main pipe sub-assembly | 77209-02230 |
| 77213E | Fuel tank to filler pipe hose | 77213-02060 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-02150 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-02120 |
| 77218A | No. 3 fuel tank filler pipe bracket | 77218-02050 |
| 77218C | No. 5 fuel tank filler pipe bracket | 77218-02060 |
| 77219 | Fuel tank filler pipe cap | 77219-07010 · 77219-0E010 |
| 77226A | No. 6 fuel tank breather pipe | 77226-02050 |
| 77229D | No. 4 fuel tank filler pipe bracket | 77229-02030 |
| 77241W | Pipe joint clip | 77241-02010 |
| 77249 | fuel drain hose | 77249-02050 |
| 77251B | main fuel pipe | 77251-02610 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-02470 |
| 77276 | Fuel hose protector | 77276-02050 |
| 77277R | Fuel tank filler pipe protection device | 77277-02180 |
| 77281 | No. 1 main fuel pipe bracket | 77281-02070 |
| 77281A | Fuel filler pipe clamp | 77281-02100 |
| 77281R | PINCE, GOULOT DE REMPLISSAGE DU CARBURANT, NO.2 | 77281-02150 |
| 77285D | No. 1 fuel pipe clamp | 77285-02120 |
| 77285F | No. 1 fuel pipe clamp | 77285-02130 |
| 77286D | No. 2 fuel pipe clamp | 77286-12180 |
| 77286F | No. 2 fuel pipe clamp | 89639-12010 |
| 77286S | Fuel tank protective shell cushion | 77286-12110 |
| 77291A | Fuel tank filler pipe cover | 77291-02170 |
| 77295C | Fuel pipe retaining ring | 77295-02020 |
| 77296B | No. 1 fuel line protector bracket | 77296-02030 |
| 77298A | No. 4 fuel pipe clamp | 77298-02100 |
| 77298B | No. 4 fuel pipe clamp | 77298-02110 |
| 77298C | No. 4 fuel pipe clamp | 77298-02120 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 64606-12050 |
| 77310A | Fuel tank cap assembly | 77300-07030 |
| 77316 | fuel tank cap gasket | 77316-06070 |
| 77350 | Fuel filler cap assembly | 77350-02131 · 77350-02132 |
| 77366 | Fuel filler cap hinge spring | 77360-02020 |
| 77377 | Fuel filler cap lock retainer | 77377-AA020 |
| 77391 | fuel inlet ring | 77391-02041 |
| 77391A | fuel inlet ring | 77391-06070 |
| 77404 | Fuel tank vent hose sub-assembly | 77404-02081 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-02160 · 77601-02161 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-02140 · 77602-02141 · 77602-02230 |
| 77613 | Fuel tank strap fixing bolts | 90119-A0267 |
| 77641A | No. 1 fuel tank protective shell | 77641-02200 · 77641-02210 |
| 77651A | No. 1 fuel tank liner | 77651-12080 |
| 77652A | No. 2 fuel tank liner | 77652-02060 |
| 77653A | No. 3 fuel tank liner | 77653-02010 |
| 77740 | Carbon canister assembly | 77740-02220 |
| 77740Q | Carbon canister leak detection pump sub-assembly | 90910-AF004 · 90910-AF006 |
| 77745 | No. 1 carbon canister filter | 77745-0E010 |
| 77754B | Carbon canister outlet hose | 77754-02120 |
| 77785 | fuel pump wiring harness | 77785-0R010 |
