Toyota COROLLA 挡泥板和扰流板 — Figure 7601

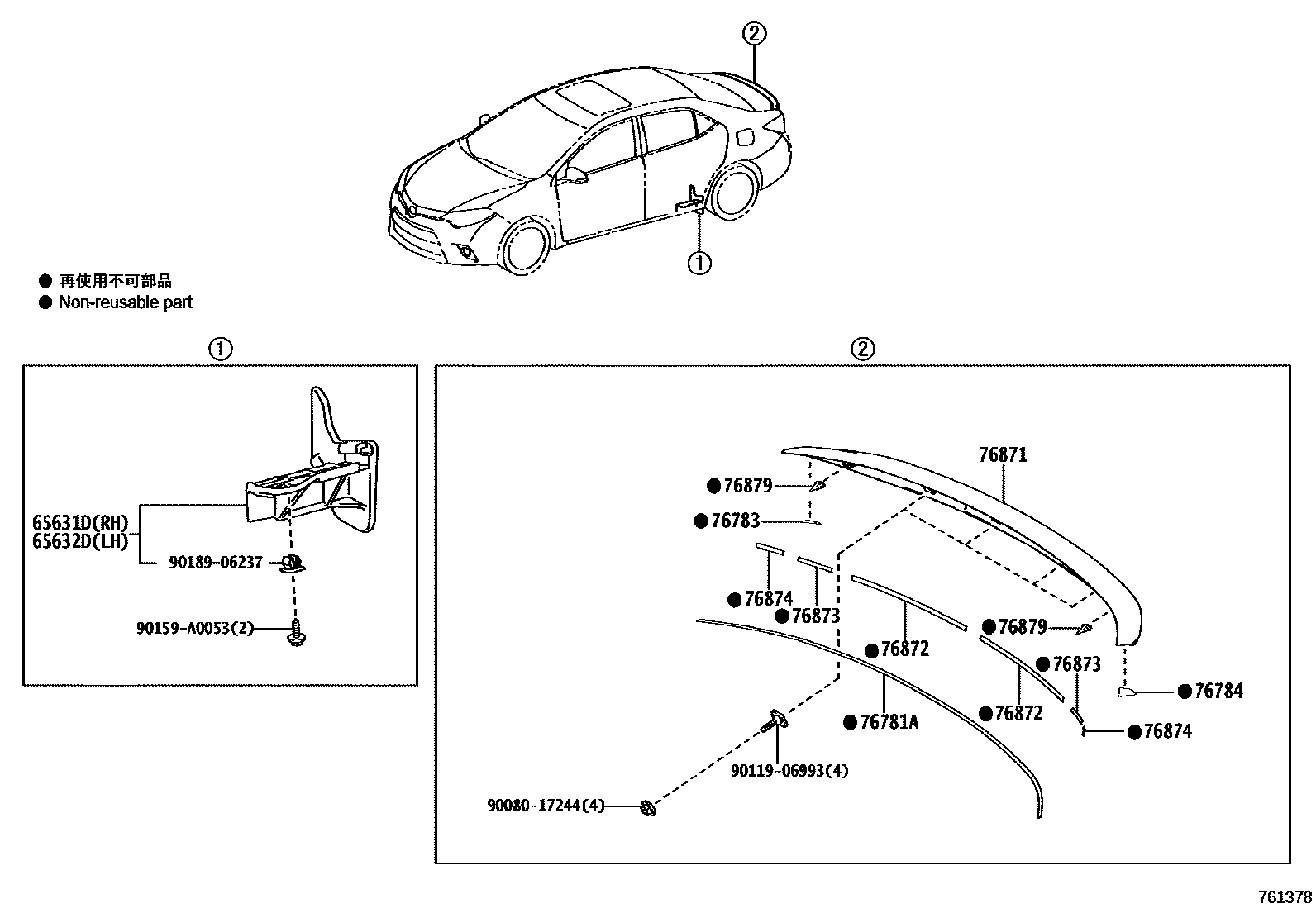

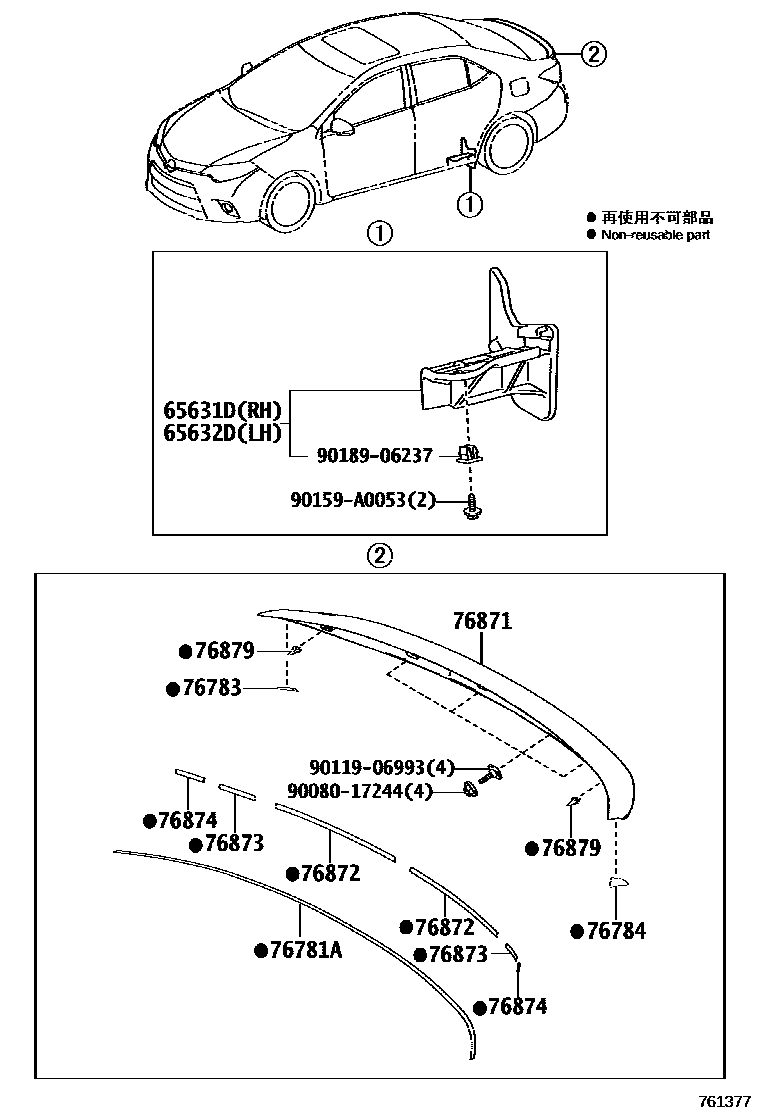

Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65631D | Right rear wheel house front panel | 65631-02230 · 65631-02231 |
| 65632D | Left rear wheel house front panel | 65632-02230 · 65632-02231 |
| 76781A | No. 1 rear upper spoiler tape | 76781-02010 |
| 76783 | Right rear lower spoiler tape | 76783-02090 |
| 76784 | Left rear lower spoiler tape | 76784-02090 |
| 76871 | rear spoiler | 76871-02924 |
| 76872 | No. 1 rear spoiler protective strip | 76872-02040 |
| 76873 | No. 2 rear spoiler protective strip | 76873-02020 |
| 76874 | No. 3 rear spoiler protective strip | 76874-02030 |
| 76879 | No. 1 rear spoiler clip | 76817-12070 |
