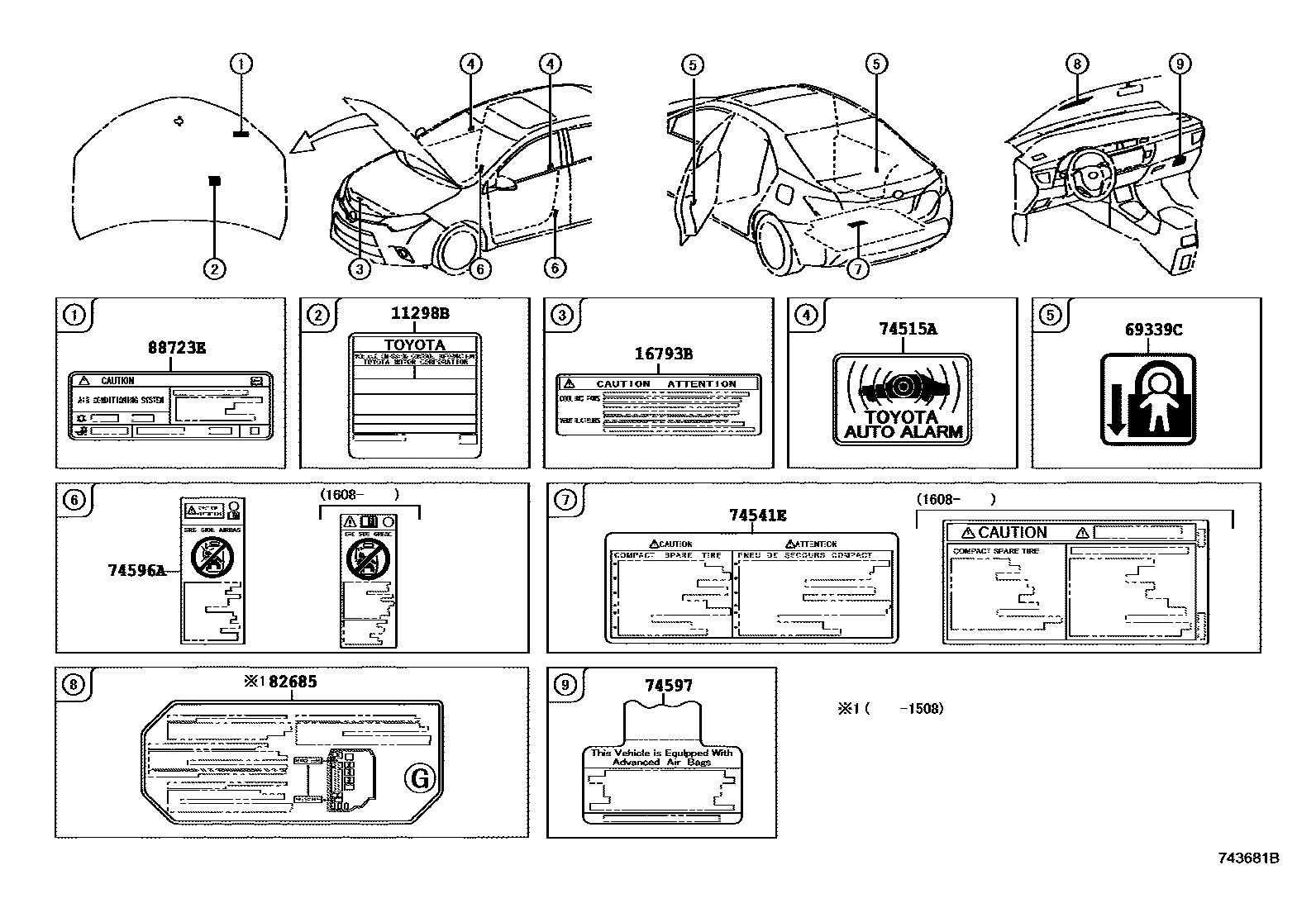

Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403
Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11298B | Emission Control Information Label | 11298-0T130 · 11298-0T170 · 11298-0T220 · 11298-0T230 · 11298-0T240 · 11298-0T250 · 11298-0T310 · 11298-0T320 · 11298-0T400 · 11298-0T410 · 11298-0T430 · 11298-0T440 |
| 16793B | Cooling fan information label | 16793-0T020 |
| 69339C | Child Restraint Information Label | 69339-06040 |
| 74515A | Anti-theft warning nameplate | 74515-06010 |
| 74541E | Small spare tire warning plate | 42668-06010 · 42668-0E010 |
| 74596A | Side air bag warning label | 74596-02020 · 74596-78010 |
| 74597 | Driver and Passenger Air Bag Warning Labels | 74599-0E020 |
| 82685 | warning nameplate | 82685-12110 |
| 88723E | Cooler maintenance warning label | 88723-02230 |
