Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102

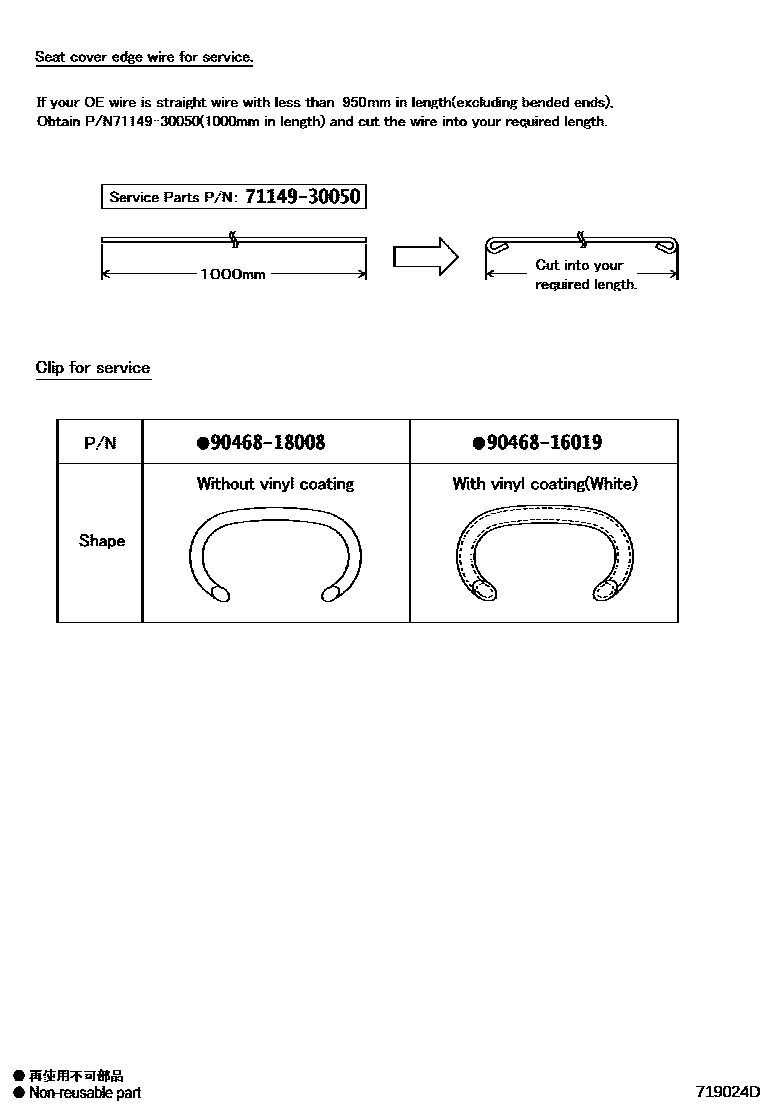

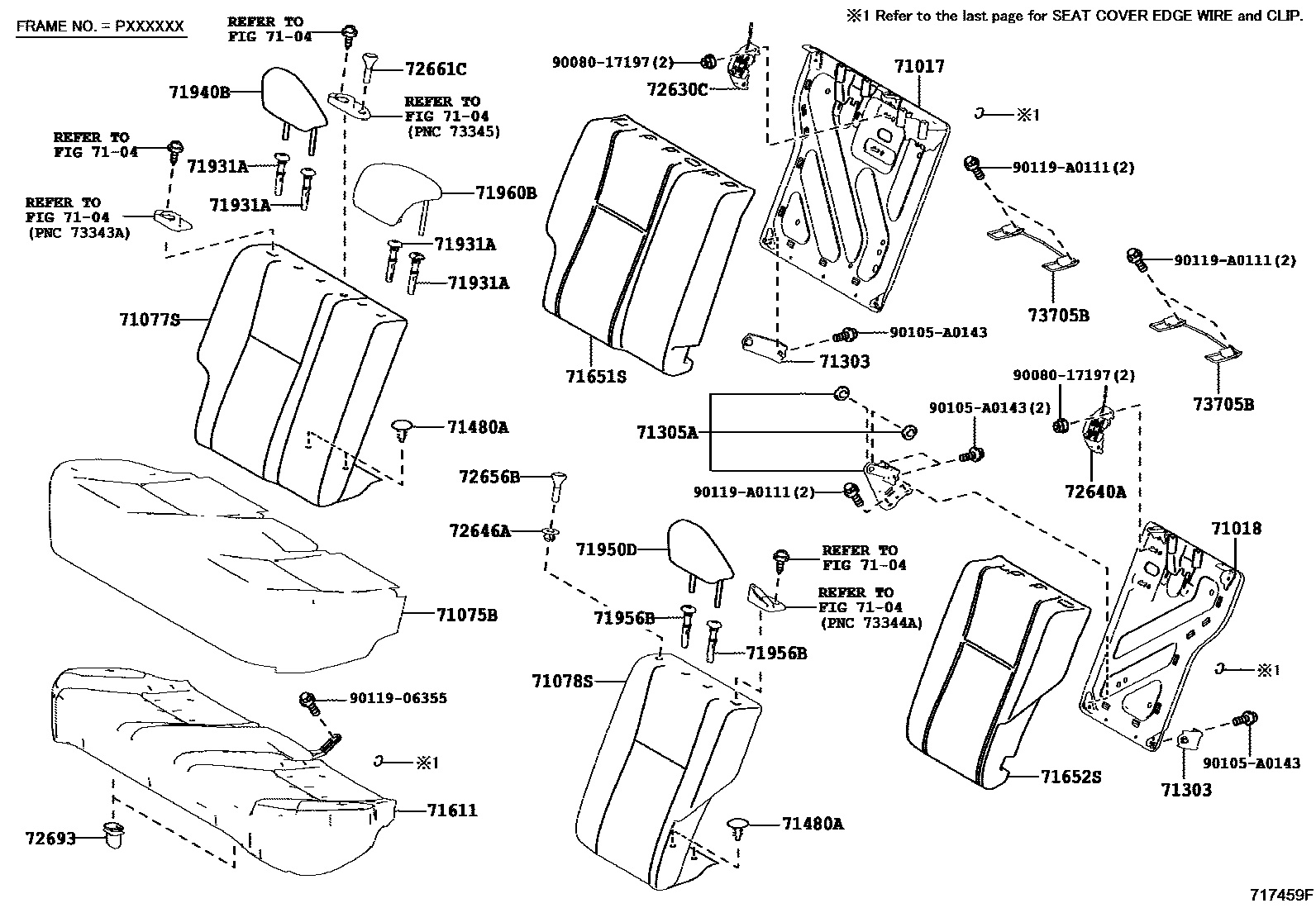

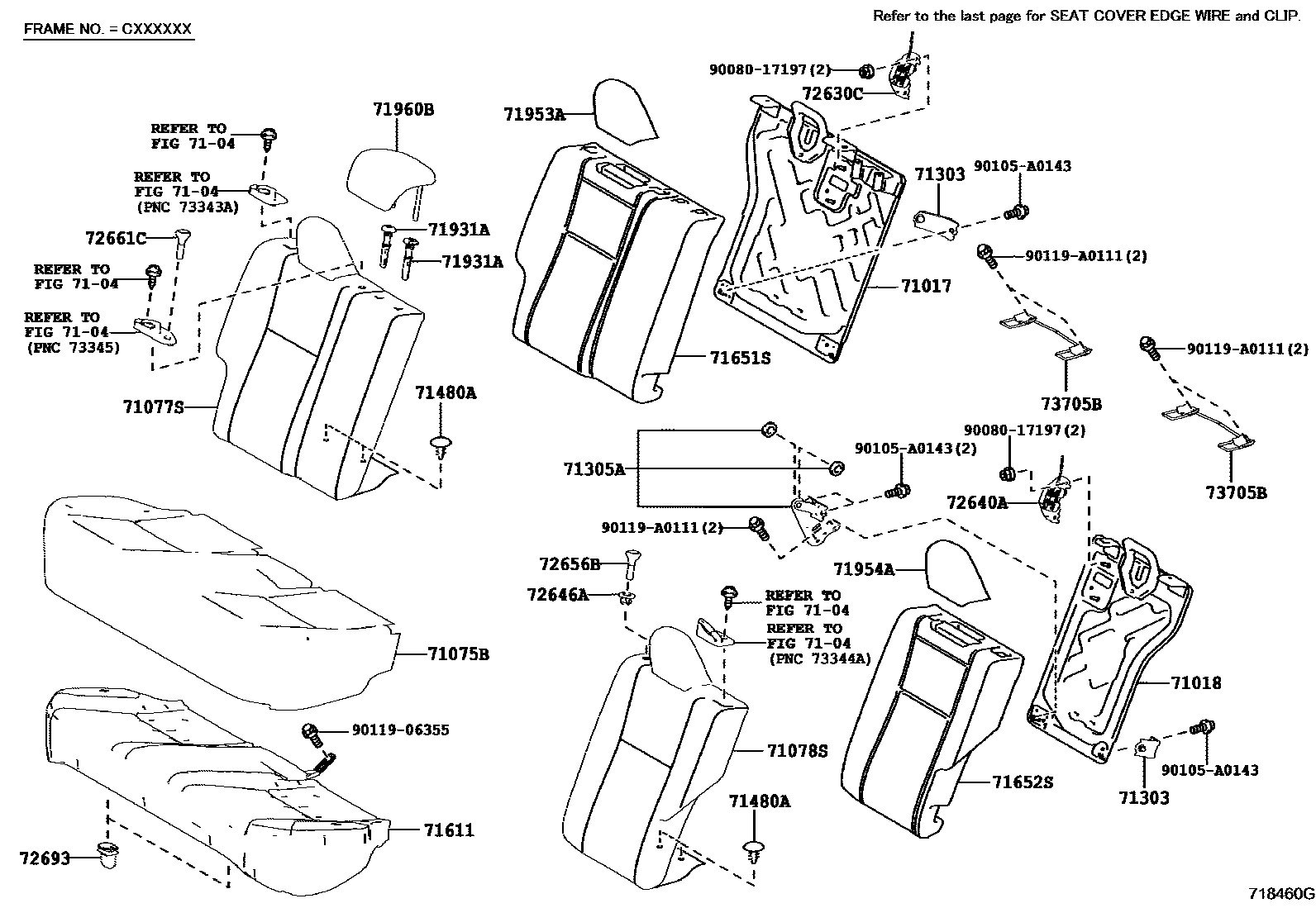

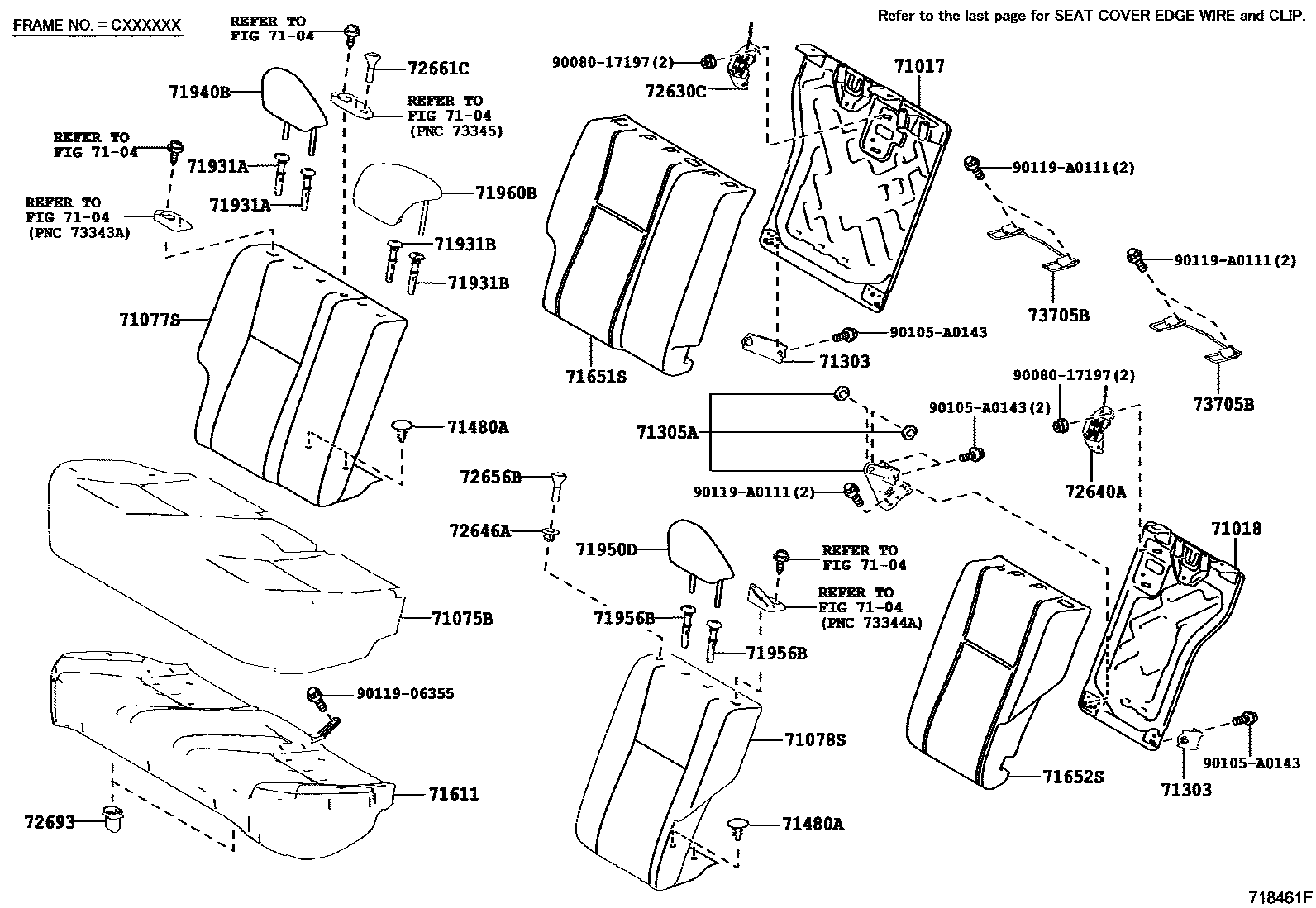

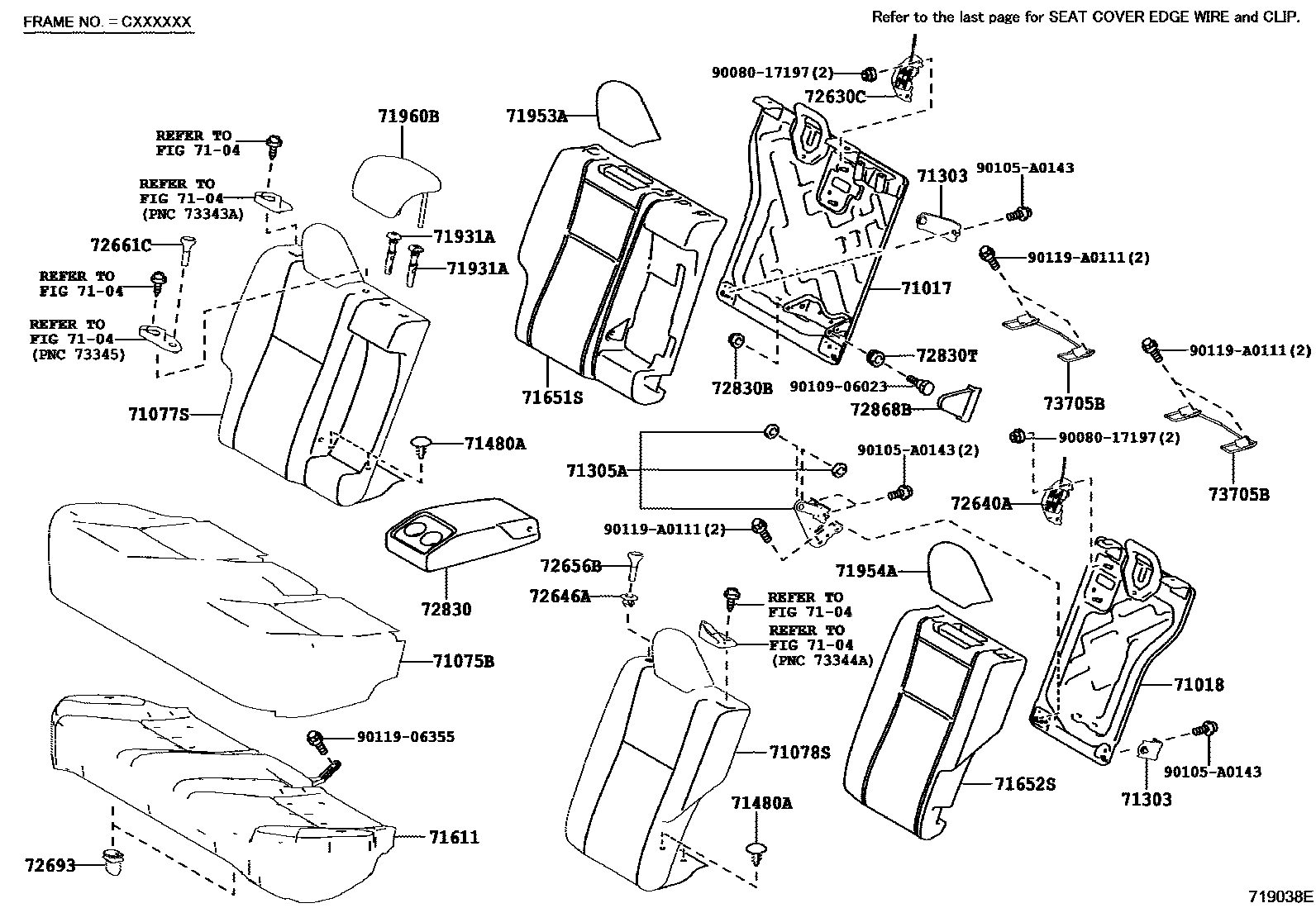

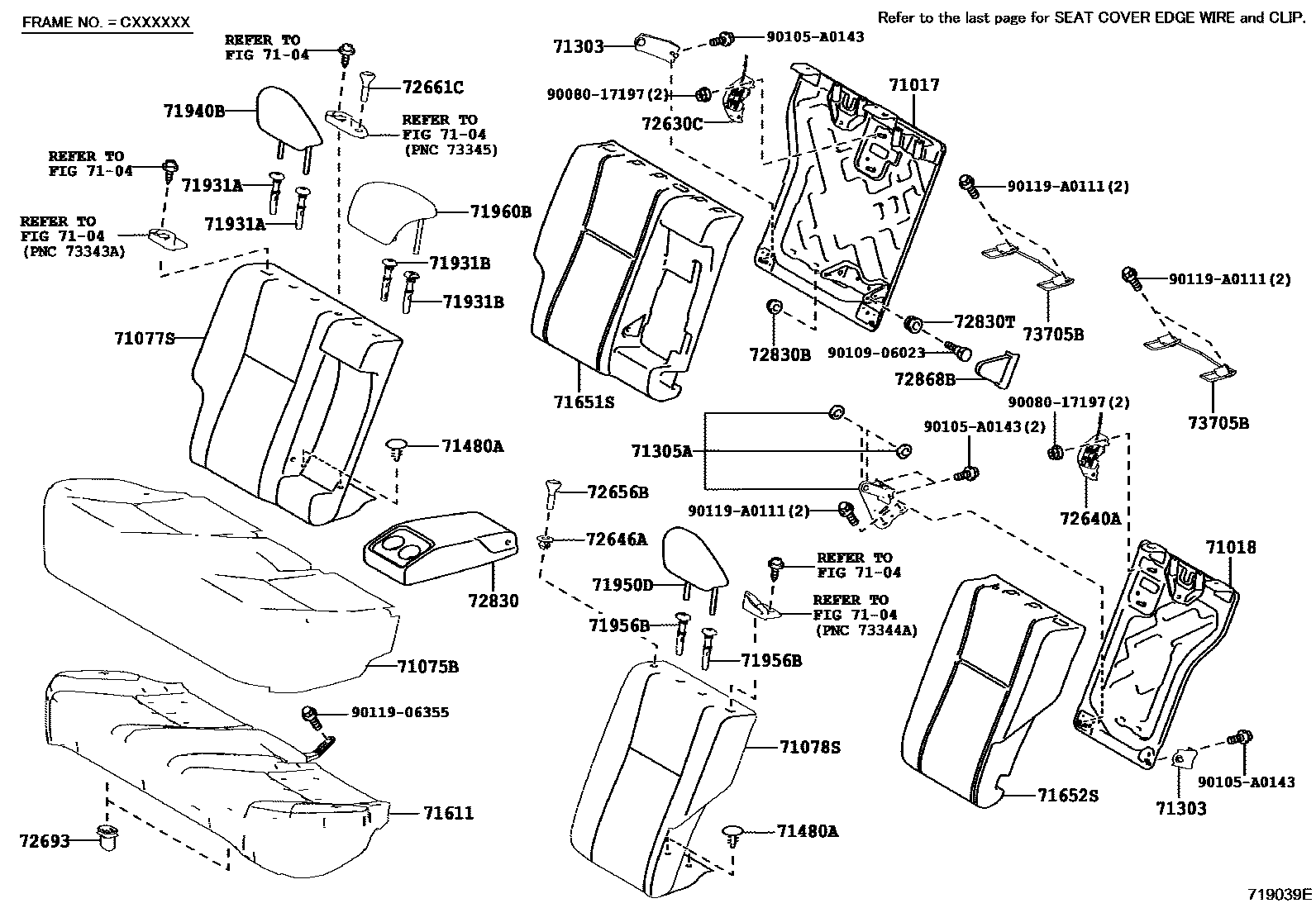

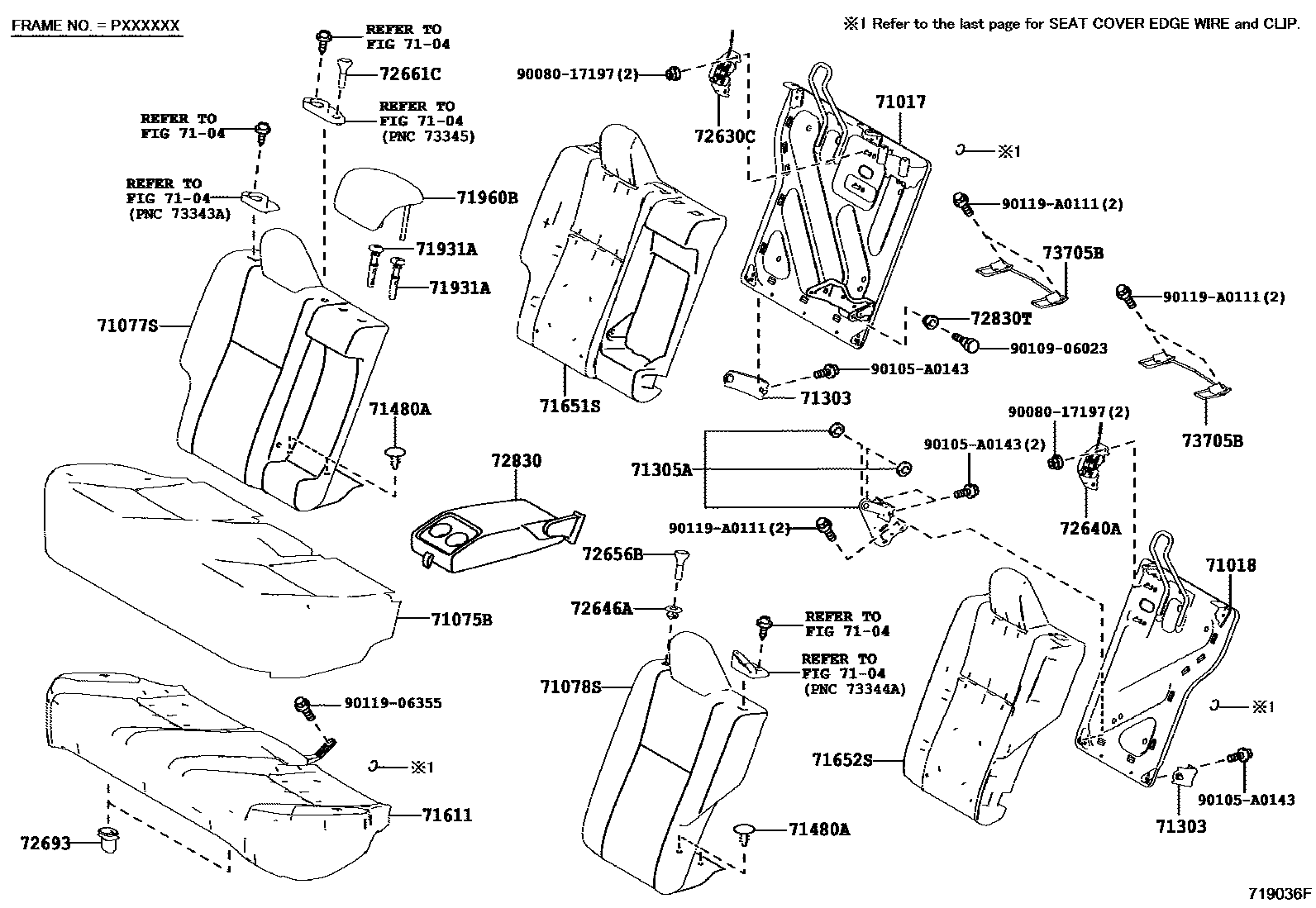

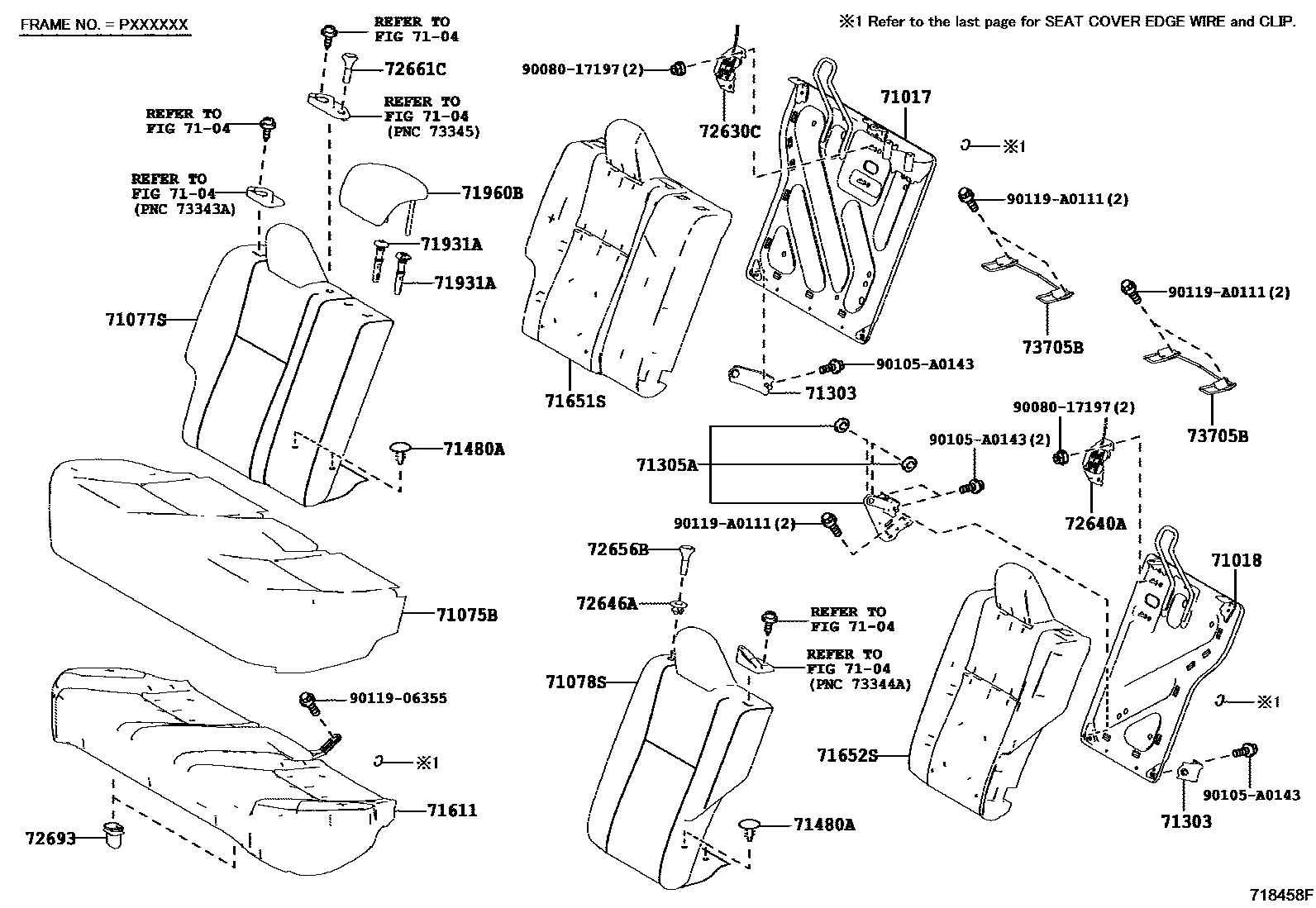

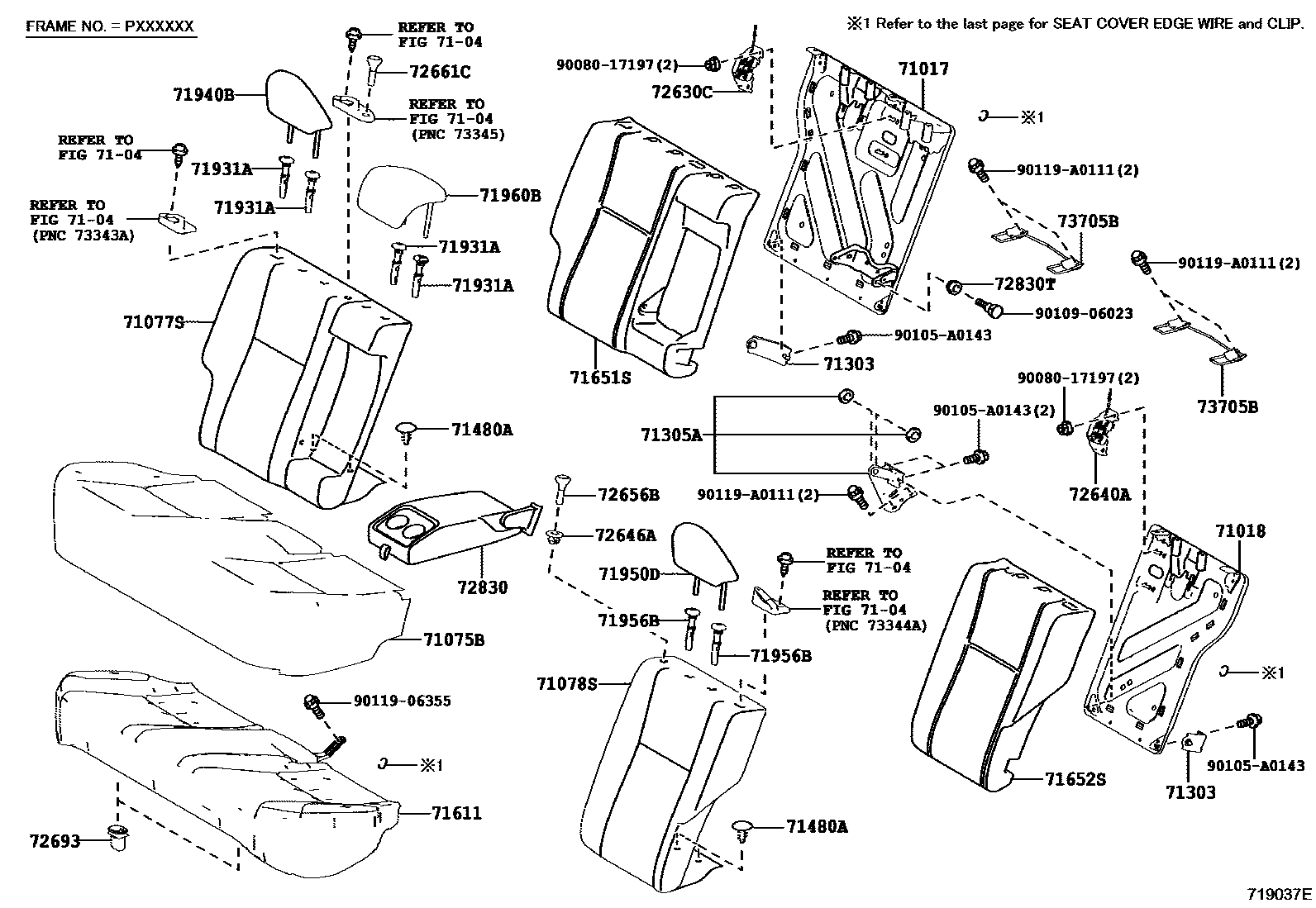

Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 9 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-02580 · 71017-02590 · 71017-02620 · 71017-02630 · 71017-02880 · 71017-02890 · 71017-02A20 · 71017-02A30 |
| 71018 | Rear left seat back frame sub-assembly | 71018-02330 · 71018-02340 · 71018-02390 · 71018-02400 |
| 71303 | Rear seat back hinge sub-assembly | 71303-02220 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-02230 |
| 71611 | Rear seat cushion cushion | 71503-02280 · 71503-02281 · 71503-02450 · 71503-02451 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-02520 · 71651-02521 · 71651-02560 · 71651-02720 · 71651-02721 · 71651-02730 · 71651-02770 · 71651-02771 · 71651-02780 · 71651-02781 · 71651-02790 · 71651-02791 · 71651-02800 · 71651-02802 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-02450 · 71652-02451 · 71652-02510 · 71652-02511 · 71652-02660 · 71652-02661 · 71652-02670 · 71652-02672 |
| 71940B | Rear right seat headrest assembly | 71940-02K30 |
| 71950D | Rear left seat headrest assembly | 71940-02K30 |
| 71953A | Rear right seat headrest cushion | 71906-02320 |
| 71954A | Rear left seat headrest cushion | 71906-02320 |
| 72630C | Rear right seat back lock assembly | 72630-02120 |
| 72640A | Rear left seat back lock assembly | 72640-02120 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 72830B | Bushing (for rear seat center armrest) | 90386-06011 |
| 72830T | Bushing (for rear seat center armrest) | 72622-02010 · 90386-08077 |
| 73705B | Cross anchor bracket sub-assembly | 73705-02220 · 73705-02340 |
