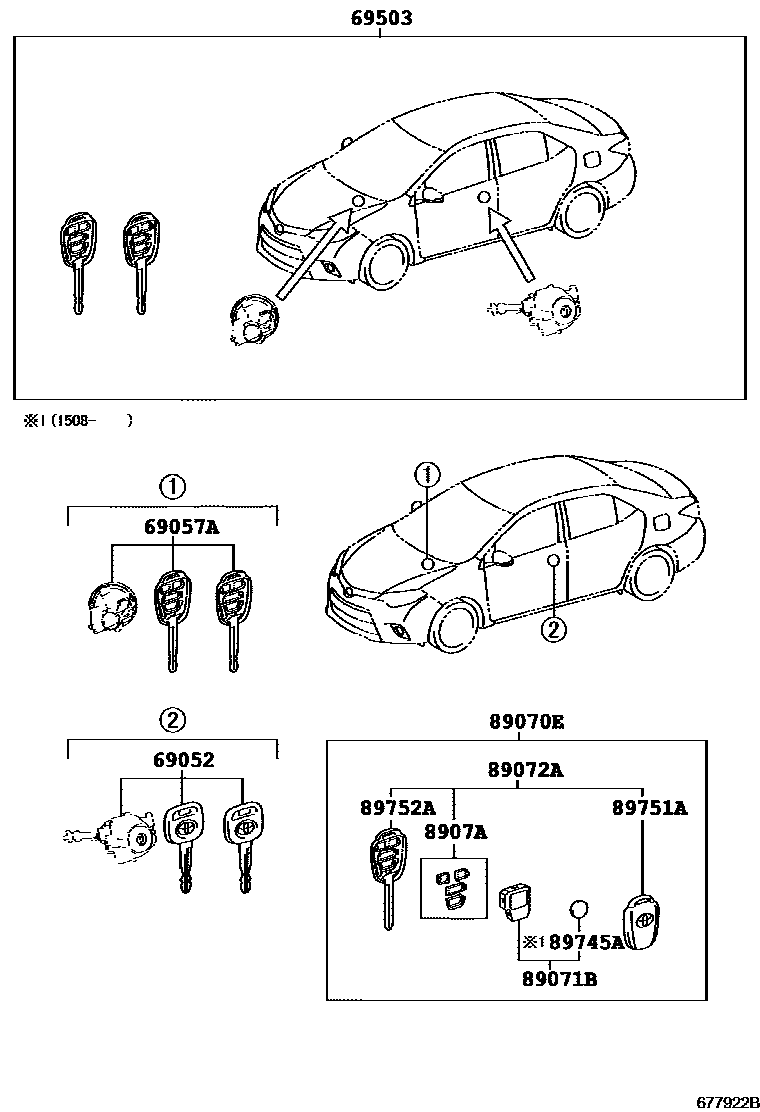

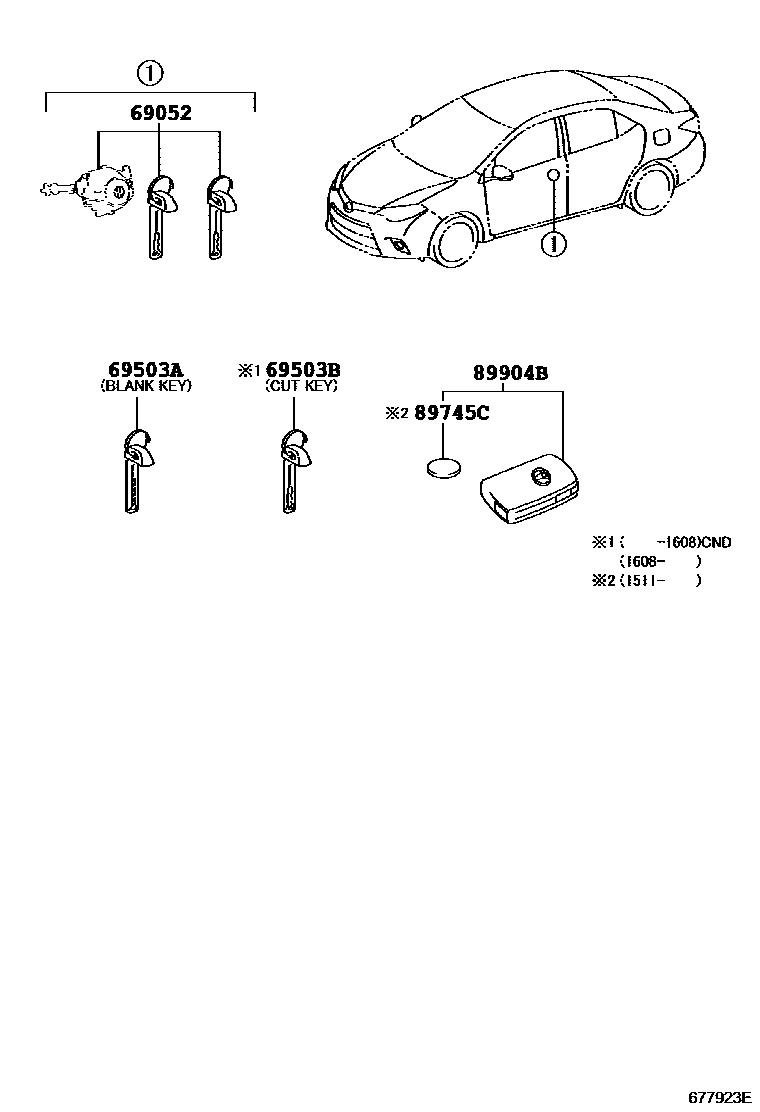

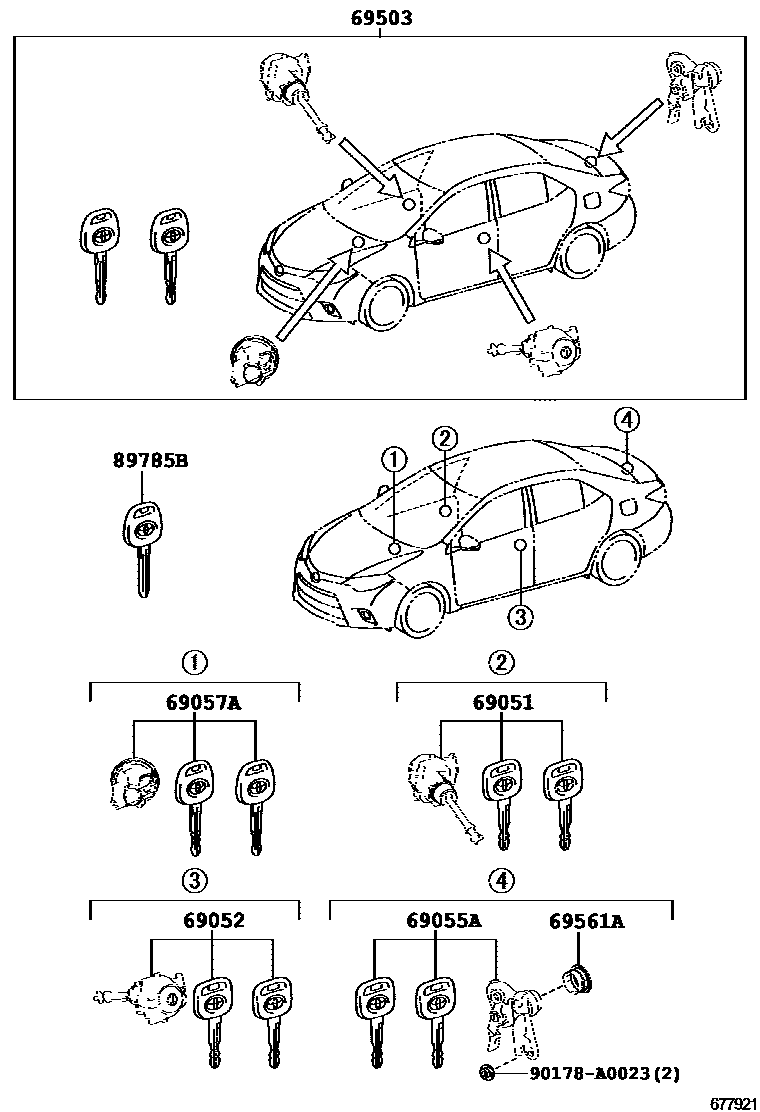

Toyota COROLLA 锁芯组件 — Figure 6712
Toyota COROLLA EPC diagram 6712, 锁芯组件, with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-02250 |
| 69052 | Left door lock cylinder and key assembly | 69052-02260 · 69052-02270 · 69052-02280 |
| 69055A | Luggage lock cylinder and key assembly | 69055-02260 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-02720 · 69057-0R050 |
| 69503 | Door lock cylinder components | 69005-02A20 · 69005-02A30 |
| 69503A | external tooth key | 69515-06030 · 69515-33100 |
| 69503B | internal tooth key | 69515-06020 · 69515-33090 |
| 69561A | Luggage lock core fixing parts | 69561-02030 |
| 89070E | Remote key assembly | 89070-02880 · 89070-02882 · 89070-02A50 · 89070-02A52 |
| 89071B | Remote key sub-assembly module assembly | 89071-02130 · 89071-02131 · 89071-02140 · 89071-02141 |
| 89072A | Remote key shell assembly | 89072-02560 · 89072-02580 · 89072-02591 |
| 8907A | Transmitter switch assembly | 8907A-33030 |
| 89745A | Transmitter battery | 89745-48030 |
| 89745C | Transmitter battery | 89745-45010 |
| 89751A | Transmitter housing cover | 89751-02020 · 89751-0R050 · 89751-42090 |
| 89752A | transmitter housing | 89752-0R040 · 89752-0R041 |
| 89785B | transceiver key master transmitter | 89785-0D170 |
| 89904B | Electronic key transmitter sub-assembly | 89904-06140 |
