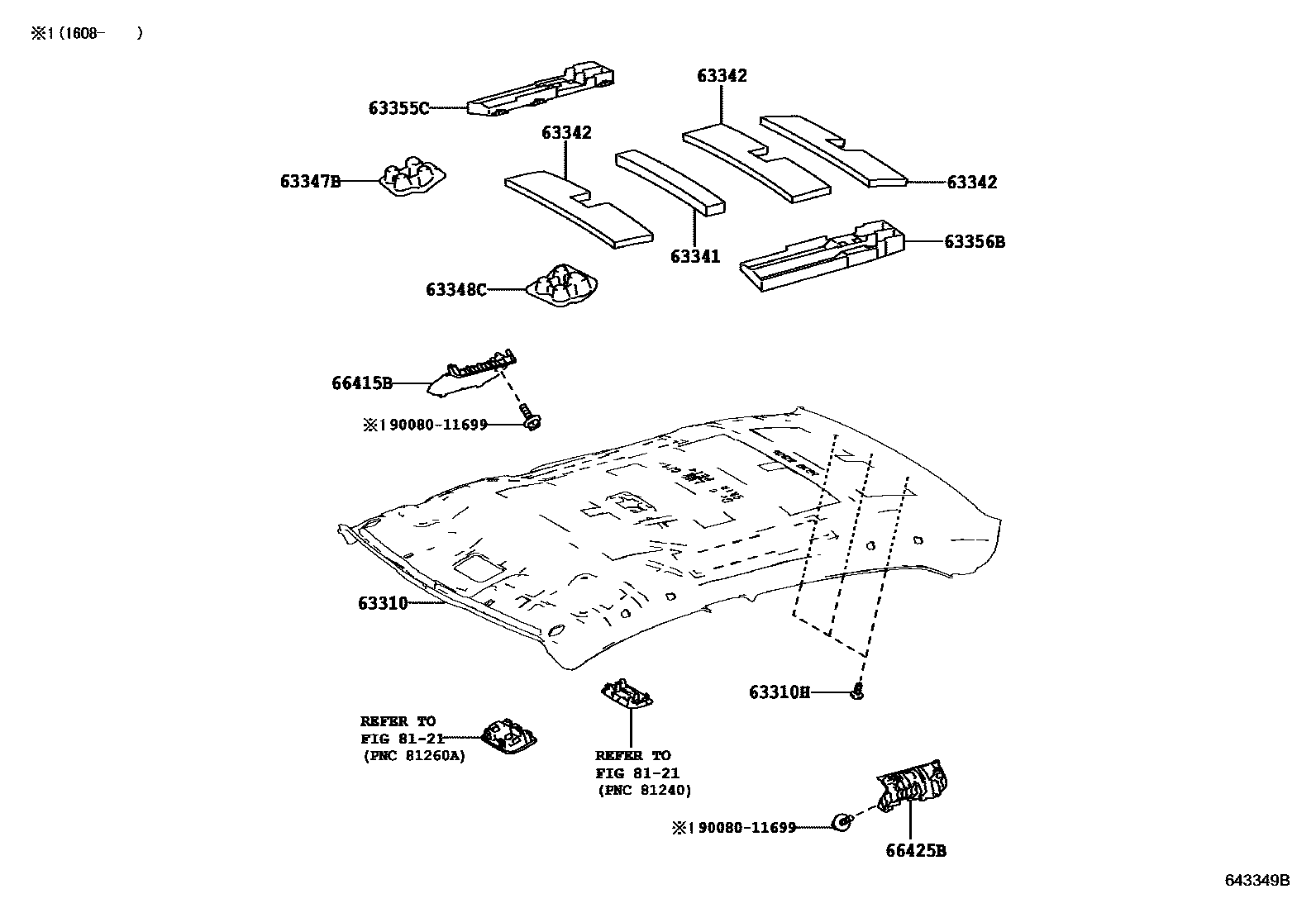

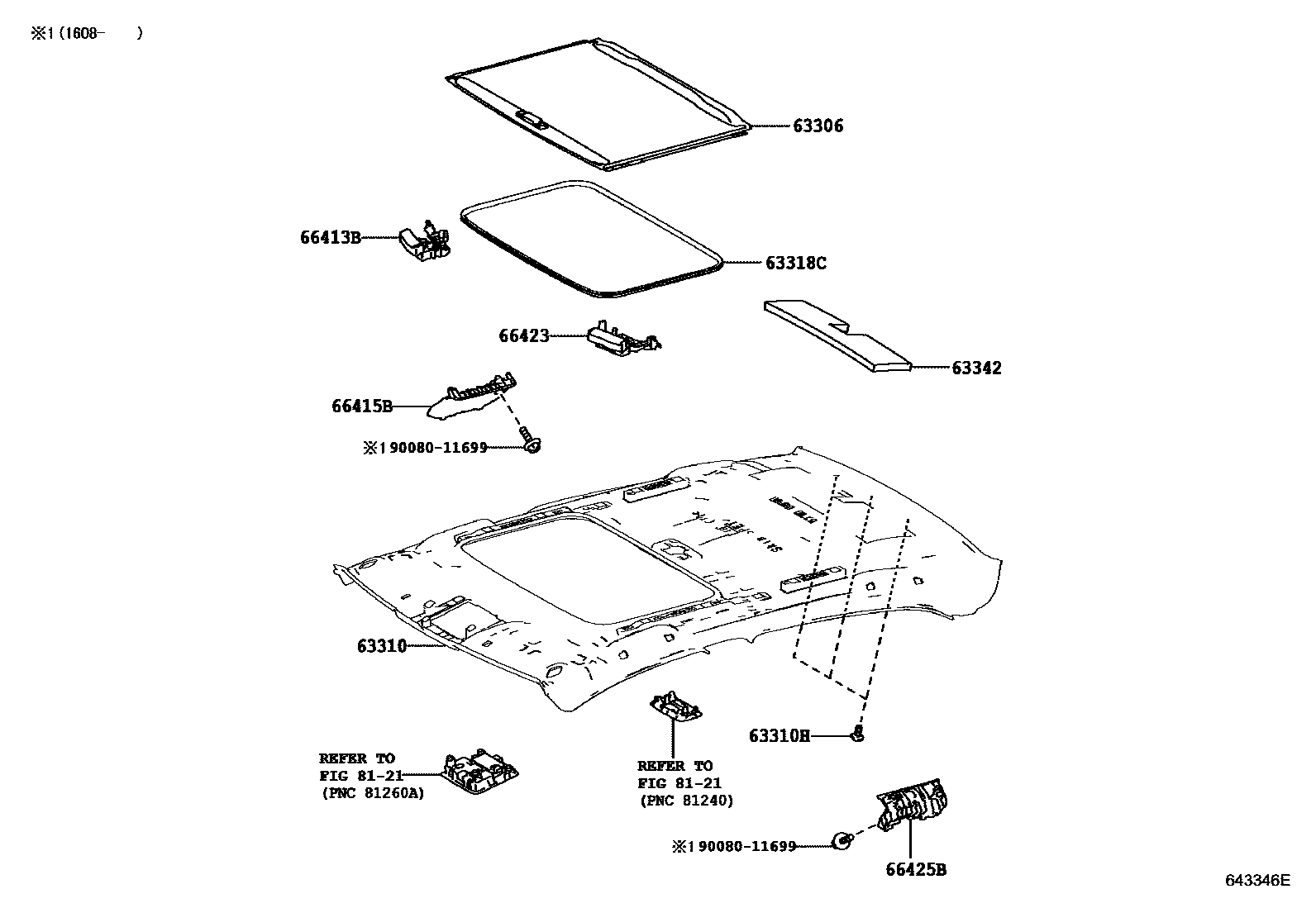

Toyota COROLLA 车顶内衬和消声垫 — Figure 6402
Toyota COROLLA EPC diagram 6402, 车顶内衬和消声垫, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63341 | No. 1 roof silencer mat | 63342-02400 |
| 63342 | No. 2 roof muffler pad | 63342-02410 |
| 63347B | Roof right longitudinal beam muffler pad | 63347-02080 |
| 63348C | Roof left side rail silencer pad | 63348-02060 |
| 63355C | Right side roof lining | 63355-02040 |
| 63356B | Roof left inner lining block | 63356-02040 |
| 66413B | Right front longitudinal member spacer | 66413-02170 |
| 66415B | No. 2 right rear longitudinal beam spacer | 66415-02091 · 66415-02160 |
| 66423 | Left front longitudinal member spacer | 66423-02170 |
| 66425B | No. 2 left rear longitudinal beam spacer | 66425-02090 · 66425-02101 |
