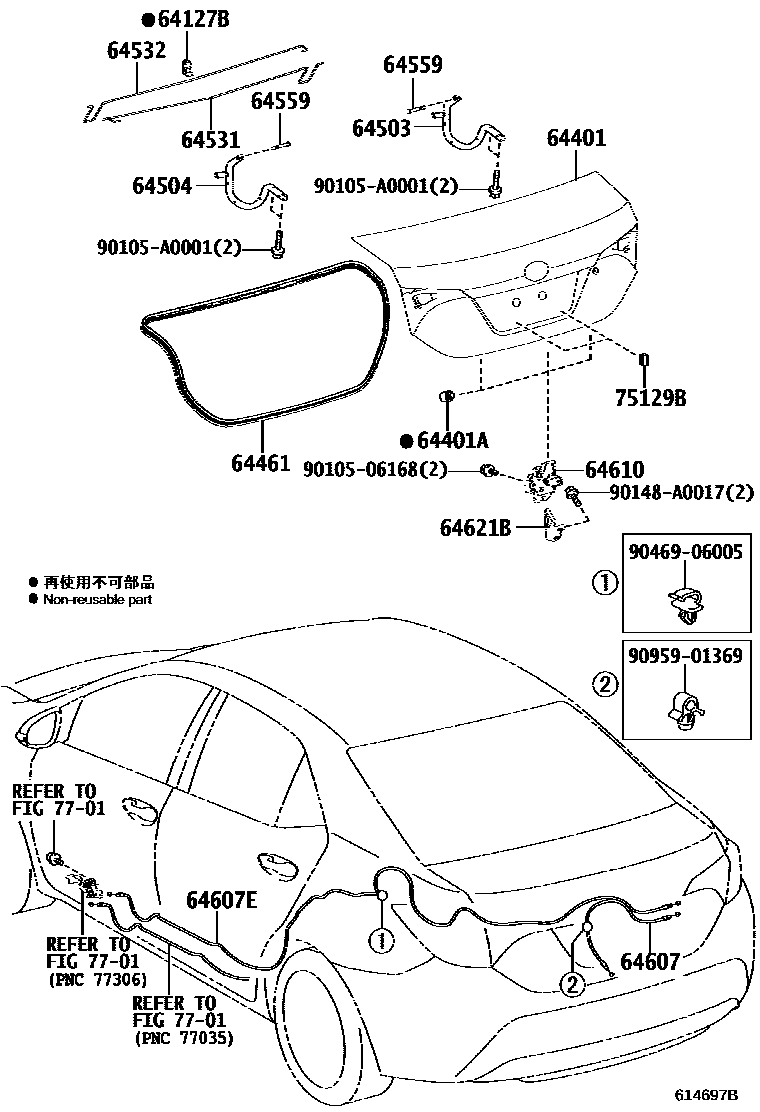

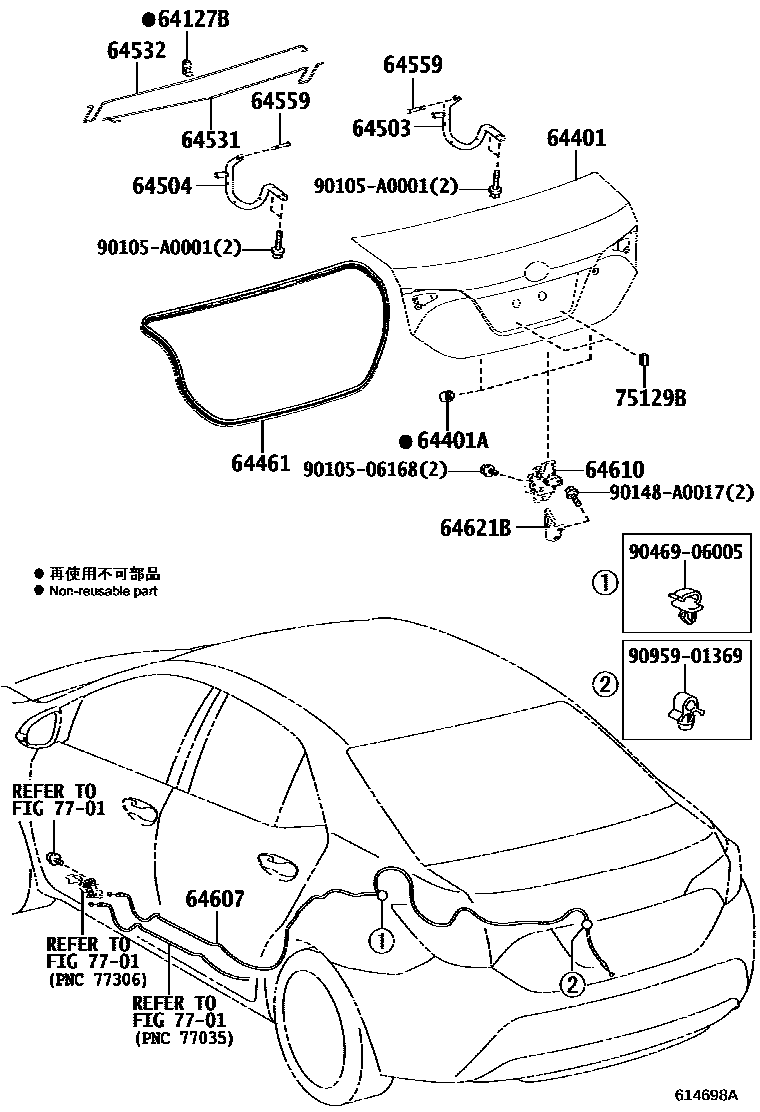

Toyota COROLLA 行李箱门和行李箱锁 — Figure 6105
Toyota COROLLA EPC diagram 6105, 行李箱门和行李箱锁, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64127B | Trunk door torsion bar bracket | 64127-06052 |
| 64401 | Trunk door panel sub-assembly | 64401-02830 · 64401-02850 · 64401-02870 · 64401-02B10 · 64401-02B20 · 64401-02B30 |
| 64401A | Cushion pad (for luggage compartment door panel) | 90541-09069 |
| 64461 | Trunk door seal | 64461-02180 |
| 64503 | Trunk door right hinge arm sub-assembly | 64503-02120 |
| 64504 | Trunk door left hinge arm sub-assembly | 64503-02120 |
| 64531 | Trunk door right hinge torsion bar | 64531-02130 · 64531-02140 · 64531-02680 · 64531-02690 |
| 64532 | Trunk door left hinge torsion bar | 64532-02130 · 64532-02140 · 64532-02680 · 64532-02690 |
| 64559 | Trunk door hinge pin | 64559-12040 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-02330 · 64607-02440 |
| 64607E | Trunk door lock control cable sub-assembly | 64607-02430 |
| 64610 | Trunk door lock assembly | 64600-02030 · 64600-02031 · 64610-02170 · 64610-02171 |
| 64621B | Trunk door latch | 64621-02020 |
| 75129B | rear license plate cushion | 75129-AC010 |
