Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104

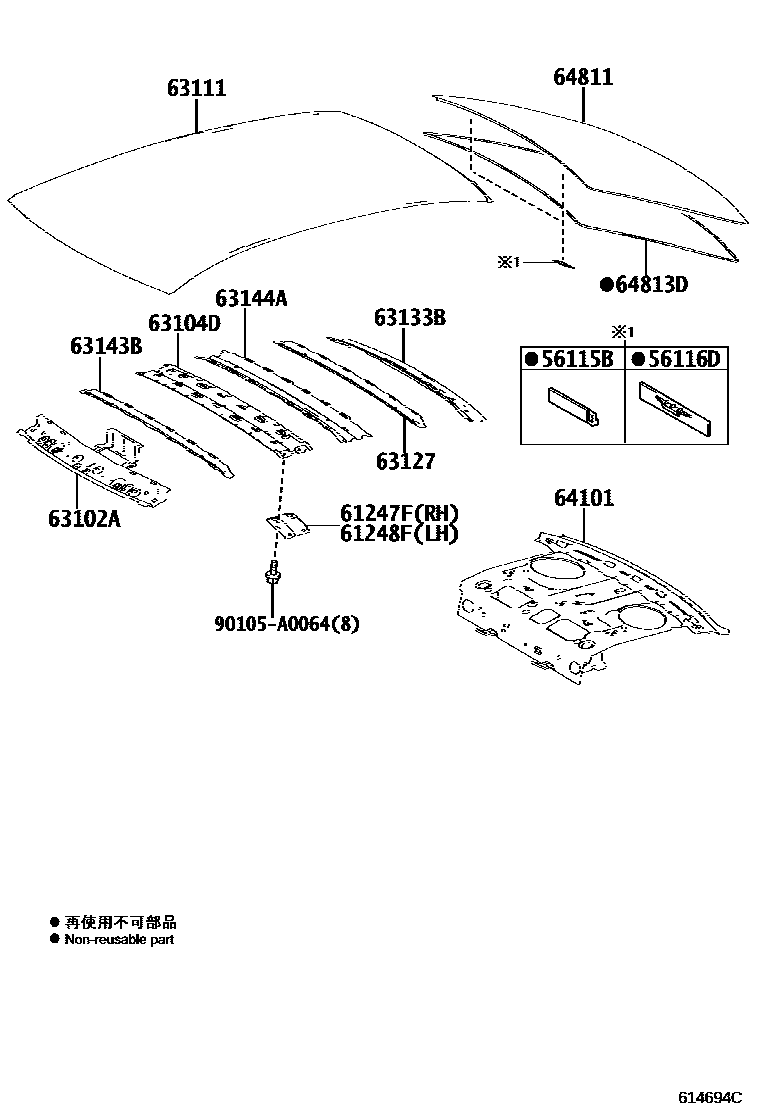

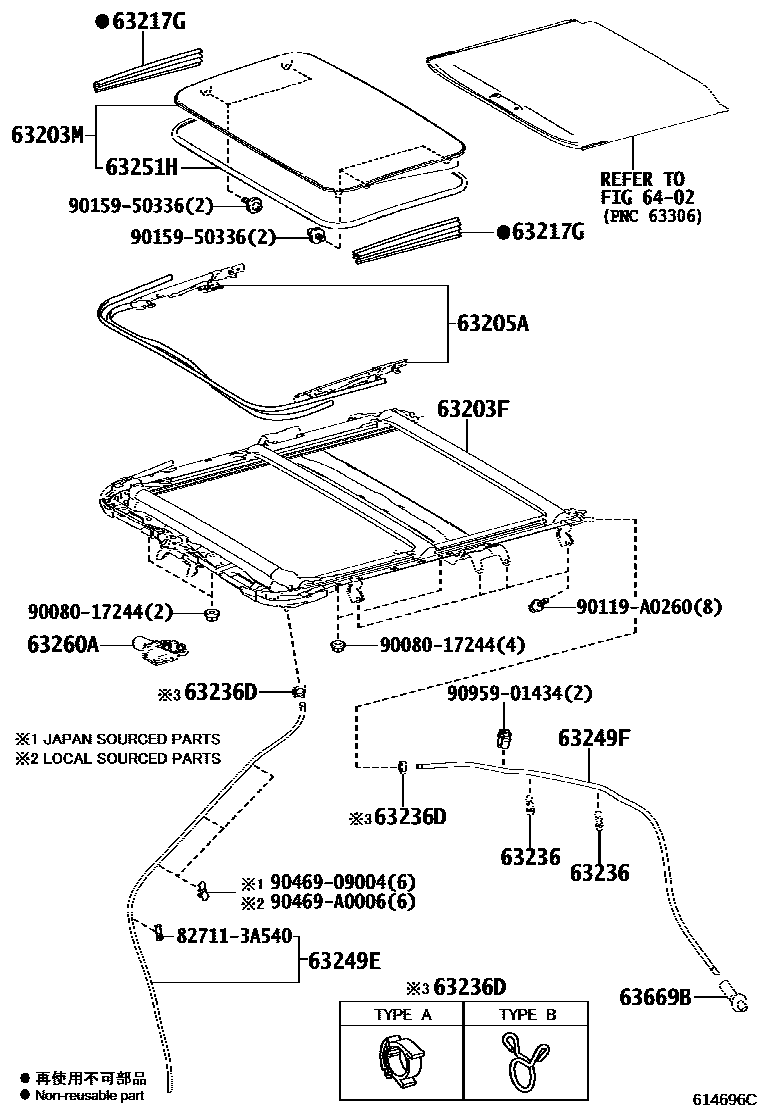

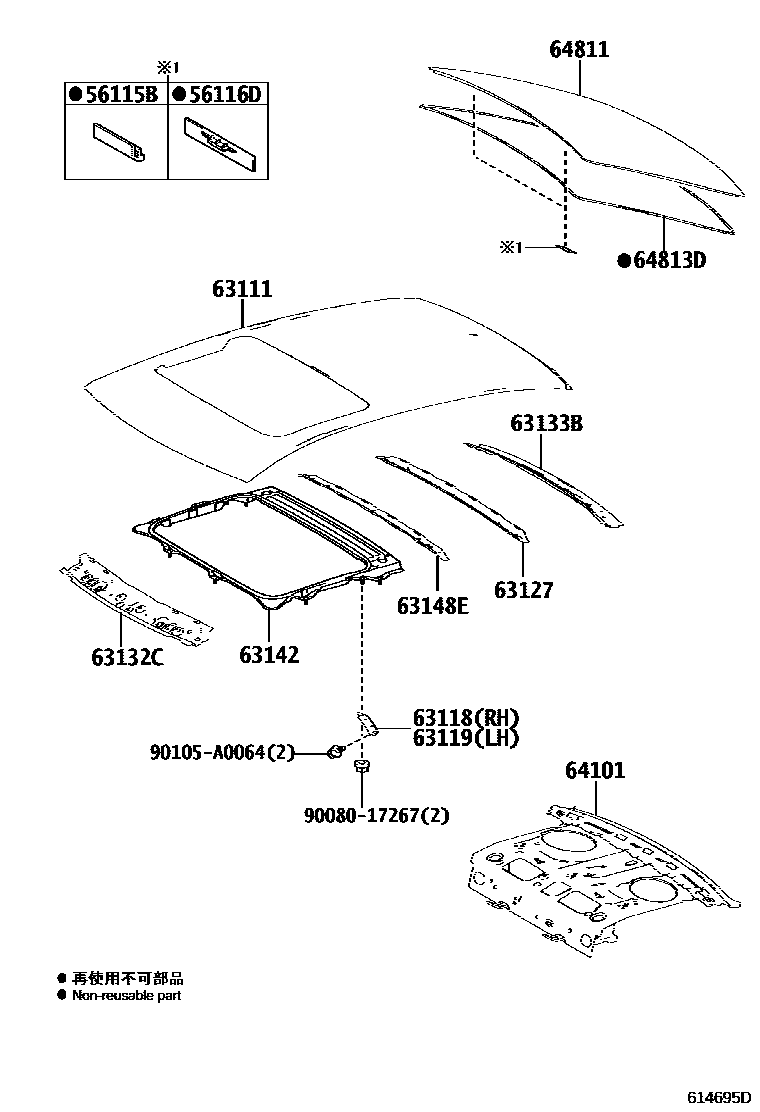

Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 3 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56115-30120 |
| 56116D | No. 2 stopper for back window glass | 56116-22050 |
| 61247F | Roof inner longitudinal beam reinforcement | 61247-02140 |
| 61248F | Roof left inner longitudinal beam reinforcement | 61248-02020 |
| 63102A | Windshield roof sub-assembly | 63102-02270 |
| 63104D | No. 2 roof panel reinforcement sub-assembly | 63104-02100 |
| 63111 | roof panel | 63111-02400 · 63111-02410 · 63111-02420 · 63111-02430 |
| 63118 | Right roof panel bracket | 63118-02070 |
| 63119 | Left roof panel bracket | 63118-02070 |
| 63127 | No. 5 roof panel reinforcement | 63127-02060 |
| 63132C | Windshield inner roof panel | 63132-02170 |
| 63133B | back window frame | 63133-02110 |
| 63142 | No. 2 roof panel reinforcement | 63142-02080 · 63142-02081 |
| 63143B | No. 3 roof panel reinforcement | 63143-02130 |
| 63144A | No. 4 roof panel reinforcement | 63144-02160 |
| 63148E | Left roof panel reinforcement bracket | 63148-02070 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-02070 · 63203-02072 |
| 63203M | No. 2 skylight glass sub-assembly | 63201-02120 |
| 63205A | Sliding sunroof transmission cable sub-assembly | 63205-02020 · 63205-02021 |
| 63217G | Right sliding sunroof trim | 63217-06040 · 63217-06180 |
| 63236 | Sliding skylight or removable skylight drain hose clamp | 63236-30010 |
| 63236D | Sliding skylight drain hose clamp | 63236-33030 · 90466-A0008 |
| 63249E | Sliding skylight drain hose | 63249-02300 |
| 63249F | Sliding skylight drain hose | 63249-02310 |
| 63251H | Sliding skylight seal | 63251-02070 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-02110 |
| 63669B | Sliding skylight drain seal | 90480-26026 |
| 64101 | Upper back panel sub-assembly | 64101-02290 |
| 64811 | back window glass | 64801-02170 |
| 64813D | Back window glass adhesive seal | 64813-12230 |
