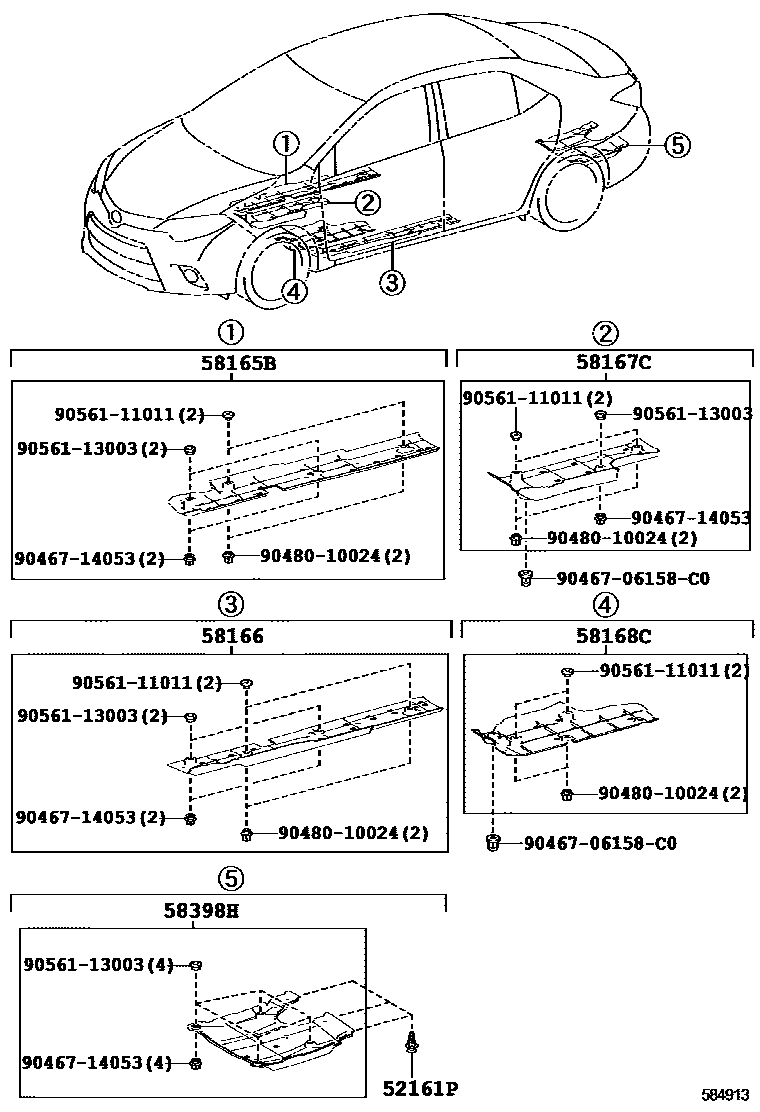

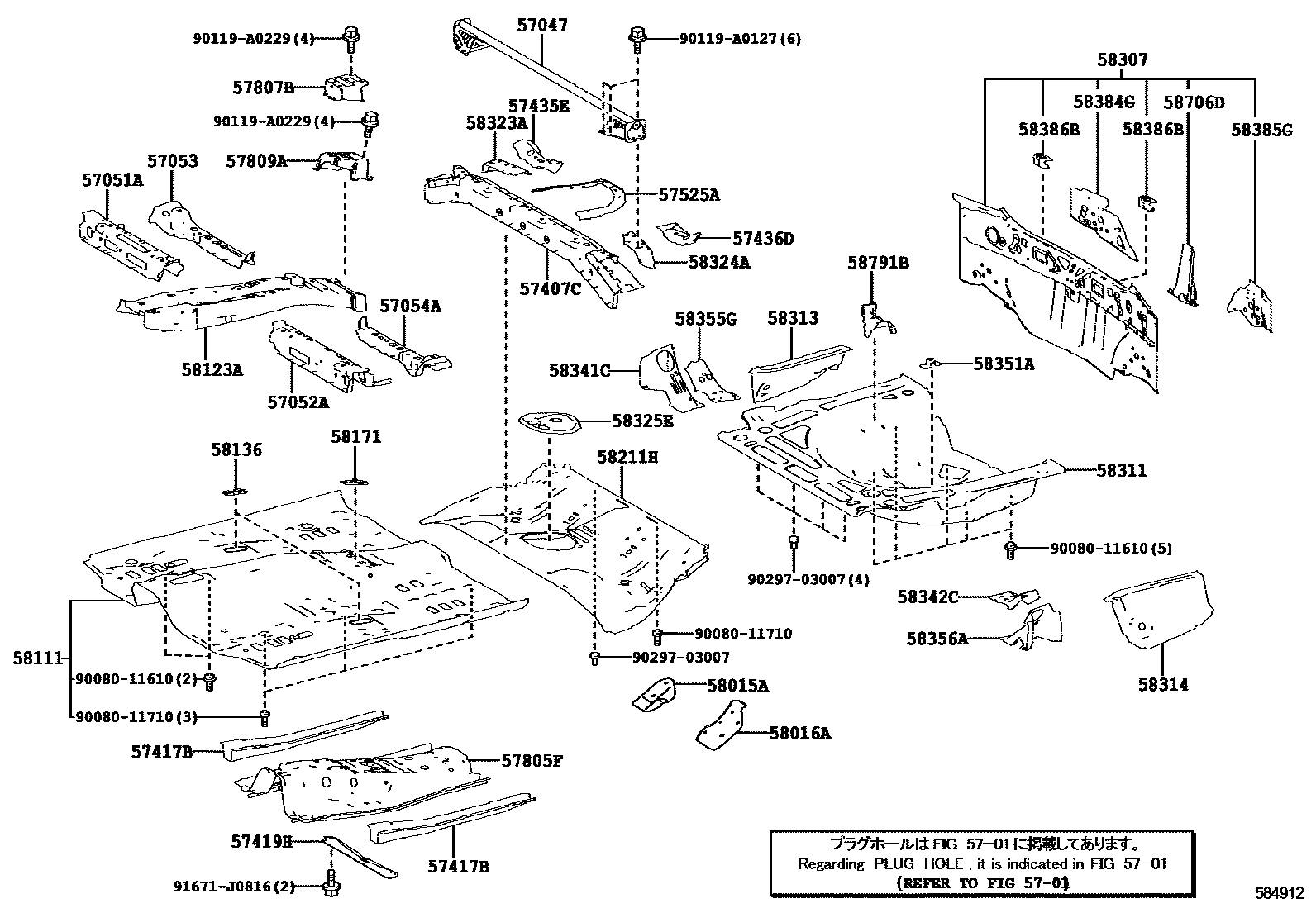

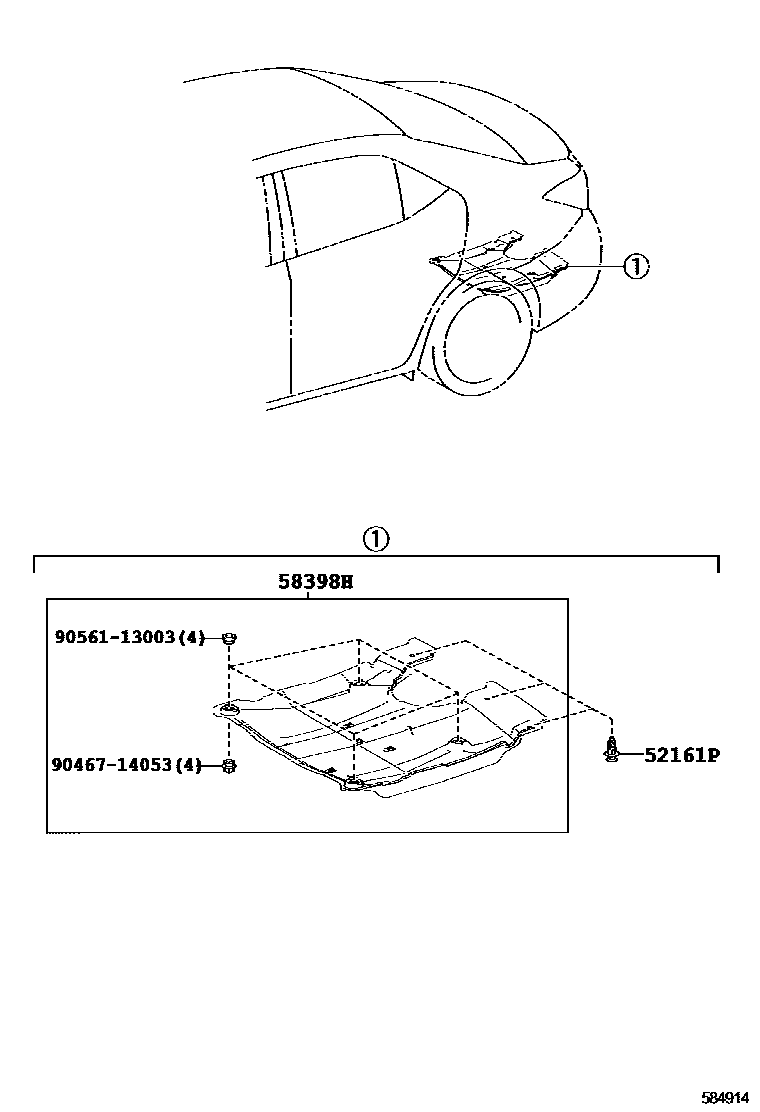

Toyota COROLLA 浅盘形地板和车身下背板 — Figure 5801
Toyota COROLLA EPC diagram 5801, 浅盘形地板和车身下背板, with 3 images and 44 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161P | Rear bumper insert | 52161-02020 |
| 57047 | SS-ENS. PLAQUE DE JONCTION, TRAVERSE DE PLANCHER CENTRALE | 57047-02060 |
| 57051A | Front floor right cross member sub-assembly | 57051-02020 · 57051-02021 |
| 57052A | Front floor left cross member sub-assembly | 57052-02020 · 57052-02021 |
| 57053 | Front floor right cross member reinforcement sub-assembly | 57053-02020 |
| 57054A | Front floor left cross member reinforcement sub-assembly | 57054-02020 · 57054-02021 |
| 57407C | Center floor No. 1 beam sub-assembly | 57407-02190 |
| 57417B | Front underfloor reinforcement | 57417-02150 |
| 57419H | RENFORCEMENT AR INFERIEUR DE PLANCHER AV | 57419-02020 |
| 57435E | Center floor right longitudinal beam | 57435-02030 |
| 57436D | Center floor left longitudinal beam | 57436-02030 |
| 57525A | Central floor plate No. 1 | 57525-02010 |
| 57805F | No. 1 seat belt anchor reinforcement sub-assembly | 57805-02050 |
| 57807B | No. 2 seat belt anchor reinforcement sub-assembly | 57807-02020 |
| 57809A | No. 3 seat belt anchor reinforcement sub-assembly | 57809-02010 |
| 58015A | Right No. 3 seat belt anchor reinforcement sub-assembly | 58015-02070 |
| 58016A | Left No. 3 seat belt anchor reinforcement sub-assembly | 58016-02070 · 58016-02071 |
| 58111 | front floor pan | 58111-02936 |
| 58123A | shift lever bracket | 58013-02110 |
| 58136 | Front floor hole cover | 58136-06050 · 58136-33010 |
| 58165B | Front floor right cover | 58165-02070 |
| 58166 | Front floor left cover | 58166-02050 |
| 58167C | Front floor center right cover | 58167-02100 |
| 58168C | Front floor center left cover | 58168-02090 |
| 58171 | Parking brake base reinforcement | 58176-02020 |
| 58211H | central floor base | 58211-02270 |
| 58307 | Body lower back panel sub-assembly | 58307-02350 |
| 58311 | rear floor pan | 58311-02904 |
| 58313 | Rear floor right panel | 58313-02040 |
| 58314 | rear floor left panel | 58314-02040 |
| 58323A | Center to right rear mounting bracket | 58323-02030 |
| 58324A | Center to left rear mounting bracket | 58324-02030 |
| 58325E | Rear floor access hole cover | 58325-02110 |
| 58341C | No. 1 right rear shock absorber mounting bracket | 58341-02030 |
| 58342C | No. 1 left rear shock absorber mounting bracket | 58342-02030 |
| 58351A | Spare tire rack bracket | 58351-33010 |
| 58355G | Floor right panel reinforcement | 58355-02010 |
| 58356A | Floor left panel reinforcement | 58356-02010 |
| 58384G | Body lower back panel upper right corner panel | 58384-02160 |
| 58385G | Body lower back panel upper left corner panel | 58385-02130 |
| 58386B | Rear bumper cover bracket No. 2 | 58386-02030 |
| 58398H | No. 1 floor under cover | 58398-02070 |
| 58706D | No. 1 jack bracket bracket sub-assembly | 58706-02010 |
| 58791B | jack bracket | 58791-02010 |
