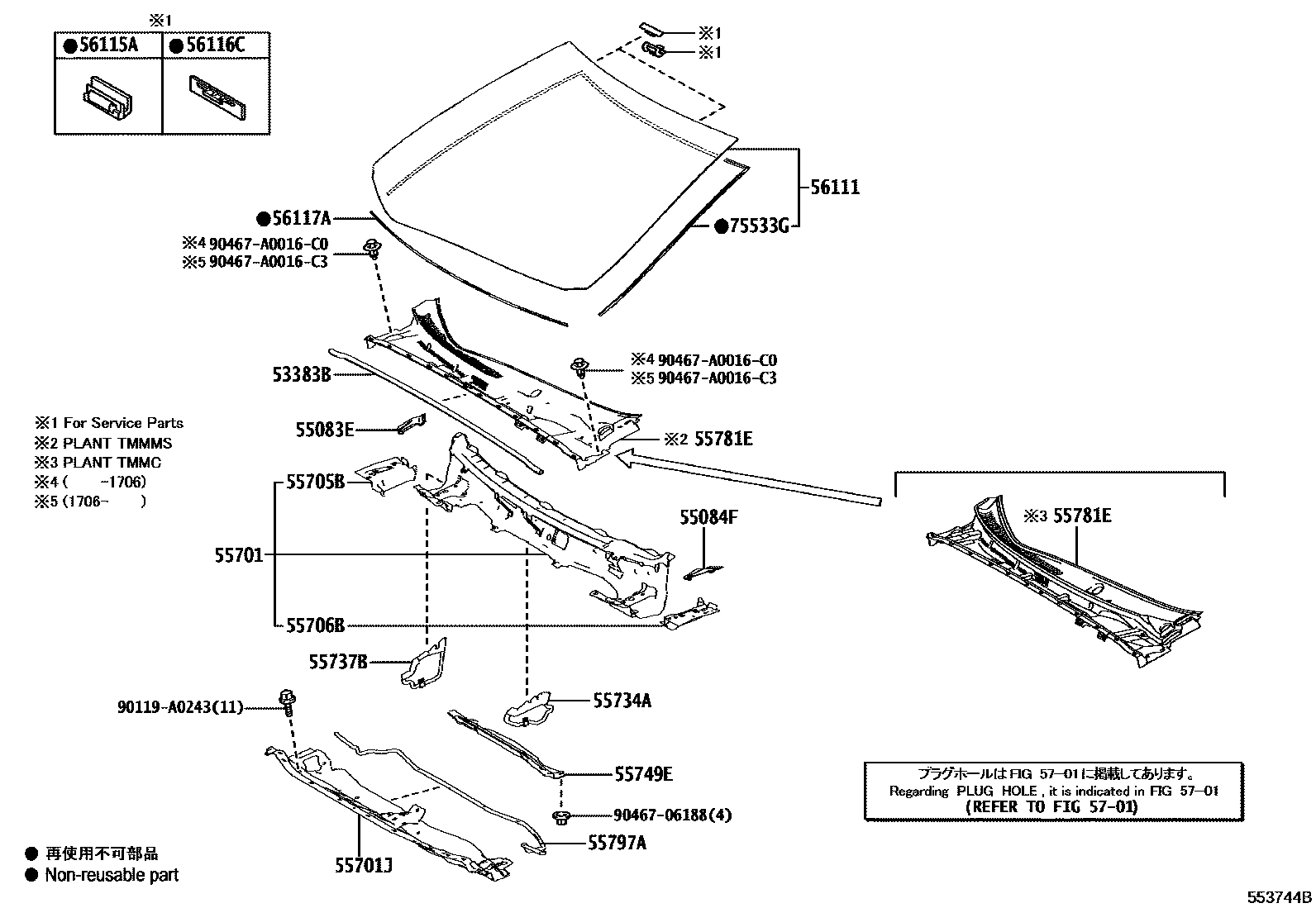

Toyota COROLLA 前围板和挡风玻璃 — Figure 5503
Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-02180 |
| 55083E | Right cowl side ventilation device sub-assembly | 55083-02010 |
| 55084F | Left front wall side ventilation device sub-assembly | 55084-02250 |
| 55701 | Front apron sub-assembly | 55700-02491 |
| 55701J | Front wall upper outer panel sub-assembly | 55701-02360 · 55701-02500 |
| 55705B | Right front wall upper side panel sub-assembly | 55705-02121 |
| 55706B | Left front wall upper side panel sub-assembly | 55706-02121 |
| 55734A | Right waterproof cover | 55734-02200 |
| 55737B | Heater duct splash guard seal No. 1 | 55737-02120 |
| 55749E | Front wall upper cover No. 2 heat insulation panel | 55749-02100 |
| 55781E | Ventilation grille sub-assembly on front apron | 55708-02550 · 55708-02560 · 55708-02710 |
| 55797A | Front wall pumping device seal | 55797-02080 |
| 56111 | windshield | 56101-02C50 · 56101-02L50 · 56101-02L51 · 56101-02L60 · 56101-02L61 |
| 56115A | Windshield block No. 1 | 56115-30120 |
| 56116C | Windshield block 2 | 56116-22050 |
| 75533G | Windshield outer protective strip | 75531-02210 |
